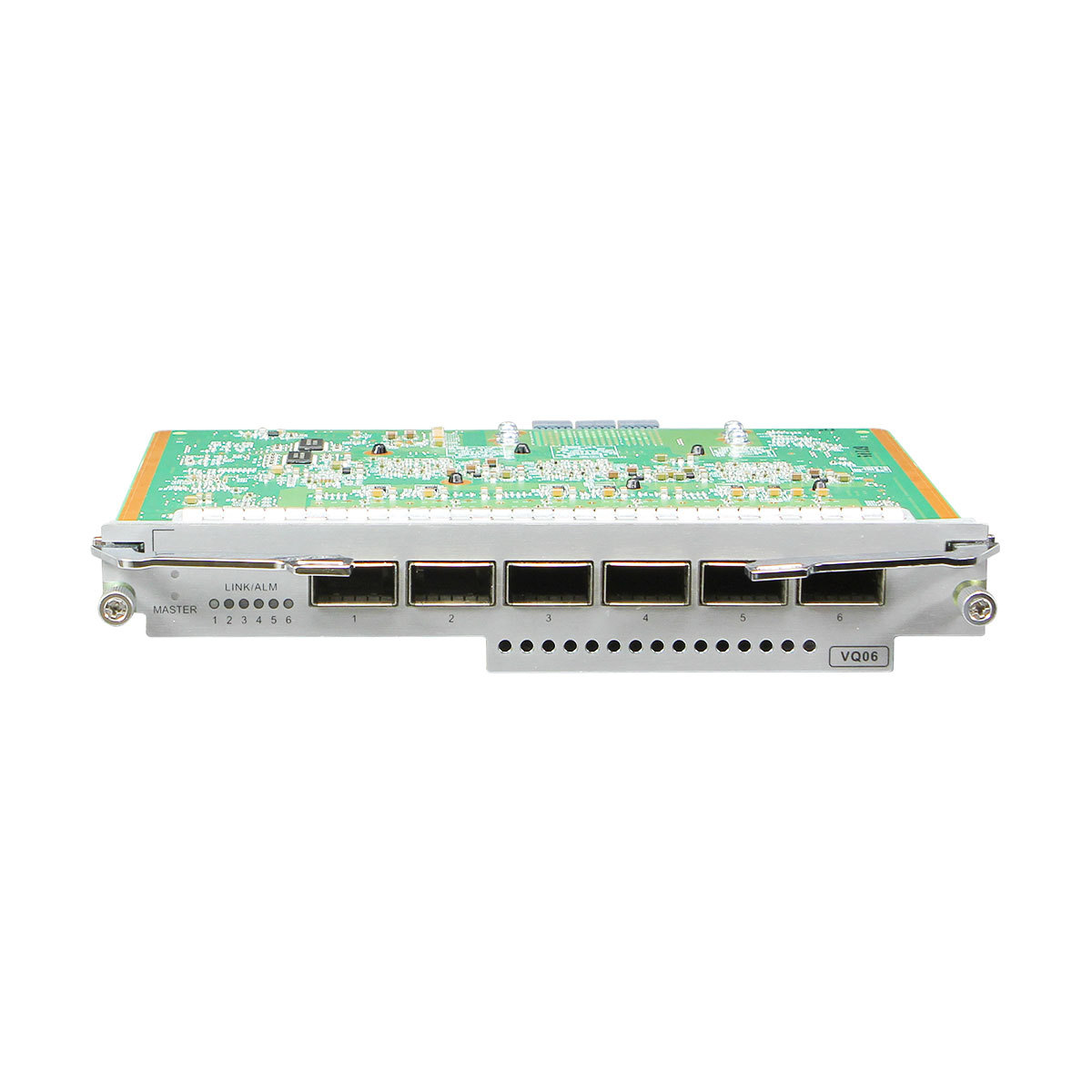

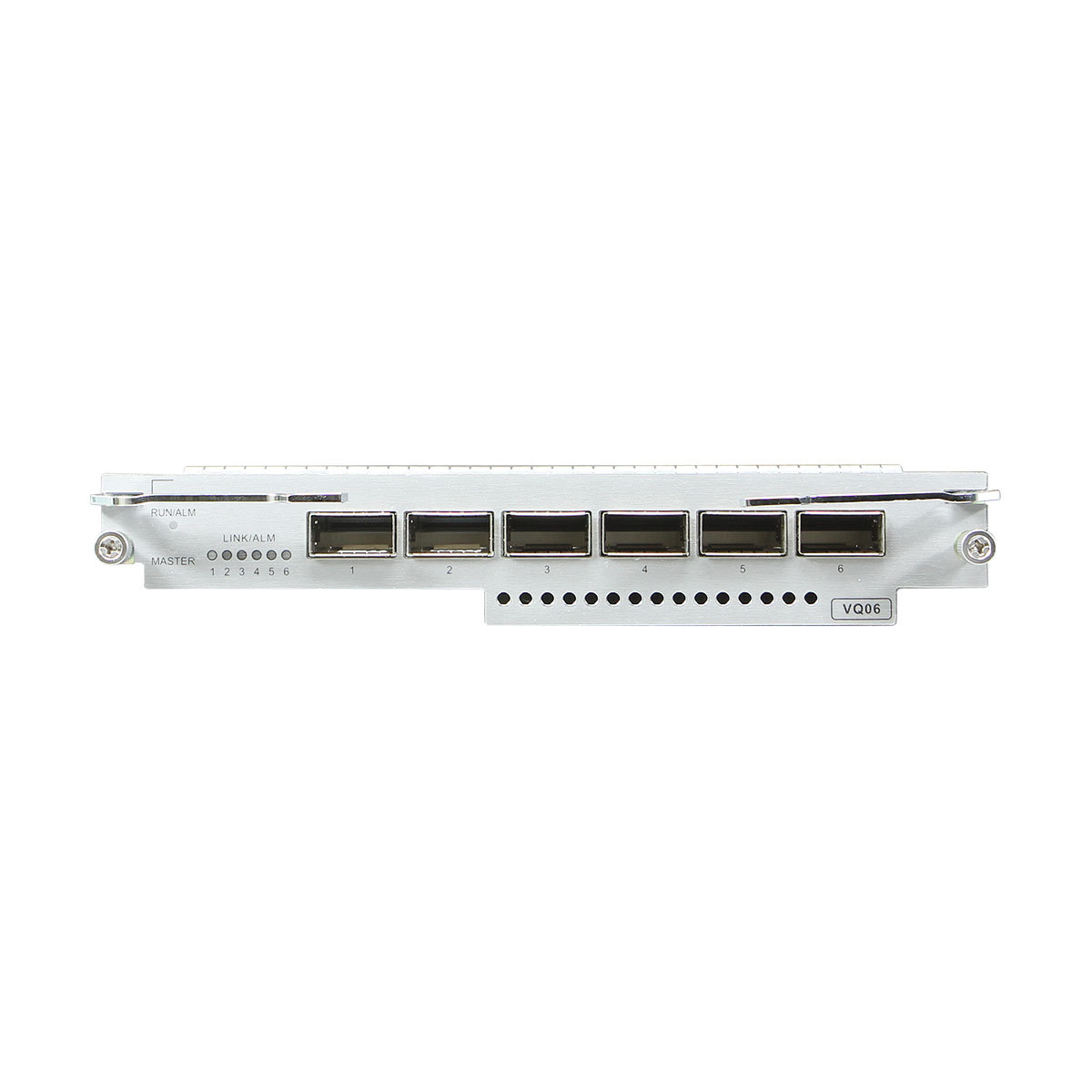

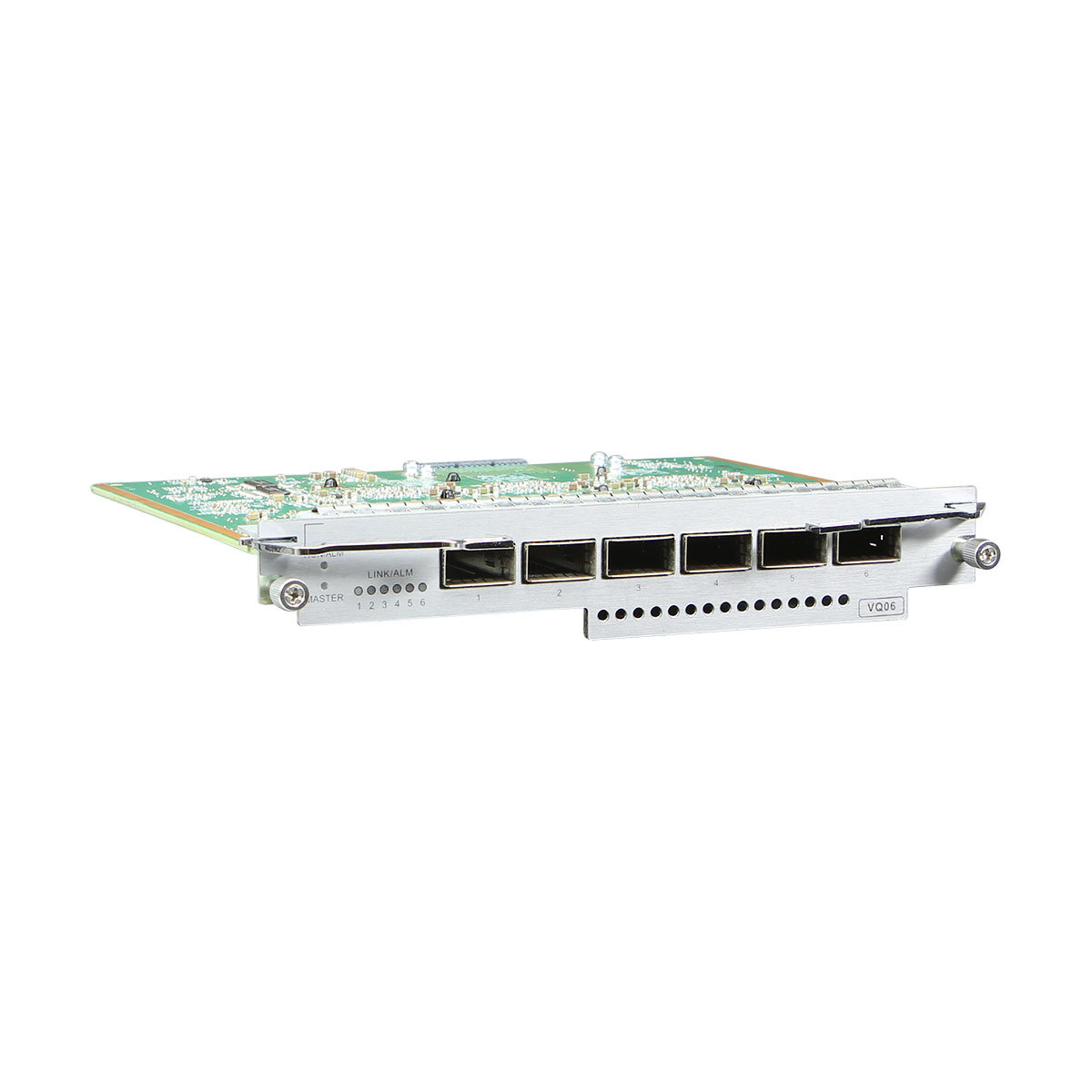

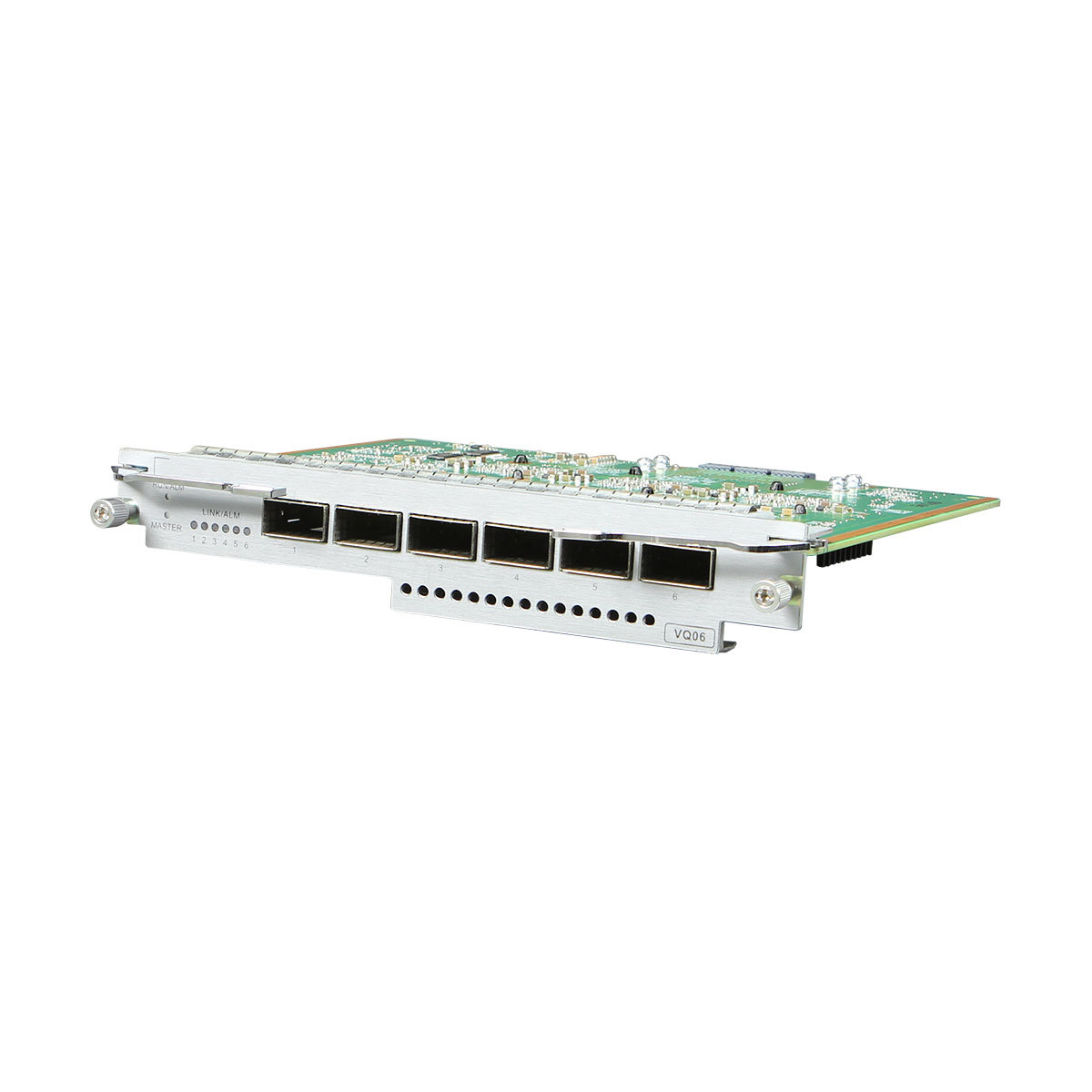

Huawei S12700 ET1D2VQ06000 6-Port 40GE Cluster Switching System Service Unit (QSFP+).
The ET1D2VQ06000 provides six 40GE optical ports, which can only be used for cluster connection and cannot be used for data transmission and switching.
The ET1D2VQ06000 can be installed in the subcard slot of an ET1D2SFUC000 or ET1D2SFUD000.
Functions of the ET1D2VQ06000
Switches connected through optical ports on the ET1D2VQ06000 cards form a cluster switch system (CSS) and are considered as one device. You can log in to the master switch to manage all the switches in the CSS.
Ports on the ET1D2VQ06000
Attribute
Description
Connector type
QSFP+
Optical port attribute
When a 1 m, 3 m, or 5 m QSFP+ to QSFP+ high-speed cable is connected to the optical port, the port attributes are determined by the QSFP+ to QSFP+ high-speed cable.
When an active optical cable is connected to the optical port, the port attributes are determined by the QSFP+ optical cable.
When an optical module is installed on the optical port, the port attributes are determined by the optical module attributes. For details, see 40GE QSFP+ Optical Modules.
ET1D2VQ06000 specifications
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 213.0 mm x 151.8 mm (1.38 in. x 8.39 in. x 5.98 in.)
Weight: 1.0 kg (2.2 lb)
Maximum power consumption: 31.85 W
ET1D2VQ06000 FAQ
Q1: What are the core advantages of this service board? Is it suitable for medium-scale 40G access scenarios?
A1: The core advantages are precise 6-port configuration, dual-rate compatibility, low power consumption, and high cost-effectiveness; it is specifically designed for 4-6 40G terminal accesses, maximizing performance without wasting resources or requiring multiple deployments, making it ideal for medium-scale scenarios.
Q2: Which optical modules does it support? Can it directly connect to existing 10G legacy equipment?
A2: It supports Huawei standard QSFP+ 40G optical modules (SR4/LR4/ER4) and QSFP+ 10G optical modules; dual-rate adaptive, it can directly connect to existing 10G equipment without additional converter configuration.
Q3: How does its power consumption and forwarding performance compare to other 6-port 40G boards of the same level?
A3: Total power consumption ≤120W, 30% more energy efficient than comparable products; forwarding capacity ≥480Gbps, supports full-load concurrent forwarding on 6 ports, with no performance bottlenecks, suitable for high-load aggregation scenarios.
Q4: Is installation complicated? Does it require professional maintenance personnel for configuration?
A4: Simple installation, supports hot-swapping, automatically recognized after insertion into the switch; dual-rate adaptive switching requires no manual configuration, allowing even non-professionals to quickly deploy, with a low maintenance threshold.
