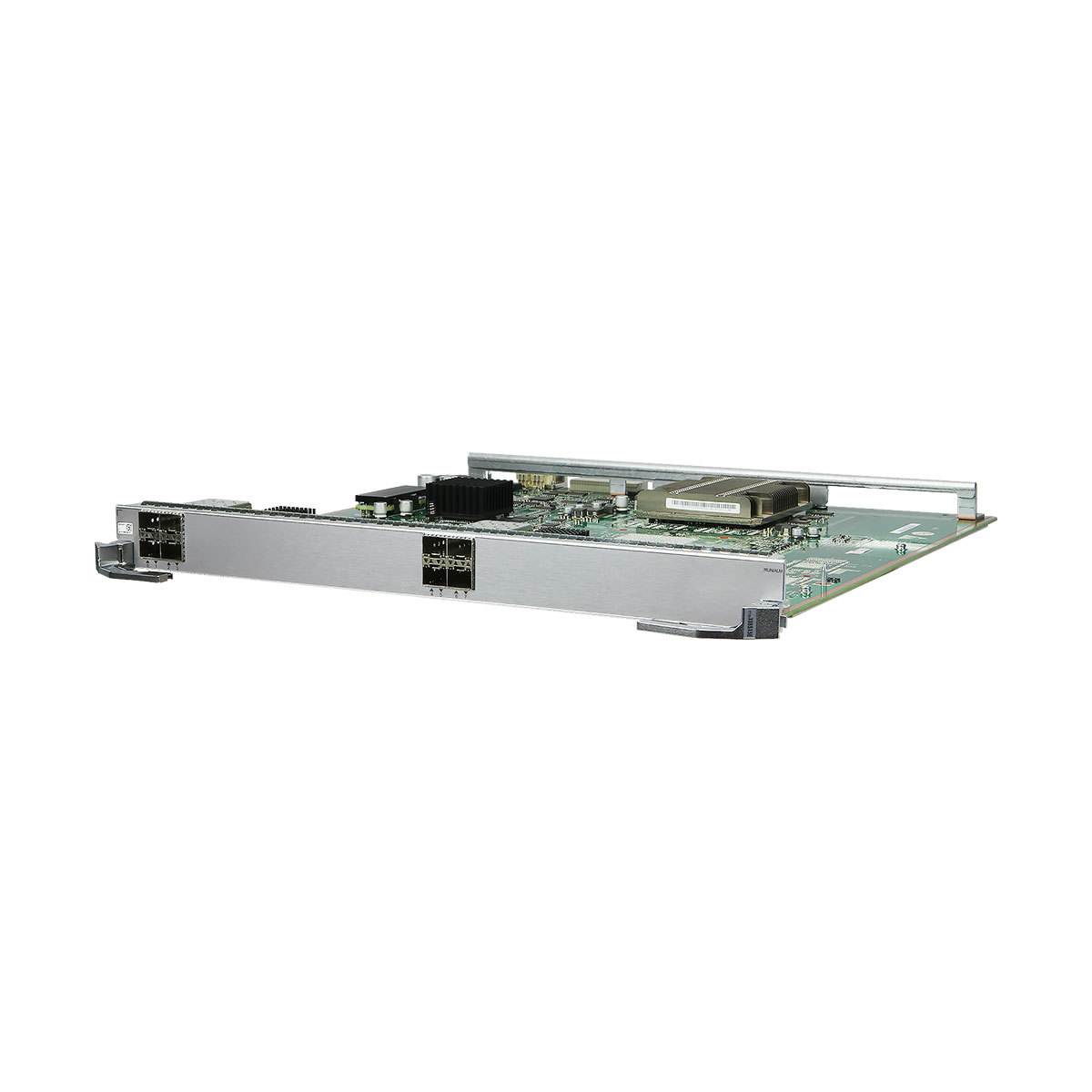

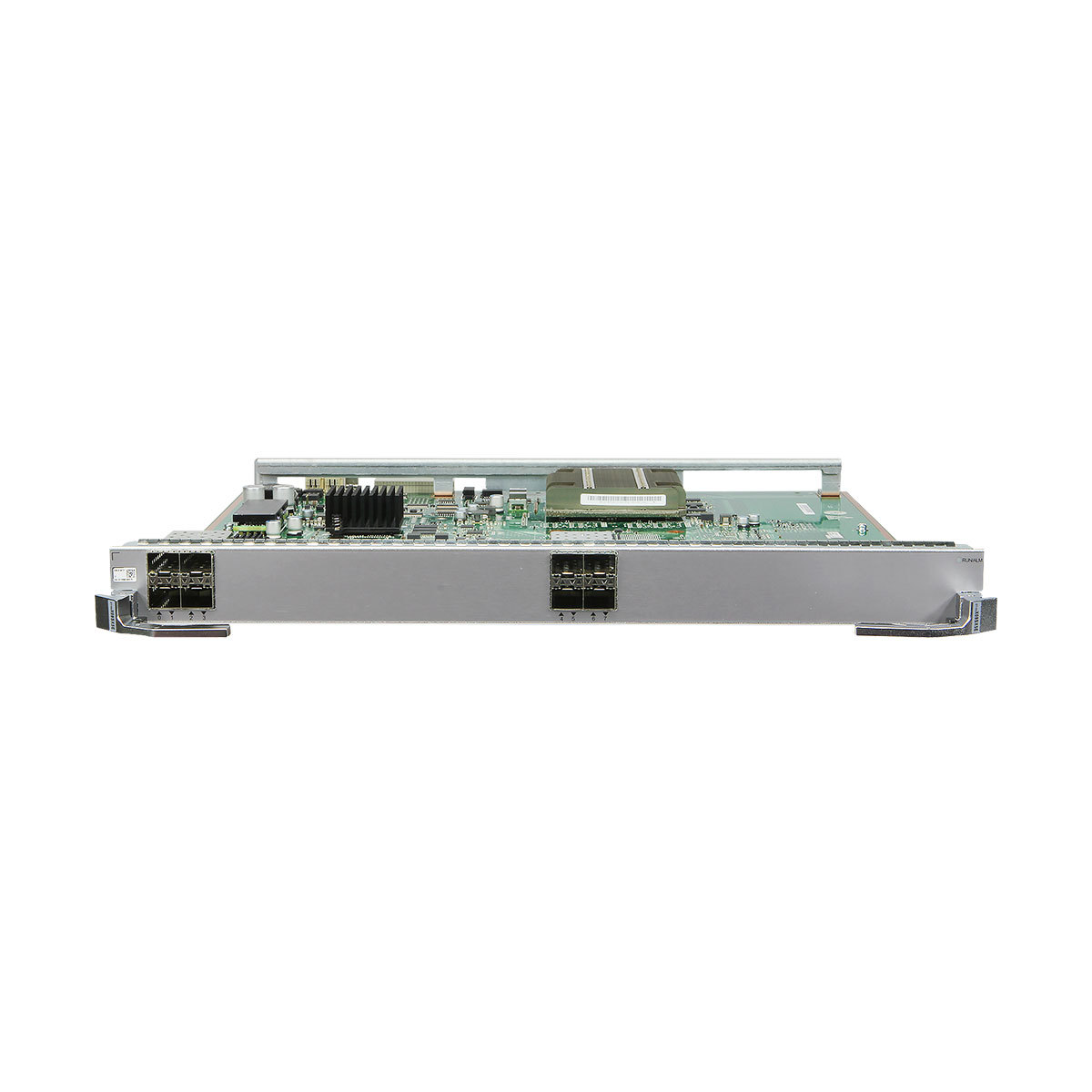

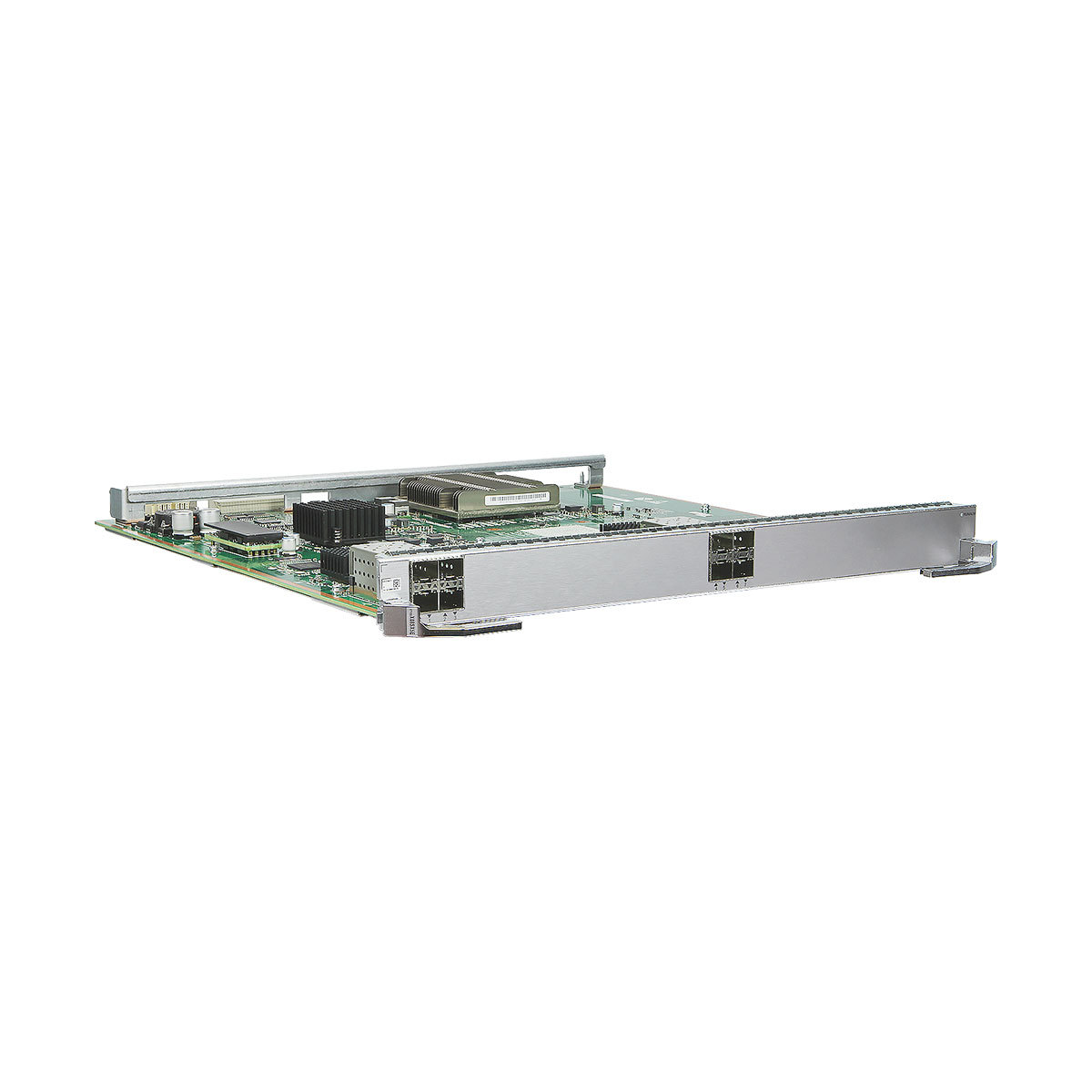

Provides eight 1000M/10G BASE-X ports for data access and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The ET1D2X08SX5E is hot swappable.
Ports on the EH1D2X04XEC0
Optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used. For the SFP optical modules supported by the ET1D2X08SX5E and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the ET1D2X08SX5E and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the ET1D2X08SX5E
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.7 kg (5.95 lb)
Maximum power consumption: 78 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
ET1D2X08SX5E FAQ
Q1: What are the core functions of this service board? Does it support hot-swapping?
A1: It contains 8 10GE SFP+ ports, supporting high-performance distributed forwarding, link aggregation, and flow control; it supports hot-swapping, allowing for online installation/replacement without service interruption.
Q2: What are the core advantages compared to a regular 8-port 10 Gigabit Ethernet board?
A2: The advantages are high-performance forwarding (low latency, high throughput), compatibility with the entire S9700 series, and better suited to the core transmission efficiency requirements of small and medium-sized scenarios.
Q3: Does it require a specific optical module? Which core protocols does it support?
A3: It is compatible with Huawei standard SFP+ 10G optical modules (including models with different transmission distances); it supports IPv4/IPv6 dual-stack, QoS, and LACP, meeting the reliability requirements of 10 Gigabit access.
Q4: How do I determine if this service board needs to be deployed? Is the installation complex?
A4: Recommended for small and medium-sized networks that require 8 10 Gigabit ports and prioritize high-efficiency, low-latency transmission; installation requires no professional tools, simply insert into the corresponding slot for automatic recognition, and it's plug-and-play.
