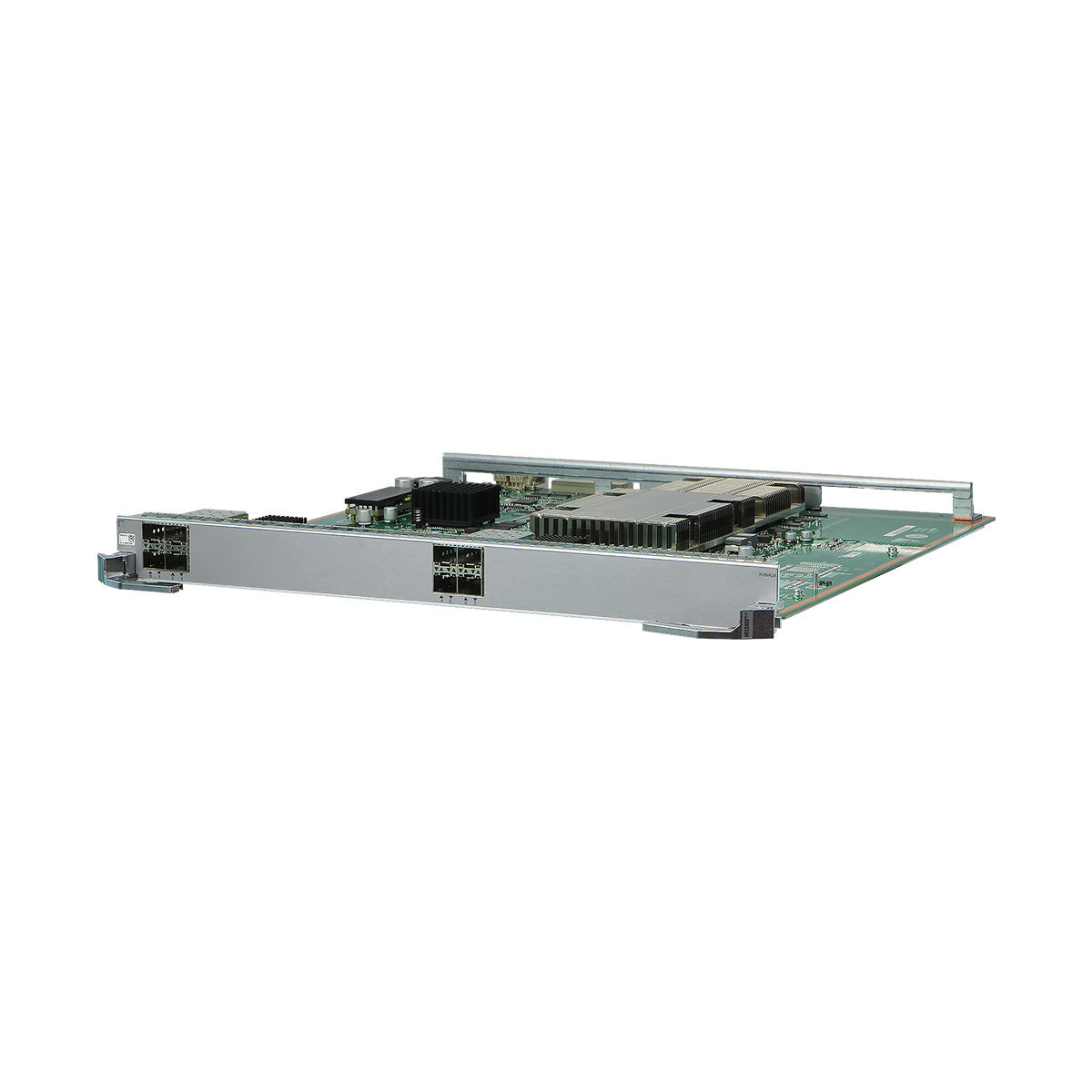

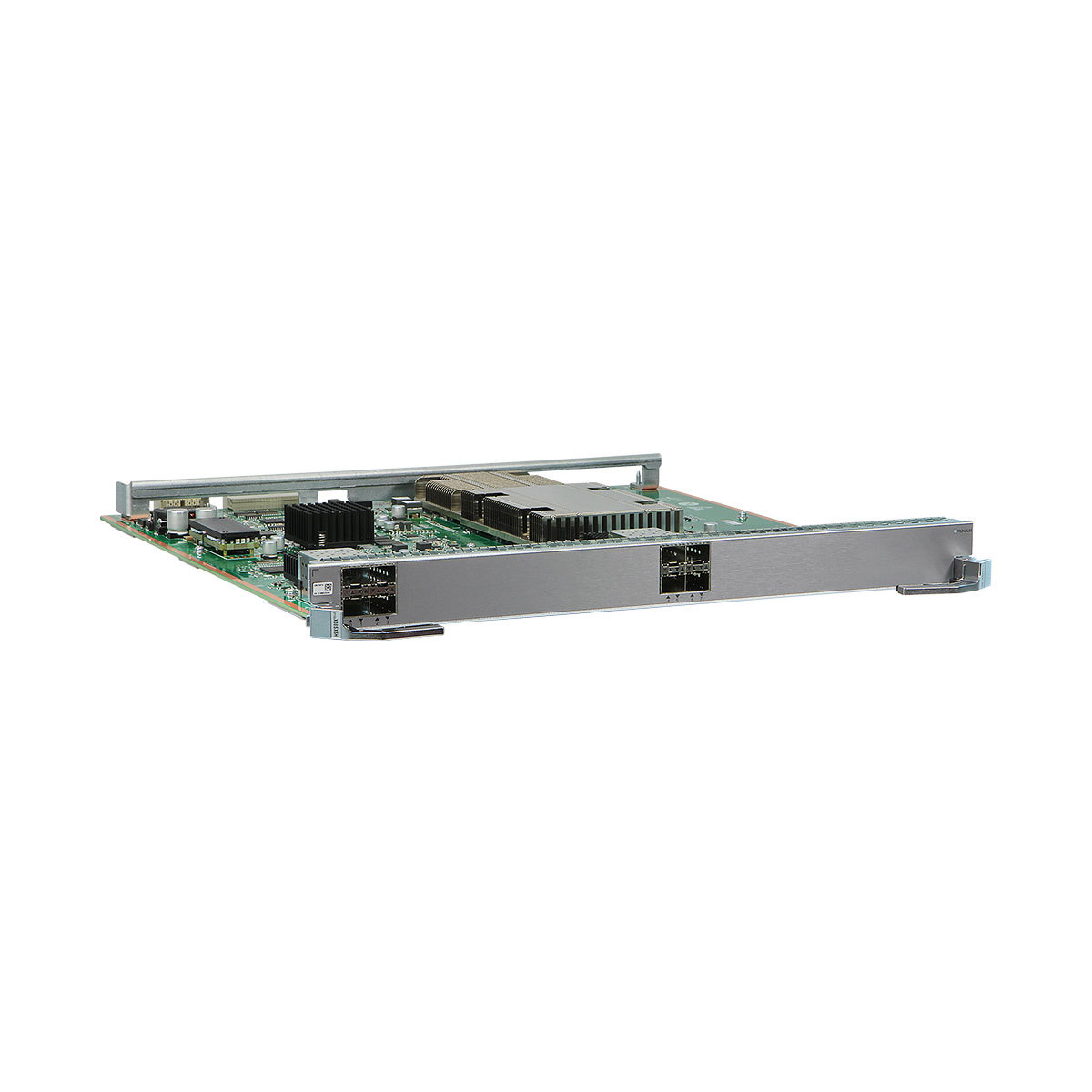

The ET1D2X08SX5H provides the following functions:
Communicates with the MPU and works under the control of the MPU.
Searches for routes and destination addresses of data packets for forwarding.
Forwards data packets.
Function
Description
Basic functions
Provides eight 1000M/10G BASE-X ports for data access and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The ET1D2X08SX5H is hot swappable.

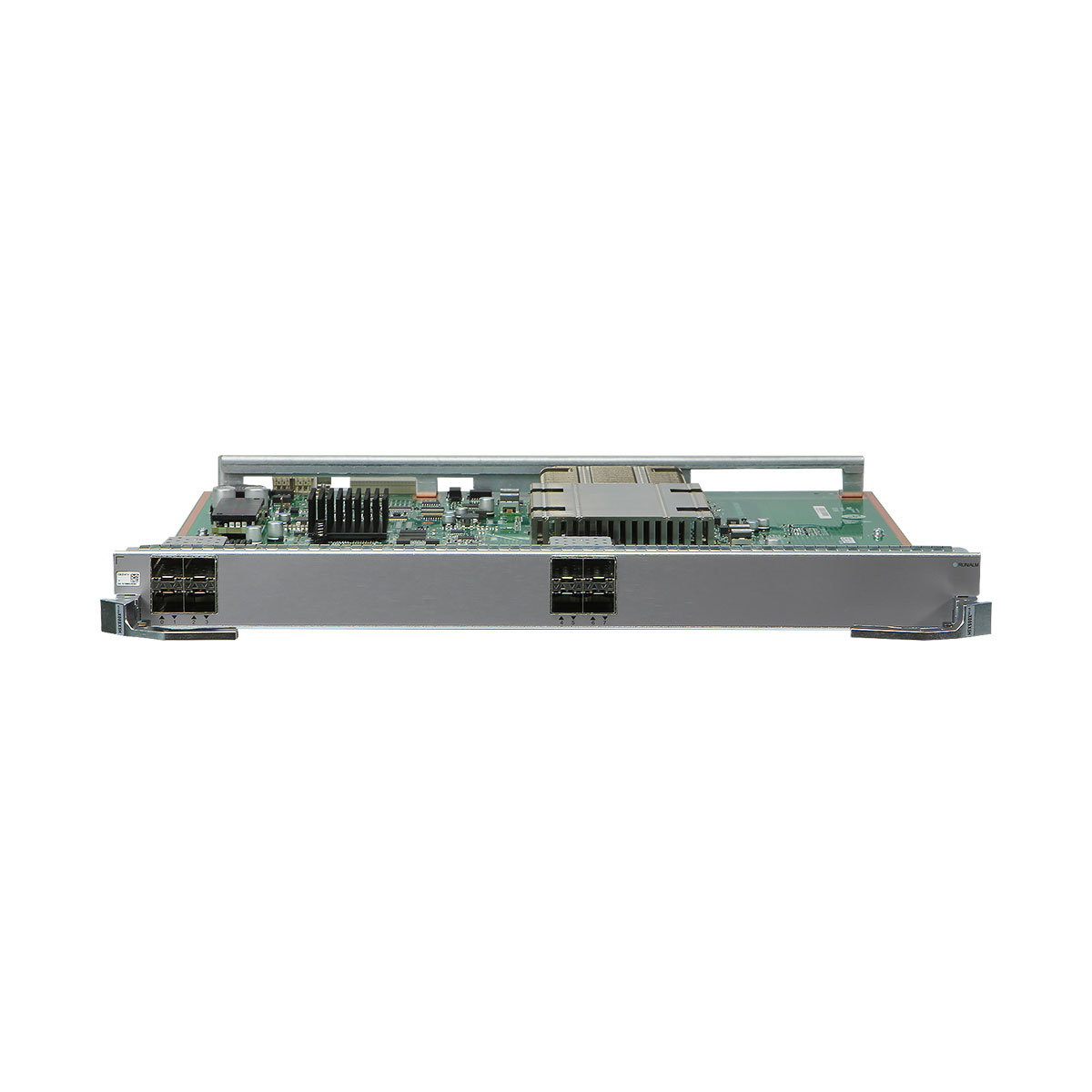

Ports on th ET1D2X08SX5H
Optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used. For the SFP optical modules supported by the ET1D2X08SX5H and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the ET1D2X08SX5H and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the ET1D2X08SX5H
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 2.94 kg (6.48 lb)
Maximum power consumption: 130 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
ET1D2X08SX5H FAQ
Q1: What are the core functions of this service board? Does it support hot-swapping?
A1: It contains 8 10GE SFP+ ports, supporting high-performance distributed forwarding, link aggregation, and flow control; it supports hot-swapping, allowing for online installation/replacement without service interruption.
Q2: What are the core advantages compared to a regular 8-port 10 Gigabit Ethernet board?
A2: The advantages are high-performance forwarding (low latency, high concurrency), compatibility with the entire S9700 series, strong stability, and precise matching of transmission efficiency requirements for small and medium-sized scenarios.
Q3: Does it require a specific optical module? Which core protocols does it support?
A3: It is compatible with Huawei standard SFP+ 10G optical modules (including models with different transmission distances); it supports IPv4/IPv6 dual-stack, QoS, and LACP, meeting the reliability and compatibility requirements of 10 Gigabit access.
Q4: How do I determine if this service board needs to be deployed? Is the installation complex?
A4: Recommended for small and medium-sized networks that require 8 10 Gigabit ports and pursue high-performance, low-latency transmission; installation requires no professional tools, simply insert into the corresponding slot for automatic recognition, and it is plug and play.
