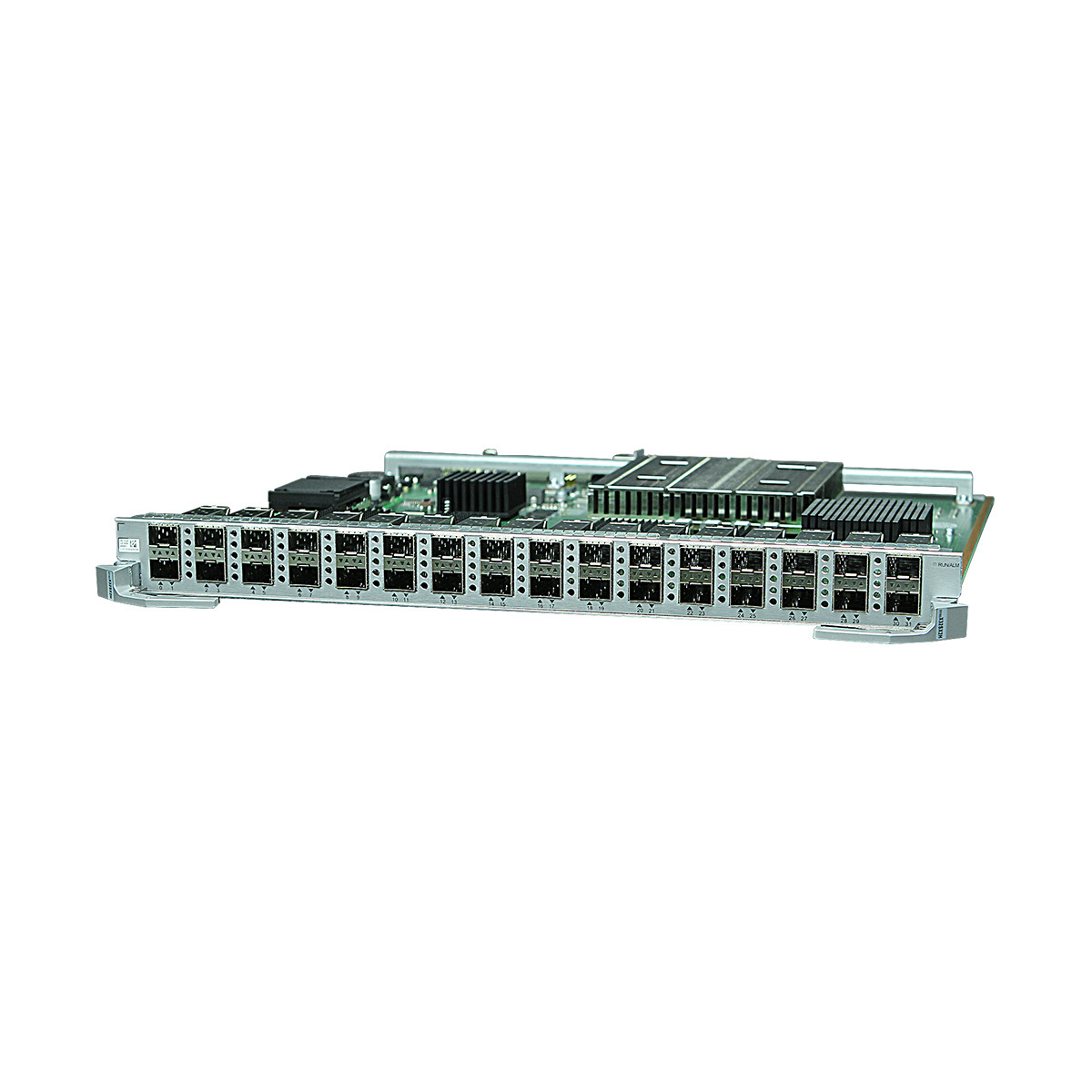

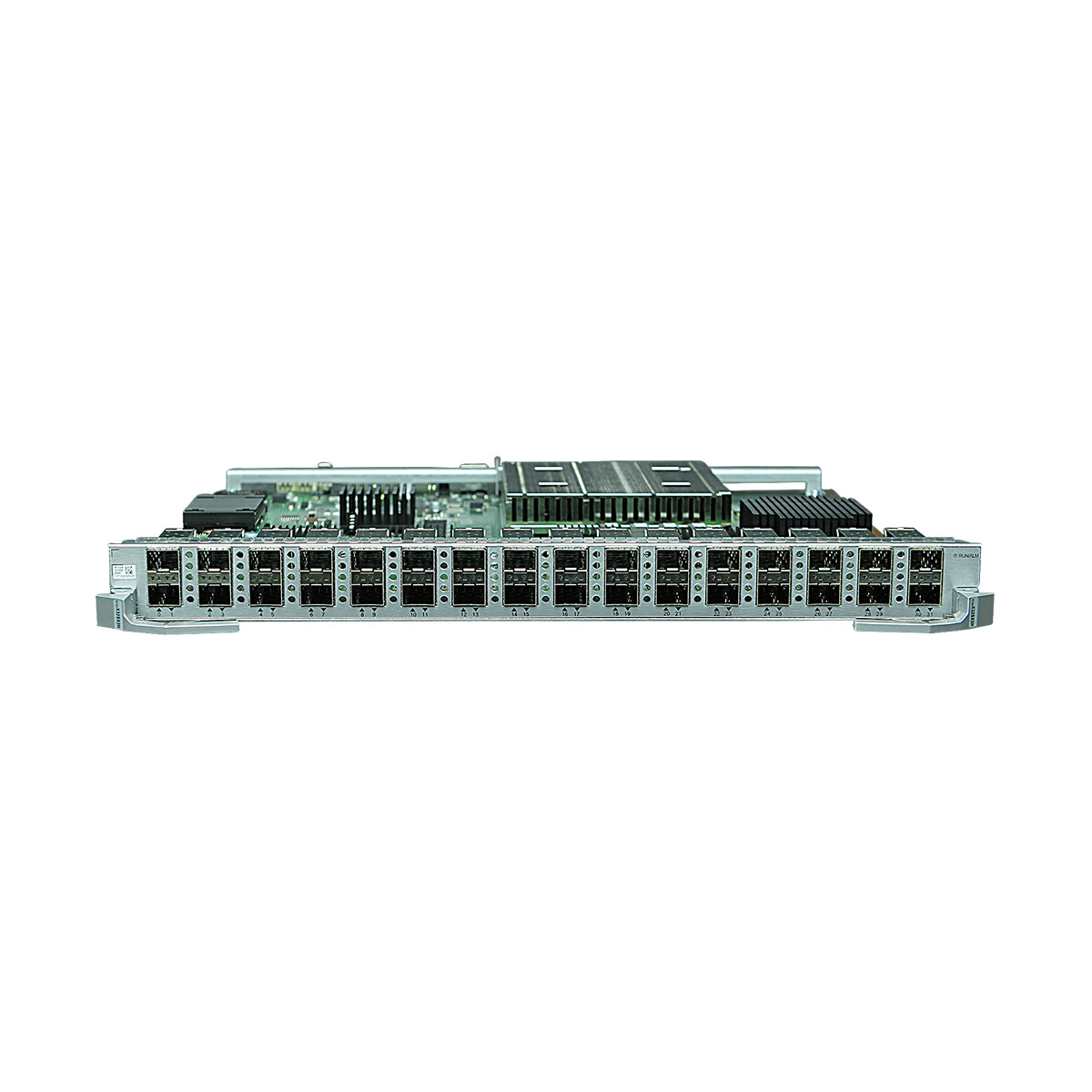

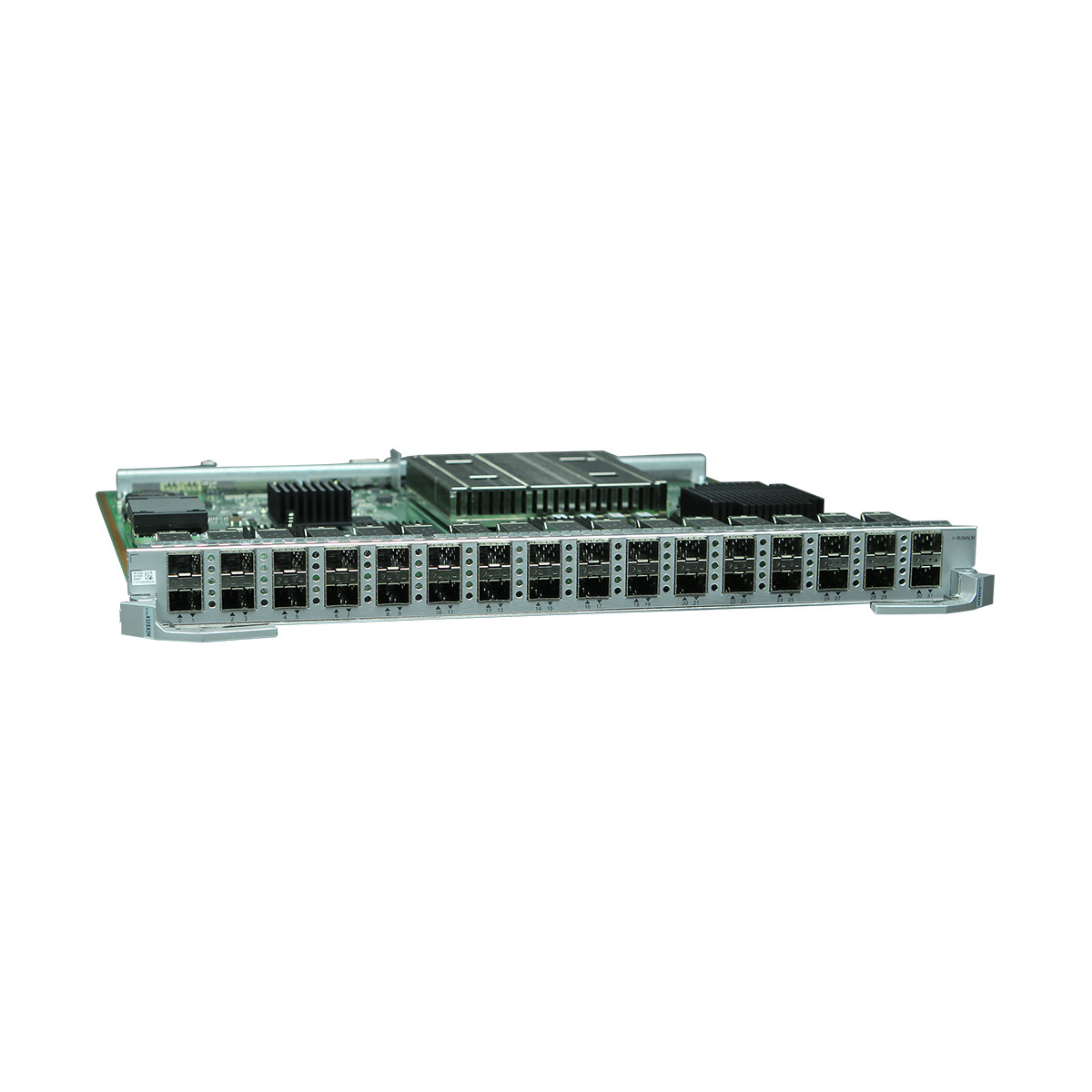

Provides thirty-two 10GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported

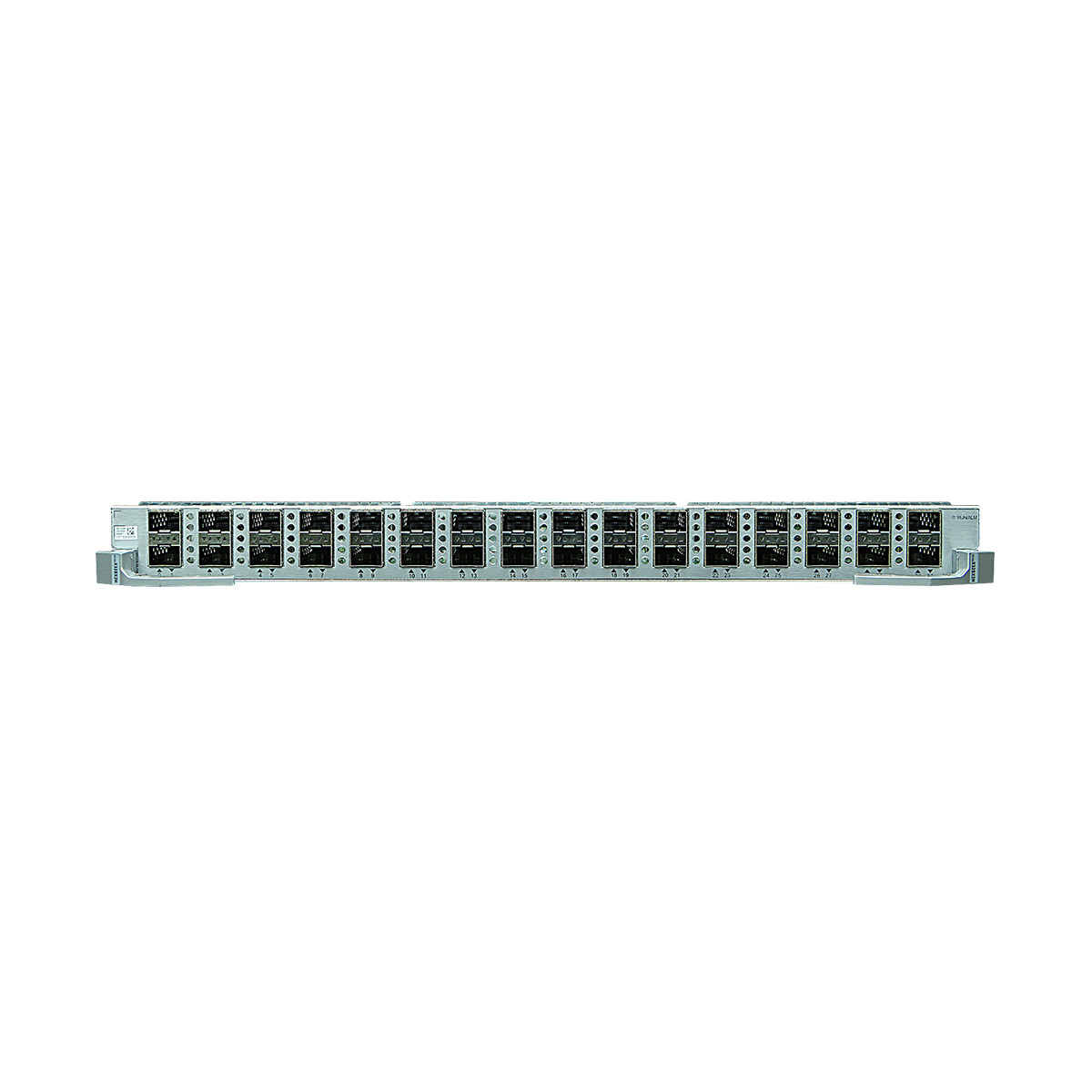

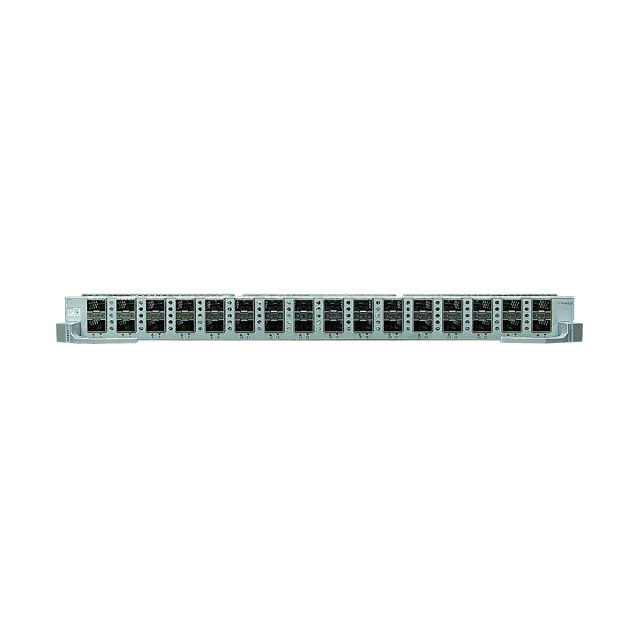

Ports on th ET1D2X32SX2H
Optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used.
For the optical modules supported by the ET1D2X32SX2H and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP+ - SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ - 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the ET1D2X32SX2H and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the ET1D2X32SX2H
Item
Description
Physical specifications
Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)
Weight: 3.3 kg (7.28 lb)
Maximum power consumption: 214.9 W
Environment specifications
Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage relative humidity: 5% RH to 95% RH (noncondensing)
ET1D2X32SX2H FAQ
Q1: What are the core functions of this service board? Does it support hot-swapping?
A1: It contains 32 10GE SFP+ ports, supports distributed forwarding and link aggregation; it supports hot-swapping, allowing for online installation/replacement without service interruption.
Q2: What are its core advantages compared to ordinary 10 Gigabit Ethernet boards?
A2: Its advantages are a high-density 32-port design, distributed forwarding, compatibility with the entire S9700 series, higher single-slot access capacity, and stronger transmission efficiency.
Q3: Does it require a specific optical module? Which core protocols does it support?
A3: It is compatible with Huawei standard SFP+ 10G optical modules; it supports IPv4/IPv6 dual-stack, QoS, and flow control, meeting the reliability requirements of 10 Gigabit access.
Q4: How do I determine if this service board needs to be deployed? Is installation complex?
A4: Deployment is recommended when medium-sized networks need to access 10 Gigabit terminals in batches and slot resources are limited; installation requires no professional tools, it is automatically recognized when inserted into the corresponding slot, and is plug-and-play.
