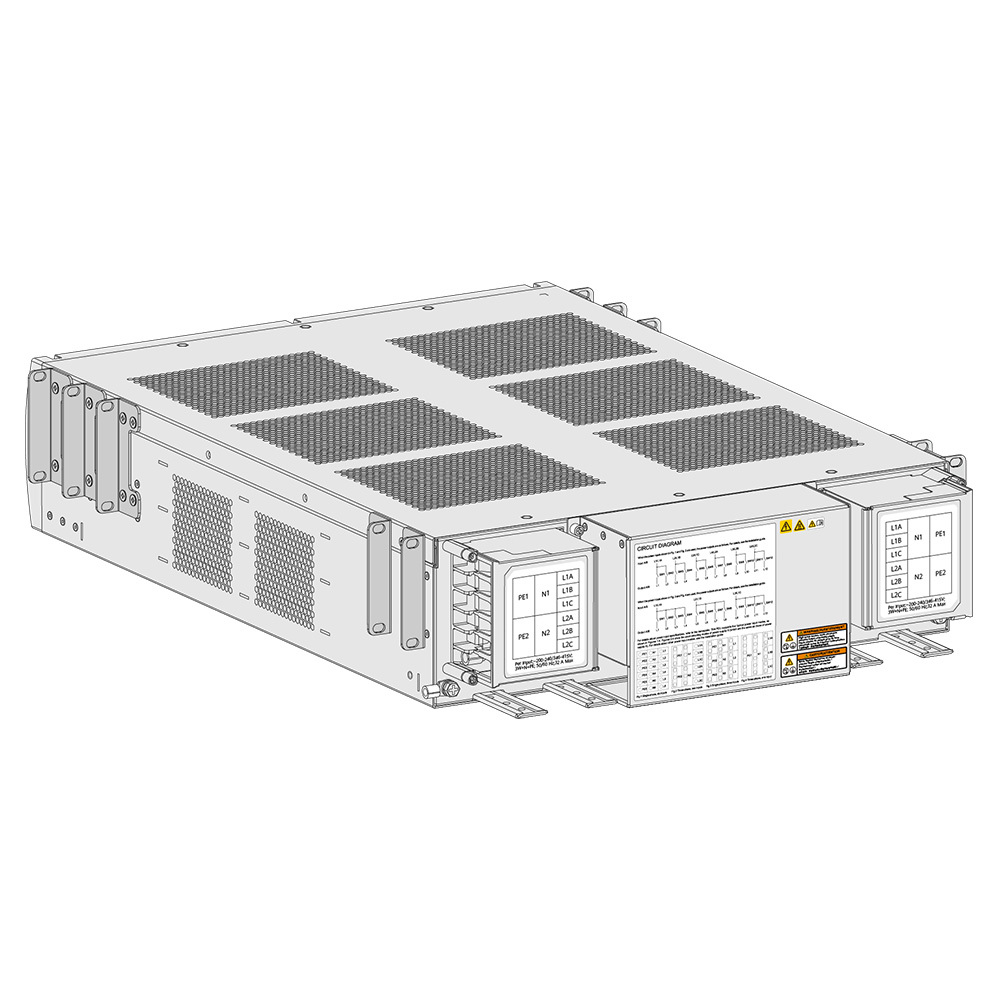

Huawei S16700 Series Switches APD32-4-24 AC Power Distribution Unit.
Mappings between APD32-4-24 and product models
Product
Product Model
First Supported Version
S16700-4
EX1BS16704SA0 (02355HUL)
V600R022C10
S16700-4
EX1BS16704SA0 (02355HUL-001)
V600R024C10
S16700-8
EX1BS16708SA0 (02355HUN)
V600R022C10
S16700-8
EX1BS16708SA0 (02355HUN-001)
V600R024C10
Functions and Features
When the power distribution unit is used to supply power to the main equipment, the input current of each power distribution unit does not exceed 32 A and the output current of each power distribution unit does not exceed 16 A.
Technical specifications of the APD32-4-24
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
130.55 mm x 442 mm x 677 mm (5.14 in. x 17.4 in. x 26.65 in.)
Weight without packaging [kg(lb)]
17 kg (37.48 lb) (excluding the rear panel protective cover, which is removed before the installation)
Cabinet installation standards
IEC 60297-1 19-inch standard cabinet
Cabinet depth ≥ 800 mm
Rated input voltage [V]
Three-phase, wire voltage: 346 V AC to 415 V AC
Input voltage range [V]
Three-phase, wire voltage: 305 V AC to 457 V AC
Rated output voltage [V]
200 V AC to 240 V AC
Maximum input current [A]
32 A
Maximum output current [A]
16 A
Number of inputs
2+2
Number of outputs
12+12
Front-end circuit breaker/fuse [A]
32 A
APD32-4-24 FAQ
Q1: How to switch between the 4 inputs? Is manual intervention required?
A1: Supports fully automatic intelligent switching. No manual operation is required. If any 1-2 inputs fail, the system quickly switches to the normal line, and the device operates without any noticeable interruption.
Q2: What is the maximum power supported by a single port? Can it power high-power servers?
A2: The rated power of a single port is ≥16A, which can support small servers and network devices with a power of ≤350W. For high-power devices, it is recommended to distribute the ports to avoid overloading a single port.
Q3: What is the difference between this and the Huawei APD63-2-24?
A3: The core difference lies in the redundancy path (4-way vs. 2-way). This model has a higher redundancy level and is suitable for critical equipment with extremely high power supply reliability requirements; the APD63-2-24 is suitable for general core scenarios and offers better cost performance.
