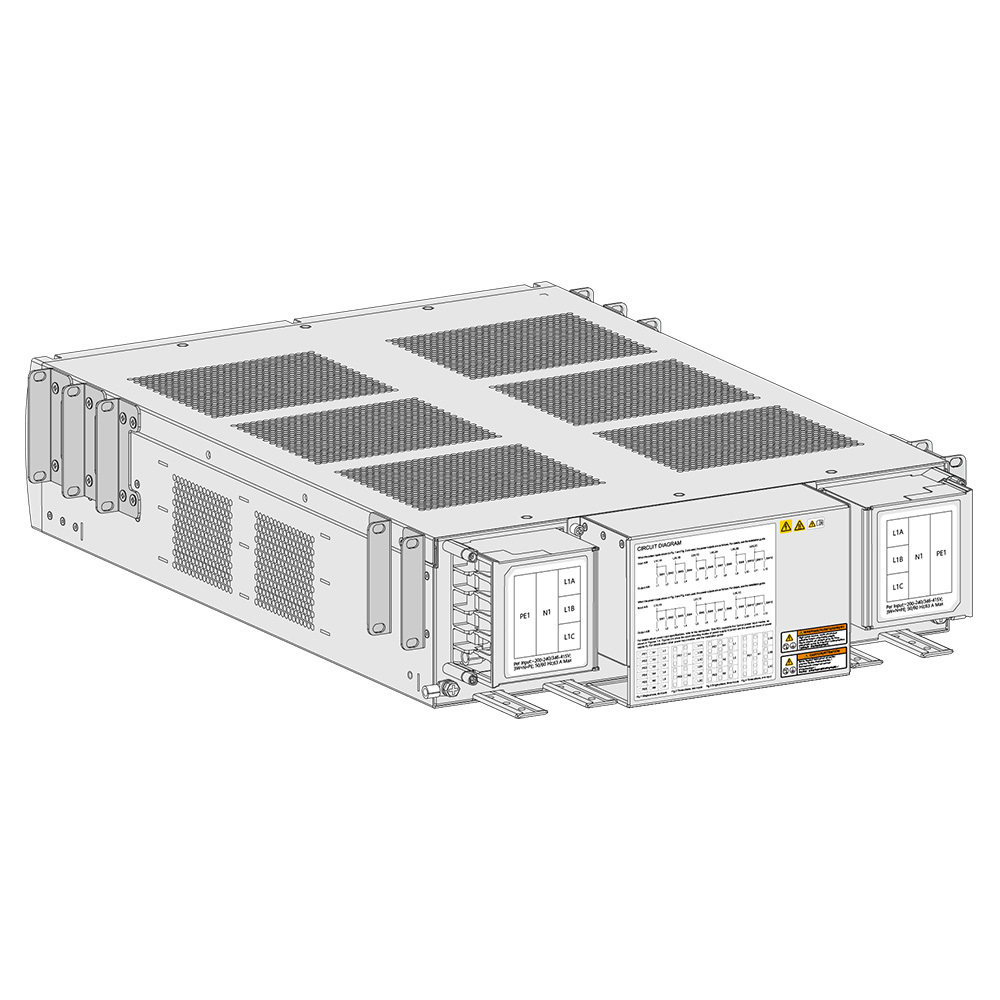

Huawei S16700 Series Switches APD63-2-24 AC Power Distribution Unit.
Mappings between APD63-2-24 and product models
Product
Product Model
First Supported Version
S16700-4
EX1BS16704SA0 (02355HUL)
V600R022C10
S16700-4
EX1BS16704SA0 (02355HUL-001)
V600R024C10
S16700-8
EX1BS16708SA0 (02355HUN)
V600R022C10
S16700-8
EX1BS16708SA0 (02355HUN-001)
V600R024C10
Functions and Features
When the power distribution unit is used to supply power to the main equipment, the input current of each power distribution unit does not exceed 63 A and the output current of each power distribution unit does not exceed 16 A.
Technical specifications of the APD63-2-24
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
130.55 mm x 442 mm x 677 mm(5.14 in. x 17.4 in. x 26.65 in.)
Weight without packaging [kg(lb)]
17 kg (37.49 lb) (The protective cover on the rear panel is not included. This cover has to be removed before the device is installed in the cabinet.)
Cabinet installation standards
IEC 60297-1 19-inch standard cabinet
Cabinet depth ≥ 800 mm
Rated input voltage [V]
Three-phase , wire voltage 346V to 415V AC
Input voltage range [V]
Three-phase, wire voltage:305V to 457V AC
Rated output voltage [V]
200V to 240V AC
Maximum input current [A]
63 A
Maximum output current [A]
16 A
Number of inputs
1+1
Number of outputs
12+12
Front-end circuit breaker/fuse [A]
63 A
APD63-2-24 FAQ
Q1: How does the dual input switch? What is the switching time?
A1: Automatic switching is supported. No manual operation is required. When the main input is interrupted, it switches to the backup input in less than 5ms. The device is unaware of this and operation is unaffected.
Q2: What is the maximum power supported by a single port? Can it power high-power devices?
A2: The rated power of a single port is ≥16A, which can support most network devices and small servers (power ≤350W). For high-power devices, it is recommended to connect them to multiple ports to avoid overloading a single port.
Q3: What is the difference between this model and the Huawei APD63-6-24?
A3: The core difference lies in the power supply design. This model has dual-path redundancy (APD63-6-24 is single-path), suitable for powering core devices; the APD63-6-24 focuses on high density and is suitable for general centralized power supply scenarios.
