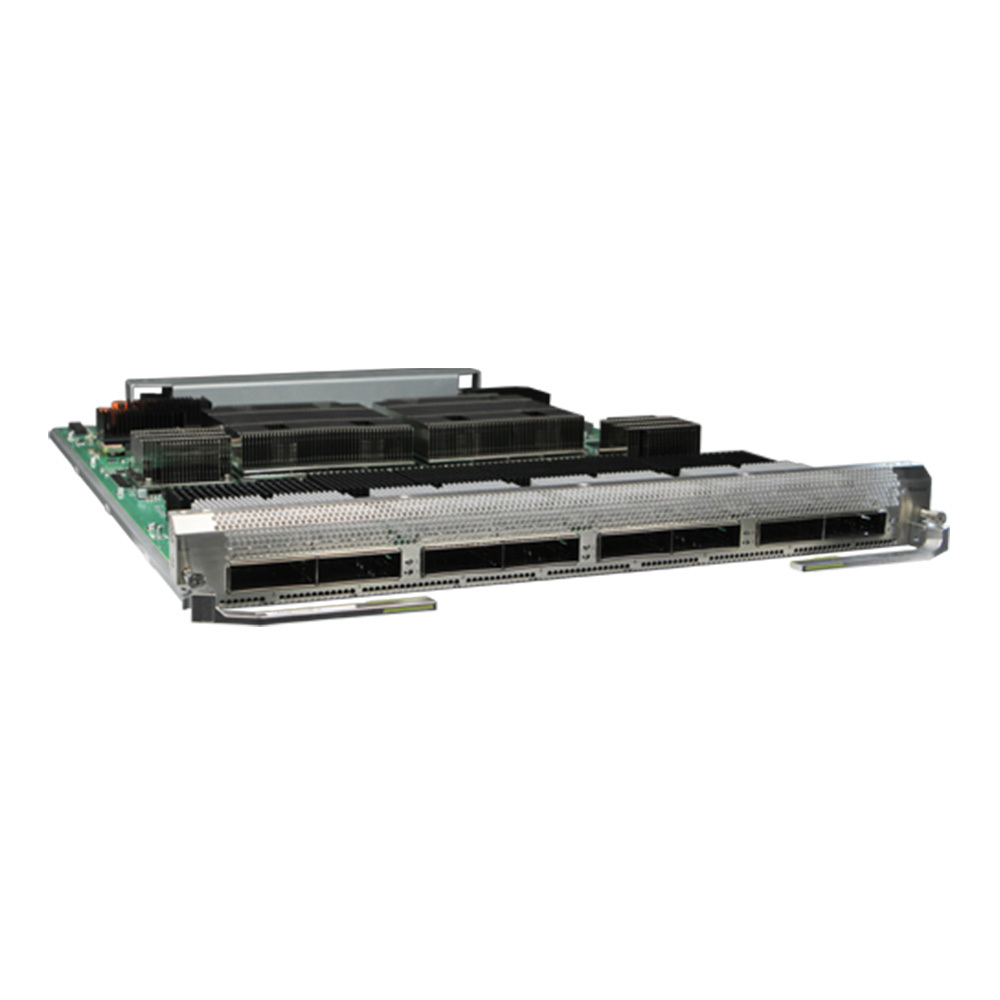

Provides data packet processing and traffic management on 8 100GE optical ports.
Maximum port density
If all LPUs are CE-L08CF-FG1 cards:
The CE12804 chassis provides a maximum of 32 100GE ports.
The CE12808 chassis provides a maximum of 64 100GE ports.
The CE12812 chassis provides a maximum of 96 100GE ports.
The CE12816 chassis provides a maximum of 128 100GE ports.
100GE port
Supports CFP2 optical modules and cannot be split.
Limitations and Descriptions
When the CE-L08CF-FG1 card works with the SFU matching the CE12800S and the backplane-side bandwidth is insufficient, data cannot be forwarded at the line rate.
Technical specifications
Item
Description
CPU
Eight-core, 1.5 GHz clock speed
DDR4
Standard 8 GB
Flash
Standard 128 MB
Physical specifications
Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
Weight: 7.3 kg (16.09 lb)
Typical power consumption: 471 W
Maximum power consumption: 833 W
Typical heat dissipation: 1609 BTU/hour
Maximum heat dissipation: 2845 BTU/hour
Environment parameters
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
Safety standards compliance
EMC standards compliance
Environmental standards compliance
CE-L08CF-FG1 FAQ
Q1: Which Huawei switch models does the CE-L08CF-FG1 support? How compatible is it?
A1: It mainly adapts to high-end core switches such as the Huawei CE9800 series (CE9866, CE9855) and CE8800 series (CE8868, CE8850, CE8860). It is fully compatible in both hardware and software, with 100% compatibility and no additional debugging required.
Q2: Will the energy-saving design affect the 400GE port transmission performance? How is the multi-rate compatibility?
A2: Energy saving is achieved through hardware optimization and intelligent power consumption adjustment, without affecting forwarding performance, port speed, or transmission stability. Multi-rate adaptive design allows seamless integration with 400G/200G/100G devices without compatibility issues.
Q3: What is the difference between the CE-L08CF-FG1 and ordinary 400GE interface cards? How should a green data center choose one?
A3: Both have the same core performance, but the CE-L08CF-FG1 focuses on energy-saving design and has lower power consumption. For green data centers, large-scale deployments, or energy-sensitive scenarios, choosing the CE-L08CF-FG1 has a greater long-term cost advantage and compliance value.
