Port for inputting and outputting 200GE (16 ports)/100GE/40GE optical signals
100GE QSFP28 optical modules
40GE QSFP+ optical modules
QSFP28 to QSFP28 AOC cable
QSFP+ to QSFP+ AOC cable
QSFP+ to 4*SFP+ AOC cable
QSFP28 to QSFP28 high-speed cable
QSFP28 to 2*QSFP28 high-speed cable
QSFP+ to QSFP+ high-speed cable
QSFP+ to 4*SFP+ high-speed cable
When the 16 100GE ports (0 and 1, 2 and 3, 4 and 5, 6 and 7, 12 and 13, 14 and 15, 16 and 17, and 18 and 19) work at the rate of 200 Gbit/s, the following optical module and cables can also be used:
200GE QSFP56 optical modules
QSFP56 to QSFP56 AOC cable
QSFP56 to 2*QSFP56 AOC cable

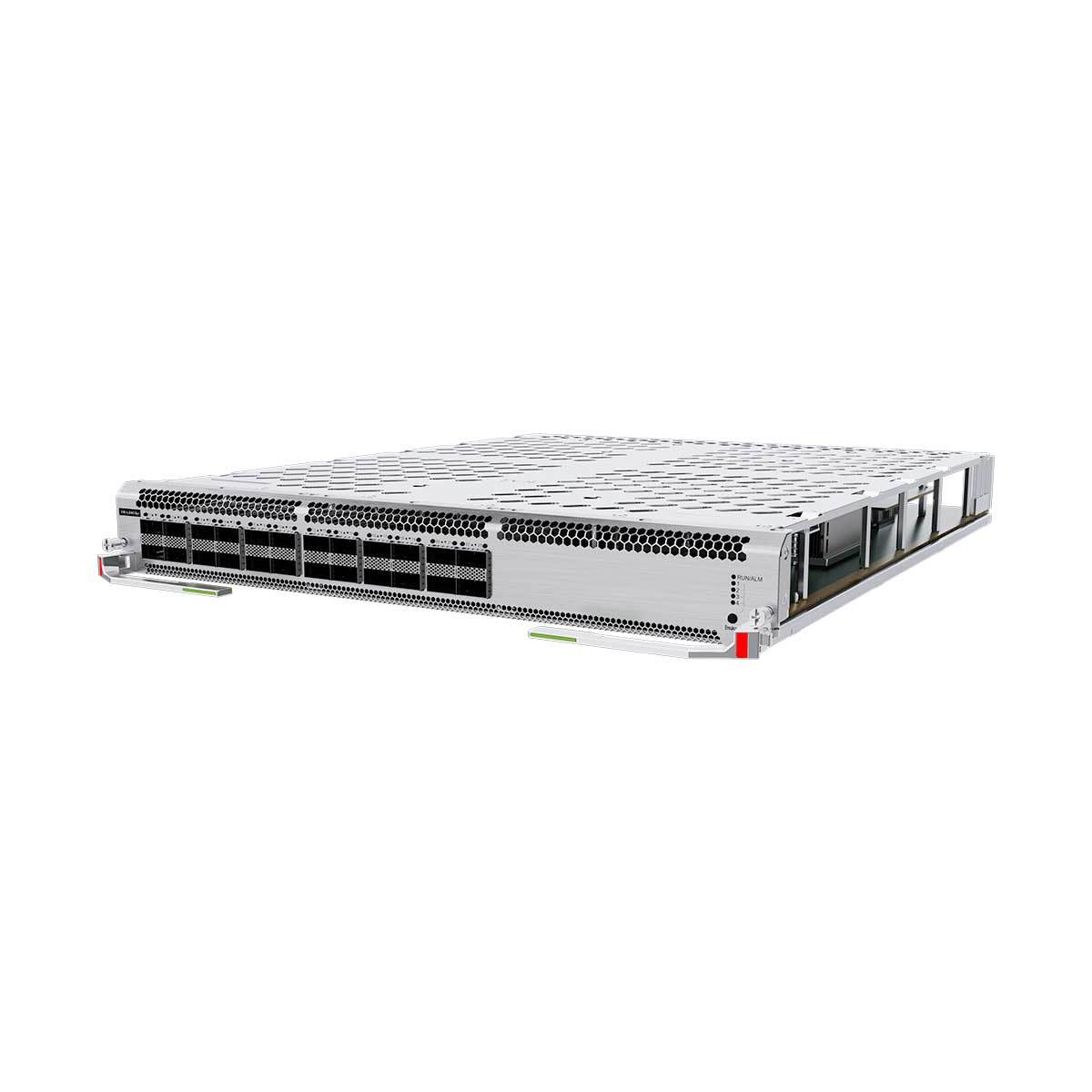

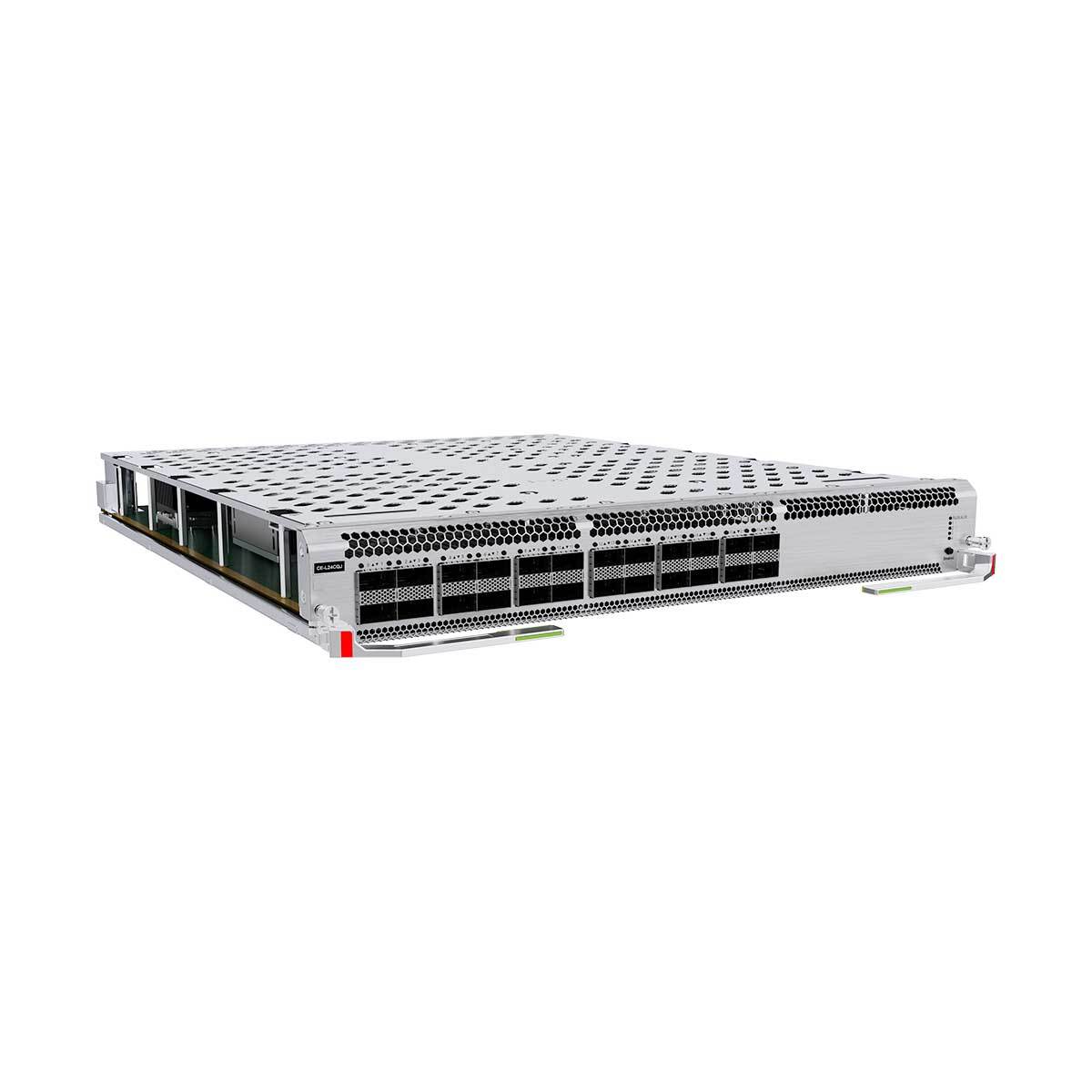

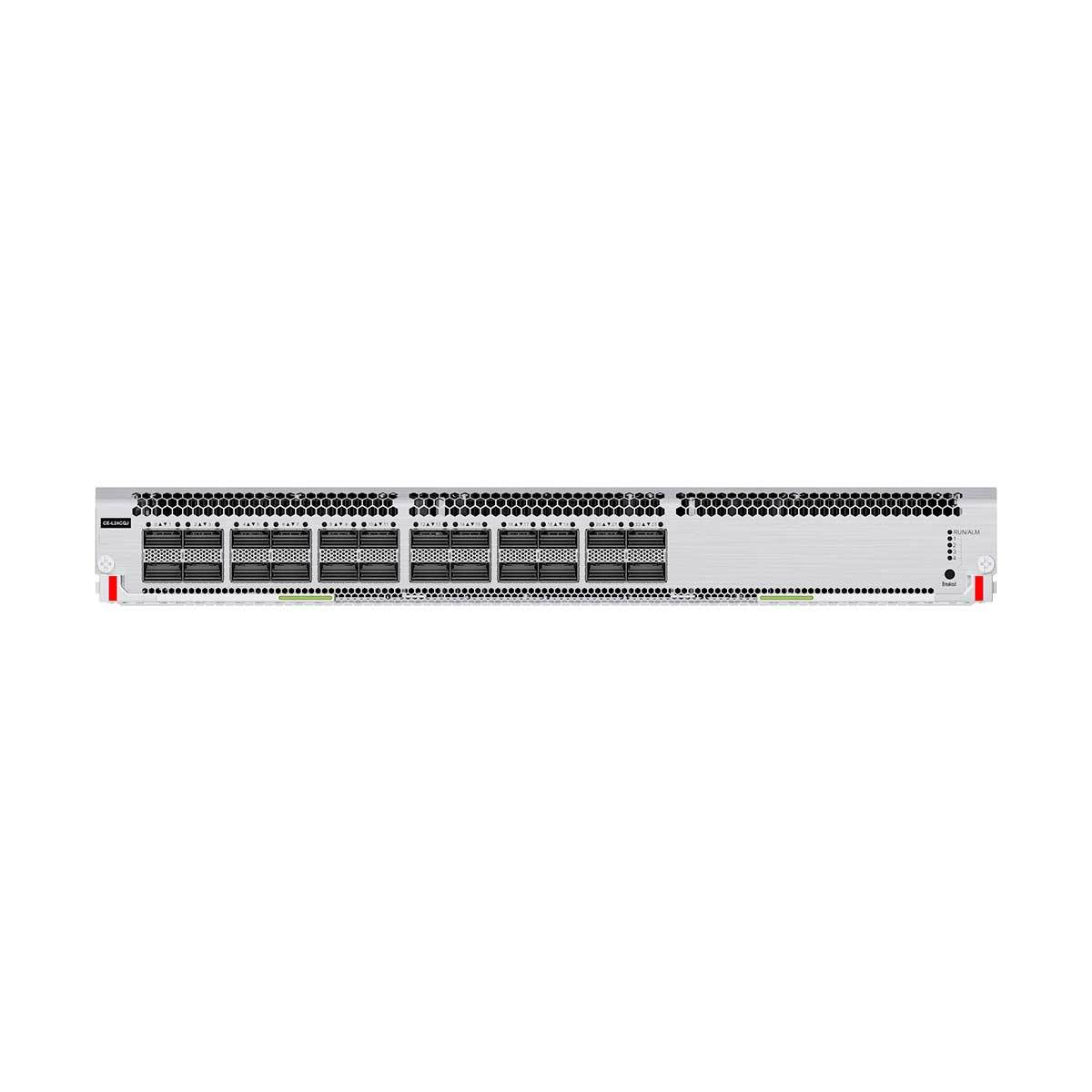

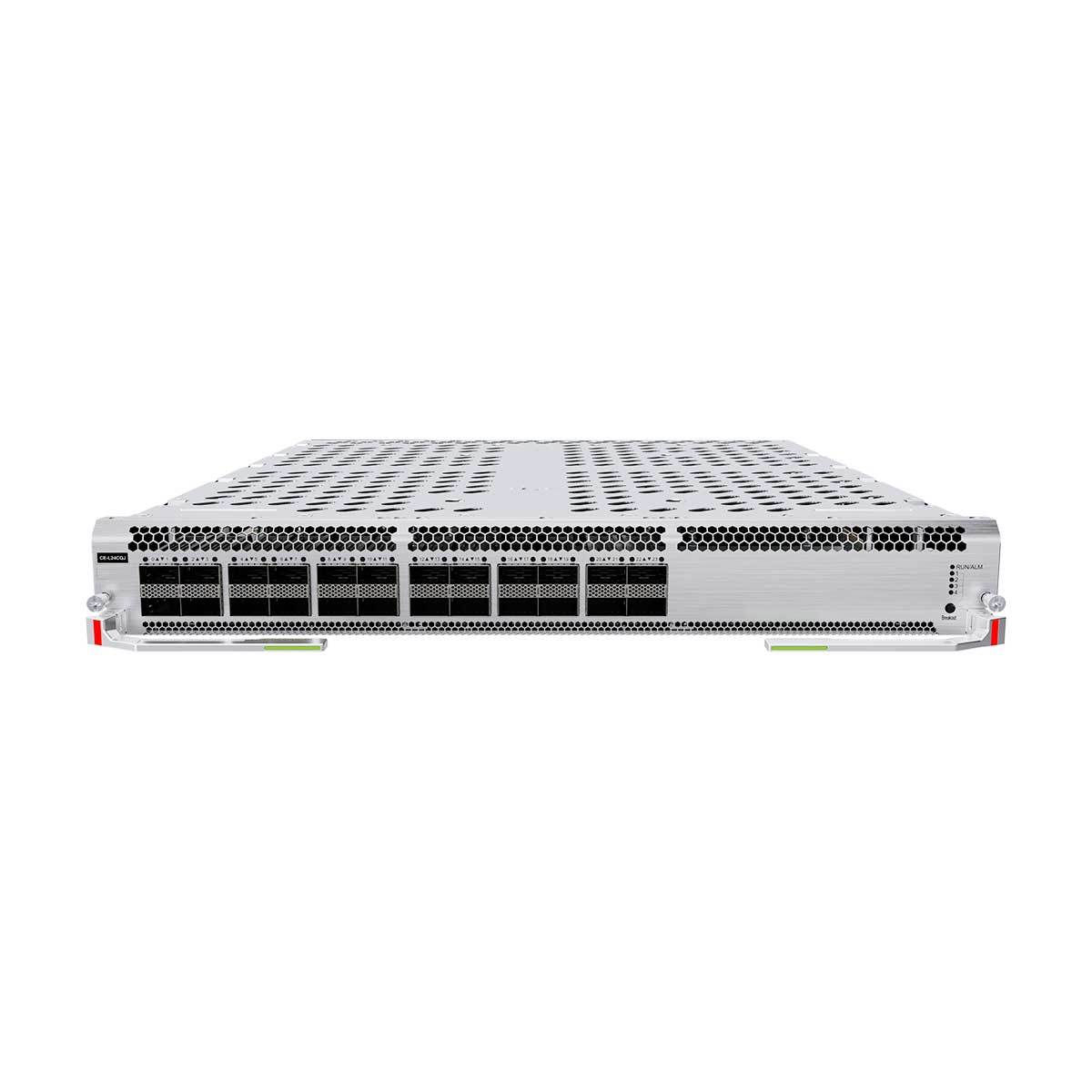

CE-L24CQJ Datasheet
Item
CE-L24CQJ
Basic function
The card provides data packet processing and traffic management on 24 x 100GE optical ports or 16 x 200GE optical ports, which can be used as 24 x 40GE optical ports or split into 96 x 25GE or 96 x 10GE optical ports.
Maximum port density
If all LPUs are these cards:
The CloudEngine 16804 chassis provides a maximum of 96 100GE ports or 64 200GE ports.
The CloudEngine 16808 chassis provides a maximum of 192 100GE ports or 128 200GE ports.
The CloudEngine 16816 chassis provides a maximum of 384 100GE ports or 256 200GE ports.
100GE port
100GE ports on the card support QSFP28 and QSFP+ optical modules. A 100GE port can be used as a 40GE port through auto-sensing, or split into 4 x 25GE or 4 x 10GE ports. The card can provide a maximum port density of 24 x 40GE, 96 x 25GE, or 96 x 10GE. Each 100GE port can be used as a 40GE port through auto-sensing. Every two ports (0-1, 2-3, 4-5, 6-7, 8-9, 10-11, 12-13, 14-15, 16-17, 18-19, 20-21, and 22-23) form a group. The two ports in a group need to be split together, and each port can be split into 4 x 25GE or 4 x 10GE ports.
200GE port
16 ports can work at the rate of 200 Gbit/s and are divided into 8 groups (0 and 1, 2 and 3, 4 and 5, 6 and 7, 12 and 13, 14 and 15, 16 and 17, and 18 and 19). Such a port works at the rate of 100 Gbit/s by default. You can run the port mode 200GE command to change the port rate to 200 Gbit/s. After the port rate is changed, the port supports QSFP56 optical modules and can work as a 100GE or 40GE port through auto-sensing. The port can be split into two 100GE ports. When the rate is changed for either port in a port group, the other port in the group automatically switches to the same rate. For example, when port 0 is configured to work at the rate of 200 Gbit/s, port 1 is automatically configured to work at the rate of 200 Gbit/s.
Hot swapping
Supported
Restrictions and remarks
Every 12 ports form a group, and two groups (ports 0 to 11 and 12 to 23) are involved. Each group has a bandwidth limit.
Only the first eight ports in each group can be configured to work at the rate of 200 Gbit/s.
In 3+1 SFU mode, the maximum bandwidth of each group cannot exceed 1.2 Tbit/s (for example, 6 x 200 Gbit/s or 12 x 100 Gbit/s).
In 4+0 SFU mode, the maximum bandwidth of each group cannot exceed 1.6 Tbit/s (for example, 8 x 200 Gbit/s or 8 x 100 Gbit/s + 4 x 200 Gbit/s).
MACsec
Ports 0 to 7 and 12 to 19 support MACsec. When these ports are configured to work at 40 Gbit/s or are split, MACsec is still supported. Other ports do not support MACsec.
Typical power consumption [W]
220 W
Typical heat dissipation [BTU/hour]
750 BTU/hour
Static power consumption [W]
188 W
Static heat dissipation [BTU/hour]
641 BTU/hour
Maximum power consumption [W]
378 W
Maximum heat dissipation [BTU/hour]
1289 BTU/hour
CPU
4-core, 1.4 GHz clock speed
Memory
Standard 4 GB
RTU License Supported
Yes. By default, 18 x 100GE ports are available, and other ports are unavailable. The RTU license with part number 88038RJJ can be used to add six 100GE ports, providing 24 100GE ports.
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]
6.55 kg (14.44 lb)
Weight with packaging [kg (lb)]
10.93 kg (24.1 lb)
CE-L24CQJ FAQ
Q1: Which Huawei switch models does the CE-L24CQJ support? How compatible is it?
A1: It mainly supports Huawei CE12800 series mid-to-high-end switches (such as CE12804/CE12808), CE8800 series high-end switches (such as CE8850-64CQ-EI), CE7800 series high-end switches, and some models of the CE9800 series. The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and use.
Q2: Do the 24 100G ports support backward compatibility with low-speed optical modules? Can existing optical modules be reused?
A2: It supports 100G/40G/25G/10G multi-rate auto-negotiation. Existing 40G, 25G, and 10G optical modules can be used directly without additional purchase, effectively reusing existing assets and reducing upgrade costs.
Q3: How are the power consumption and heat dissipation performance of this interface card? Will it place an additional burden on the switch? A3: It adopts a low-power design, with single-card power consumption controlled at a low level compared to similar high-density 100G interface cards in the industry. It is also compatible with the switch's built-in cooling system, requiring no additional cooling measures and not putting extra pressure on the switch's heat dissipation.
