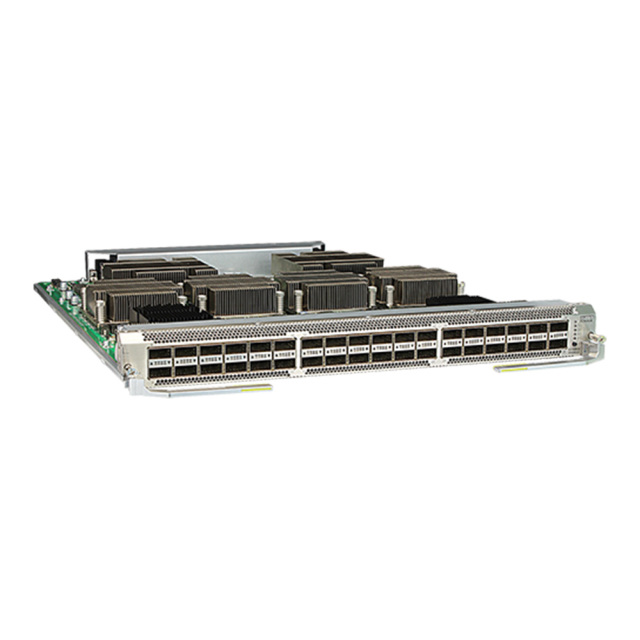

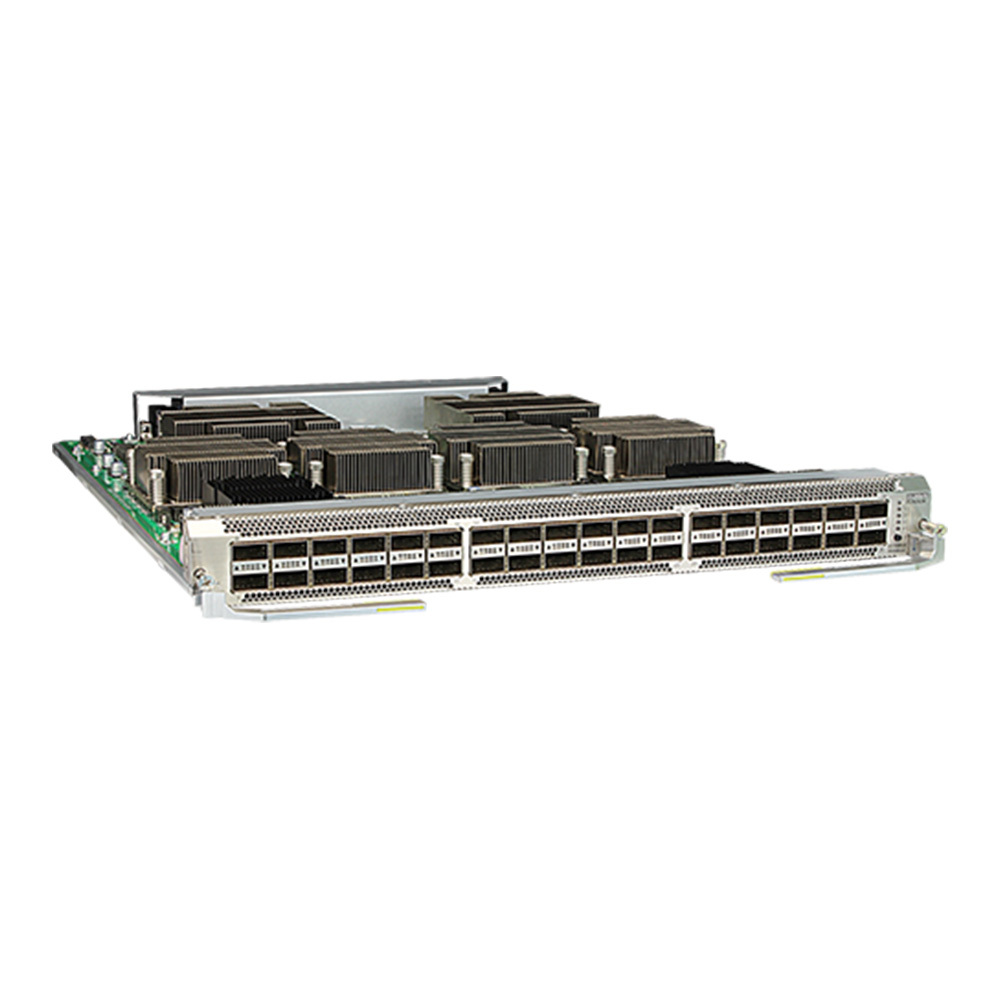

Provides data packet processing and traffic management on 36 100GE optical ports, which can be split into a maximum of 36 40GE optical ports, 144 25GE optical ports or 144 10GE optical ports.
Maximum port density
If all LPUs are CE-L36CQ-FD cards:
The CE12804/CE12804S chassis provides a maximum of 144 100GE ports.
The CE12808/CE12808S chassis provides a maximum of 288 100GE ports.
The CE12812 chassis provides a maximum of 432 100GE ports.
The CE12816 chassis provides a maximum of 576 100GE ports.
100GE port
Supports QSFP28 optical modules. A 100GE port can be used as a 40GE port or split into four 25GE or 10GE ports. Therefore, a CE-L36CQ-FD card can provide a maximum port density of 36x40GE, 144x25GE, or 144x10GE.
NOTE:
All the 100GE ports are independent, and each can be configured as one 40GE, four 25GE, or four 10GE ports.
Technical specifications
Item
Description
CPU
Eight-core, 1.5 GHz clock speed
DDR3/DDR4
DDR3, standard 4 GB
Flash
Standard 128 MB
Physical specifications
Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
Weight: 7.9 kg (17.42 lb)
Typical power consumption: 675 W
Maximum power consumption: 966 W
Typical heat dissipation: 2306 BTU/hour
Maximum heat dissipation: 3299 BTU/hour
Environment parameters
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
Safety standards compliance
EMC standards compliance
Environmental standards compliance
CE-L36CQ-FD FAQ
Q1: Which Huawei switch models does the CE-L36CQ-FD support? How compatible is it?
A1: It mainly supports high-end core switches such as the Huawei CE9800 series (CE9866, CE9855) and CE8800 series (CE8850, CE8860, CE8868). It is fully compatible in both hardware and software, with 100% compatibility and no additional debugging required.
Q2: Will the 36 high-density ports affect heat dissipation and signal stability?
A2: It adopts an optimized heat dissipation structure and shielding design. The high-density layout does not affect the stable operation of the device. Signal transmission has undergone rigorous testing and has no interference issues, ensuring reliable data transmission.
Q3: What are the differences between the CE-L36CQ-FD and the CE-L36CQ-FD1 in the same series? How should I choose?
A3: Both have the same core performance and high-density characteristics, with only differences in hardware process details. Both focus on high-density/compact scenarios. You can flexibly choose according to the compatible switch model and your budget. There is no difference in functionality or user experience.
