Port for inputting and outputting 40GE optical signals
40GE QSFP+ optical modules QSFP+ to QSFP+ AOC cable QSFP+ to 4*SFP+ AOC cable QSFP+ to QSFP+ high-speed cable QSFP+ to 4*SFP+ high-speed cable

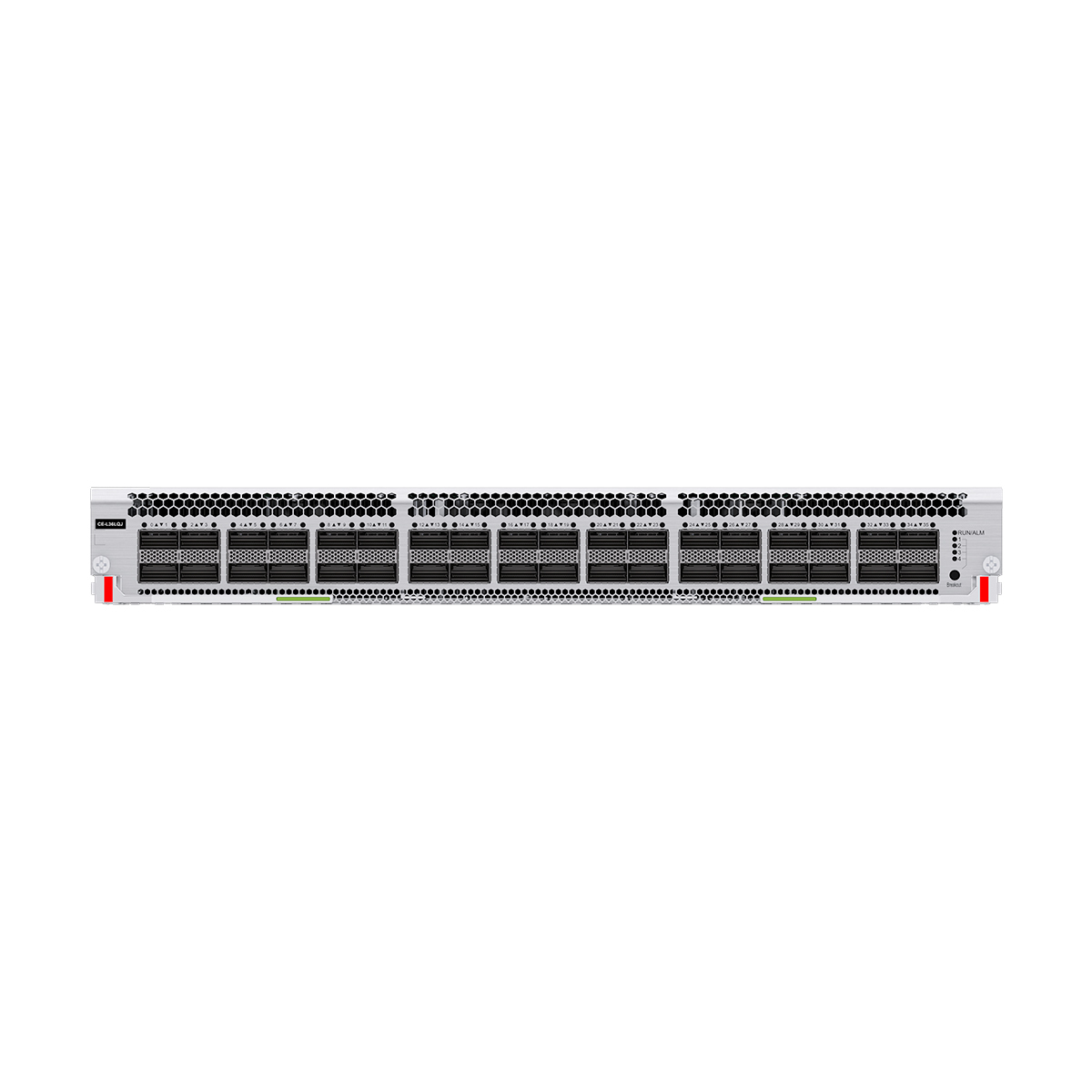

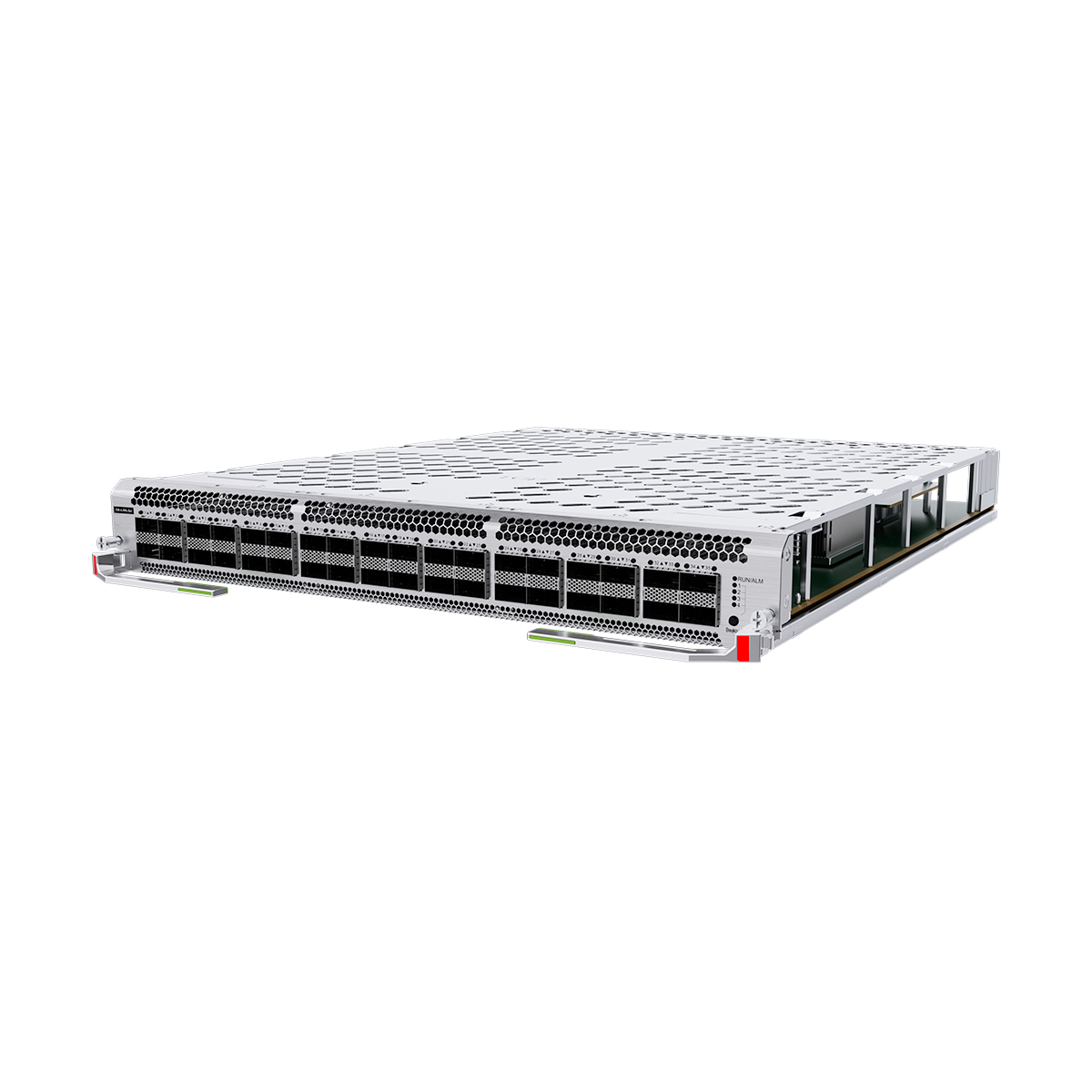

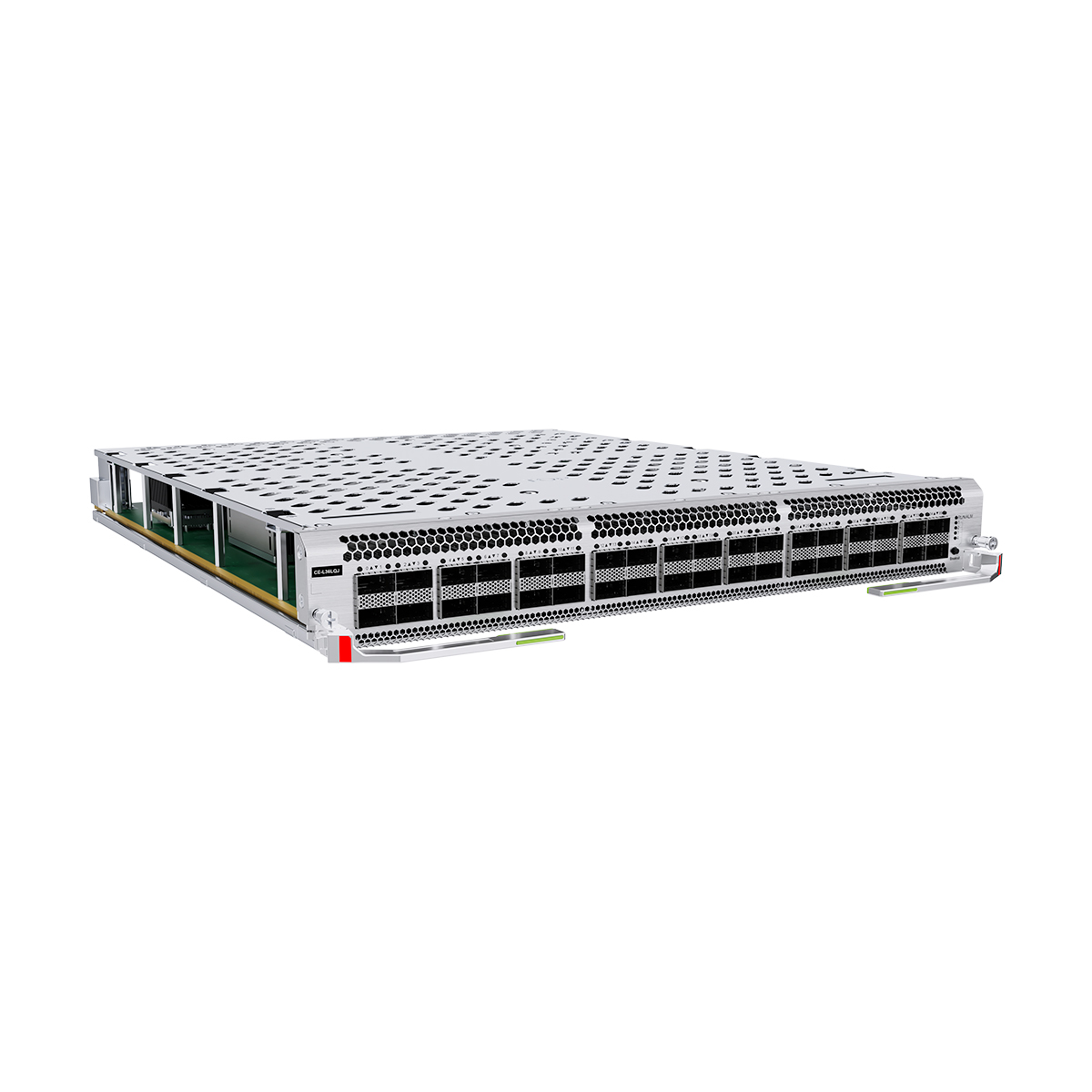

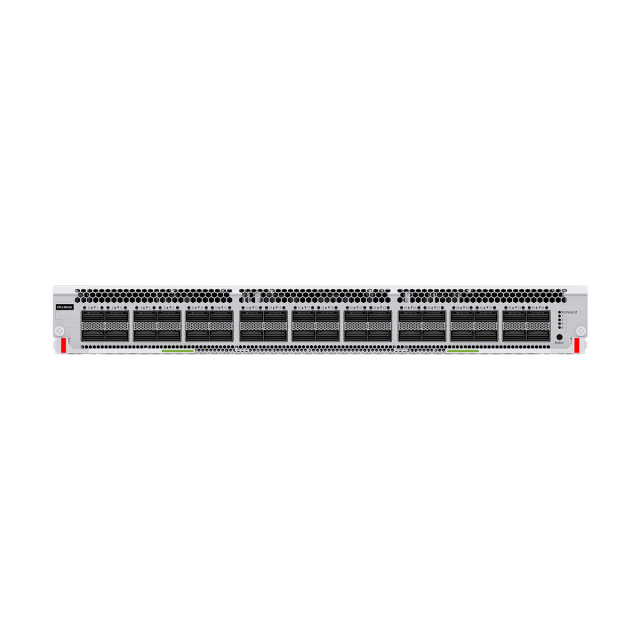

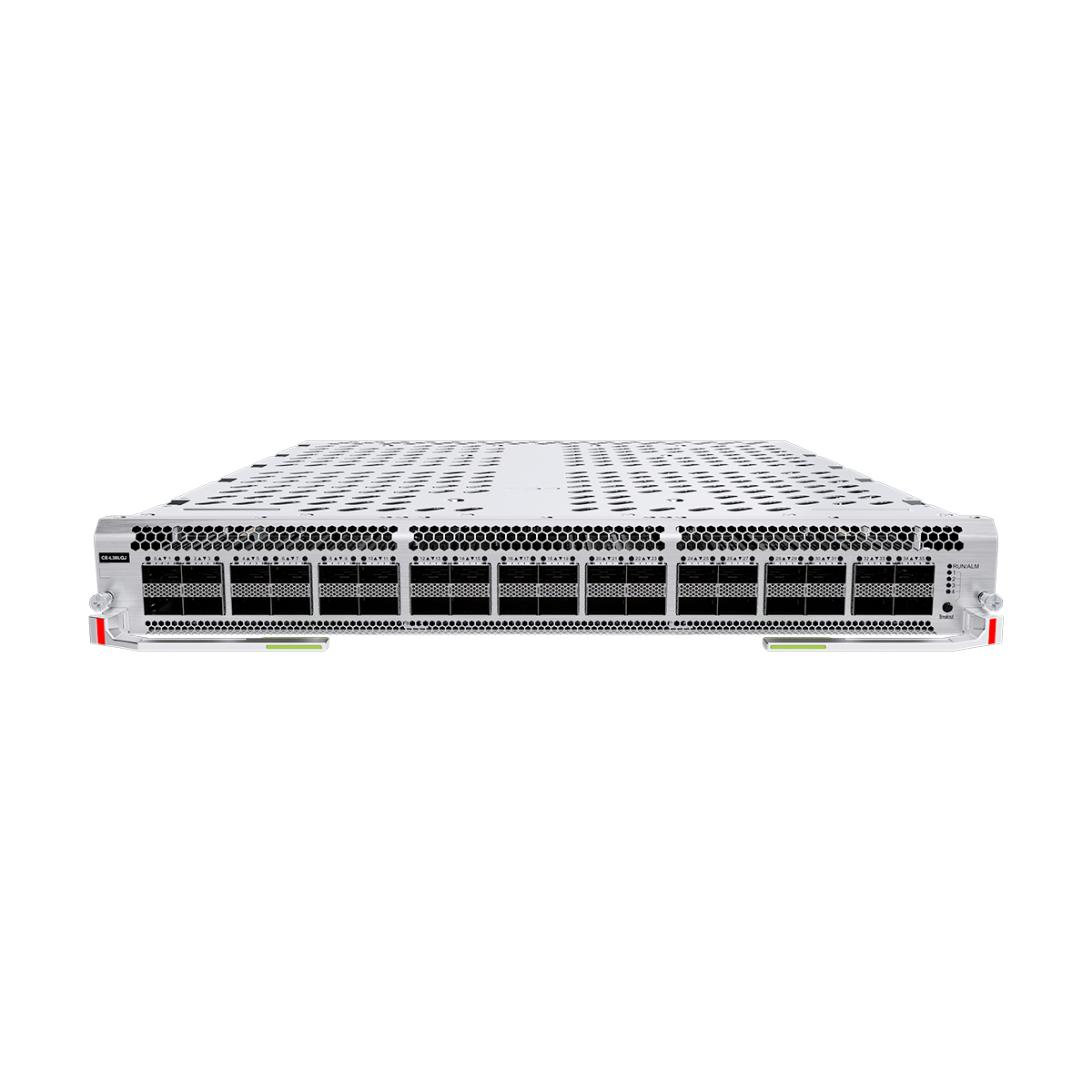

CE-L36LQJ Datasheet
Item
CE-L36LQJ
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.6 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]
7.32 kg (16.14 lb)
Weight with packaging [kg (lb)]
11.70 kg (25.79 lb)
Typical power consumption [W]
295 W
Typical heat dissipation [BTU/hour]
1006 BTU/hour
Static power consumption [W]
266 W
Static heat dissipation [BTU/hour]
907 BTU/hour
Maximum power consumption [W]
443 W
Maximum heat dissipation [BTU/hour]
1511 BTU/hour
CPU
4-core, 1.4 GHz clock speed
Memory
Standard 4 GB
NOR Flash
Standard 128 MB
CE-L36LQJ FAQ
Q1: Which Huawei switch models does the CE-L36Lqj support? How compatible is it?
A1: It mainly supports Huawei CE12800 series mid-to-high-end switches (such as CE12804/CE12808), CE8800 series high-end switches (such as CE8868-4C-EI), CE7800 series high-end switches, and some models of the CE9800 series. The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and use.
Q2: Are the 36 ports compatible with low-speed optical modules? What is the long-distance transmission range?
A2: It supports 100G/40G/25G auto-negotiation and can directly use existing low-speed optical modules, reusing assets. With corresponding optical modules, the transmission distance covers 10km (LR4)-40km (ER4), flexibly adapting to different cross-area distances.
Q3: How are the power consumption and heat dissipation performance of this interface card? Is stability affected under long-distance transmission?
A3: Adopts a low-power design, with single-card power consumption controlled at a low level compared to similar products in the industry, and is compatible with the built-in heat dissipation system of the switch; long-distance transmission supports error correction and anti-interference optimization, and stability is not affected by distance.
