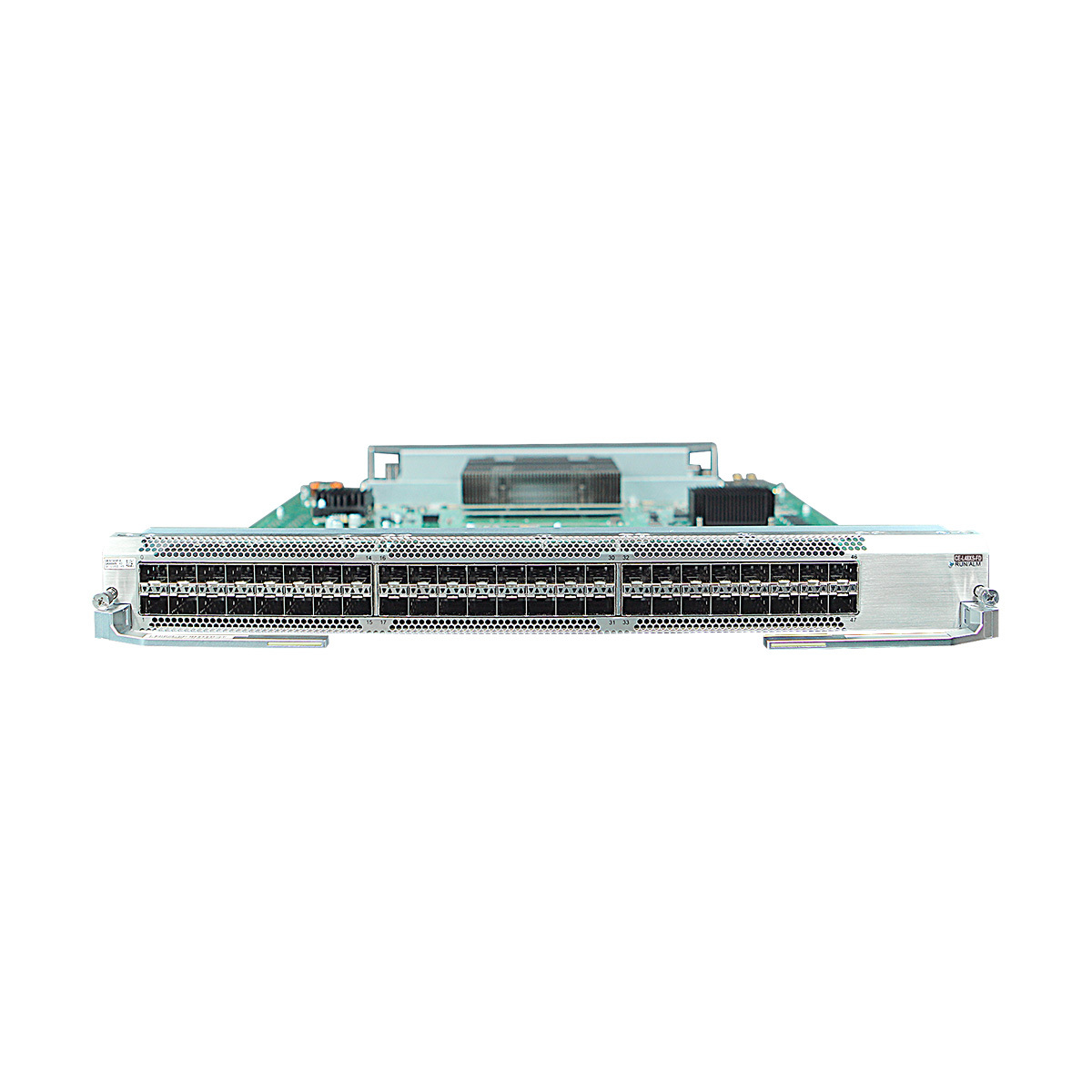

The CE-L48XS-FD1 provides data packet processing and traffic management on 48 10GE/25GE optical ports.
Maximum port density
If all LPUs are CE-L48XS-FD1 cards:
The CE12804/CE12804S chassis provides a maximum of 192 10GE/25GE optical ports.
The CE12808/CE12808S chassis provides a maximum of 384 10GE/25GE optical ports.
The CE12812 chassis provides a maximum of 576 10GE/25GE optical ports.
The CE12816 chassis provides a maximum of 768 10GE/25GE optical ports.
High 10GE/GE port density (48x10GE/GE)
When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules, and can work with 10GE Twinax high-speed cables or AOC cables.
Optical ports on a CE-L48XS-FD1 card work at the rate of 10 Gbit/s by default. You can run the port mode 25ge command to configure the ports to work at the rate of 25 Gbit/s. The ports support SFP28 optical modules, SFP28 high-speed cables, and AOC cables.
In versions earlier than V200R005C00, 10GE optical ports on the CE-L48XS-FD1 card cannot work at the rate of 1 Gbit/s. In V200R005C00 and later versions, 10GE optical ports on the card support GE optical and copper modules. When a GE copper module is installed on a 10GE optical port, the port supports only the rate of 1000 Mbit/s. When a GE optical module is installed on a 10GE optical port, the port works in non-auto-negotiation mode by default and does not support the auto-negotiation configuration.
Technical specifications
Item
CE-L48XS-FD1
CPU
Eight-core, 1.5 GHz clock speed
DDR3/DDR4
DDR4, standard 8 GB
Flash
Standard 128 MB
Physical specifications
Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
Weight: 5.9 kg (13.01 lb)
Typical power consumption: 173 W
Maximum power consumption: 341 W
Typical heat dissipation: 591 BTU/hour
Maximum heat dissipation: 1163 BTU/hour
Environment parameters
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
Safety standards compliance
EMC standards compliance
Environmental standards compliance
CE-L48XS-FD1 FAQ
Q1: Which Huawei switch models does the CE-L48XS-FD1 support? How compatible is it?
A1: It mainly supports Huawei CE8800, CE7800, and CE6800 series mid-to-high-end switches. It is fully compatible in both hardware and software, with 100% compatibility and no additional debugging required.
Q2: Will the 48 ultra-high-density ports affect heat dissipation and signal stability? Is there any performance loss due to multi-rate compatibility?
A2: It adopts an optimized heat dissipation structure and shielding design. The high-density layout does not affect the stable operation of the device. Multi-rate adaptive operation is achieved at the hardware level without any performance loss, and it can seamlessly switch between 25G/10G modes.
Q3: What is the difference between the CE-L48XS-FD1 and the CE-L48XS-FDA in the same series? How should I choose?
A3: Both have the same core performance. The CE-L48XS-FD1 focuses on ultra-high-density design with better space optimization; the CE-L48XS-FDA is a standard high-density model with a more balanced cost. For high-density access scenarios with extremely limited space, choose CE-L48XS-FD1; for ordinary high-density scenarios, choose CE-L48XS-FDA.
