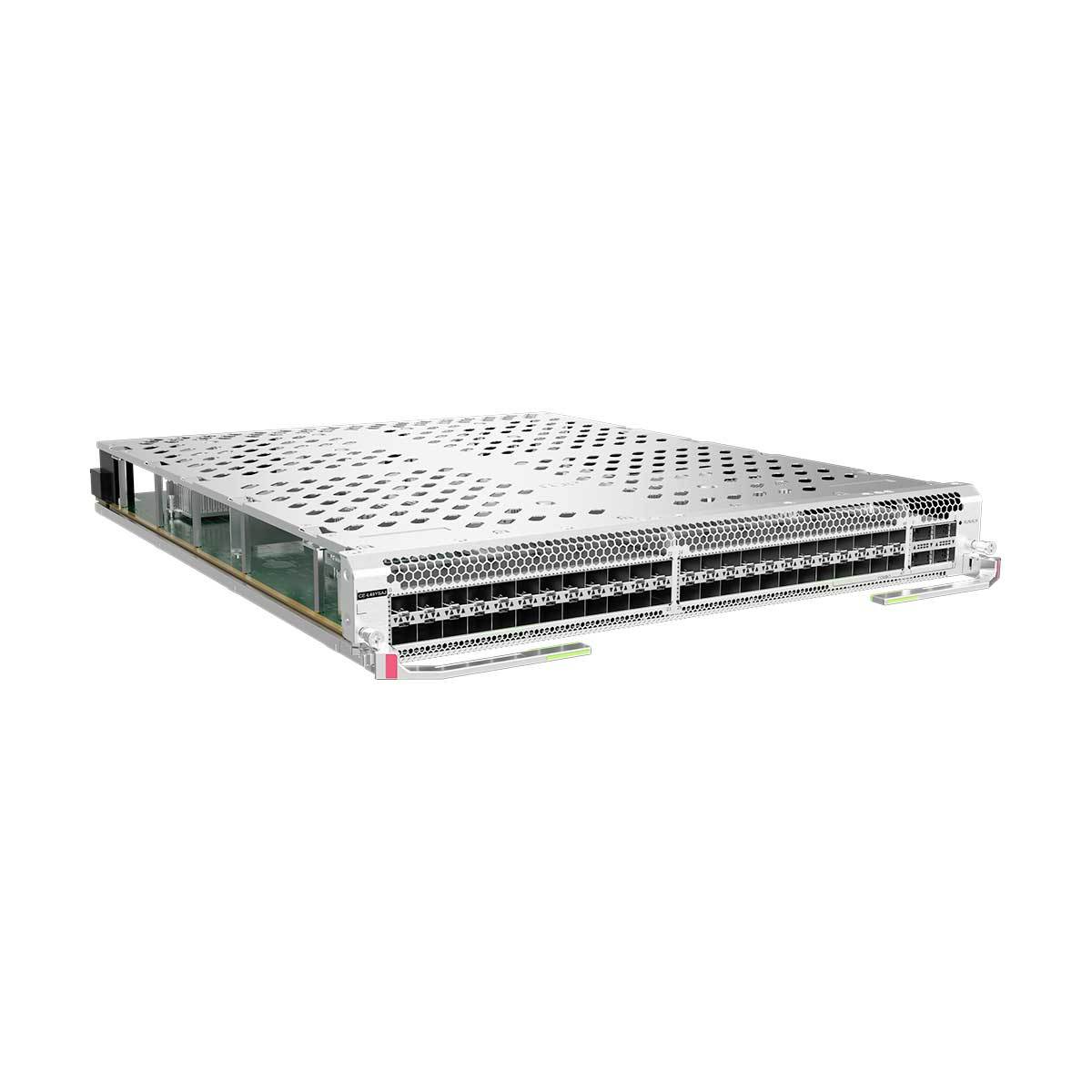

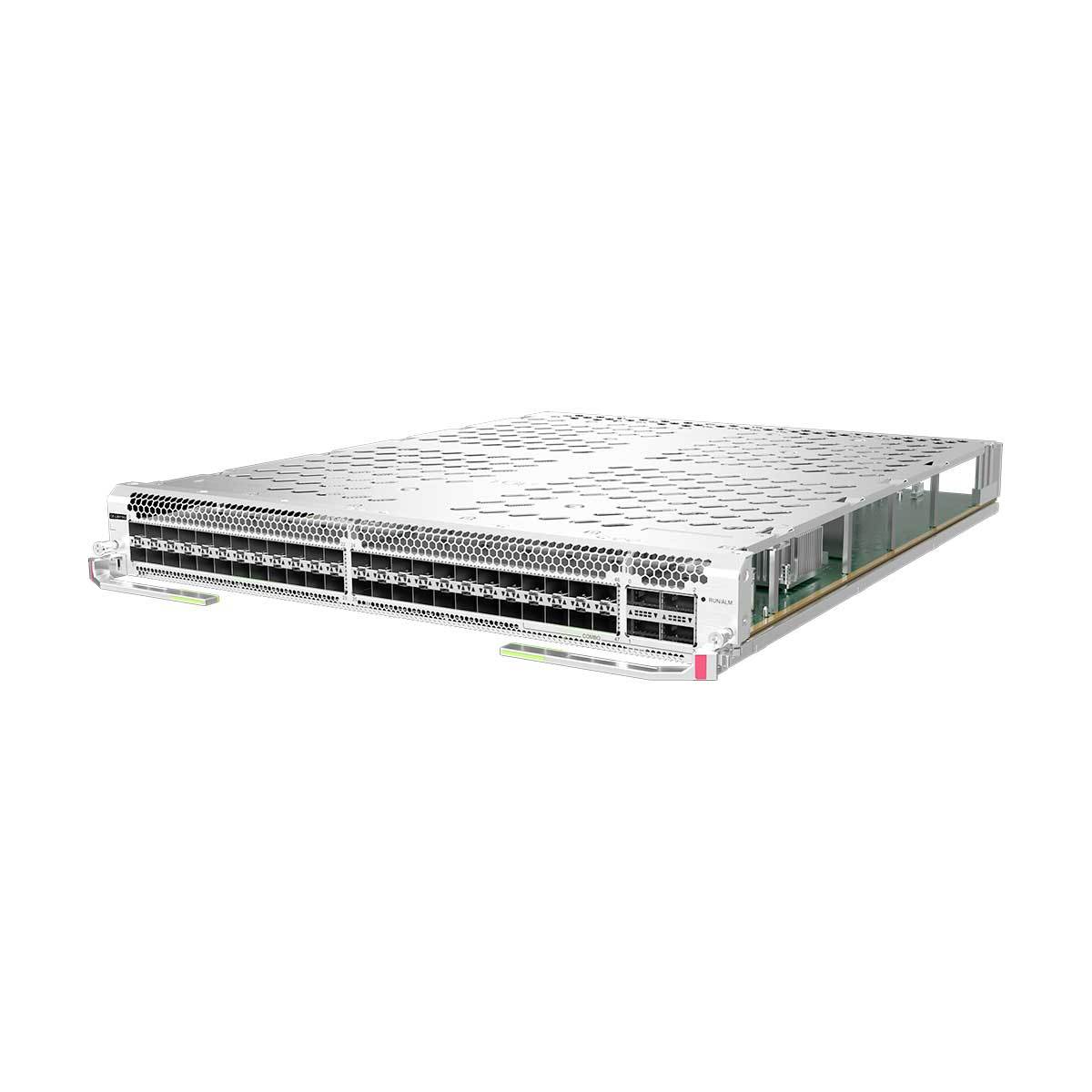

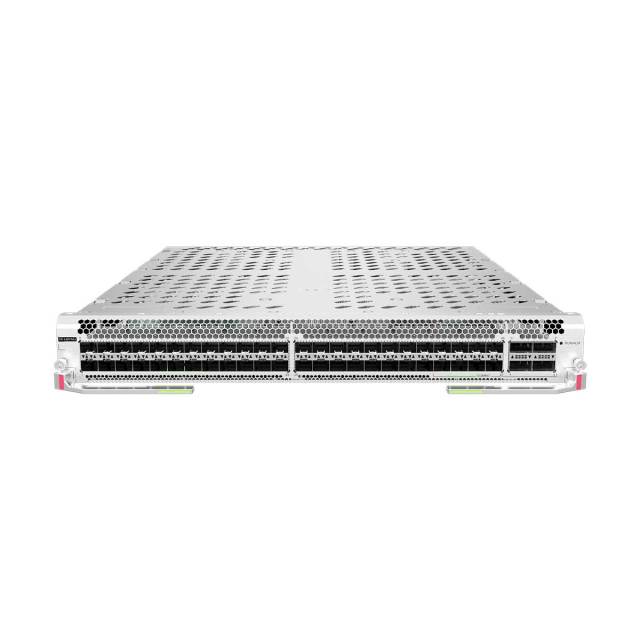

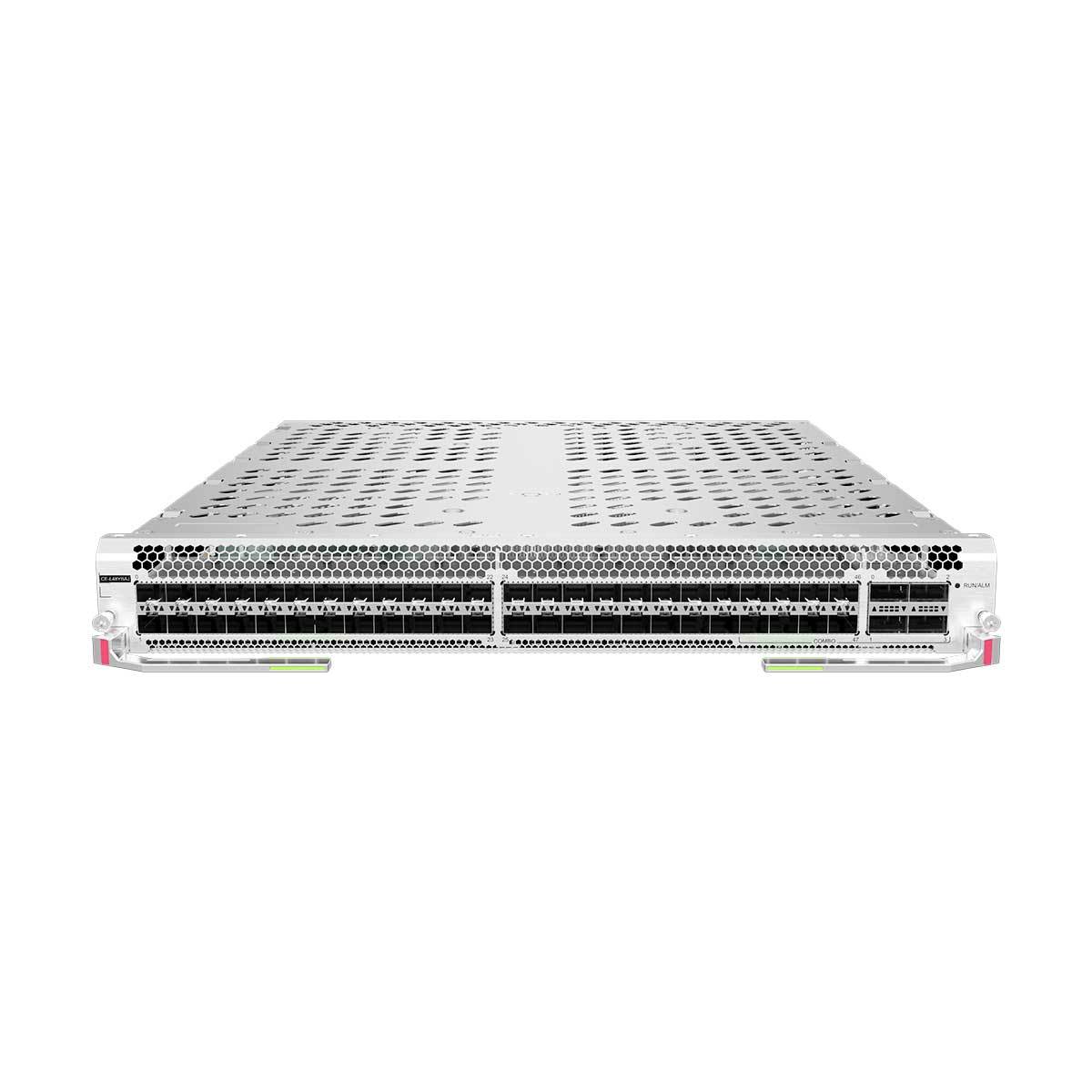

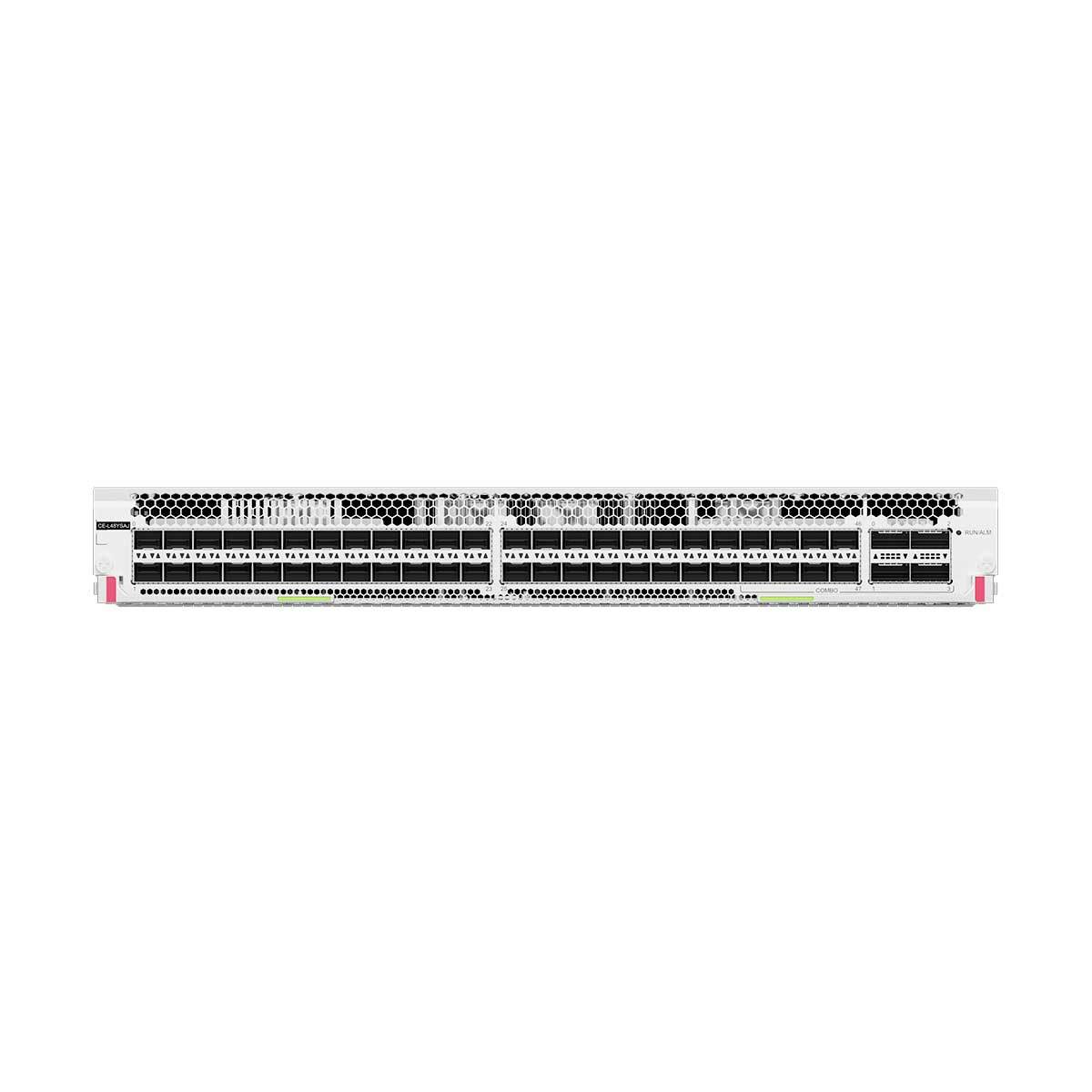

48-port 25GE and 4-port 100GE interface card (L-J, SFP28, QSFP28)
Part Number
03050LES
Model
CE-L48YSAJ
Silkscreen
CE-L48YSAJ
Card Type
Interface Card
Ports on the CE-L48YSAJ
Port
Connector Type
Description
Available Components
48 x 25GE optical ports
SFP28/SFP+/SFP
Port for inputting and outputting 25GE/10GE/GE optical signals
GE eSFP optical modules GE SFP copper modules 10GE SFP+ optical modules 25GE SFP28 optical modules SFP+ to SFP+ AOC cable SFP+ to SFP+ high-speed cable SFP28 to SFP28 AOC cable SFP28 to SFP28 high-speed cable
NOTE:
When the last eight 25GE ports (ports 40 to 47) on a card use SFP28 to SFP28 high-speed cables, only 1 m and 3 m high-speed cables are supported.
4 x 100GE optical ports
QSFP28/QSFP+
Port for inputting and outputting 100GE/40GE optical signals
40GE QSFP+ optical modules 100GE QSFP28 optical modules QSFP+ to QSFP+ AOC cable QSFP28 to QSFP28 AOC cable QSFP+ to QSFP+ high-speed cable QSFP28 to QSFP28 high-speed cable
NOTE:
When QSFP28 to QSFP28 high-speed cables are used, only 1 m and 3 m high-speed cables are supported.
CE-L48YSAJ Datasheet
Item
CE-L48YSAJ
Typical power consumption [W]
184 W
Typical heat dissipation [BTU/hour]
627 BTU/hour
Static power consumption [W]
150 W
Static heat dissipation [BTU/hour]
512 BTU/hour
Maximum power consumption [W]
259 W
Maximum heat dissipation [BTU/hour]
884 BTU/hour
CPU
4-core, 1.4 GHz clock speed
Memory
Standard 4 GB
NOR Flash
Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.6 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]
6.37 kg (14.04 lb)
Weight with packaging [kg (lb)]
10.75 kg (23.7 lb)
CE-L48YSAJ FAQ
Q1: Which Huawei switch models does the CE-L48YSAJ support? How compatible is it?
A1: It mainly supports Huawei CE12800 series mid-to-high-end switches (CE12804/CE12808), CE8800 series high-end switches (CE8850-64CQ-EI), CE7800 series, and some models of the CE9800 series. The interfaces and slots are fully matched, with 100% compatibility; simply plug and play.
Q2: Can 48 ports simultaneously use 10G, 1G, and 100M optical modules? Is additional configuration required?
A2: It supports independent port rate auto-negotiation, allowing simultaneous use of three different rate optical modules. No additional configuration or VLAN segmentation is required; it's plug-and-play with extremely strong compatibility.
Q3: How are the power consumption and heat dissipation performance of this interface card? Does mixed rate access affect stability?
A3: It adopts a low-power optimized design, with single-card power consumption controlled at a low level compared to similar products in the industry, and is compatible with the switch's built-in heat dissipation system; it supports independent bandwidth allocation when accessing mixed rates, and stability is not affected.
