Port for inputting and outputting 25GE/10GE/GE optical signals
GE eSFP optical modules GE SFP copper modules 10GE SFP+ optical modules 25GE SFP28 optical modules SFP+ to SFP+ AOC cable SFP+ to SFP+ high-speed cable SFP28 to SFP28 AOC cable SFP28 to SFP28 high-speed cable

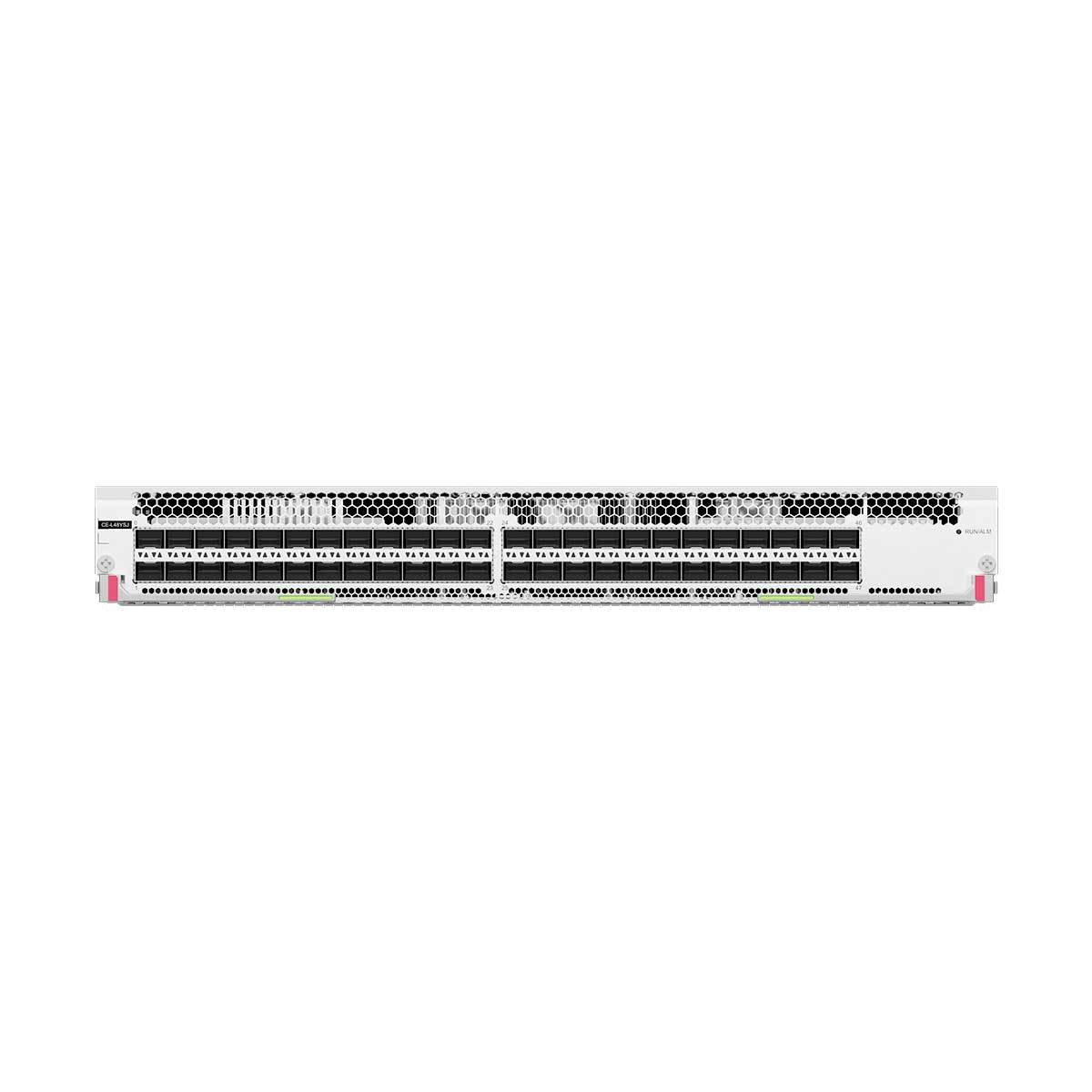

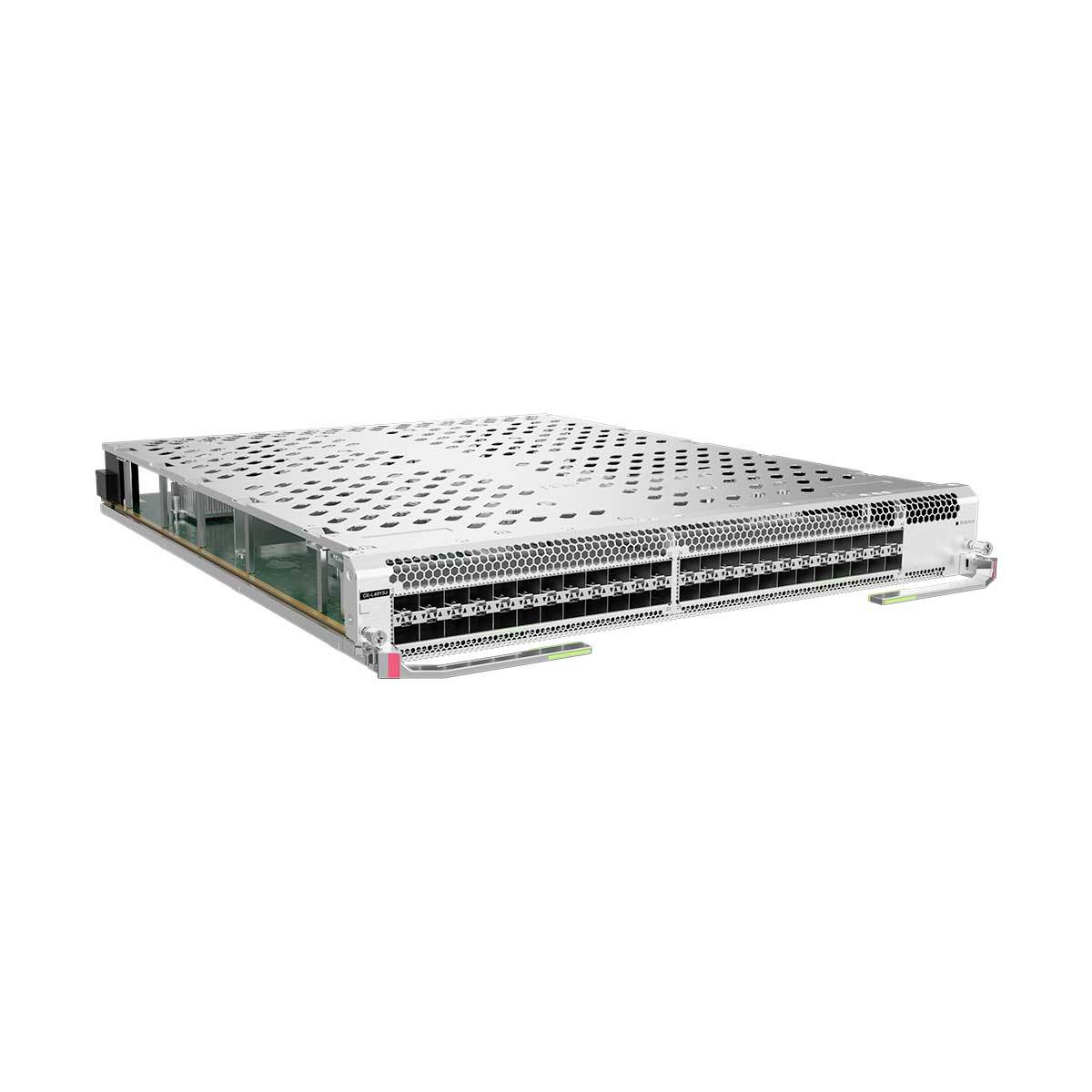

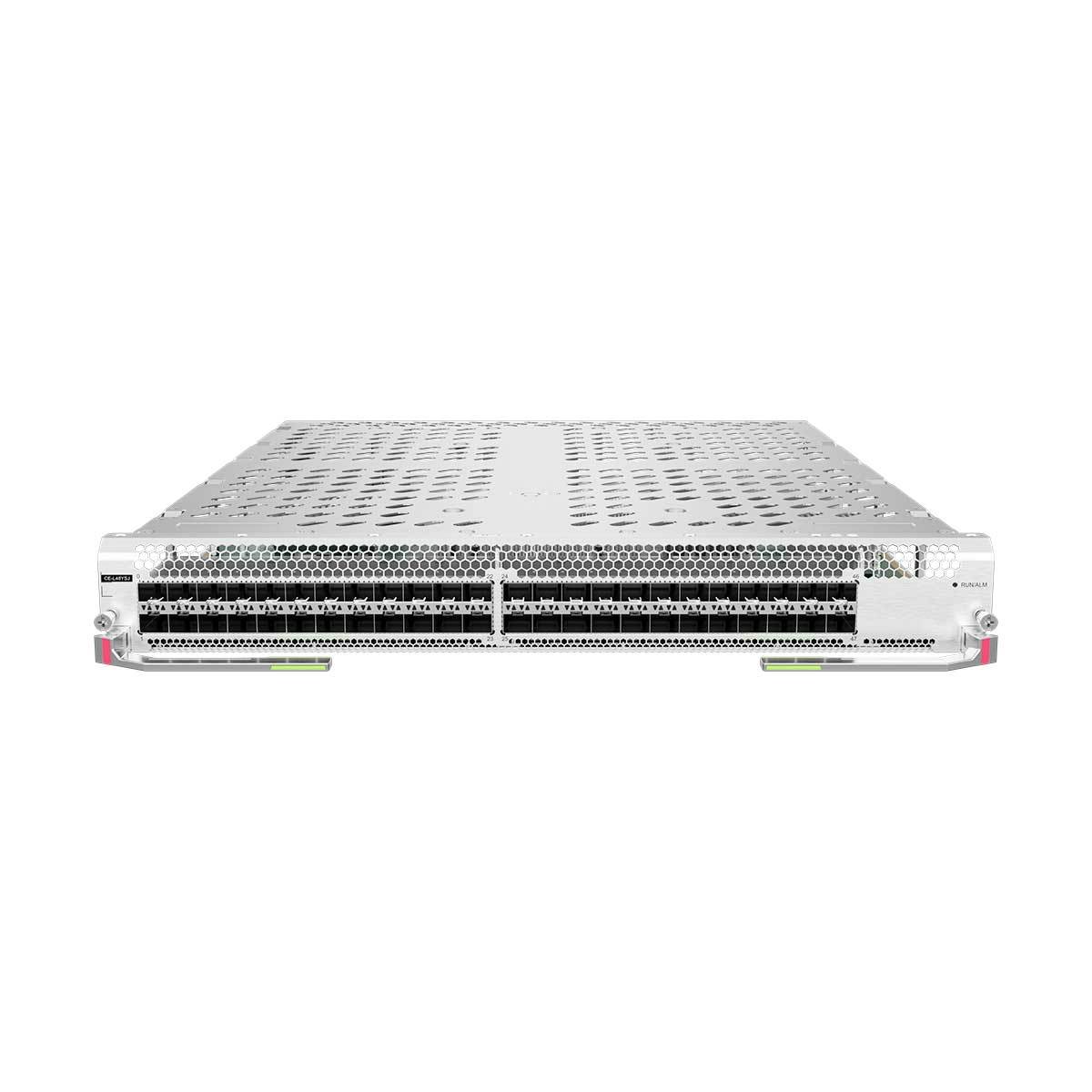

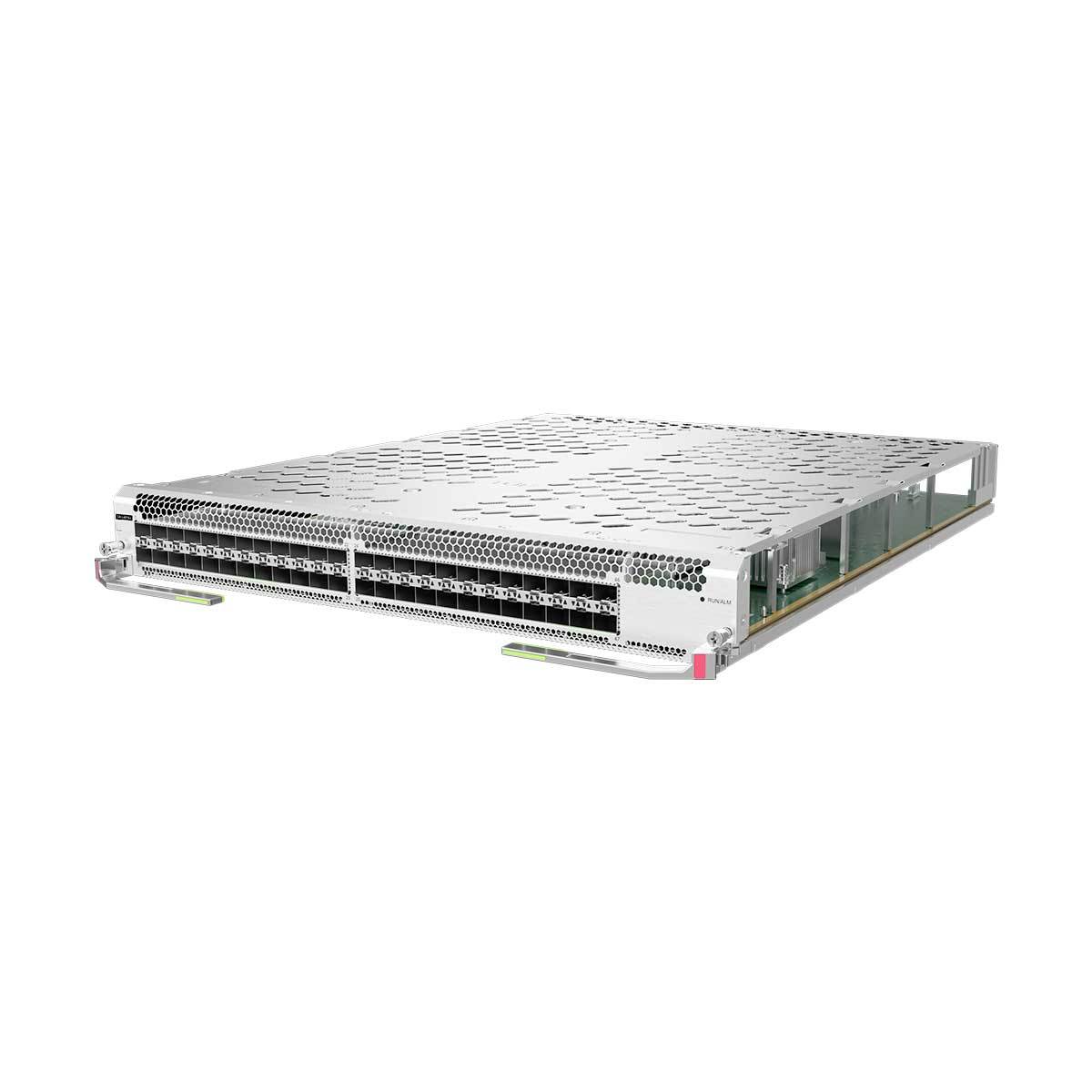

CE-L48YSJ Datasheet
Item
CE-L48YSJ
Typical power consumption [W]
135 W
Typical heat dissipation [BTU/hour]
460 BTU/hour
Static power consumption [W]
111 W
Static heat dissipation [BTU/hour]
379 BTU/hour
Maximum power consumption [W]
201 W
Maximum heat dissipation [BTU/hour]
684 BTU/hour
CPU
4-core, 1.4 GHz clock speed
Memory
Standard 4 GB
NOR Flash
Standard 128 MB
RTU License Supported
Yes. By default, 48 x 25GE ports can only work at the rate of 10 Gbit/s. The RTU license with part number 88036EUT can be used to increase the rate of 24 x 25GE ports to 25 Gbit/s. A maximum of two licenses can be activated on a device to increase the rate of 48 x 25GE ports to 25 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.6 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]
6.20 kg (13.67 lb)
Weight with packaging [kg (lb)]
10.58 kg (23.32 lb)
CE-L48YSJ FAQ
Q1: Which Huawei switch models does the CE-L48YSJ support? How compatible is it?
A1: It mainly supports Huawei CE12800 series mid-to-high-end switches (such as CE12804/CE12808), CE8800 series high-end switches (such as CE8850-64CQ-EI), CE7800 series high-end switches, and some models of the CE9800 series. The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and it's ready to use.
Q2: Can 48 ports simultaneously use both 10G and 1G optical modules? Can existing gigabit optical modules be reused?
A2: It supports independent port rate auto-negotiation, allowing simultaneous use of both 10G and 1G optical modules; it is fully compatible with existing 1G SFP optical modules, eliminating the need for additional purchases and effectively reducing network upgrade costs.
Q3: How are the power consumption and heat dissipation performance of this interface card? Will it place an additional burden on the switch?
A3: It adopts a low-power optimized design, and the power consumption of a single card is controlled at a low level compared to similar high-density access cards in the industry. It is compatible with the redundant heat dissipation system of the switch, so no additional heat dissipation measures are required, and it will not put pressure on the heat dissipation of the switch.
