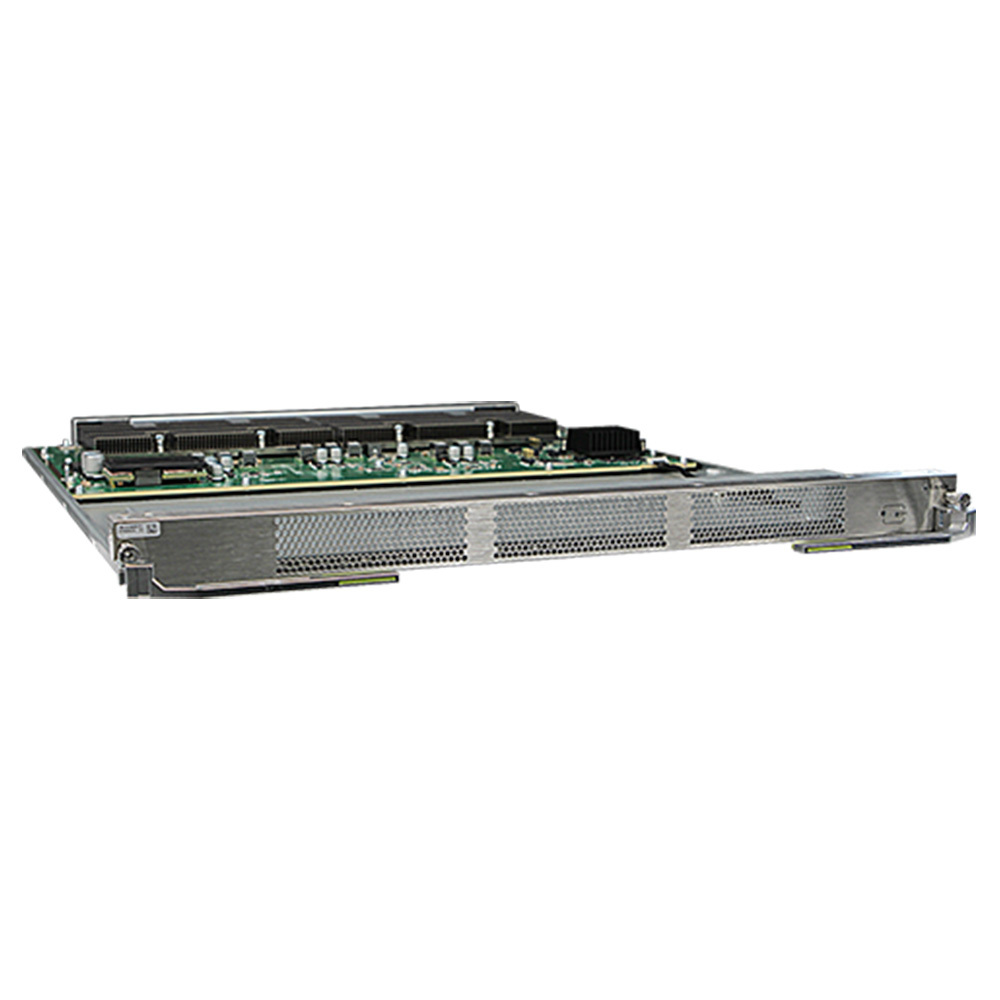

Huawei CE128000 Series Switch CE-SFUG-S Switch Fabric Unit.
Functions and features
Function and Feature
Description
Line-speed data switching
Two/Four CE-SFUG-S cards in a chassis constitute the switching core of the data plane and provide high-speed SerDes channels for LPUs.
Reliability
The CE-SFUG-S cards in a chassis use a single-stage multi-plane switch fabric to expand the switching capacity. The system has two/four switching planes, which work in load balancing and redundancy mode to ensure nonstop service data switching.
Technical specifications
Item
Description
Reliability
Load balancing and redundancy design
Physical specifications
Dimensions (W x D x H): 433.0 mm x 530.8 mm x 30.5 mm (17.05 in. x 20.90 in. x 1.20 in.)
Weight: 4.35 kg (9.59 lb)
Typical power consumption: 191 W
Maximum power consumption: 266 W
Typical heat dissipation: 652 BTU/hour
Maximum heat dissipation: 908 BTU/hour
Environment parameters
Operating temperature: 0°C to 40°C
Storage temperature: -40°C to +70°C
Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
Safety standards compliance
EMC standards compliance
Environmental standards compliance
CE-SFUG-S FAQ
Q1: Which Huawei switch models does the CE-SFUG-S switching board support? How compatible is it?
A1: It mainly supports Huawei CE9800 series (such as CE9866, CE9855) and CE8800 series (such as CE8850, CE8868) high-end core switches, with full hardware and software compatibility (100%).
Q2: Does the bandwidth of a single switching board meet the core requirements of a large data center? Is multi-board redundancy necessary?
A2: A single board with ≥64Tbps bandwidth can meet the needs of medium-sized core nodes; for large core architectures, it is recommended to use 2 or more redundant boards for both increased switching capacity and fault tolerance.
Q3: Does the CE-SFUG-S support hot-swapping? Will maintenance affect services?
A3: It supports hot-swapping. Maintenance and replacement of the board do not require downtime and do not affect core business operations, ensuring continuous service in large data centers.
