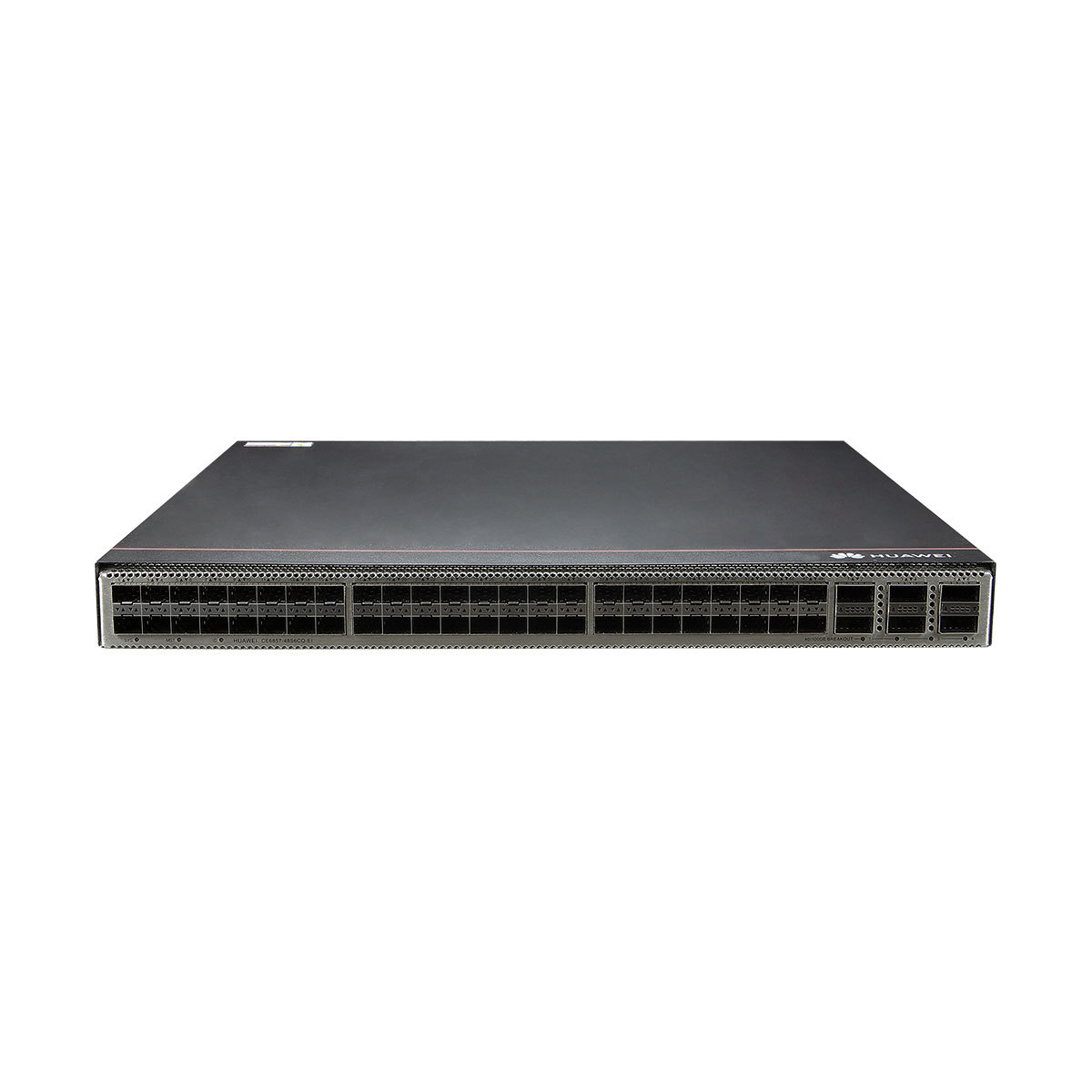

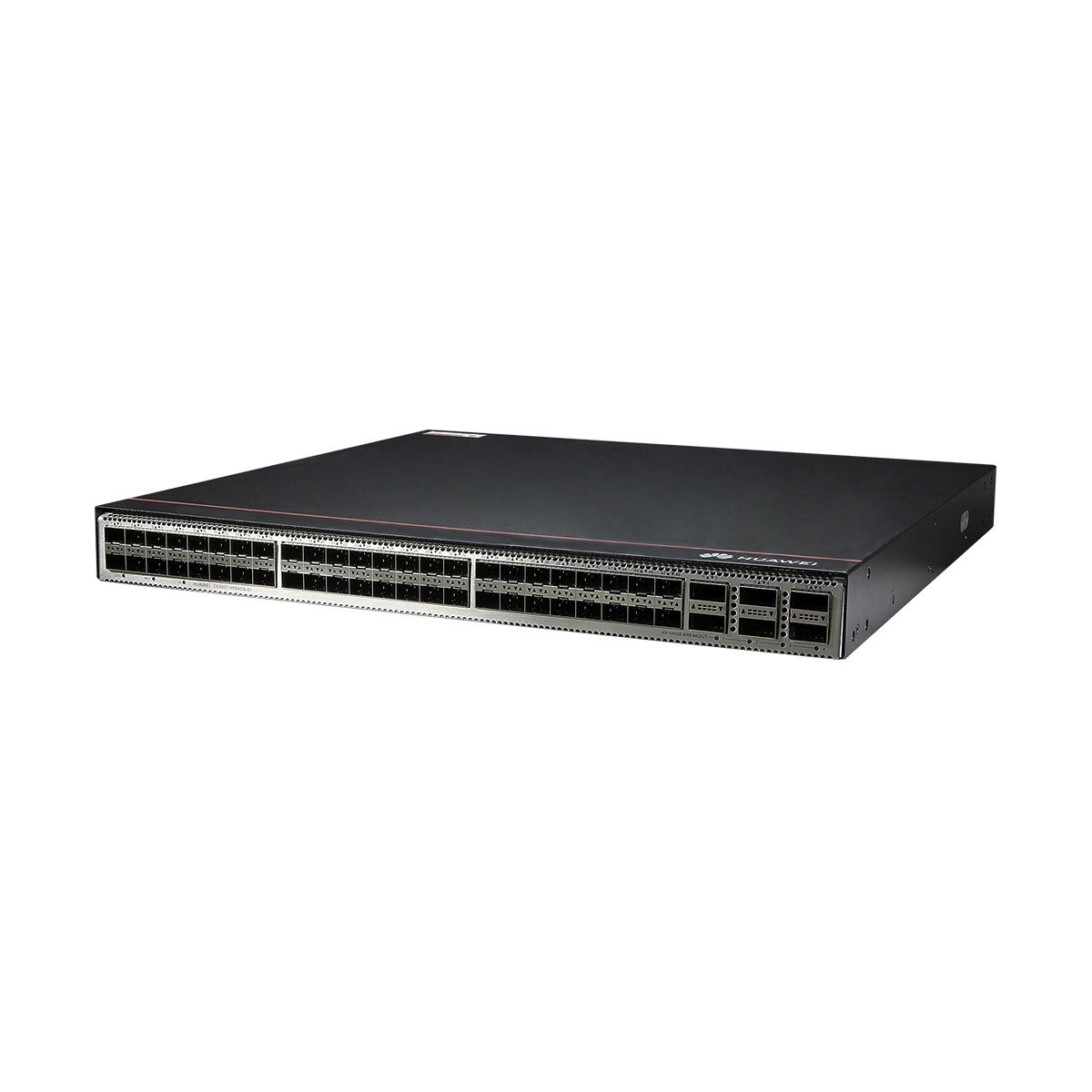

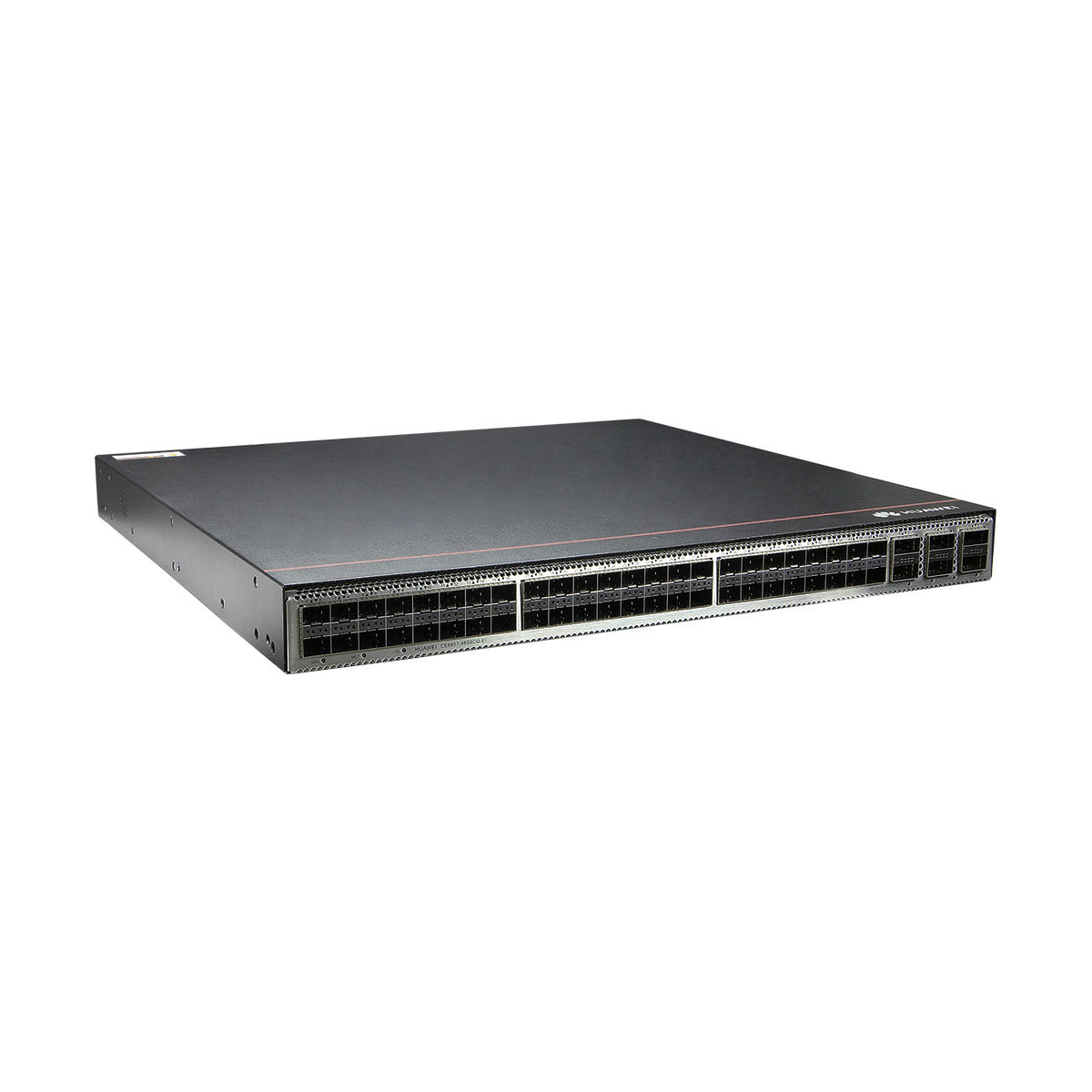

Huawei CE6857-48S6CQ-EI Switch

1

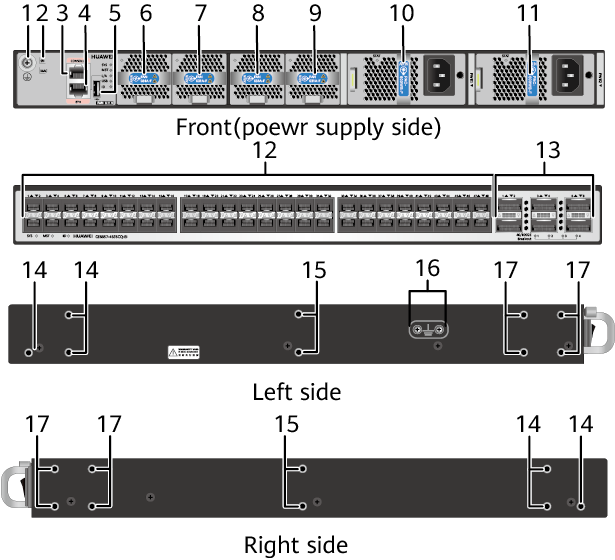

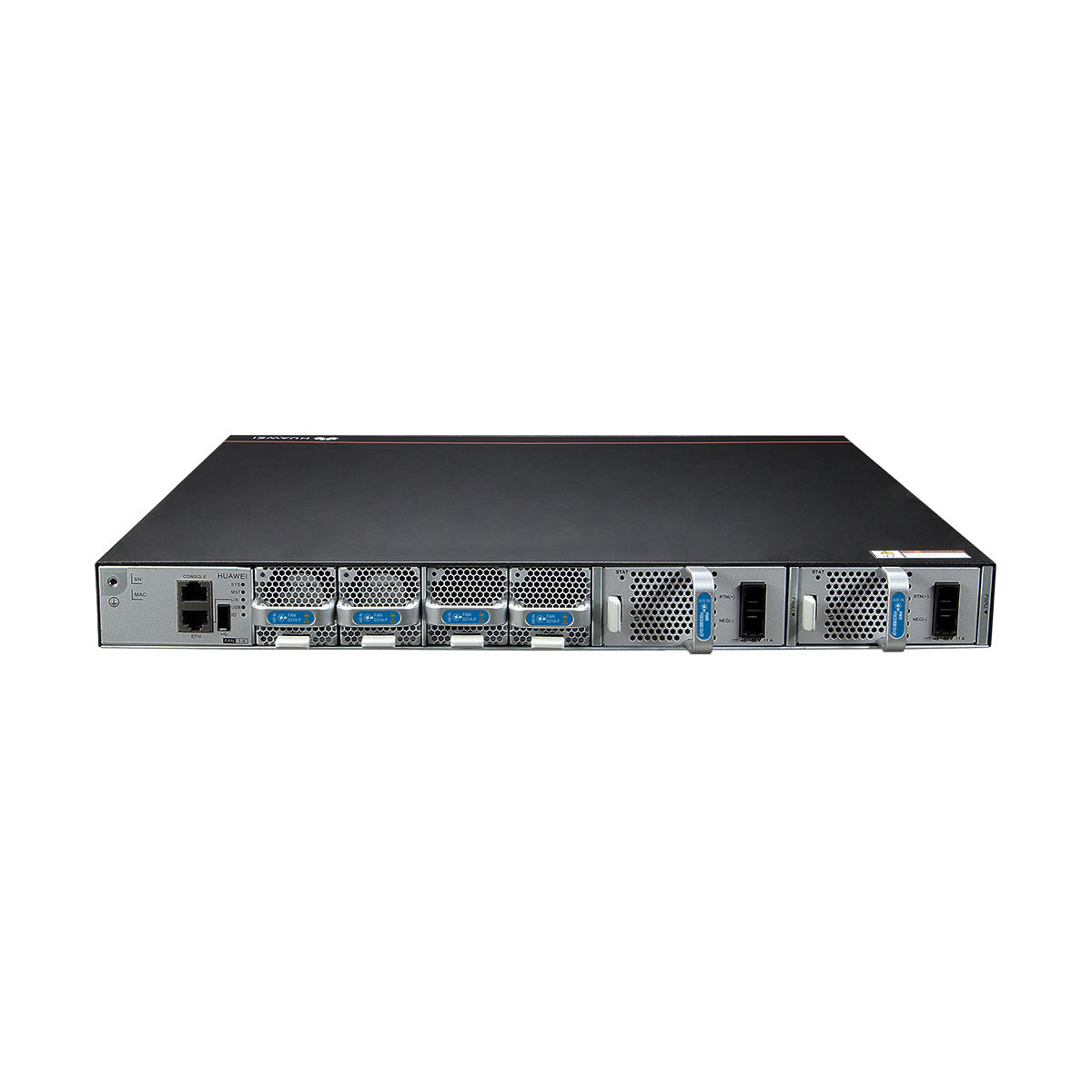

Ground screw

2

3

Console port

4

ETH management port (RJ45)

5

USB port

6

Fan slot 1

7

Fan slot 2

8

Fan slot 3

9

Fan slot 4

10

Power supply slot 1

11

Power supply slot 2

12

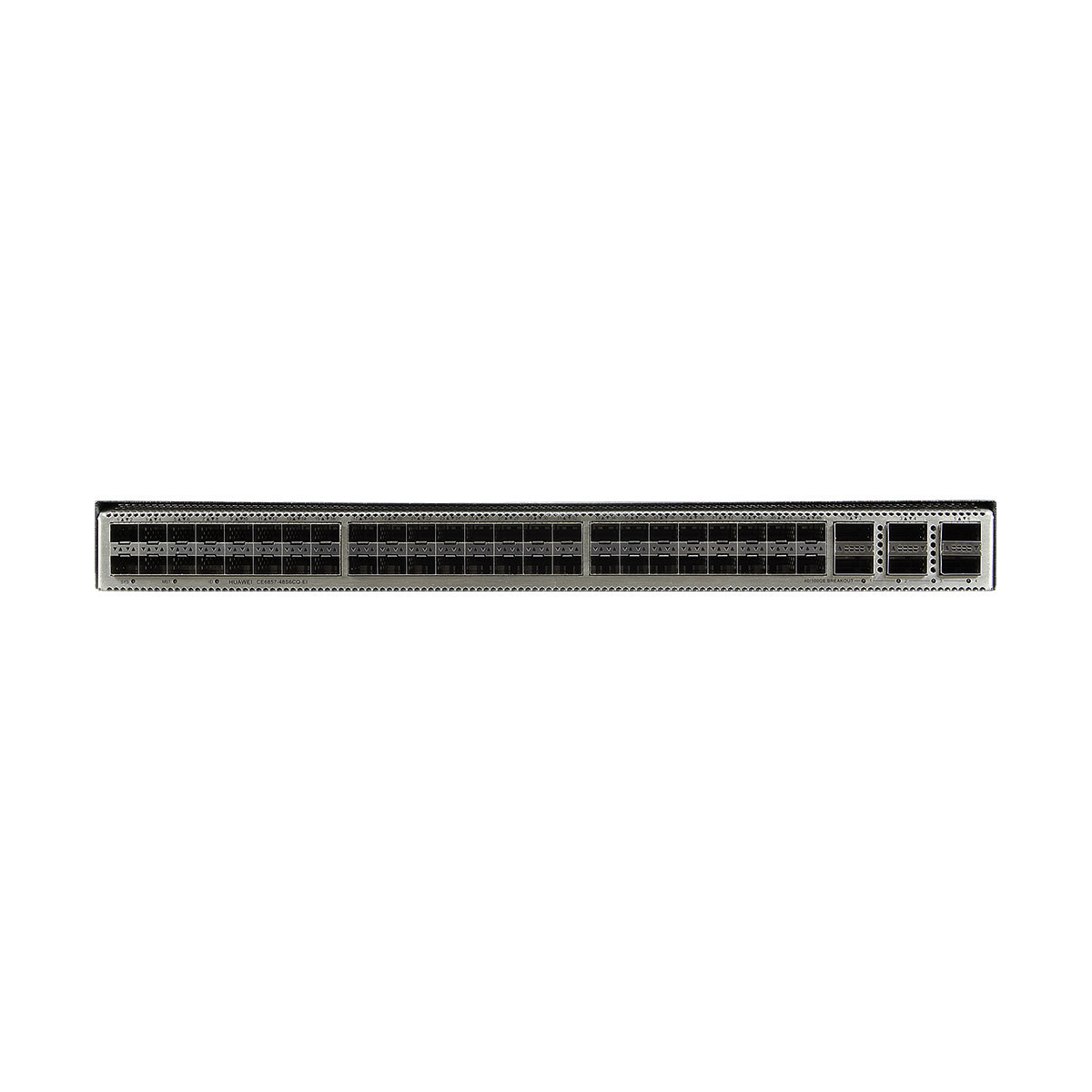

Forty-eight 10GE SFP+ Ethernet optical ports

13

Six 40GE/100GE QSFP28 Ethernet optical ports

14

Three port-side mounting holes for mounting brackets

15

Two middle mounting holes for mounting brackets

16

Equipotential junction

Grounding screw used in dual OT scenarios.

17

Four power-supply-side mounting holes for mounting brackets

-

-

Connector type

LC

Optical attributes

Depending on the module or cable in use

Standards compliance

IEEE802.3ae

Working mode

Supported rate: 1000 Mbit/s and 10 Gbit/s auto-sensing

Full-duplex

Connector type

Depending on the optical module

Optical attributes

Depending on the module or cable in use

Standards compliance

IEEE802.3ba

Working mode

Full-duplex

Physical specifications

• Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
• Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 7.6 Kg (16.76 lb)

Environment parameters

Temperature

• Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
  NOTE:

  When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

• Storage temperature: -40°C to +70°C (-40°F to +158°F)

Relative humidity

5% RH to 95% RH, noncondensing

Altitude

< 5000 m (16404 ft.)

Noise (sound pressure, 27°C)

• Back-to-front airflow: < 53 dBA
• Front-to-back airflow: < 52 dBA

Power specifications

Power source type

AC

AC power input

• Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
• Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz

DC power input

• Rated voltage range: -48 V DC to -60 V DC
• Maximum voltage range: -38.4 V DC to -72 V DC

High-voltage DC power input

Not supported

Rated input current

• 350 W DC power (PDC350S12 series): 11 A (-48 V DC to -60 V DC)

• 600 W AC power (PAC600S12 series): 9 A (100 V AC to 240 V AC)

Chassis power consumption

Maximum power consumption

287 W

Typical power consumption

152 W (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 6 ports, double power modules)

195 W (100% throughput, all optical interfaces on the switch are equipped with the short-distance optical modules, double power modules)

Chassis heat dissipation

Maximum heat dissipation

979 BTU/Hr

Typical heat dissipation

519 BTU/Hr (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 6 ports, double power modules)

665 BTU/Hr (100% throughput, all optical interfaces on the switch are equipped with the short-distance optical modules, double power modules)

Surge protection

Heat dissipation

Heat dissipation mode

Air cooling

Airflow

Front-to-back or back-to-front, depending on the fan modules and power modules

Reliability

Power module backup

1+1 backup

Fan module backup

The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.

Hot swap

Supported by all power modules and fan modules

Mean time between failures (MTBF)

45.3 years

Mean time to repair (MTTR)

1.68 hours

Availability

0.99999576002

Technical specifications

Processor

1.4 GHz, four-core

DRAM Memory

4 GB

NOR Flash

64 MB

NAND Flash

2 GB

Stack

Service port supporting the stack function

10GE optical ports, 40GE optical ports, and 100GE optical ports

Certification

• Safety standards compliance
• EMC standards compliance
• Environmental standards compliance
