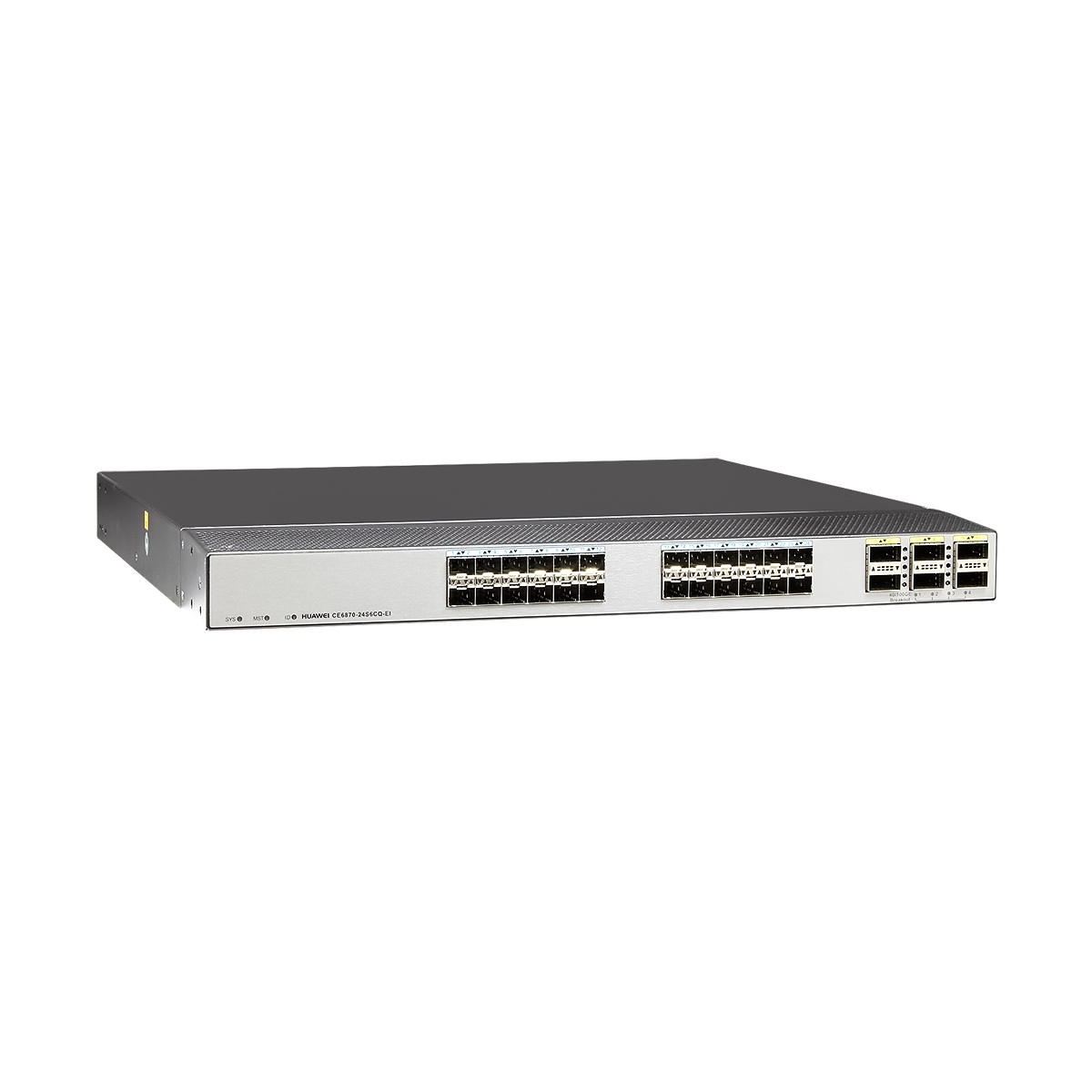

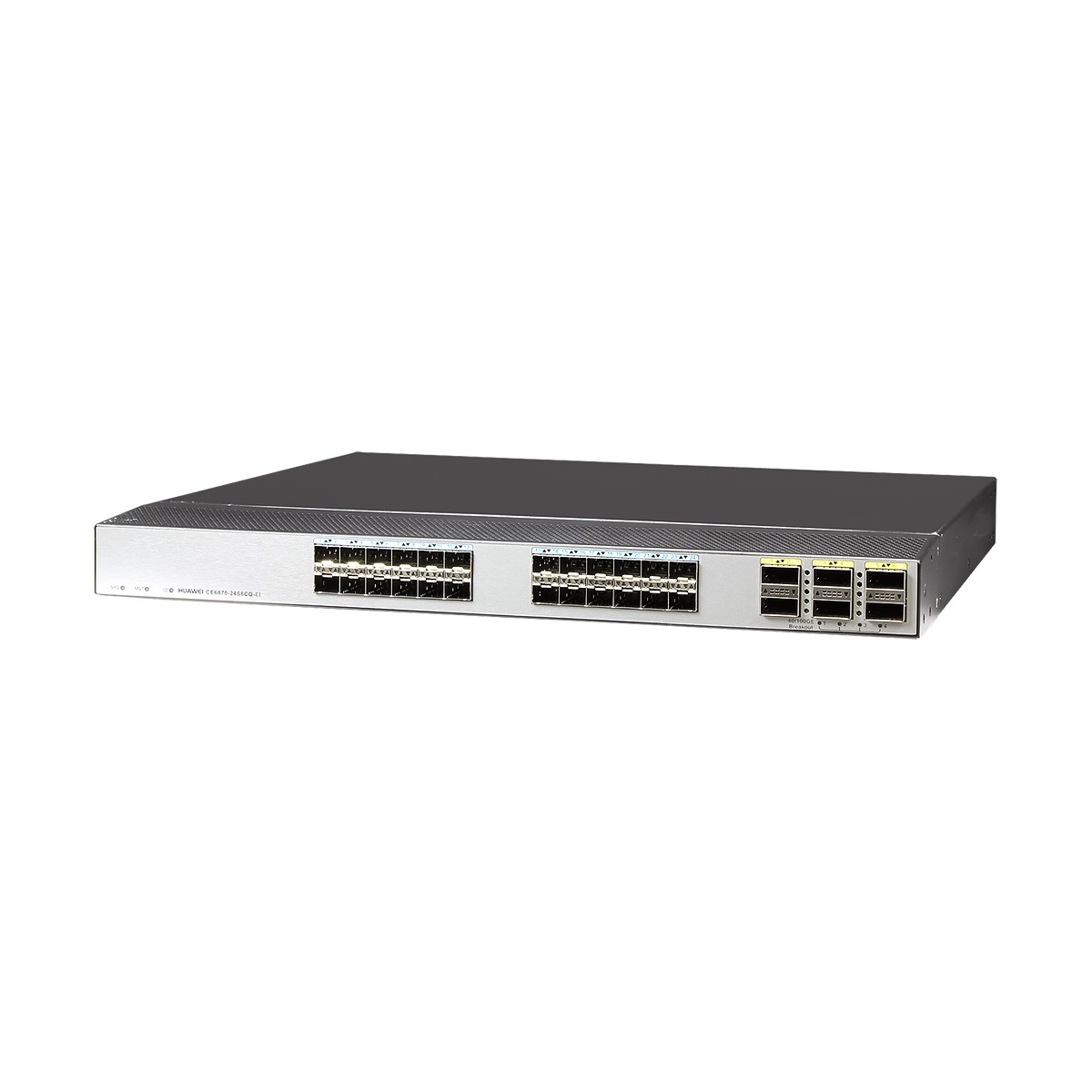

Huawei CE6870-24S6CQ-EI Switch

1

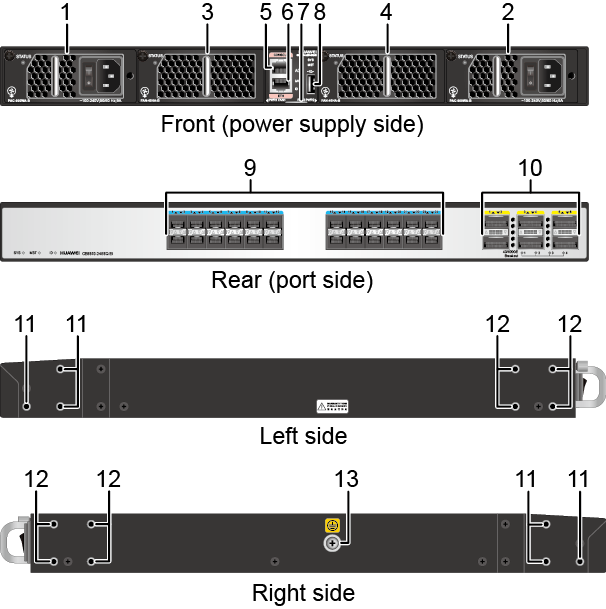

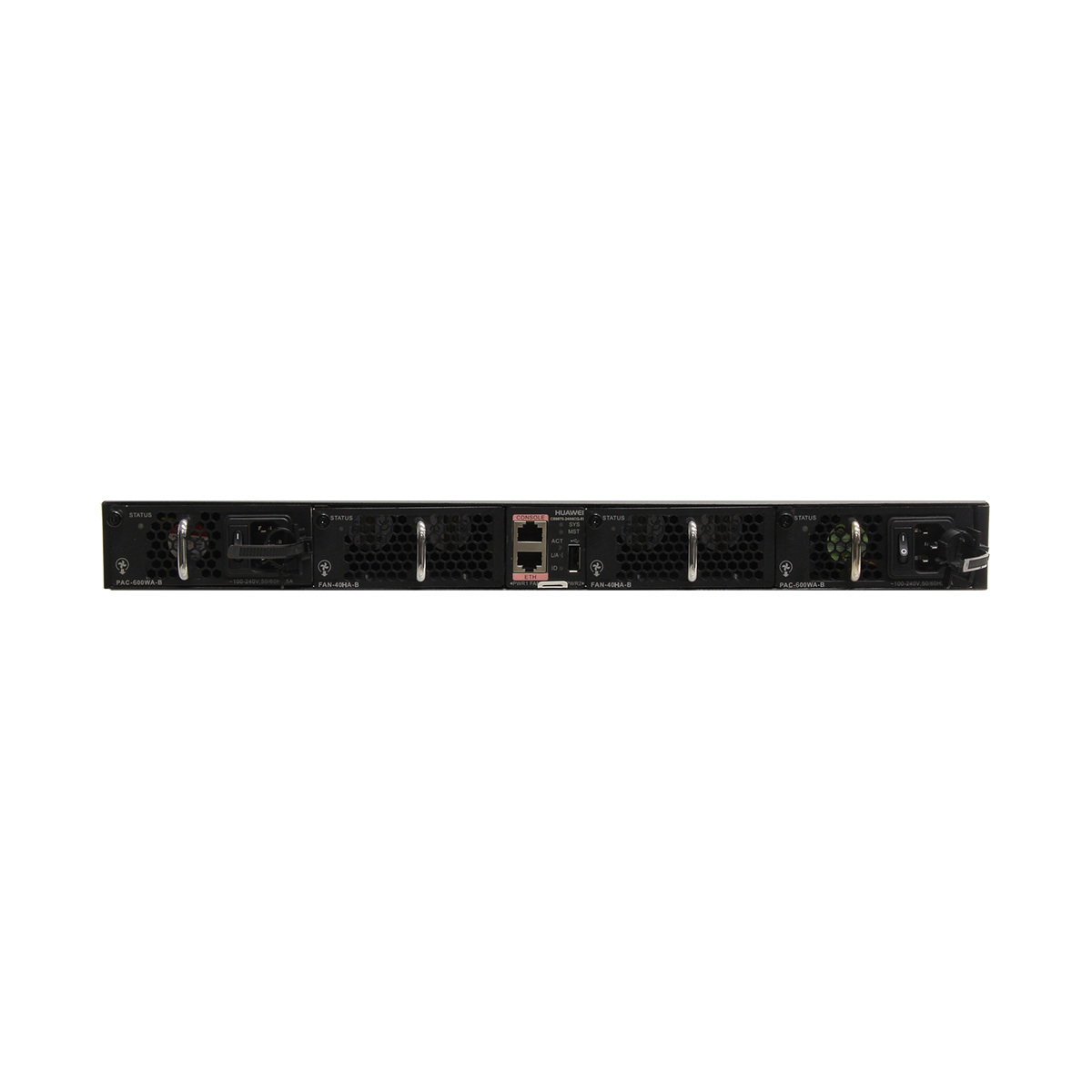

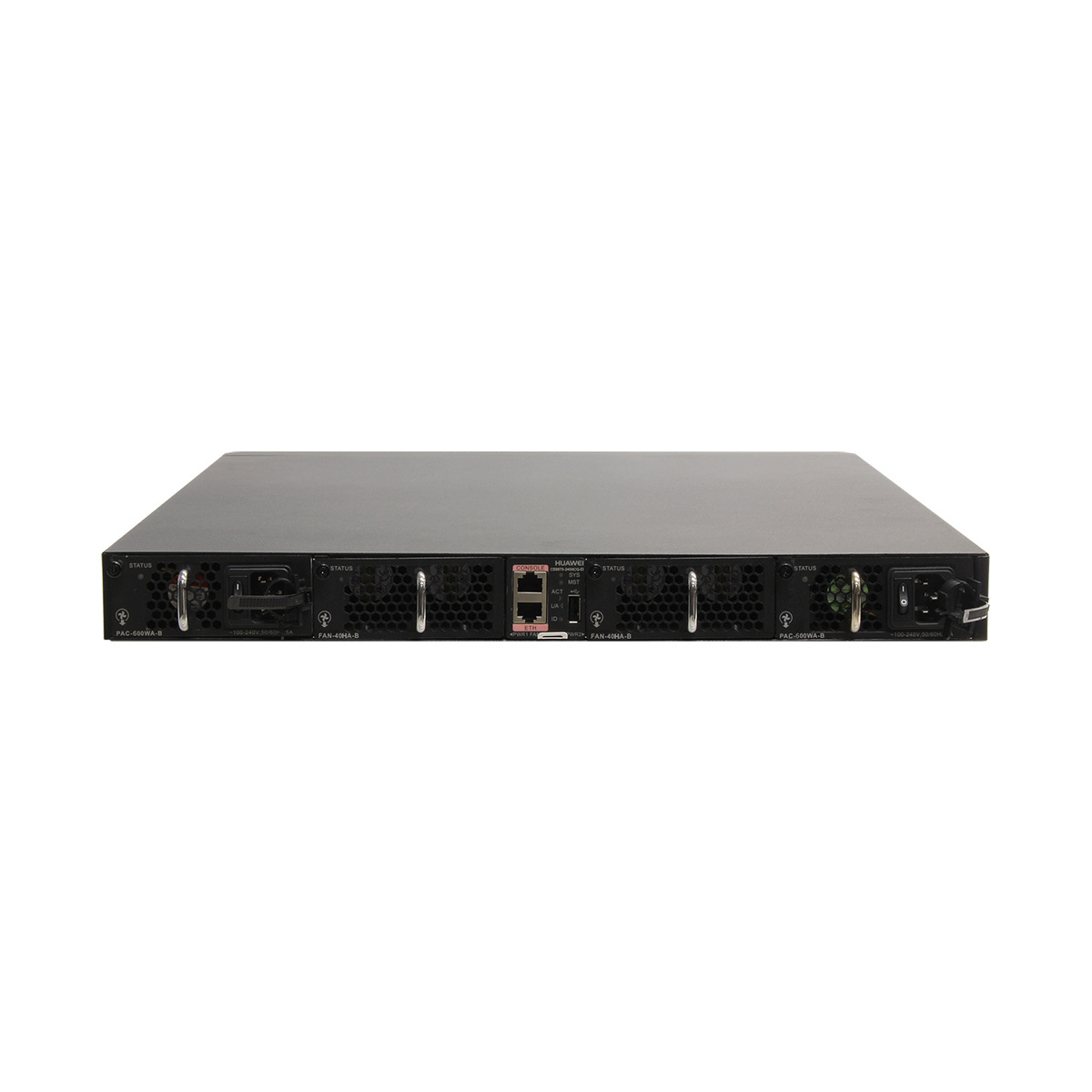

Power supply slot 1

2

Power supply slot 2

3

Fan slot 1

4

Fan slot 2

5

Console port

6

ETH management port (RJ45)

7

8

USB port

9

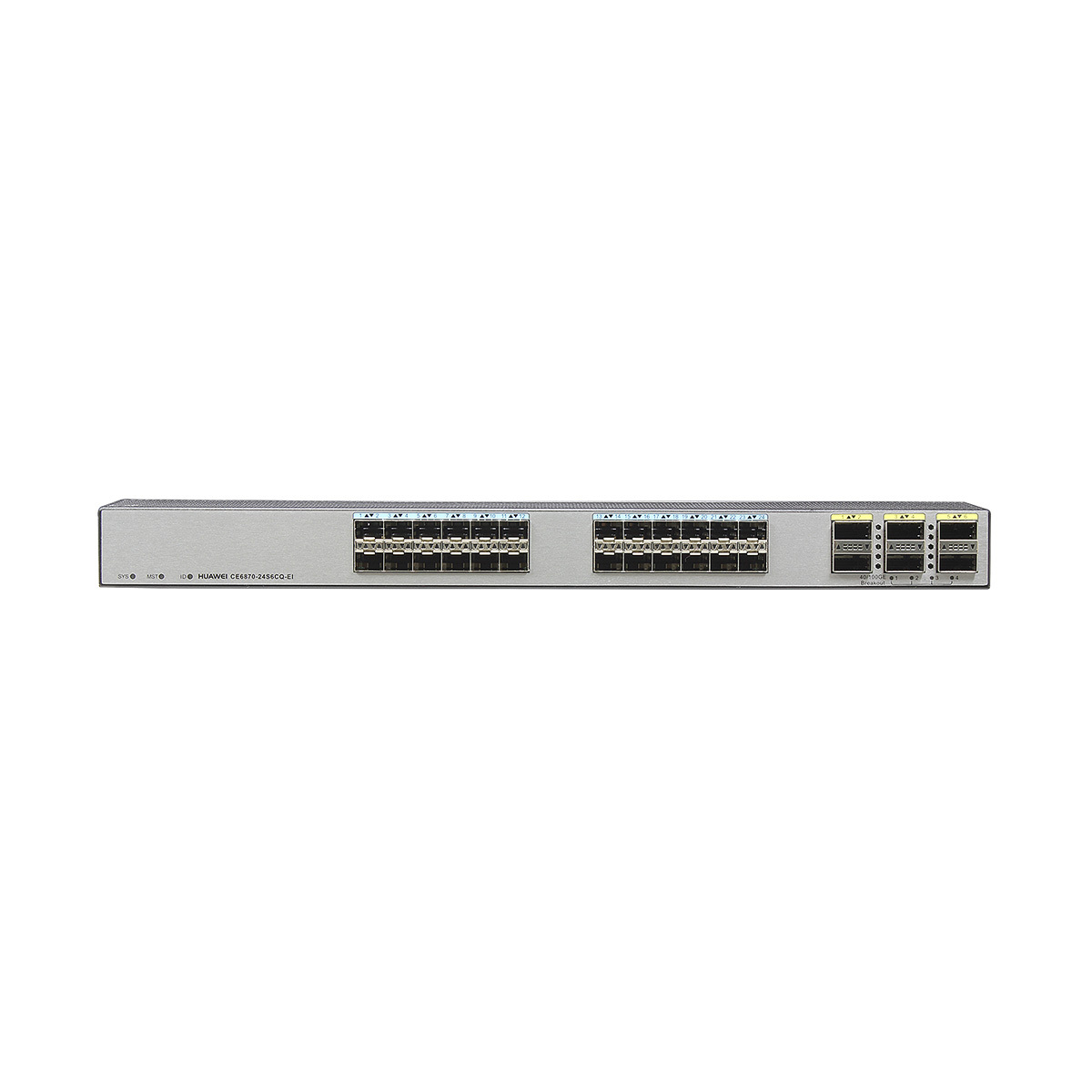

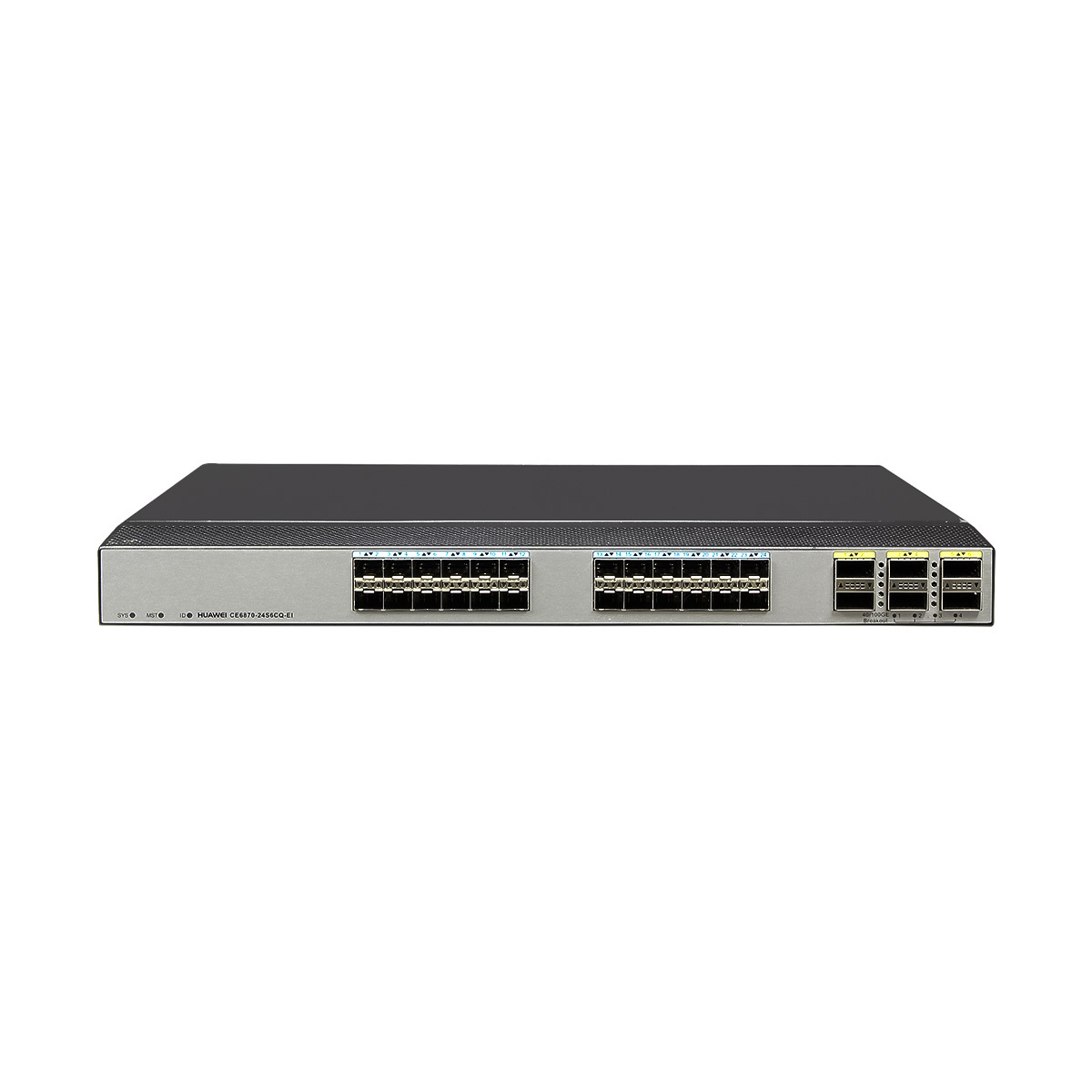

Twenty-four 10GE SFP+ Ethernet optical ports

10

Six 40GE/100GE QSFP28 Ethernet optical ports

11

Three port-side mounting holes for mounting brackets

12

Four power-supply-side mounting holes for mounting brackets

13

Ground screw

-

-

Connector type

LC

Optical attributes

Depending on the module or cable in use

Standards compliance

IEEE802.3ae

Working mode

Supported rate: 1000 Mbit/s and 10 Gbit/s auto-sensing

Full-duplex

Connector type

Depending on the optical module

Optical attributes

Depending on the module or cable in use

Standards compliance

IEEE802.3ba

Working mode

Full-duplex

Physical specifications

• Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
• Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.4 kg (18.52 lb)

Environment parameters

Temperature

• Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
  NOTE:

  When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

• Storage temperature: -40°C to +70°C (-40°F to +158°F)

Relative humidity

5% RH to 95% RH, noncondensing

Altitude

< 5000 m (16404 ft.)

Noise (sound pressure, 27°C)

• Back-to-front airflow: < 55 dBA
• Front-to-back airflow: < 51 dBA

Power specifications

Power source type

AC/DC

AC power input

• Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
• Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz

DC power input

• Rated voltage range: -48 V DC to -60 V DC
• Maximum voltage range: -38.4 V DC to -72 V DC

High-voltage DC power input

Not supported

Rated input current

• 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
• 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)

Chassis power consumption

Maximum power consumption

258 W

Typical power consumption

151 W (100% throughput, SFP+ cables on 24 ports and QSFP28 cables on 6 ports, double power modules)

Chassis heat dissipation

Maximum heat dissipation

881 BTU/hr

Typical heat dissipation

514 BTU/hr (100% throughput, SFP+ cables on 24 ports and QSFP28 cables on 6 ports, double power modules)

Surge protection

Heat dissipation

Heat dissipation mode

Air cooling

Airflow

Front-to-back or back-to-front, depending on the fan modules and power modules

Reliability

Power module backup

1+1 backup

Fan module backup

1+1 backup not supported

Hot swap

Supported by all power modules and fan modules

Mean time between failures (MTBF)

52.98 years

Mean time to repair (MTTR)

1.66 hours

Availability

0.99999641605

Technical specifications

Processor

1.5 GHz, quad-core

DRAM Memory

4 GB

NOR Flash

16 MB

NAND Flash

1 GB

Stack

Service port supporting the stack function

10GE optical ports and 100GE optical ports

Certification

• Safety standards compliance
• EMC standards compliance
• Environmental standards compliance
