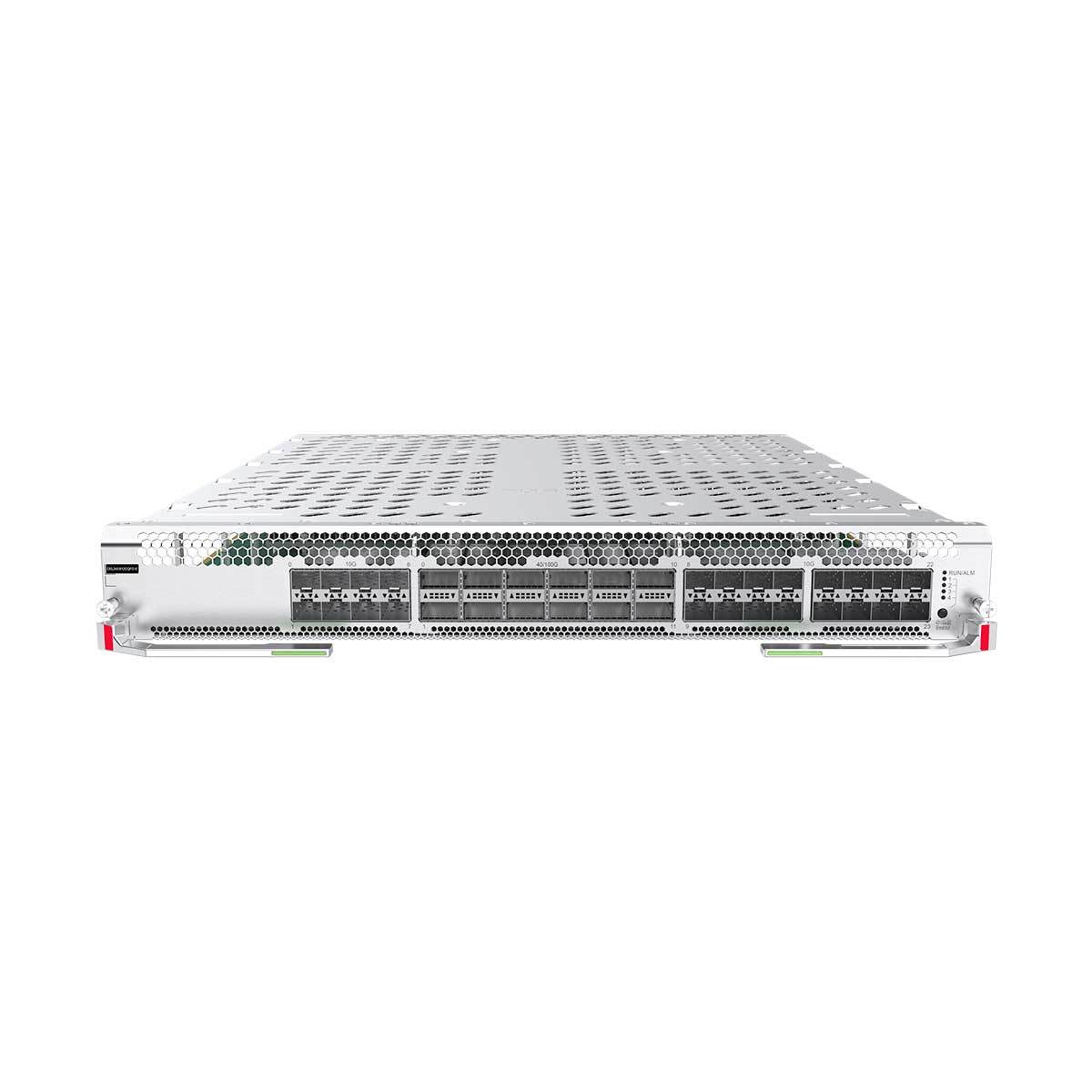

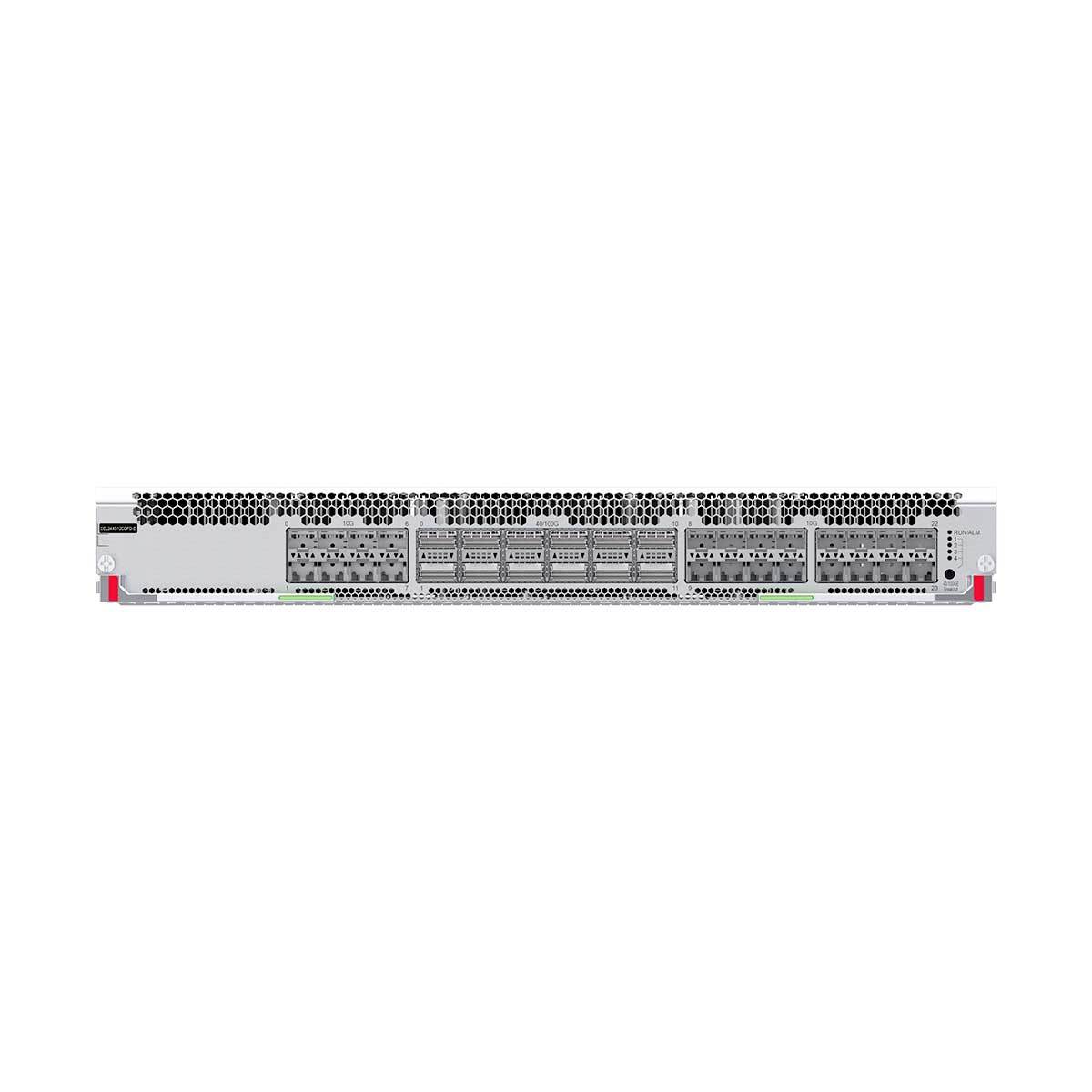

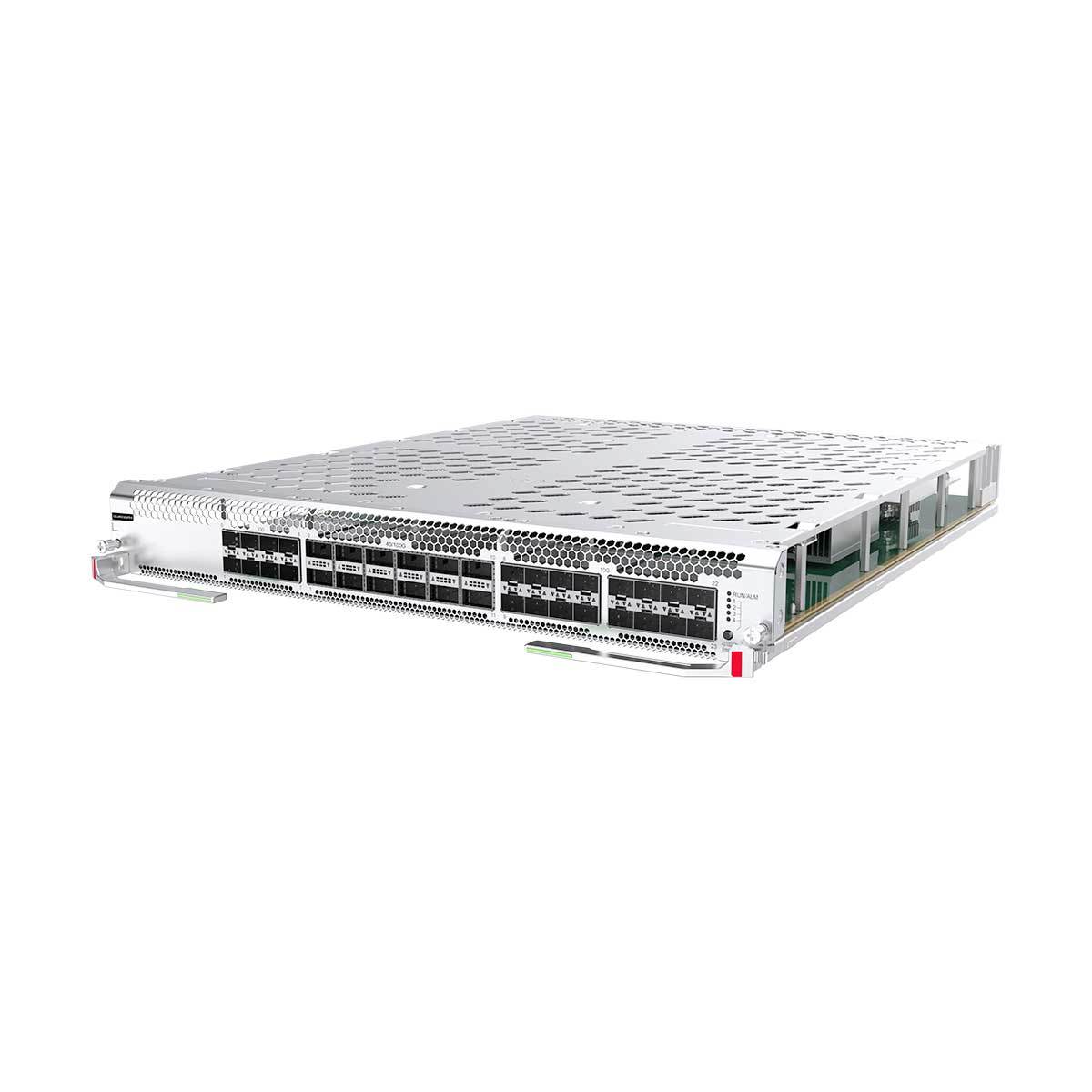

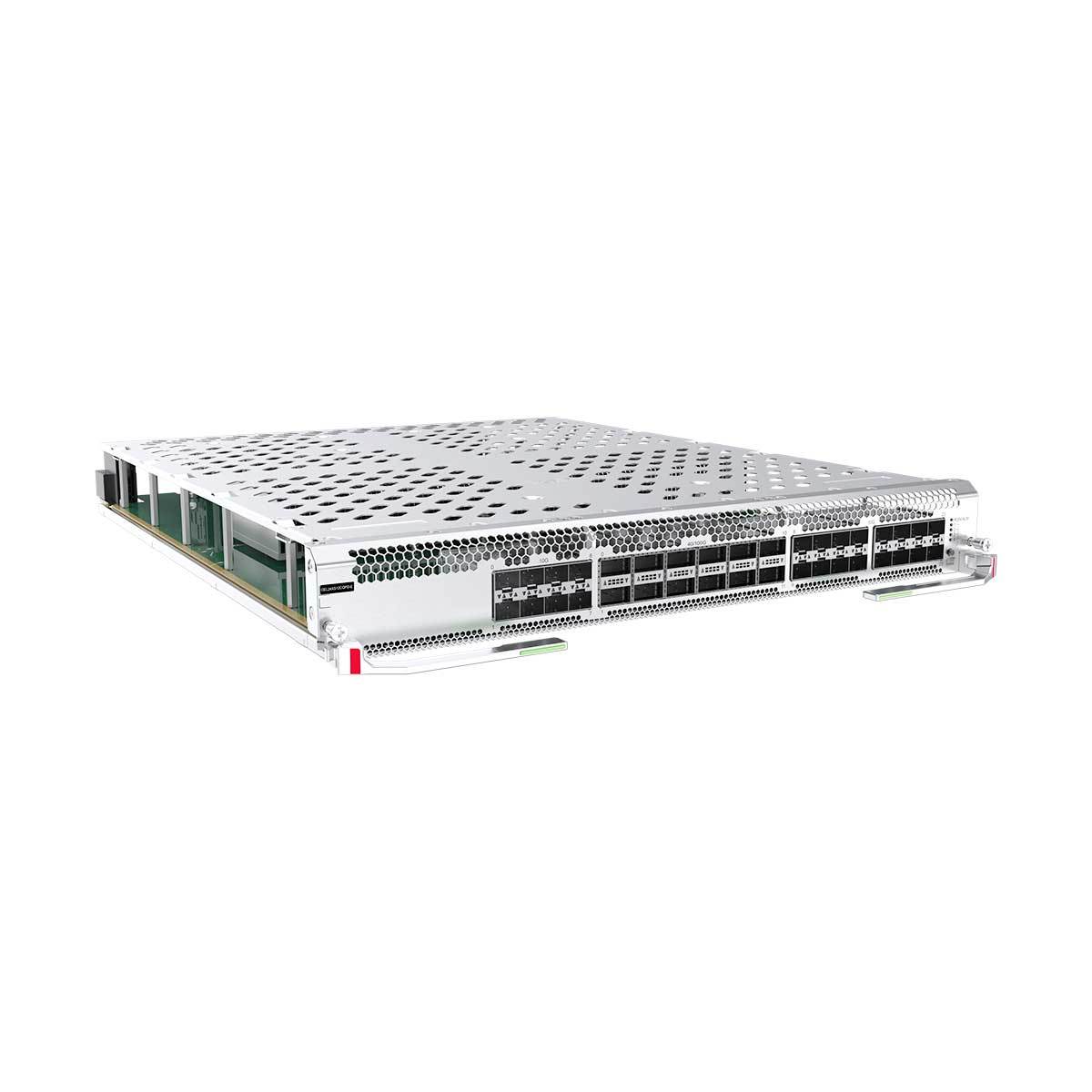

24-port 10GE and 12-port 100GE interface card (FD-E, SFP+, QSFP28)
Part Number
03050JLX
Model
CEL24XS12CQFD-E
Silkscreen
CEL24XS12CQFD-E
Card Type
Interface Card
Ports on the CEL24XS12CQFD-E
Port
Connector Type
Description
Available Components
24 x 10GE optical ports
SFP+/SFP
Port for inputting and outputting 10GE/GE optical signals
GE eSFP optical modules GE SFP copper modules 10GE SFP+ optical modules SFP+ to SFP+ AOC cable SFP+ to SFP+ high-speed cable
12 x 100GE optical ports
QSFP28/QSFP+
Port for inputting and outputting 100GE/40GE optical signals
40GE QSFP+ optical modules 100GE QSFP28 optical modules QSFP+ to QSFP+ AOC cable QSFP28 to QSFP28 AOC cable QSFP+ to 4*SFP+ AOC cable QSFP+ to QSFP+ high-speed cable QSFP+ to 4*SFP+ high-speed cable
CEL24XS12CQFD-E Datasheet
Item
CEL24XS12CQFD-E
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.6 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]
7.9 kg (17.41 lb)
Weight with packaging [kg (lb)]
11.8 kg (26.01 lb)
Typical power consumption [W]
275 W
Typical heat dissipation [BTU/hour]
939 BTU/hour
Static power consumption [W]
212 W
Static heat dissipation [BTU/hour]
724 BTU/hour
Maximum power consumption [W]
390 W
Maximum heat dissipation [BTU/hour]
1331 BTU/hour
CPU
4-core, 1.4 GHz clock speed
Memory
Standard 4 GB
NOR Flash
Standard 128 MB
CEL24XS12CQFD-E FAQ
Q1: Which Huawei switch models does the CEL24XS12CQFD-E support? How compatible is it?
A1: It mainly supports Huawei CE12800 series mid-to-high-end switches (CE12804/CE12808), CE8800 series high-end switches (CE8868-4C-EI), and some models of the CE9800 series. The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and it's ready to use.
Q2: Can the 25G and 100G ports use low-speed optical modules separately? Are the long-distance transmission distances the same?
A2: The 25G port is compatible with 10G/1G optical modules, and the 100G port is compatible with 40G/25G optical modules. Independent mixed use is supported. Both types of ports cover long-distance transmission of 10km-40km; only the corresponding speed optical modules need to be used.
Q3: Does the mixed density design affect heat dissipation and stability? What is the power consumption per card?
A3: Adopts a low-power partition design, with single-card power consumption controlled at a low level compared to similar hybrid rate cards in the industry, and is compatible with the built-in cooling system of switches; 25G/100G ports have independent bandwidth allocation, and stability is not affected by hybrid density.
