Port for inputting and outputting 100GE/40GE optical signals
40GE QSFP+ optical modules
100GE QSFP28 optical modules
QSFP+ to QSFP+ AOC cable
QSFP28 to QSFP28 AOC cable
QSFP+ to 4*SFP+ AOC cable
QSFP+ to QSFP+ high-speed cable
QSFP+ to 4*SFP+ high-speed cable

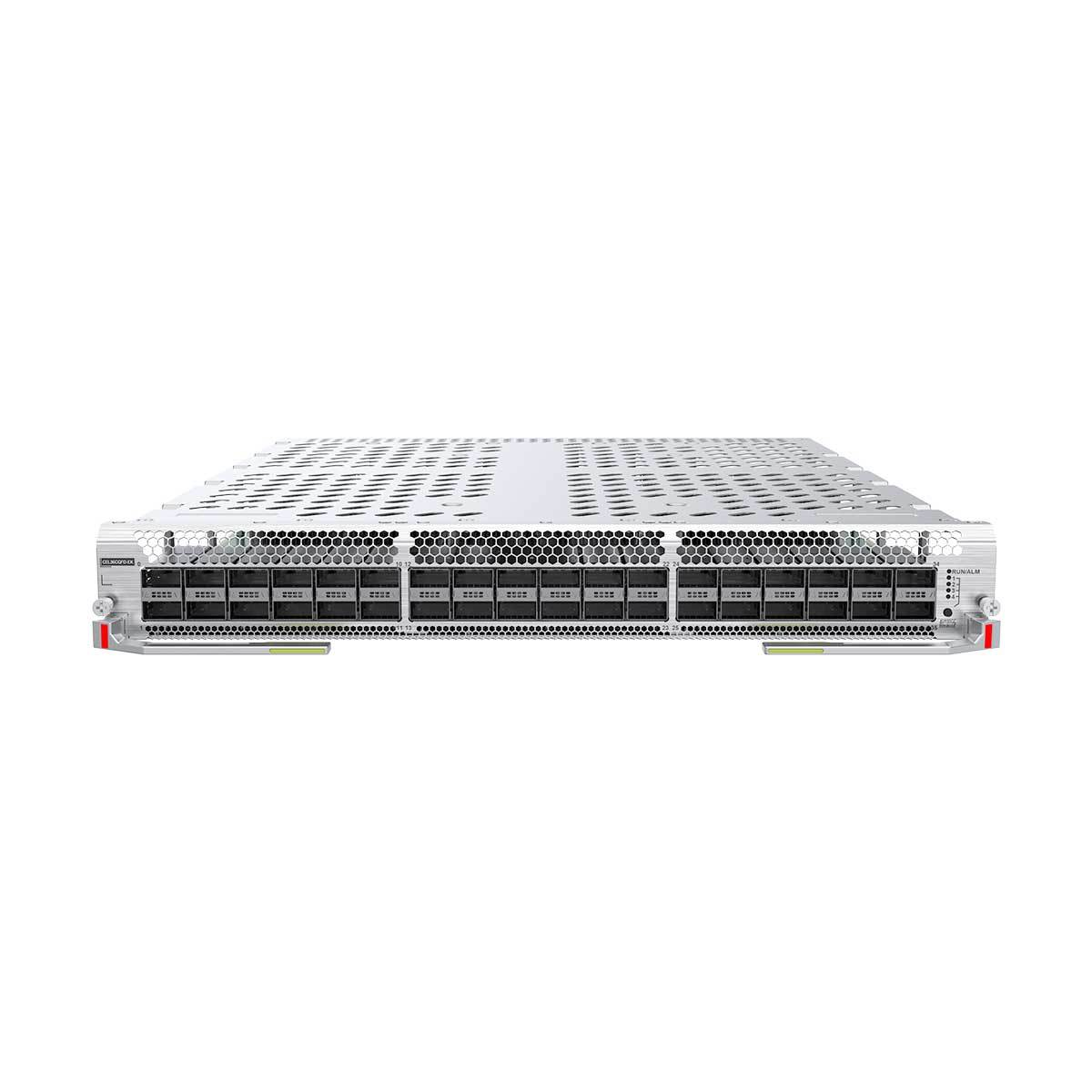

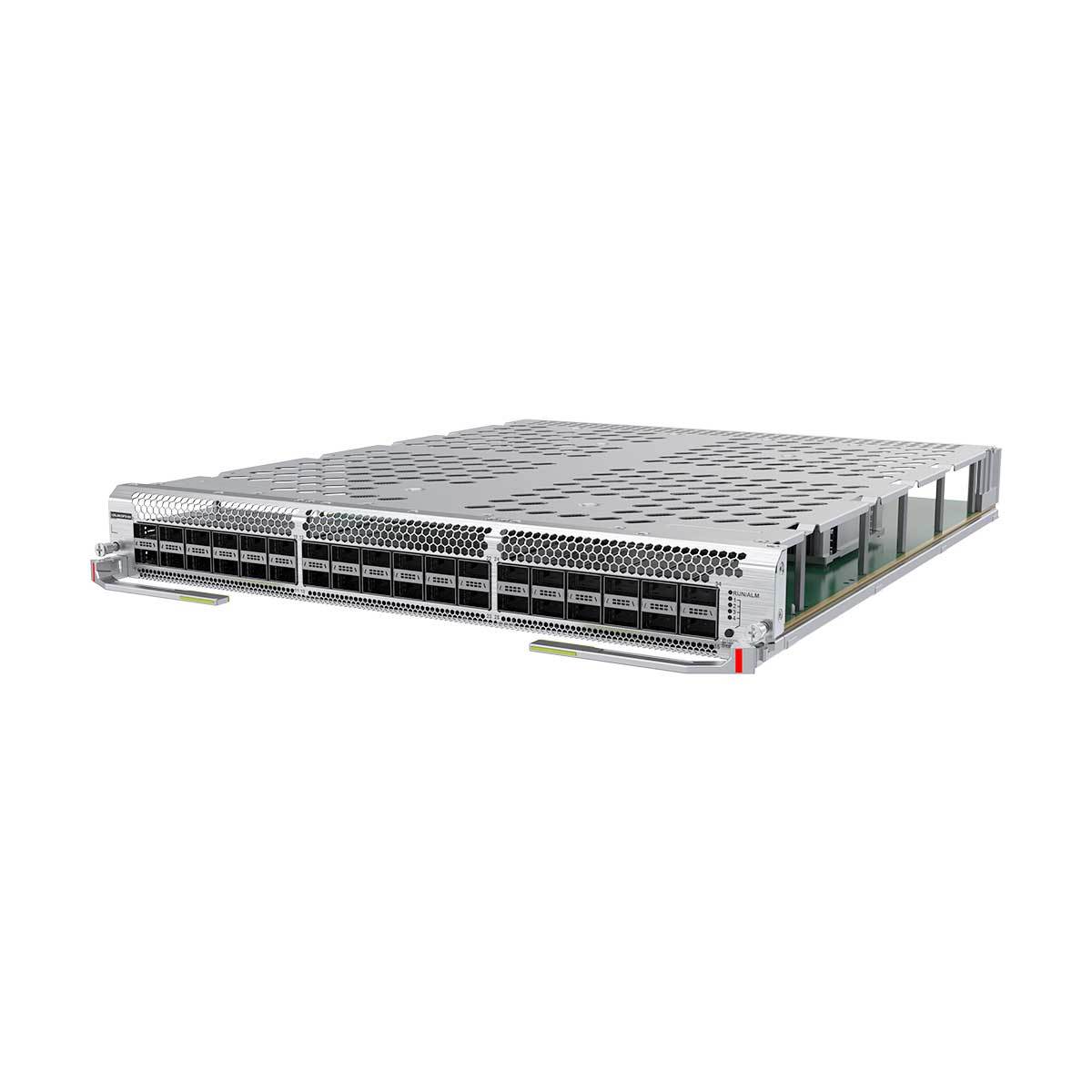

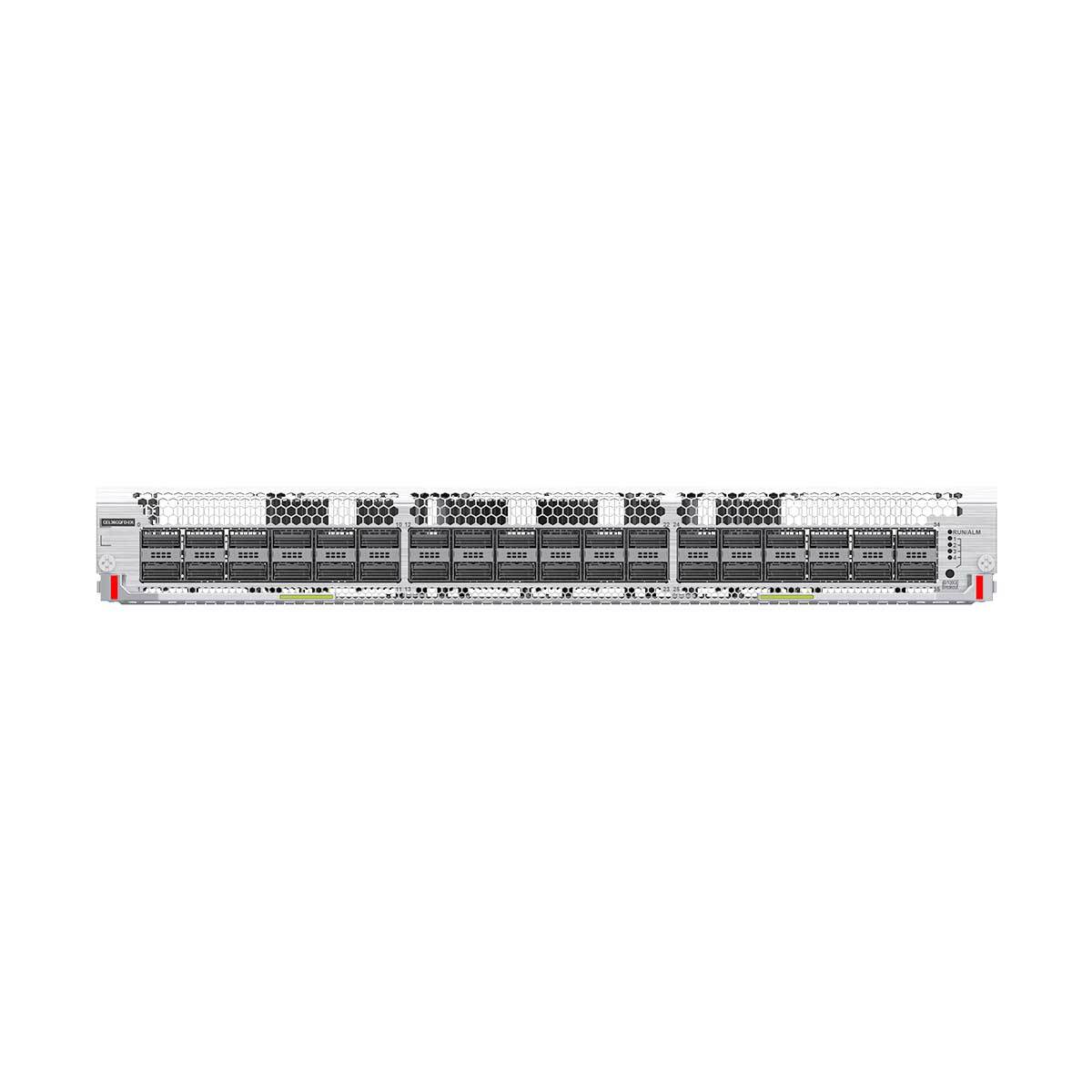

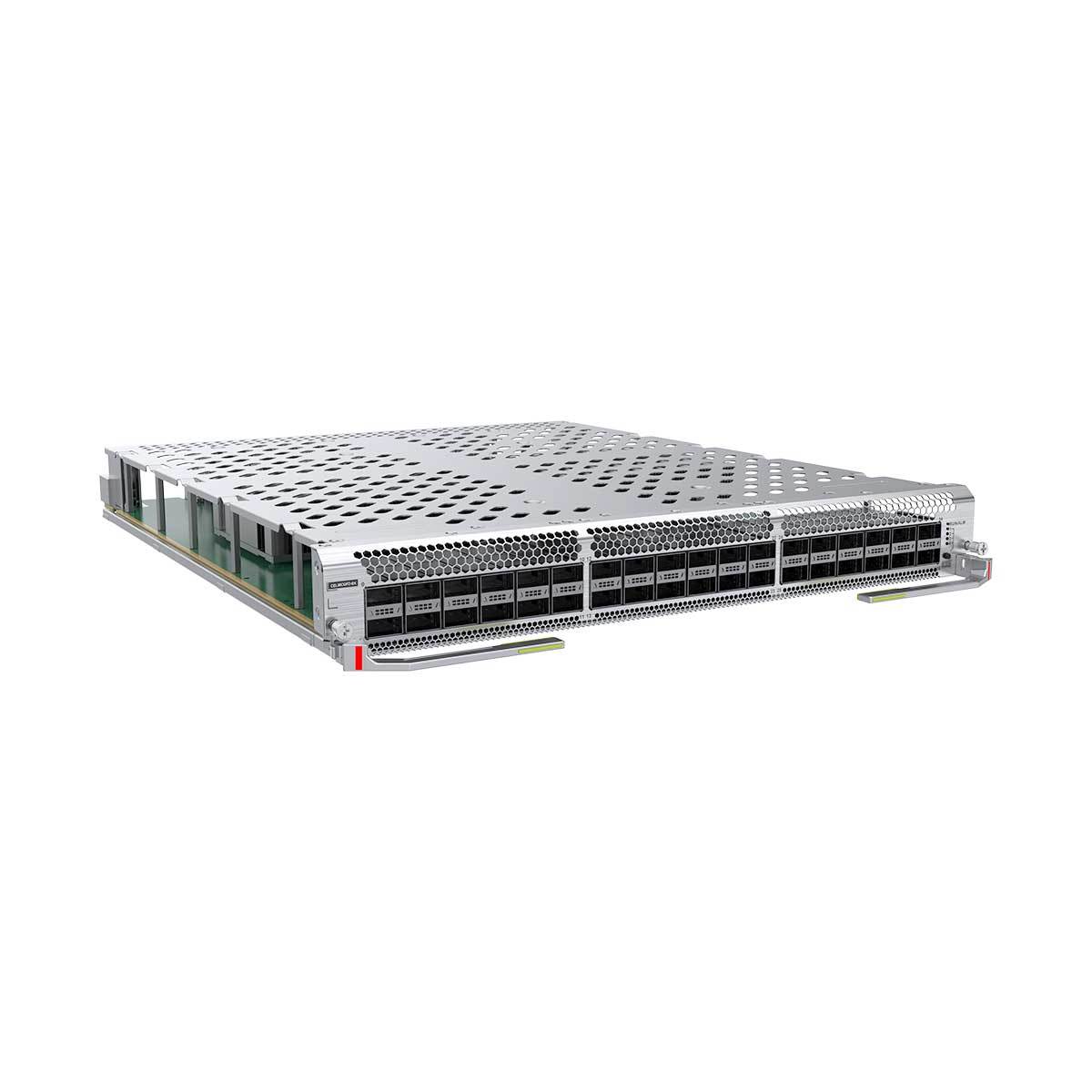

CEL36CQFD-EK Datasheet
Item
CEL36CQFD-EK
Basic function
The card provides data packet processing and traffic management on 36 100GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports.
Maximum port density
All LPUs are of this model:
The CloudEngine 16804 chassis provides a maximum of 144 100GE ports.
The CloudEngine 16808 chassis provides a maximum of 288 100GE ports.
The CloudEngine 16816 chassis provides a maximum of 576 100GE ports.
100GE port
Supports QSFP28 and QSFP+ optical modules. 100GE ports can work as 40GE ports through auto-sensing or be split into four 25GE or 10GE ports. Provides up to 36 x 40GE, 144 x 25GE, or 144 x 10GE ports. The 36 optical ports are independent, and each can work as a 40GE port or be split into four 25GE or 10GE ports.
Hot swapping
Supported
Typical power consumption [W]
525 W
Typical heat dissipation [BTU/hour]
1793 BTU/hour
Static power consumption [W]
406 W
Static heat dissipation [BTU/hour]
1386 BTU/hour
Maximum power consumption [W]
764 W
Maximum heat dissipation [BTU/hour]
2609 BTU/hour
CPU
4-core, 1.4 GHz clock speed
Memory
Standard 8 GB
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)]
8.4 kg (18.52 lb)
Weight with packaging [kg (lb)]
13.3 kg (29.32 lb)
CEL36CQFD-EK FAQ
Q1: Which Huawei switch models does the CEL36CQFD-EK support? How compatible is it?
A1: It mainly supports Huawei CE12800 series flagship switches (such as CE12816/CE12812) and CE9800 series high-end switches (such as CE9866-128DQ). The interfaces and slots are fully matched, with 100% compatibility. Simply plug it in and it's ready to use.
Q2: Can 400G and 200G optical modules be used simultaneously on the 36 ports? Is additional configuration required?
A2: It supports independent port rate negotiation and can use 400G and 200G optical modules simultaneously. Different ports flexibly adapt to different interconnection scenarios without additional configuration, offering extremely strong compatibility.
Q3: How are the power consumption and heat dissipation performance of this interface card? Are additional heat dissipation measures required?
A3: It adopts a low-power optimized design, and the power consumption of a single card is controlled at a low level compared to similar ultra-high-speed interface cards in the industry. It is compatible with the redundant heat dissipation system of the switch, so there is no need to add additional heat dissipation equipment and it will not put extra pressure on the heat dissipation of the switch.
