Port for inputting and outputting 400GE/200GE/100GE/40GE optical signals
40GE QSFP+ optical modules
100GE QSFP28 optical modules
200GE QSFP56 optical modules
400GE QSFP-DD optical modules
QSFP+ to QSFP+ AOC cable
QSFP28 to QSFP28 AOC cable
QSFP-DD to QSFP-DD AOC cable
QSFP56 to QSFP56 AOC cable
QSFP-DD to 2*QSFP56 AOC cable

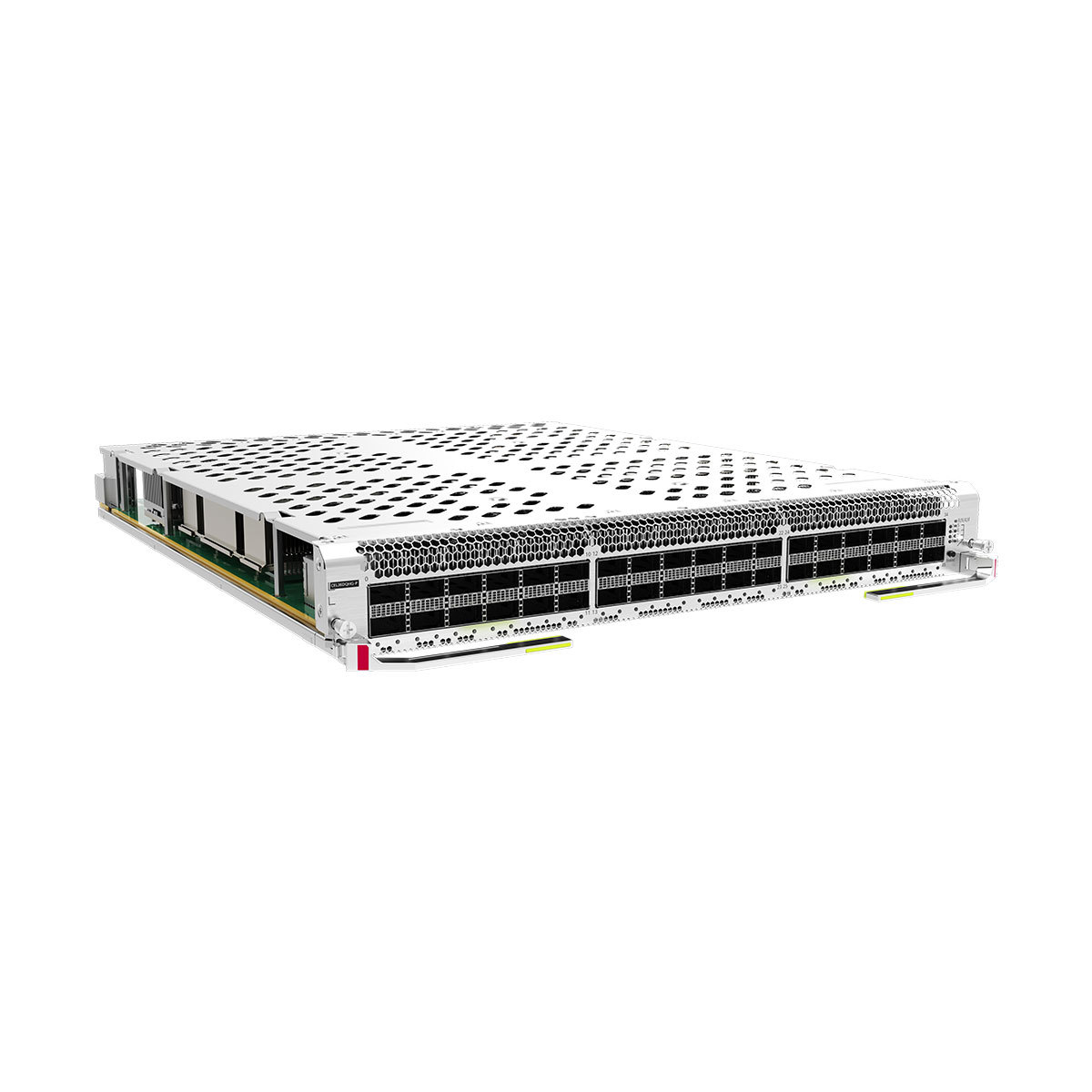

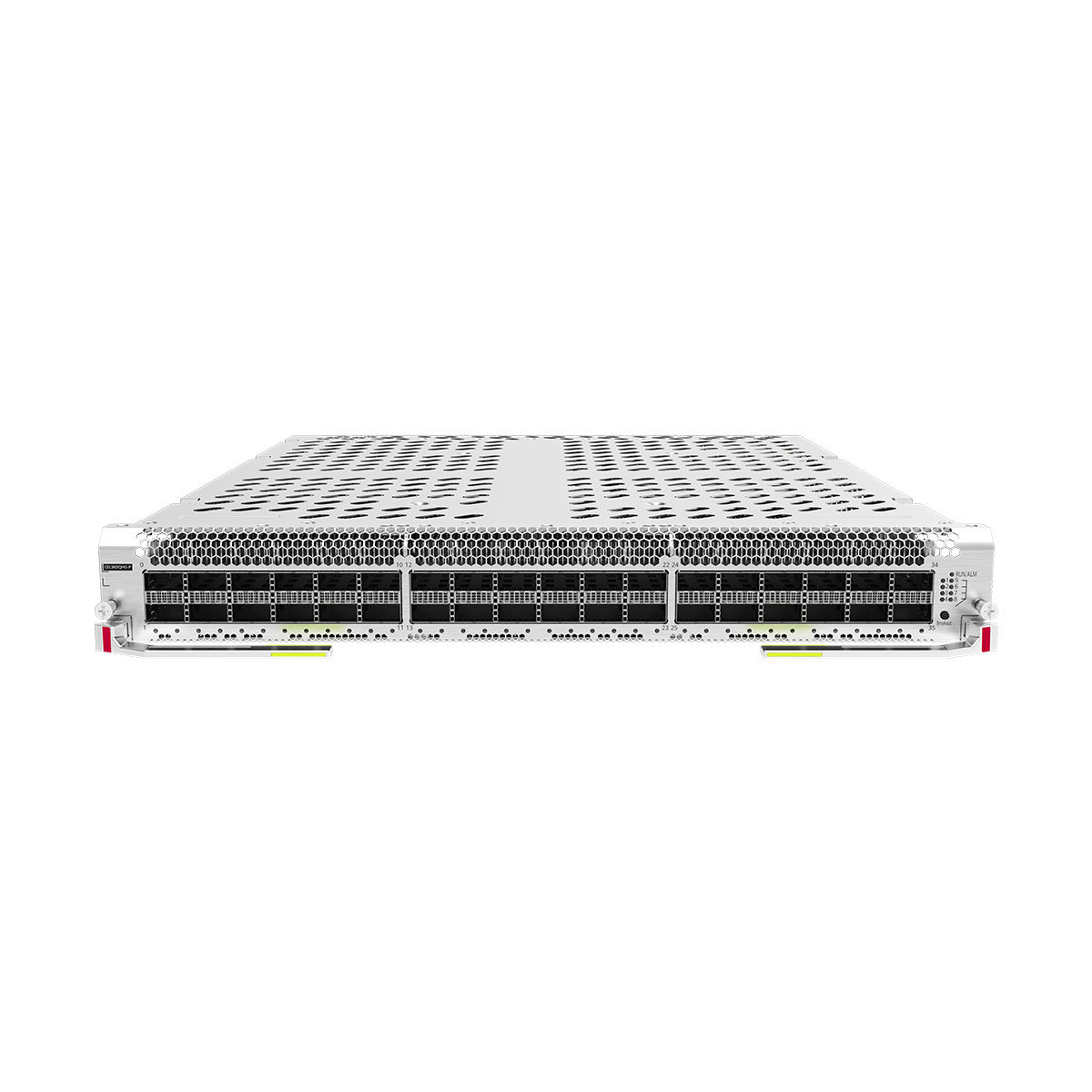

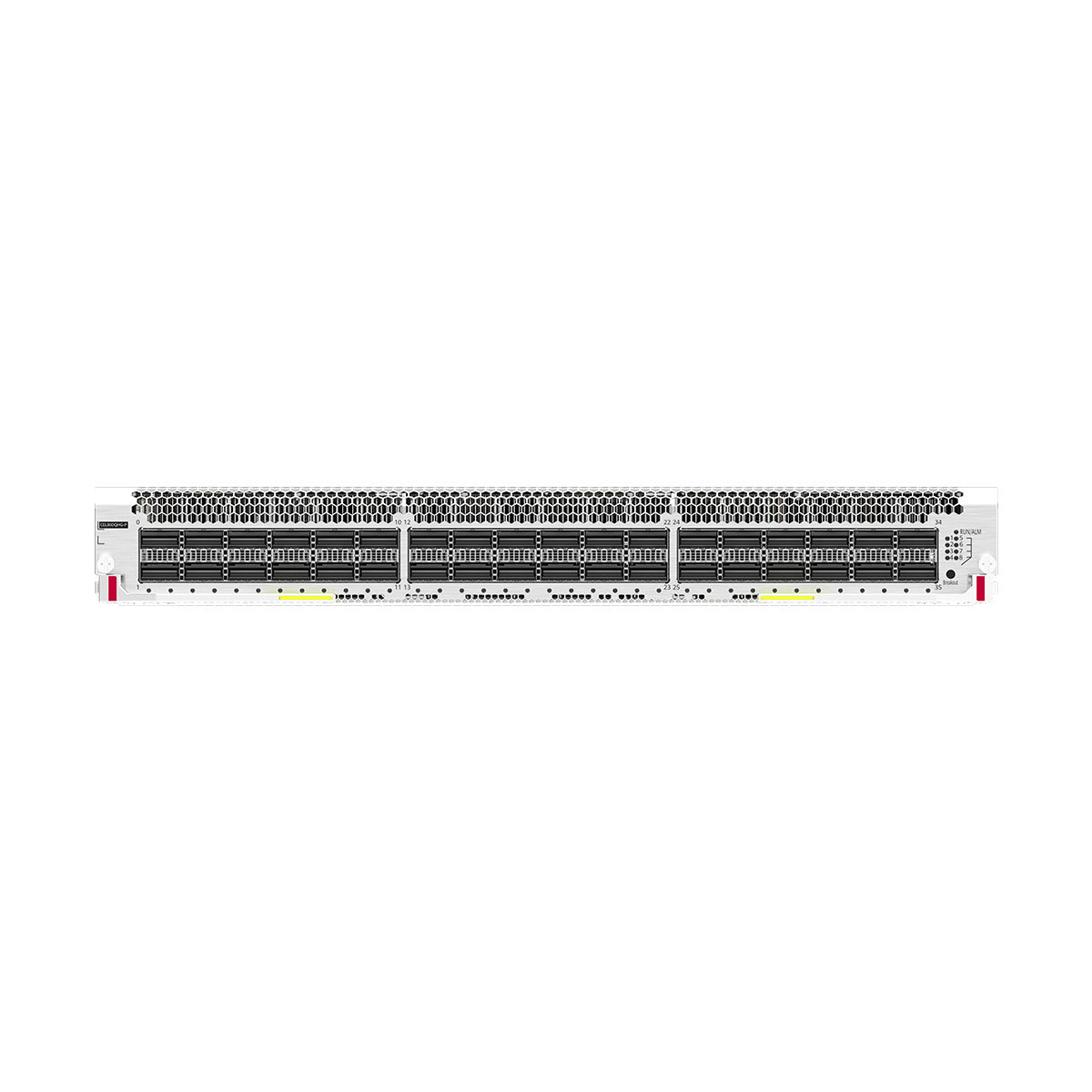

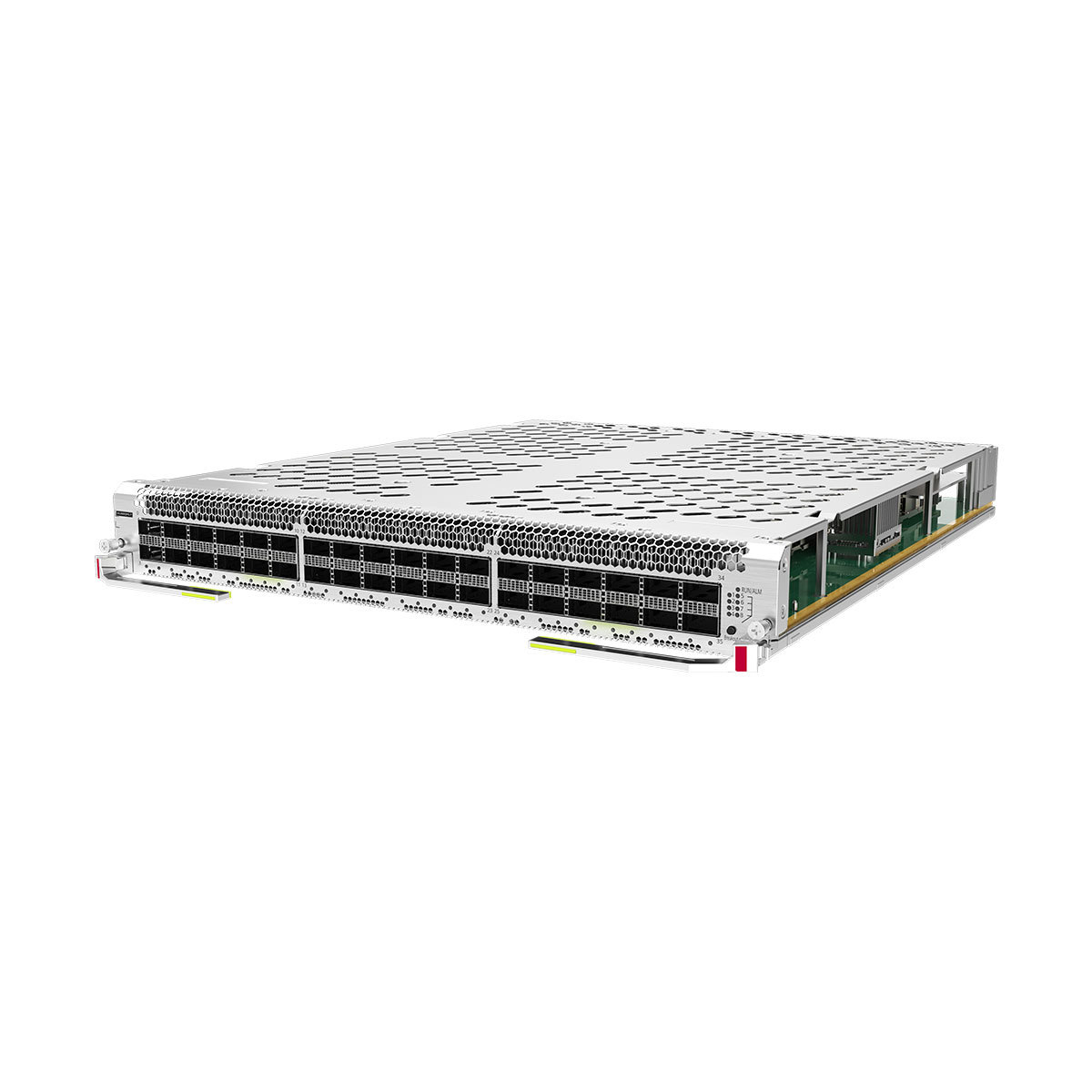

Technical specifications of the CEL36DQHG-X
Item
Specification
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
285 mm x 650 mm x 860 mm (11.22 in. x 25.59 in. x 33.86 in.)
Weight without packaging [kg (lb)]
14.5 kg (31.97 lb)
Weight with packaging [kg (lb)]
20.8 kg (45.86 lb)
Typical power consumption [W]
1260 W
Typical heat dissipation [BTU/hour]
4300 BTU/hour
Static power consumption [W]
657 W
Static heat dissipation [BTU/hour]
2242 BTU/hour
Maximum power consumption [W]
1815 W
Maximum heat dissipation [BTU/hour]
6193 BTU/hour
CPU
16-core, 2.0 GHz clock speed
Memory
Standard configuration: 16 GB
CEL36DQHG-X FAQ
Q1: Which Huawei switch models does the CEL36DQHG-X support? How compatible is it?
A1: It mainly supports Huawei CE12800 series flagship switches (such as CE12816/CE12812) and CE9800 series high-end switches (such as CE9866-128DQ). The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and it's ready to use.
Q2: Does the 36 400G ports support backward compatibility? Can 100G optical modules be used?
A2: It supports 400G/100G auto-negotiation and can directly use 100G QSFP28 optical modules without additional configuration, flexibly adapting to different interconnection needs.
Q3: How is the power consumption of this interface card? Will it increase the overall power consumption of the switch?
A3: Adopting intelligent power management technology, the power consumption of a single card is controlled at a low level compared to similar products in the industry, and it supports dynamic adjustment of power consumption based on port usage status, without significantly increasing the overall power consumption of the switch, which meets the energy-saving needs of data centers.
