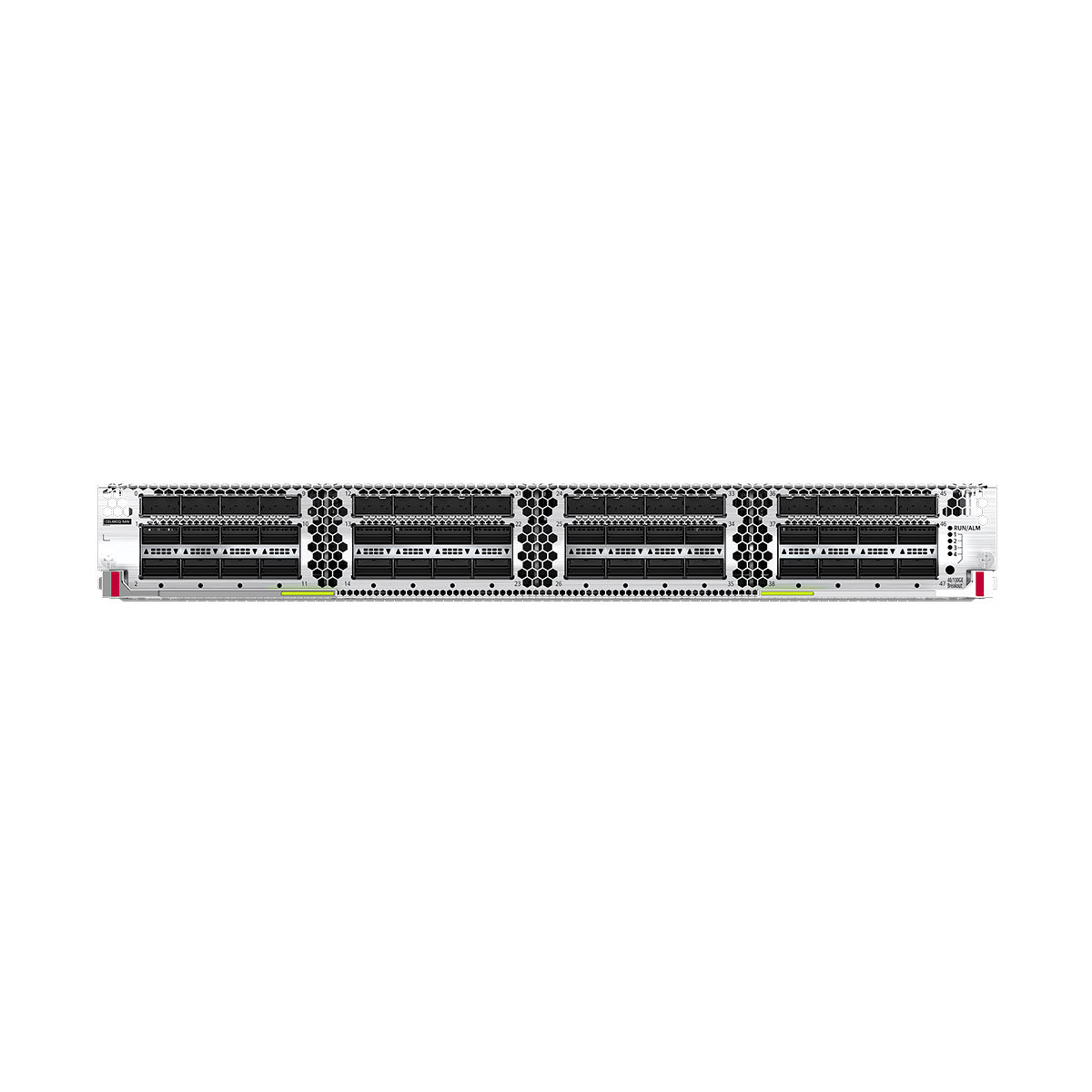

The Huawei CEL48CQ-SAN is a high-performance, high-density 100GE line card designed for the CloudEngine CE12800 series data center switches. It offers 48 × 100GE QSFP28 ports, supporting flexible port configurations and high-throughput switching, making it ideal for large-scale data centers, cloud computing, and enterprise core networks.
Basic information about the CEL48CQ-SAN
Item
Details
Description
48-port 100GE SAN interface card (SAN, QSFP28) (CM)
Part Number
03050DLK
Model
CEL48CQ-SAN
Silkscreen
CEL48CQ-SAN
Card Type
Interface Card
Ports on the CEL48CQ-SAN
Port
Connector Type
Description
Available Components
48 x 100GE optical ports
QSFP28/QSFP+
Port for inputting and outputting 100GE/40GE optical signals
40GE QSFP+ optical modules
100GE QSFP28 optical modules
QSFP+ to QSFP+ AOC cable
QSFP+ to 4*SFP+ AOC cable
QSFP28 to QSFP28 AOC cable
QSFP+ to QSFP+ high-speed cable
QSFP+ to 4*SFP+ high-speed cable
QSFP28 to QSFP28 high-speed cable
QSFP28 to 4*SFP28 high-speed cable
Technical specifications of the CEL48CQ-SAN
Item
Specification
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
285 mm x 650 mm x 860 mm (11.22 in. x 25.59 in. x 33.86 in.)
Weight without packaging [kg (lb)]
9.7 kg (21.38 lb)
Weight with packaging [kg (lb)]
16.0 kg (35.27 lb)
Typical power consumption [W]
730 W
Typical heat dissipation [BTU/hour]
2491 BTU/hour
Static power consumption [W]
541 W
Static heat dissipation [BTU/hour]
1846 BTU/hour
Maximum power consumption [W]
949 W
Maximum heat dissipation [BTU/hour]
3238 BTU/hour
CPU
4-core, 1.4 GHz clock speed
Memory
Standard 8 GB
RTU License Supported
Yes.By default, 32 x 100GE ports are available, and other ports are unavailable. The RTU license with part number 88036EUR can be used to add two 100GE ports. Up to eight RTU licenses can be activated on a switch to provide 48 x 100GE ports.
CEL48CQ-SAN FAQ
Q1: Which Huawei switch models does the CEL48CQ-SAN support? How compatible is it?
A1: It mainly adapts to Huawei CE12800 series mid-to-high-end switches, CE8800 series high-end switches, and CE7800 series high-end switches. The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and it's ready to use. It is also compatible with mainstream third-party FC-SAN devices.
Q2: Can 16G and 8G FC optical modules be used simultaneously on the 48 ports? Is additional configuration required?
A2: It supports independent port rate auto-negotiation and can simultaneously use 16G and 8G FC optical modules. Different ports flexibly adapt to storage devices with different speeds, requiring no additional configuration and offering extremely strong compatibility.
Q3: Does this interface card support the FCIP protocol? Can it achieve disaster recovery interconnection for remote storage?
A3: Supports the FCIP protocol, enabling interconnection of FC-SANs across different locations via IP networks. It is perfectly suited for disaster recovery scenarios involving remote storage, eliminating the need for additional dedicated gateway devices and reducing disaster recovery construction costs.
