Port for inputting and outputting 100GE/40GE optical signals
40GE QSFP+ optical modules
100GE QSFP28 optical modules
QSFP+ to QSFP+ AOC cable
QSFP+ to 4*SFP+ AOC cable
QSFP28 to QSFP28 AOC cable

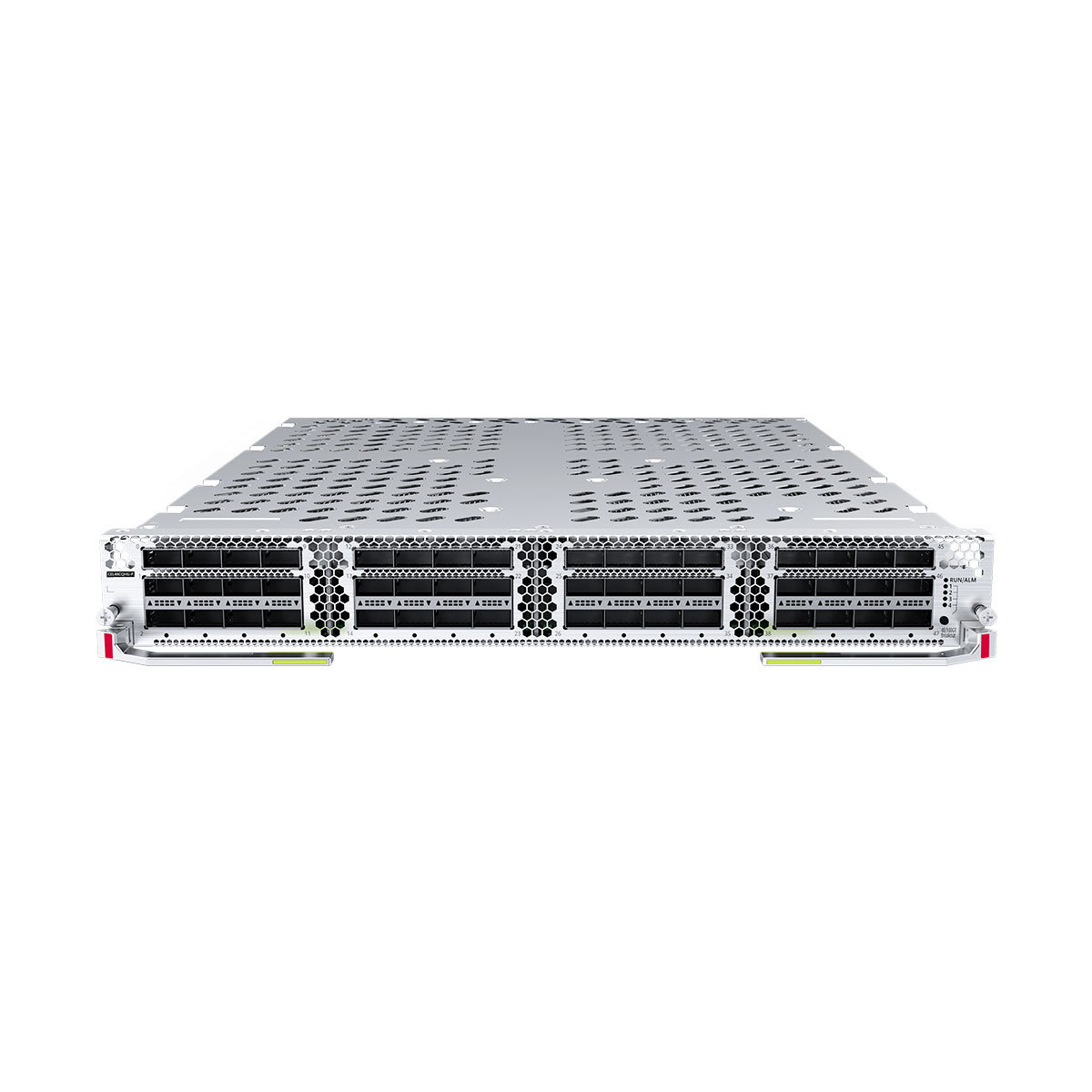

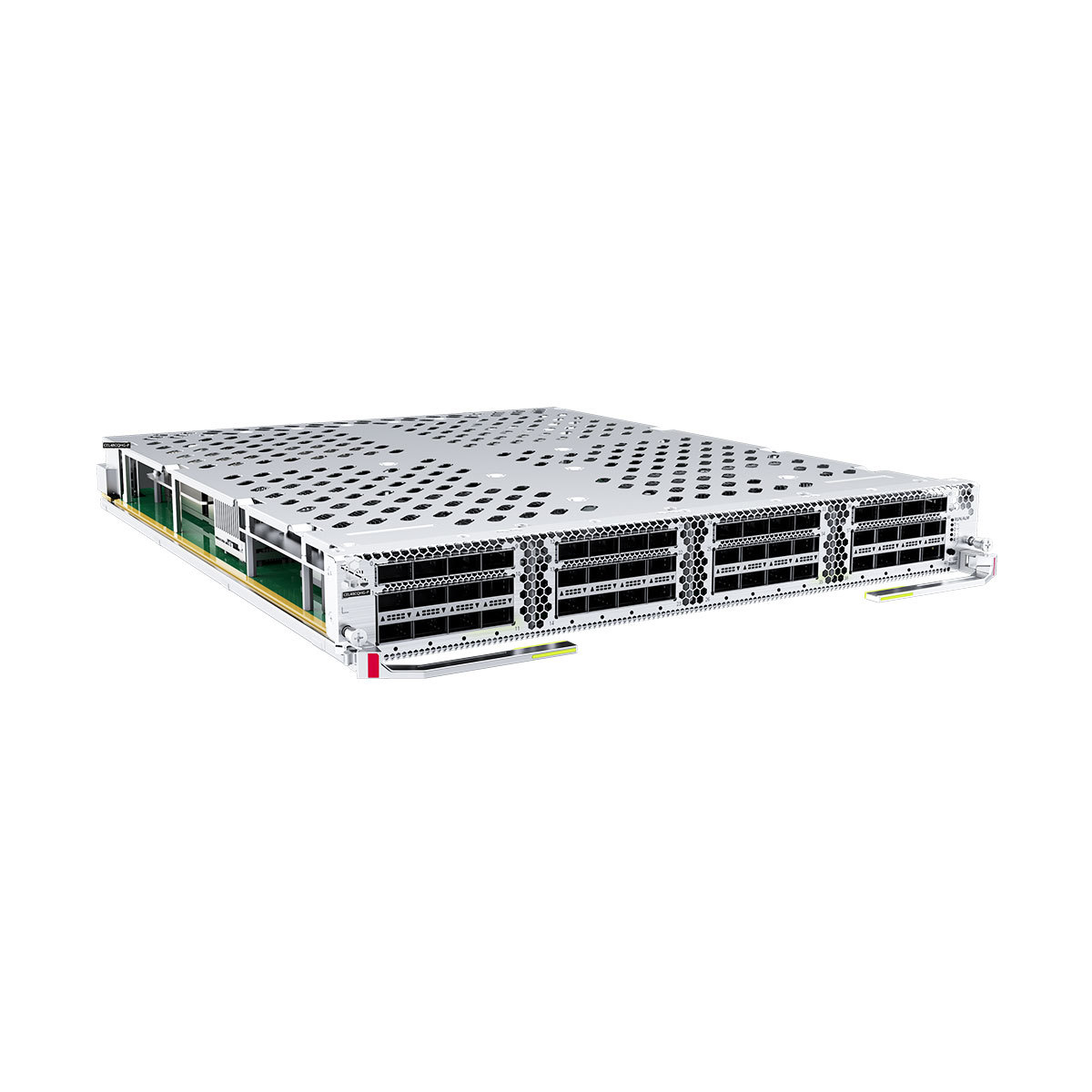

Technical specifications of the CEL48CQHG-X
Item
Specification
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
285 mm x 650 mm x 860 mm (11.22 in. x 25.59 in. x 33.86 in.)
Weight without packaging [kg (lb)]
10.3 kg (22.71 lb)
Weight with packaging [kg (lb)]
16.6 kg (36.6 lb)
Typical power consumption [W]
658 W
Typical heat dissipation [BTU/hour]
2245 BTU/hour
Static power consumption [W]
508 W
Static heat dissipation [BTU/hour]
1734 BTU/hour
Maximum power consumption [W]
1010 W
Maximum heat dissipation [BTU/hour]
3446 BTU/hour
CPU
4-core, 1.4 GHz clock speed
Memory
Standard 8 GB
CEL48CQHG-X FAQ
Q1: Which Huawei switch models does the CEL48CQHG-X support? How compatible is it?
A1: It mainly supports Huawei CE12800 series flagship switches (such as CE12816/CE12812) and CE9800 series high-end switches (such as CE9866-128DQ). The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and it's ready to use.
Q2: Do the 48 ports simultaneously support 25G and 10G speeds? Can different speed optical modules be used interchangeably?
A2: It supports independent port speed auto-negotiation and can simultaneously use 25G and 10G optical modules. Different ports flexibly adapt to different access scenarios without requiring overall speed switching, offering extremely strong compatibility.
Q3: How are the power consumption and heat dissipation performance of this interface card? Are additional cooling measures required?
A3: It adopts a low-power design, and the power consumption of a single card is at a low level compared to similar ultra-dense interface cards in the industry. It is compatible with the redundant heat dissipation system of the switch, so there is no need to add additional heat dissipation equipment and it will not put extra pressure on the heat dissipation of the switch.
