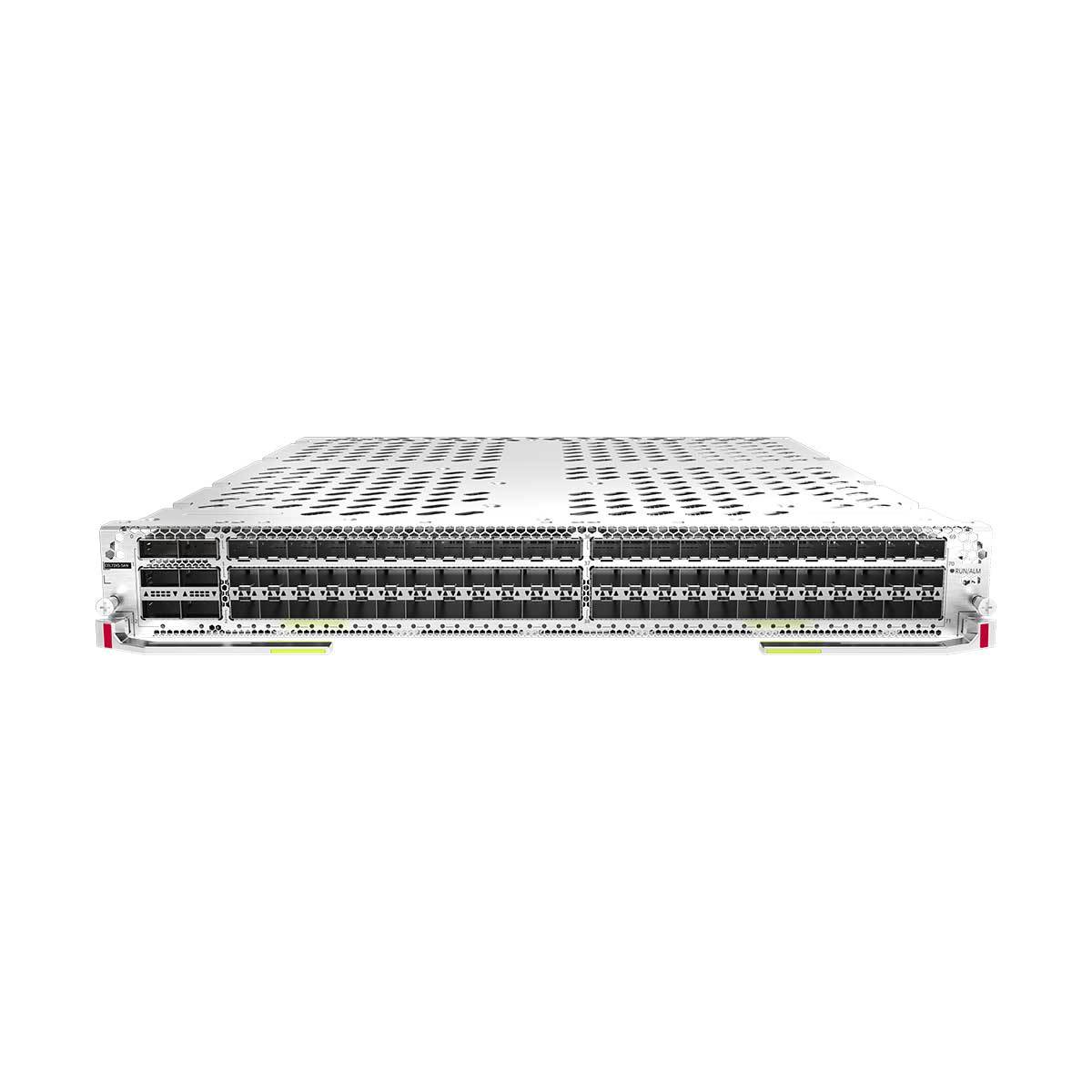

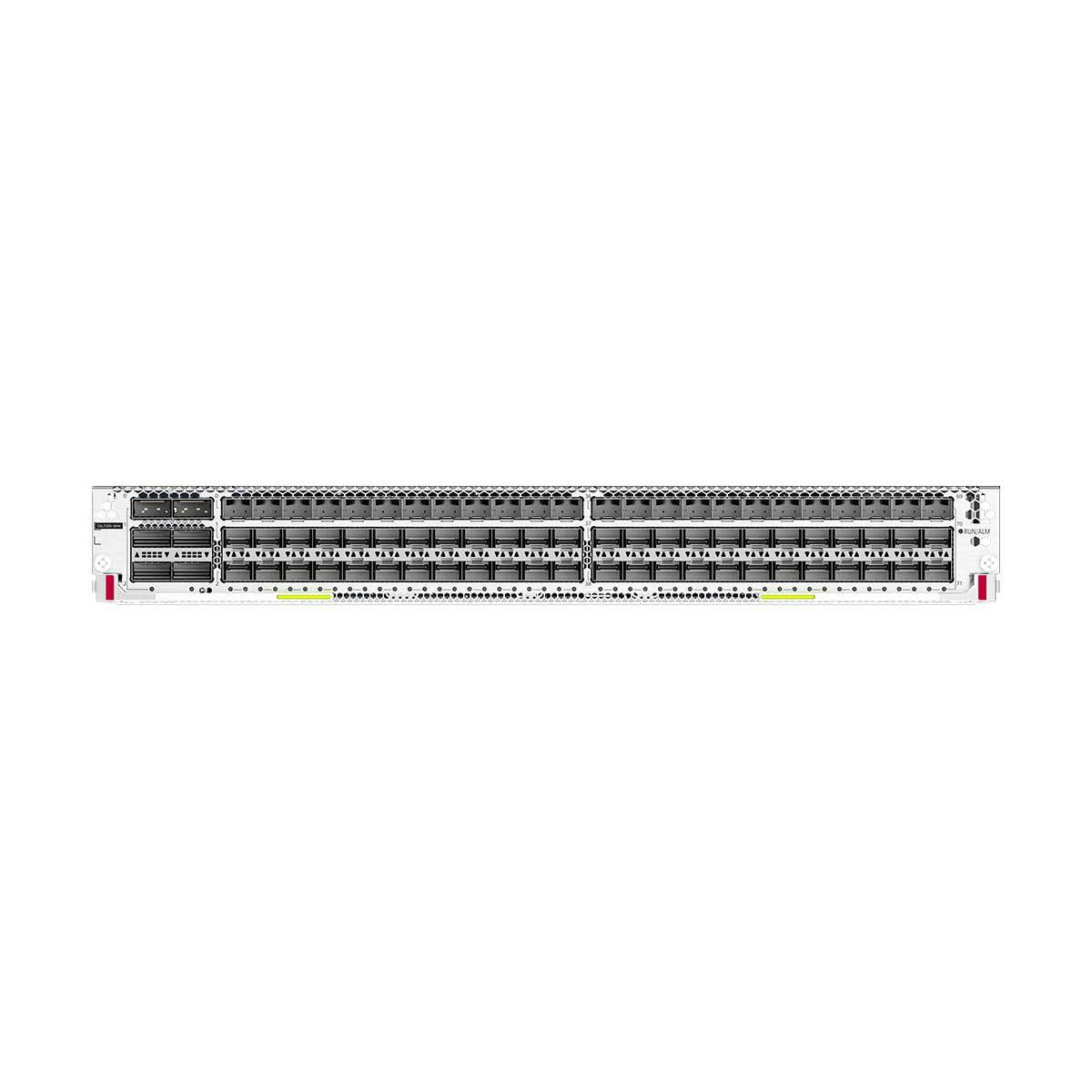

Port for inputting and outputting 25GE/10GE optical signals
10GE SFP+ optical modules 25GE SFP28 optical modules SFP+ to SFP+ AOC cable SFP28 to SFP28 AOC cableThe top-row 25GE/10GE ports also support:SFP+ to SFP+ high-speed cable SFP28 to SFP28 high-speed cable
6 x 100GE optical ports
QSFP28/QSFP+
Port for inputting and outputting 100GE/40GE optical signals
40GE QSFP+ optical modules 100GE QSFP28 optical modules QSFP+ to QSFP+ AOC cable QSFP28 to QSFP28 AOC cable QSFP+ to QSFP+ high-speed cable QSFP28 to QSFP28 high-speed cable

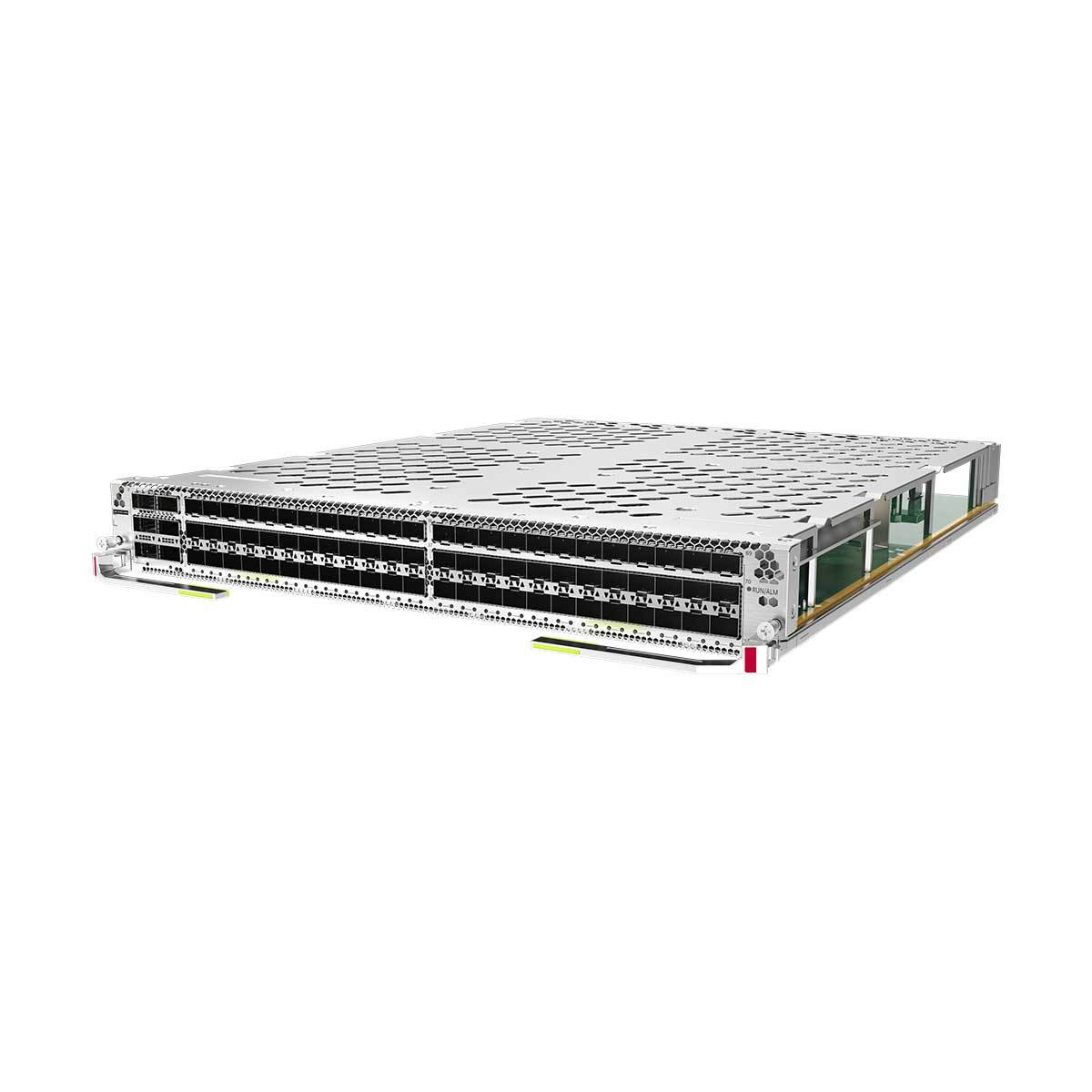

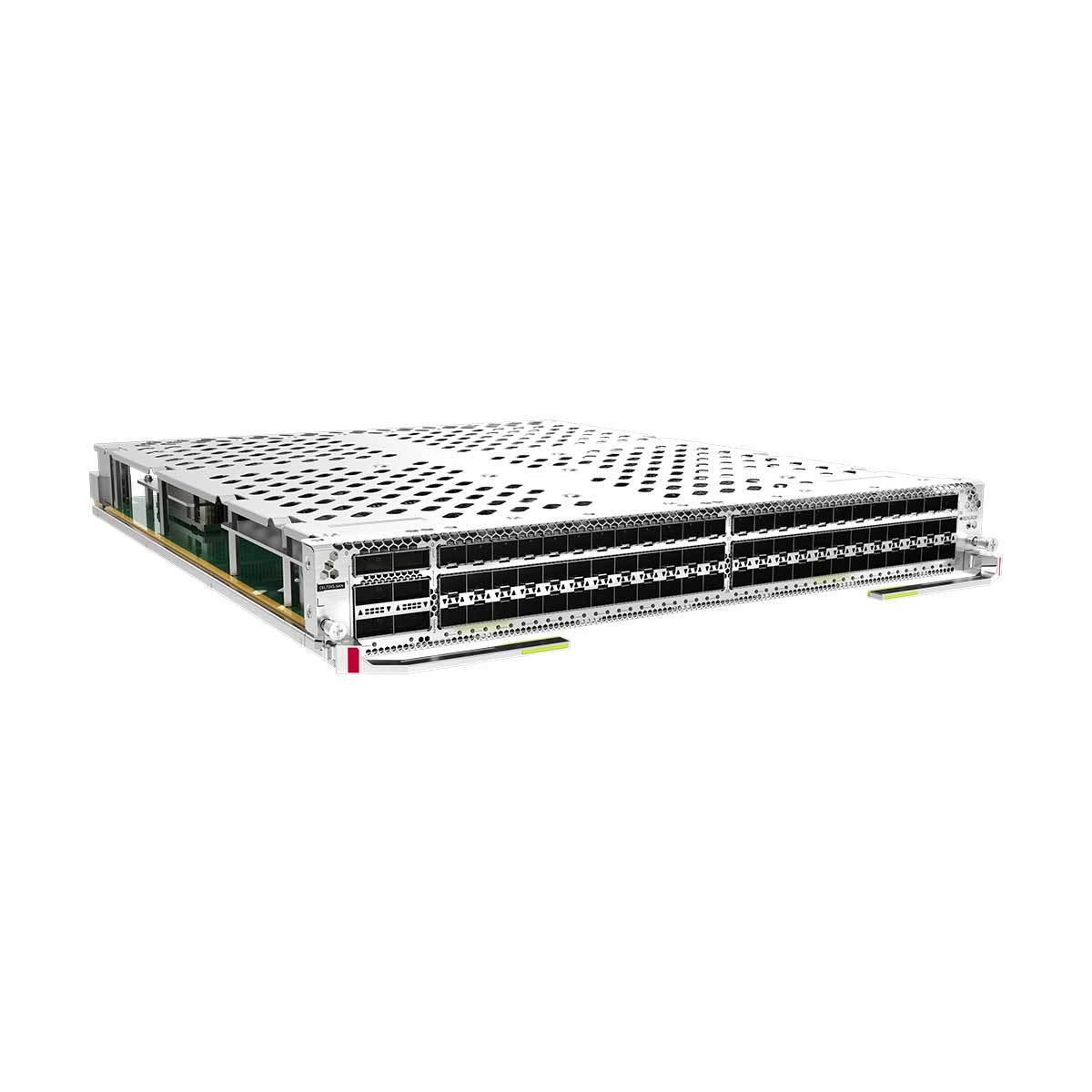

CEL72XS-SAN Datasheet
Item
CEL72XS-SAN
Typical power consumption [W]
509 W
Typical heat dissipation [BTU/hour]
1737 BTU/hour
Static power consumption [W]
376 W
Static heat dissipation [BTU/hour]
1283 BTU/hour
Maximum power consumption [W]
635 W
Maximum heat dissipation [BTU/hour]
2167 BTU/hour
CPU
4-core, 1.4 GHz clock speed
Memory
Standard 8 GB
NOR Flash
Standard 128 MB
RTU License Supported
Yes. By default, 48 x 25GE (ports 0 to 47, which can only work at the rate of 10 Gbit/s) and 4 x 100GE ports (ports 0 to 3) are available, and other ports are unavailable. The following RTU licenses can be used:
88036EUR: Two 100GE ports are added.
88036EUS: 24 x 25GE ports are added and the port rate is 10 Gbit/s.
88036EUT: The rate of 24 x 25GE ports is upgraded to 25 Gbit/s. A maximum of three licenses can be activated on a device to increase the rate of 72 x 25GE ports to 25 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
285 mm x 650 mm x 860 mm (11.22 in. x 25.59 in. x 33.86 in.)
Weight without packaging [kg (lb)]
9.9 kg (21.83 lb)
Weight with packaging [kg (lb)]
16.2 kg (53.15 lb)
CEL72XS-SAN FAQ
Q1: Which Huawei switch models does the CEL72XS-SAN support? How compatible is it?
A1: It mainly supports Huawei CE12800 series mid-to-high-end switches, CE8800 series high-end switches, and CE7800 series high-end switches. The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and it's ready to use. It is also compatible with mainstream third-party FC-SAN devices.
Q2: Can 16G and 8G FC optical modules be used simultaneously on the 72 ports? Is additional configuration required?
A2: It supports independent port rate auto-negotiation and can simultaneously use 16G and 8G FC optical modules. Different ports flexibly adapt to storage devices with different speeds, requiring no additional configuration and offering extremely strong compatibility.
Q3: Does this interface card support the FCIP protocol? Can it achieve disaster recovery interconnection for remote storage?
A3: Supports the FCIP protocol, enabling interconnection of FC-SANs across different locations via IP networks. It is perfectly suited for disaster recovery scenarios involving remote storage, eliminating the need for additional dedicated gateway devices and reducing disaster recovery construction costs.
