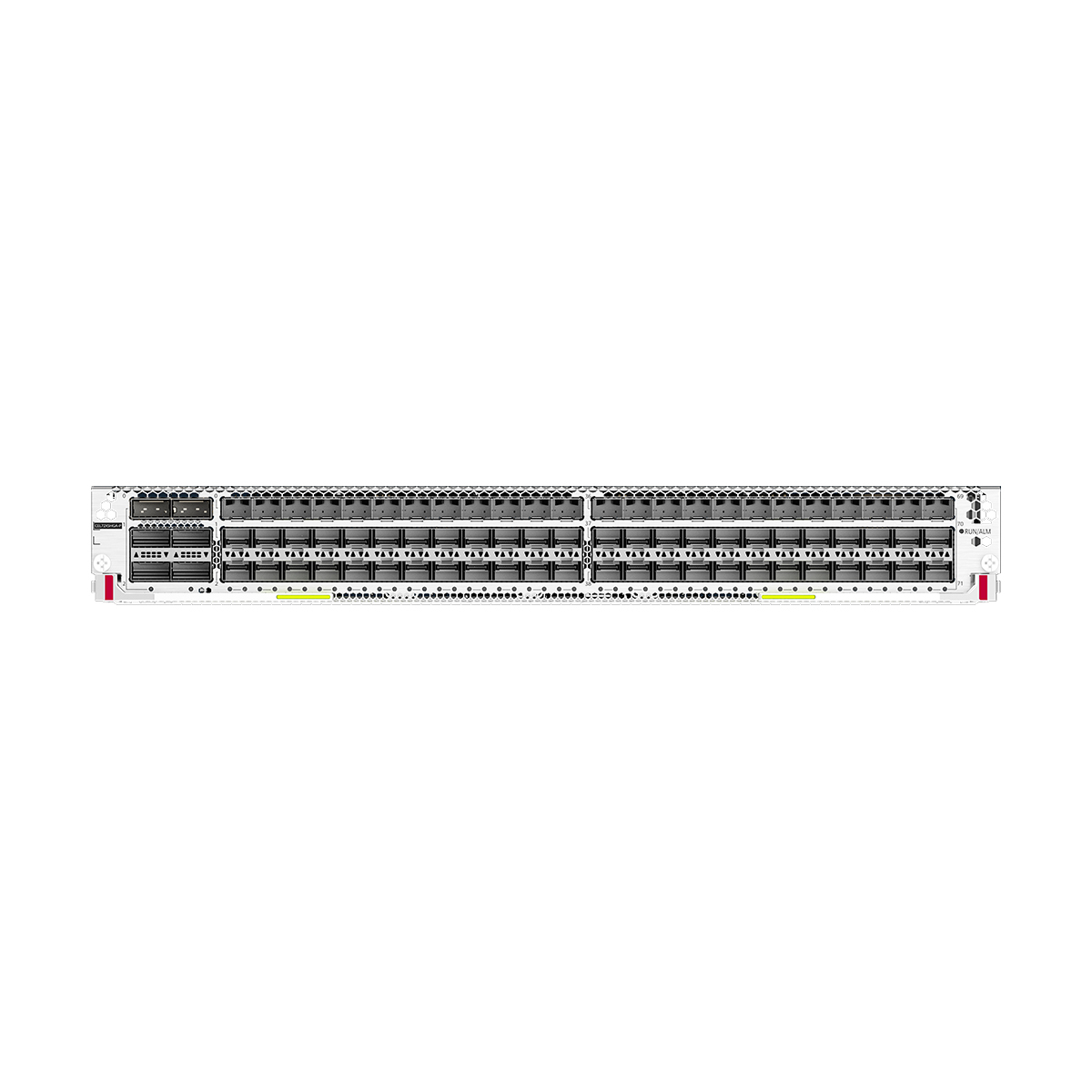

Port for inputting and outputting 25GE/10GE optical signals
10GE SFP+ optical modules 25GE SFP28 optical modules SFP+ to SFP+ AOC cable SFP28 to SFP28 AOC cableThe top-row 25GE/10GE ports also support:SFP+ to SFP+ high-speed cable SFP28 to SFP28 high-speed cable
6 x 100GE optical ports
QSFP28/QSFP+
Port for inputting and outputting 100GE/40GE optical signals
40GE QSFP+ optical modules 100GE QSFP28 optical modules QSFP+ to QSFP+ AOC cable QSFP28 to QSFP28 AOC cable QSFP+ to QSFP+ high-speed cable QSFP28 to QSFP28 high-speed cable

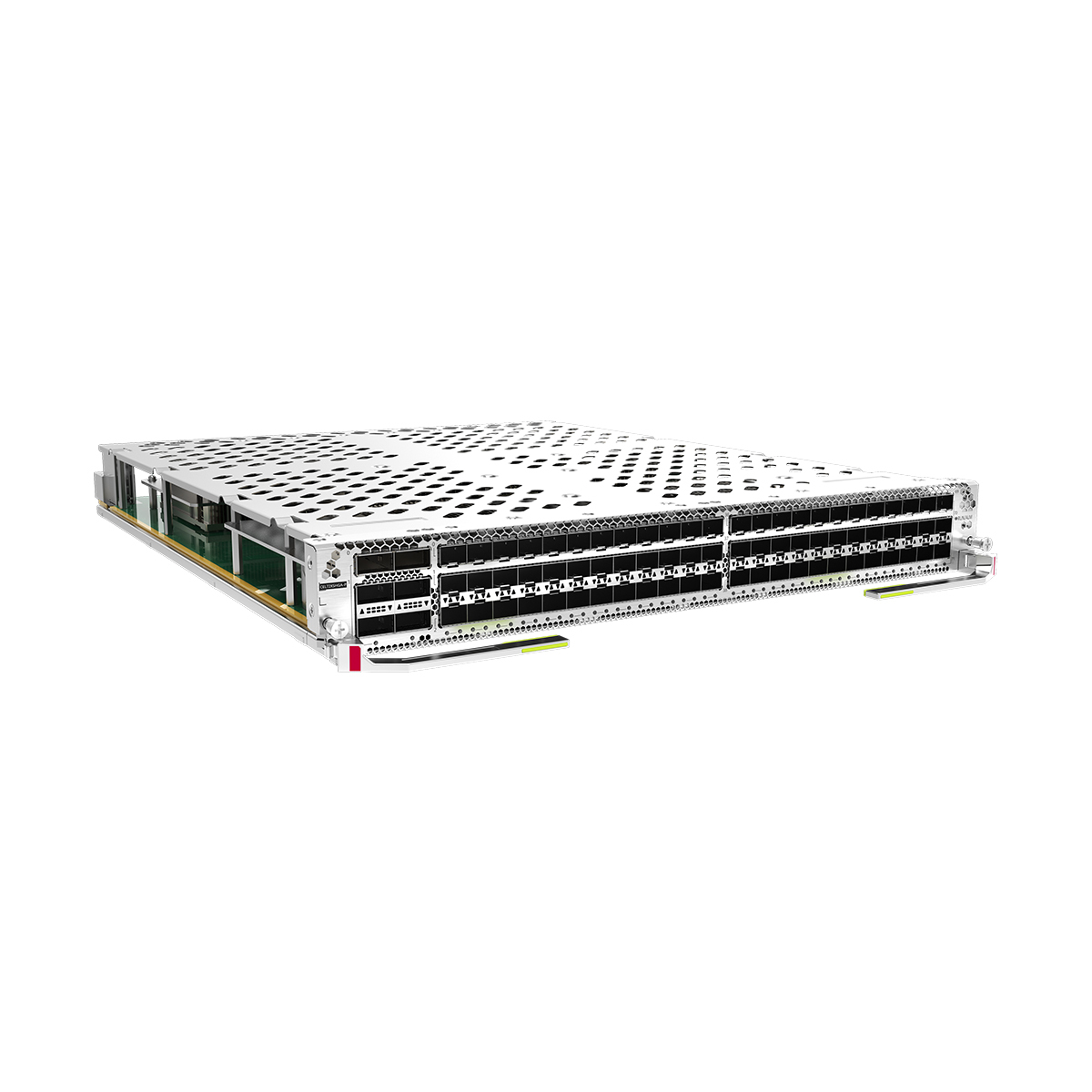

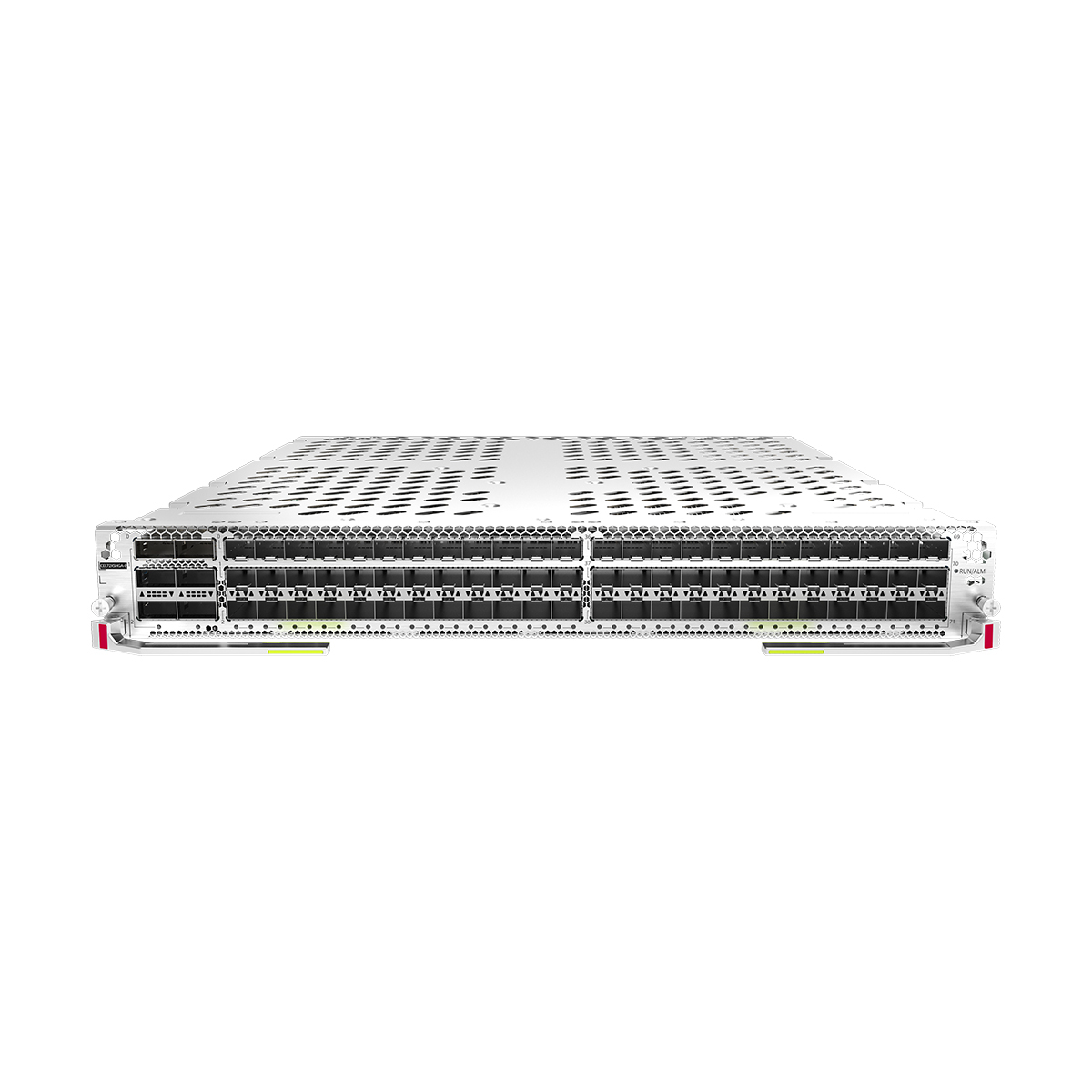

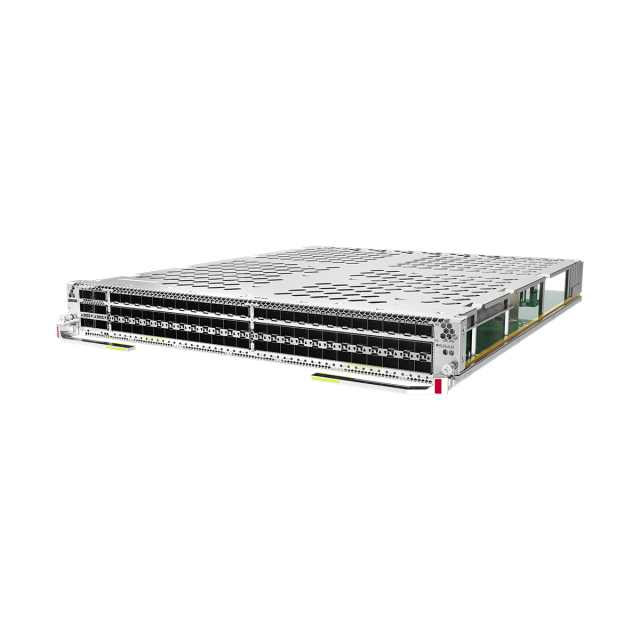

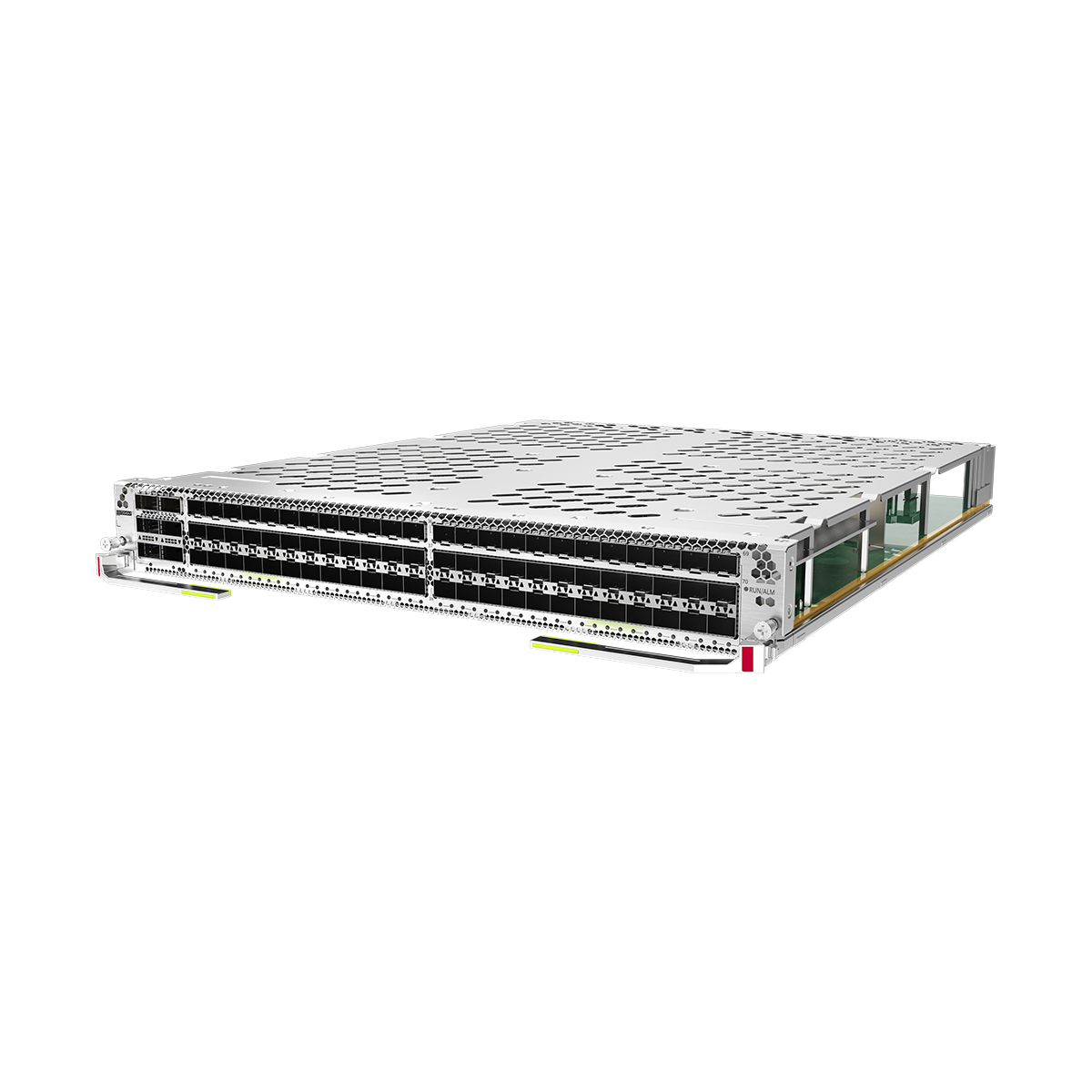

CEL72XSHGA-P Datasheet
Item
CEL72XSHGA-P
Typical power consumption [W]
509 W
Typical heat dissipation [BTU/hour]
1737 BTU/hour
Static power consumption [W]
376 W
Static heat dissipation [BTU/hour]
1283 BTU/hour
Maximum power consumption [W]
635 W
Maximum heat dissipation [BTU/hour]
2167 BTU/hour
CPU
4-core, 1.4 GHz clock speed
Memory
Standard 8 GB
NOR Flash
Standard 128 MB
RTU License Supported
Yes. By default, 48 x 25GE (ports 0 to 47, which can only work at the rate of 10 Gbit/s) and 4 x 100GE ports (ports 0 to 3) are available, and other ports are unavailable. The following RTU licenses can be used:
88036EUR: Two 100GE ports are added.
88036EUS: 24 x 25GE ports are added and the port rate is 10 Gbit/s.
88036EUT: The rate of 24 x 25GE ports is upgraded to 25 Gbit/s. A maximum of three licenses can be activated on a device to increase the rate of 72 x 25GE ports to 25 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)]
55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)]
285 mm x 650 mm x 860 mm (11.22 in. x 25.59 in. x 33.86 in.)
Weight without packaging [kg (lb)]
9.9 kg (21.83 lb)
Weight with packaging [kg (lb)]
16.2 kg (53.15 lb)
CEL72XSHGA-P FAQ
Q1: Which Huawei switch models does the CEL72XSHGA-P support? How compatible is it?
A1: It mainly supports Huawei CE12800 series mid-to-high-end switches (such as CE12804/CE12808), CE8800 series high-end switches (such as CE8850-64CQ-EI), CE7800 series high-end switches, and some models of the CE9800 series. The interfaces and slots are fully matched, with 100% compatibility; simply plug it in and it's ready to use.
Q2: Can 10G and 2.5G optical modules be used simultaneously on the 72 ports? Can existing low-speed optical modules be reused?
A2: It supports independent port rate auto-negotiation, allowing simultaneous use of 10G and 2.5G optical modules; it is compatible with 2.5G, 1G, and other low-speed SFP optical modules, allowing reuse of existing assets and reducing access layer upgrade costs.
Q3: How are the power consumption and heat dissipation performance of this interface card? Will it put an extra burden on the switch?
A3: It adopts a low-power optimized design, and the power consumption of a single card is controlled at a low level compared to similar ultra-high-density access interface cards in the industry. It is compatible with the switch's built-in redundant heat dissipation system, so no additional heat dissipation measures are needed, and it will not put extra pressure on the switch's heat dissipation.
