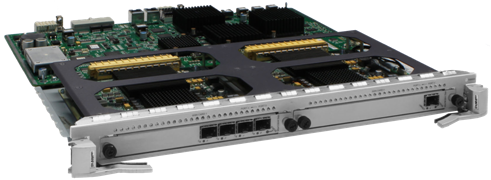

Huawei S9300 Series LE0D0WMNPA00 WAN Interface Service Process Card.
The LE0D0WMNPA00 can be installed in any LPU slot on the S9312, S9306, or S9303 chassis.
The LE0D0WMNPA00 has two subcard slots and allows different types of subcards to be installed in the slots at the same time.
Subcard list
Subcard Name
Ports
P1UF
One OC-48c POS-SFP port
P4HF
Four OC-12c POS-SFP ports
P4CF
Four OC-3c POS-SFP ports
Functions of the LE0D0WMNPA00
Function
Description
Basic function
Provides 10 Gbit/s line-rate forwarding and switching and supports the following subcards:
P1UF: provides one 2.5GE POS port.
P4HF: provides four 622M POS ports.
P4CF: provides four 155M POS ports.
Any two types of the subcards can be used together.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Queue
Eight queues on each port
Traffic scheduling
PQ+WFQ (PQ in queues 5, 6, and 7, and WFQ in the other queues)
Software feature
WAN features
Hot swapping
The LE0D0WMNPA00 is hot swappable.
Specifications of the LE0D0WMNPA00
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 394.7 mm x 426.8 mm (1.38 in. x 15.54 in. x 16.80 in.)
Weight: 3.80 kg (8.38 lb) (with a fireproof panel and two P1UF subcards)
Maximum power consumption:
Two P1UF subcards: 84 W
Two P4HF subcards: 91 W
Two P4CF subcards: 86 W
LE0D0WMNPA00 FAQ
Q1: What is the maximum transmission distance per port of the Huawei LE0D0WMNPA00 interface card? Does it support hot-swapping?
A1: The maximum transmission distance per port is 20km (when paired with an SFP-GE-ZX-SM1550 module); it supports hot-swapping of SFP modules, ensuring uninterrupted service during maintenance.
Q2: Is this interface card compatible with Huawei S5735-S switches? What is the maximum number of cards supported per switch?
A2: Fully compatible with S5735-S switches; a single S7712 switch can support up to 12 cards, providing 576 gigabit optical ports to meet ultra-large-scale access requirements.
Q3: What are the advantages of the LE0D0WMNPA00 compared to a 24-port gigabit optical interface card?
A3: Port density is doubled, slot usage is reduced by 50% for the same access requirements; single-port cost is 20% lower, resulting in a significant overall cost advantage during large-scale deployments.
