Name: Huawei LE0MPSD16 Power Module
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF813
Price: 20.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF813

Huawei S9300 Series LE0MPSD16 1600 W DC Power Module

Brand

Huawei

Part Number

02316867

Packing Box Specifications

13x4x40cm

Gross Weight

3kg

Condition

Original New

Delivery Time

In Stock

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

LE0MPSD16 Introduction

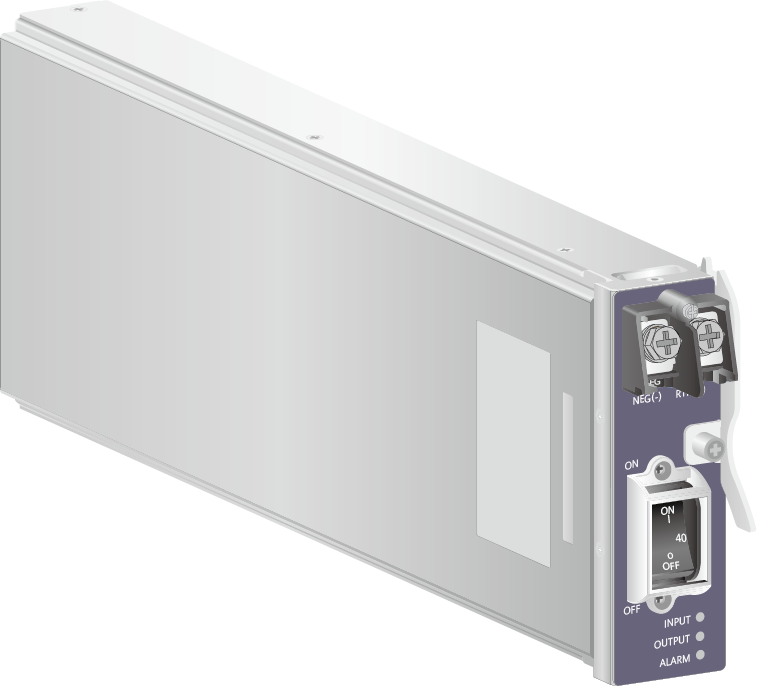

Huawei S9300 Series LE0MPSD16 1600 W DC Power Module.

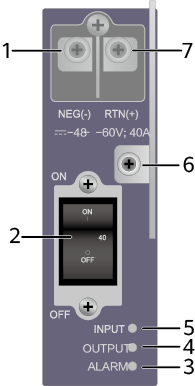

Panel of the LE0MPSD16

1. NEG terminal	2. Power switch NOTE: ON: The power module is supplying power. OFF: The power module is not supplying power.	3. ALARM indicator
4. OUTPUT indicator	5. INPUT indicator	6. Ejector lever NOTE: Raise the ejector lever to release the power module from the slot, and lower the ejector lever to lock the power module in the slot.
7. RTN terminal	—	—

Relationship between cables and the terminals on a 1600 W DC power module

Input Terminal Identifier	Cable Type	Cable Color	Connected Terminal
RTN NOTE: RTN indicates return.	Power ground cable	Black	OT bare crimp terminal
NEG	Power cable	Blue	OT bare crimp terminal

Indicators on the LE0MPSD16

Silkscreen	Name	Color	Status	Description
INPUT	INPUT indicator	-	Steady off	The power module receives no power input or its power cables are reversely connected.
INPUT	INPUT indicator	Green	Steady on	The input power is normal.
OUTPUT	OUTPUT indicator	-	Steady off	The power module provides no output power.
OUTPUT	OUTPUT indicator	Green	Steady on	The output power of the power module is in the normal range.
ALARM	ALARM indicator	-	Steady off	The protection circuit is working properly.
ALARM	ALARM indicator	Red	Steady on	The protection circuit has failed.

Functions and Features

A 1600 W DC power module provides a maximum of 1600 W power for the chassis and has the following functions:

Short circuit protection
Alarms about various power supply events, for example, no external power input, input undervoltage, and power switch off.
The power module is hot swappable.

Technical Specifications

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.)
Weight without packaging [kg(lb)]	< 2.5 kg
Number of inputs	1
Rated input voltage [V]	-48 V DC to -60 V DC
Input voltage range [V]	-38.4 V DC to -72 V DC
Maximum input current [A]	40 A
Rated output voltage [V]	53.5 V DC
Rated output current [A]	40 A
Rated output power [W]	1600 W
Hot swapping	Supported

LE0MPSD16 FAQ

Q1: Which Huawei switches is this power module compatible with? Does it support hot-swapping?

A1: It is exclusively compatible with the entire Huawei S9300 series (S9303/S9306/S9310/S9312, etc.); it supports hot-swapping and can be replaced online without interrupting device operation.

Q2: What scenarios is the 1600W power suitable for? What are its advantages compared to high/low power supplies?

A2: It is suitable for medium load scenarios (4-6 service boards) of S9300, branch offices, regional data centers, etc.; its advantages are precise power matching, controllable cost, and adaptability to limited power supply environments, resulting in higher cost-effectiveness.

Q3: What is the input voltage range? Does it support redundant power supply?

A3: The input voltage is compatible with AC 100-240V/DC -48V, adapting to different data center power supplies; it supports N+1 redundancy mode to improve power supply reliability in medium load scenarios.

Q4: How do I determine if I need to select this 1600W power module? Is the installation complicated?

A4: When the S9300 is equipped with 4-6 service boards, the power supply in the data center is limited, or an old 1600W power supply needs to be replaced, it is recommended to choose this option; no professional tools are required for installation, just insert it directly into the S9300 power supply slot.
