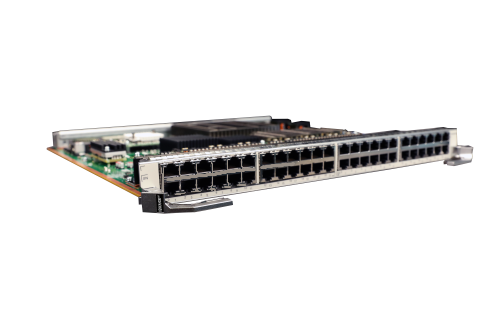

Huawei S9300 Series LSS3M24VX6E0 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E,RJ45,PoE++).
Ports on the LSS3M24VX6E0
Port
Connector Type
Description
Available Components
100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ electrical port (multi-GE port)
RJ45
A 100M/1000M/2.5GE/5GE/10GE BASE-T PoE++ electrical port sends and receives service data at 100 Mbit/s, 1 Gbit/s, 2.5 Gbit/s, 5 Gbit/s, or 10 Gbit/s.
The port supports the PoE function.
If the 2.5 Gbit/s or 5 Gbit/s speed is required, the port must use an Ethernet cable of Cat5e or higher category. If the 10 Gbit/s speed is required, the port must use an Ethernet cable of Cat6A F/UTP or higher category.
100/1000BASE-T PoE++ electrical port
RJ45
A 100/1000BASE-T PoE++ electrical port sends and receives service data at 100/1000 Mbit/s.
The port supports the PoE function.
In V200R022C10 and later versions, the rate of the first 24 100/1000BASE-T electrical ports can be automatically reduced to 10 Mbit/s.
Ethernet cable
Functions and features of the LSS3M24VX6E0
Functions and Features
Description
Basic function
The card has two units:
Data switching unit: consists of the CPU, switching chip, and physical layer (PHY).
PoE management unit: consists of the CPU and the PSE daughter card.
The card provides:
Twenty-four 100M/1000M/2.5GE/5GE/10GE BASE-T ports and twenty-four 100/1000BASE-T ports for data transmission and switching
PoE++ function
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported
Maximum power
When the card is used on a non-PoE chassis: the card does not provide PoE power supply.
90 W for each port and 1776 W for the whole card
PoE usage constraints
The card can be registered and used in a PoE chassis only when the following conditions are met:
A PSE daughter card has been installed in the card.
The PoE power modules are supplying power to the chassis normally.
When the card used in a non-PoE chassis, the card does not provide the PoE function.
Technical specifications of the LSS3M24VX6E0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]
4.00 kg (8.82 lb)
Weight with packaging [kg(lb)]
6.00 kg (13.23 lb)
Typical power consumption [W]
168 W
Typical heat dissipation [BTU/hour]
573.23 BTU/hour
Maximum power consumption [W]
192 W
Maximum heat dissipation [BTU/hour]
655.12 BTU/hour
Memory
1 GB
LSS3M24VX6E0 FAQ
Q1: What are the maximum single-port speed and transmission distance of the Huawei LSS3M24VX6E0 interface card? Does it support hot-swapping?
A1: Maximum single-port speed is 10Gbps (10 Gigabit), maximum transmission distance is 10km (single-mode) / 0.3km (multi-mode); supports SFP+ module hot-swapping, ensuring uninterrupted backbone service maintenance.
Q2: Is this interface card compatible with the Huawei S12708 switch? How many cards can a single S12712 switch support at most?
A2: Fully compatible with the S12708 switch (requires upgrade to the latest system version); a single S12712 switch supports a maximum of 10 cards, providing 240 10 Gigabit ports, meeting the ultra-high density expansion needs of large backbone networks.
Q3: Compared to 8-port/16-port 10 Gigabit cards and ordinary high-density 10 Gigabit cards, what are the core advantages of the LSS3M24VX6E0?
A3: 3 times higher density than low-density cards, with higher slot utilization; 20% higher reliability than ordinary high-density cards, with stronger adaptability to backbone scenarios; dedicated high-end switch, no performance bottleneck, suitable for core backbone links.
