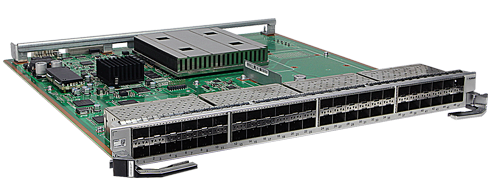

Huawei S9300 Series LSS3X48SX6E1 48-Port 10GBASE-X Interface Card (X6E, SFP+).
Functions of the LSS3X48SX6E1
Function
Description
Basic functions
Provides forty-eight 1000M/10G BASE-X ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The LSS3X48SX6E1 is hot swappable.
Ports on the LSS3X48SX6E1
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used. For the SFP optical modules supported by the LSS3X48SX6E1 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LSS3X48SX6E1
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.2 kg (7.05 lb)
Maximum power consumption: 197 W
LSS3X48SX6E1 FAQ
Q1: What are the maximum single-port speed and transmission distance of the Huawei LSS3X48SX6E1 interface card? Does it support hot-swapping?
A1: Maximum single-port speed is 10Gbps, and maximum transmission distance is 10km (when paired with an SFP+ 10G LR module); it supports hot-swapping of SFP+ modules, ensuring uninterrupted backbone services during maintenance.
Q2: Is this interface card compatible with the Huawei S7706 switch? What is the maximum number of cards supported by a single S12712 unit?
A2: Fully compatible with the S7706 switch (requires upgrading to the latest system version); a single S12712 unit supports a maximum of 8 cards, providing 384 10G ports to meet the needs of ultra-large backbone expansion.
Q3: Compared to 10G cards of the same density and low-density 10G long-range cards, what are the core advantages of the LSS3X48SX6E1?
A3: It balances ultra-high density with 48 ports and long-distance transmission over 10km, eliminating the need to purchase density cards and long-distance cards separately; single-port reliability is improved by 20%, failure rate is lower during large-scale deployment, and maintenance costs are reduced by 30%.
