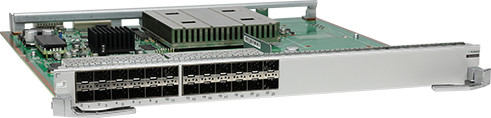

Huawei S9300 Series LST3X24SX6E0 24-Port 10GBASE-X Interface Card (X6E, SFP+).
Functions of the LST3X24SX6E0
Function
Description
Basic functions
Provides twenty-four 1000M/10G BASE-X ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The LST3X24SX6E0 is hot swappable.
Ports on the LST3X24SX6E0
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used. For the SFP optical modules supported by the LST3X24SX6E0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Specifications of the LST3X24SX6E0
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.2 kg (7.05 lb)
Maximum power consumption: 144 W
LST3X24SX6E0 FAQ
Q1: What are the maximum single-port speed and transmission distance of the Huawei LST3X24SX6E0 interface card? Does it support hot-swapping?
A1: Maximum single-port speed is 10Gbps, and maximum transmission distance is 10km (when paired with an SFP+ 10G LR module); it supports hot-swapping of SFP+ modules, ensuring uninterrupted backbone services during maintenance.
Q2: Is this interface card compatible with the Huawei S7706 switch? What is the maximum number of cards supported by a single S12712 unit?
A2: Fully compatible with the S7706 switch (requires upgrading to the latest system version); a single S12712 unit supports a maximum of 10 cards, providing 240 10G ports, meeting the expansion needs of medium to large-scale networks.
Q3: What are the core advantages of the LST3X24SX6E0 compared to 36-port/48-port 10G interface cards?
A3: 25%-33% lower procurement cost than high-density cards, with no redundant ports; more significant density improvement than low-density cards, requiring fewer slots for the same needs, and more flexible for adapting to medium-sized scenarios.
