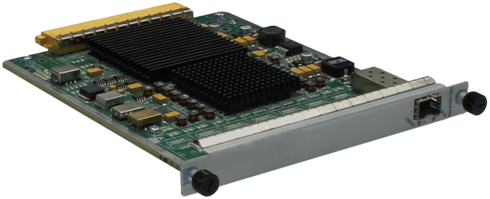

Huawei S9300 Series P1UF 1-Port OC-48c/STM-16c POS-SFP Flexible Card.
The P1UF is an optional subcard that can be installed in a subcard slot on the LE0D0WMNPA00.
You can choose to install this subcard based on service requirements. This subcard improves service flexibility and facilitates service expansion.
Functions of the P1UF
Function
Description
Basic function
Provides a 2.5 Gbit/s optical port and can be used on the aggregation layer of an MPLS backbone network.
Protocol and service
PPP and HDLC
Port type
SFP
Reliability and availability
Hot swappable
Ports on the P1UF
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP optical module used.
For details on the optical modules supported by the P1UF and their attributes, see POS eSFP Optical Modules.
Duplex mode
Full-duplex
Frame format
PPP and HDLC
Network protocol
IP
Specifications of the P1UF
Item
Description
Network management
Enhanced command-line management interface
SNMP and MIB
Physical specifications
Dimensions (H x W x D): 20 mm x 145 mm x 185 mm (0.8 in. x 5.7 in. x 7.3 in.)
Weight: 0.50 kg (1.10 lb)
Typical power consumption: 12 W
Heat dissipation: 49 BTU/hour
P1UF FAQ
Q1: What is the maximum speed of a single port on the Huawei P1UF interface card? Does it support hot-swapping?
A1: The maximum speed per port is 100Gbps. It supports hot-swapping of QSFP28 modules. Replacing modules does not require restarting the switch, ensuring uninterrupted service.
Q2: Is the P1UF compatible with the Huawei S5735-S switch? What is the maximum number of cards that can be inserted simultaneously?
A2: Fully compatible with the S5735-S switch (system version upgrade required); a single S7712 switch supports a maximum of 12 P1UF interface cards, providing 12 100G ports.
Q3: What are the advantages of the P1UF compared to a 4-port 100G interface card (such as the Huawei P4UF)?
A3: Suitable for scenarios with low 100G port requirements, with a 60% lower procurement cost; independent single-port design ensures that failures do not affect other services, making maintenance more flexible.
