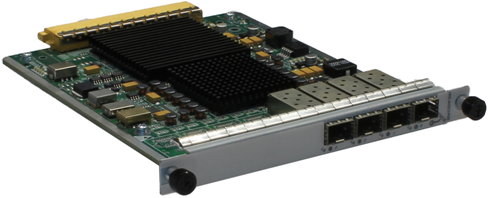

Huawei S9300 Series P4CF 4-Port OC-3c/STM-1c POS-SFP Flexible Card.
The P4CF is an optional subcard that can be installed in a subcard slot on the LE0D0WMNPA00.
You can choose to install this subcard based on service requirements. This subcard improves service flexibility and facilitates service expansion.
Functions of the P4CF
Function
Description
Basic function
Provides 155 Mbit/s optical ports and can be used on the aggregation layer of an MPLS backbone network.
Protocol and service
PPP and HDLC
Port type
SFP
Reliability and availability
Hot swappable
Ports on the P4CF
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP optical module used.
For details on the optical modules supported by the P4CF and their attributes, see POS eSFP Optical Modules.
Duplex mode
Full-duplex
Frame format
PPP and HDLC
Network protocol
IP
Specifications of the P4CF
Item
Description
Network management
Enhanced command-line management interface
SNMP and MIB
Physical specifications
Dimensions (H x W x D): 20 mm x 145 mm x 185 mm (0.8 in. x 5.7 in. x 7.3 in.)
Weight: 0.50 kg (1.10 lb)
Typical power consumption: 14 W
Heat dissipation: 58 BTU/hour
P4CF FAQ
Q1: What is the maximum single-port speed of the Huawei P4CF interface card? Does it support hot-swapping?
A1: The maximum single-port speed is 400Gbps. It supports QSFP-DD module hot-swapping; module replacement does not require restarting the switch and does not affect services.
Q2: Is the P4CF interface card compatible with the Huawei S7703 switch? What is the maximum number of cards that can be inserted simultaneously?
A2: Compatible with the S7703 switch (system version upgrade required); a single S7712 switch supports a maximum of 6 P4CF interface cards, providing 24 400G ports.
Q3: What are the advantages of P4CF compared to 100G interface cards (such as the Huawei ES1D2G48VX5E)?
A3: Single-port speed is increased by 4 times, single-slot port density is increased by 2 times, slot occupancy is reduced by 75% for the same bandwidth requirements, and long-term maintenance costs are reduced by 50%.
