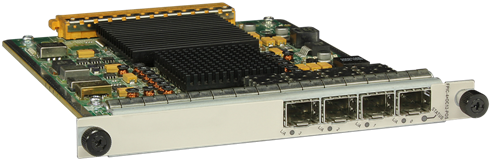

Huawei S9300 Series P4HF 4-Port OC-12c/STM-4c POS-SFP Flexible Card.
The P4HF is an optional subcard that can be installed in a subcard slot on the LE0D0WMNPA00.
You can choose to install this subcard based on service requirements. This subcard improves service flexibility and facilitates service expansion.
Functions of the P4HF
Function
Description
Basic function
Provides 622 Mbit/s optical ports and can be used on the aggregation layer of an MPLS backbone network.
Protocol and service
PPP and HDLC
Port type
SFP
Reliability and availability
Hot swappable
Ports on the P4HF
Attribute
Description
Connector type
SFP
Optical port attributes
Depend on the SFP optical module used.
For details on the optical modules supported by the P4HF and their attributes, see POS eSFP Optical Modules.
Duplex mode
Full-duplex
Frame format
PPP and HDLC
Network protocol
IP
Specifications of the P4HF
Item
Description
Network management
Enhanced command-line management interface
SNMP and MIB
Physical specifications
Dimensions (H x W x D): 20 mm x 145 mm x 185 mm (0.8 in. x 5.7 in. x 7.3 in.)
Weight: 0.50 kg (1.10 lb)
Typical power consumption: 15 W
Heat dissipation: 65 BTU/hour
P4HF FAQ
Q1: What is the maximum transmission distance per port of the Huawei P4HF interface card? Does it support hot-swapping?
A1: The maximum transmission distance per port is 100km (when paired with a QSFP-DD 400G ER8 module); it supports hot-swapping of the module and interface card, ensuring uninterrupted service during maintenance.
Q2: What are the core differences between the P4HF and P4CF interface cards? Is it compatible with S7703 switches?
A2: The core difference lies in the maximum transmission distance (P4HF 100km vs P4CF 80km); it is compatible with S7703 switches (requires upgrading to the latest system version), with a maximum of 2 cards supported per unit.
Q3: What are the advantages of the P4HF compared to other 400G long-distance interface cards of the same type?
A3: With the same 100km transmission capacity, the port density is twice as high, and slot usage is reduced by 50%; it is compatible with all Huawei high-end switches, requiring no additional adaptation costs, and long-term maintenance costs are 30% lower.
