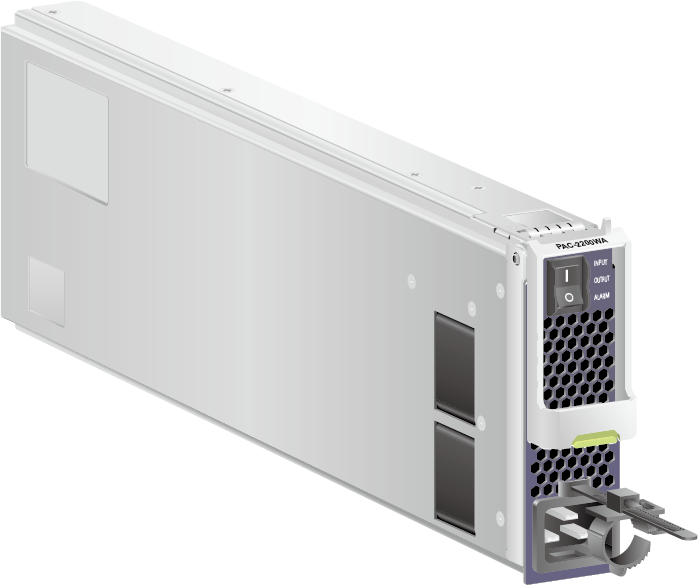

Name: Huawei PAC-2200WA Power Module
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF818
Price: 110.00 USD
Availability: InStock

No.MF818

Huawei S9300 Series PAC-2200WA 2200 W AC Power Module

Brand

Huawei

Part Number

02131188

Packing Box Specifications

13x4x40cm

Gross Weight

3kg

Condition

Original New

Delivery Time

In Stock

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

W0PSA2200 Introduction

Huawei S9300 Series W0PSA2200 2200 W AC Power Module.

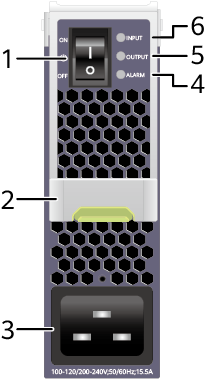

Panel of the W0PSA2200

1. Power switch NOTE: When the power switch is turned ON, the power module supplies power to the chassis. When the power switch is turned OFF, the power module does not supply power to the chassis.	2. Ejector lever NOTE: Raise the ejector lever to release the power module from the slot, and lower the ejector lever to lock the power module in the slot.	3. Power socket
4. ALARM indicator	5. OUTPUT indicator	6. INPUT indicator

Indicators on the PAC-2200WA

Silkscreen	Name	Color	Status	Description
INPUT	INPUT indicator	-	Steady off	The power module receives no input power.
		Green	Steady on	The input power of the power module is in the normal range.
		Green	Blinking	The power module is in an input undervoltage or input overvoltage condition.
OUTPUT	OUTPUT indicator	-	Steady off	The power module provides no output power.
OUTPUT	OUTPUT indicator	Green	Steady on	The output power of the power module is in the normal range.
ALARM	ALARM indicator	-	Steady off	The power module is working normally.
		Red	Steady on	The power module is experiencing overheating, external short circuit, output overvoltage, output overcurrent, or a fan failure.
		Red	Blinking	Communication between the power module and CMU has been interrupted.

Functions and Features

Function		Description
Input protection	Input undervoltage protection	In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again.
Input protection	Input overcurrent protection	In this protection state, the power module is turned off and stops supplying power. The power module cannot automatically start supplying power again and needs to be replaced.
Output protection	Output overvoltage protection	In this protection state: If output overvoltage is caused by the power module itself, the power module stops supplying power. When the system recovers from output overvoltage, the power module cannot automatically start supplying power again. If output overvoltage is caused by increase of the input voltage received from the external power source, the power module stops supplying power. When the system recovers from output overvoltage, the power module can automatically start supplying power again.
	Output overcurrent protection	In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again.
	Output short-circuit protection	In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again.
Overtemperature protection		When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Hot swapping		The power module is hot swappable.

Technical specifications

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.)
Weight without packaging [kg(lb)]	< 2.5 kg
Number of inputs	1
Rated input voltage [V]	220 V AC/110 V AC; 50/60 Hz
Input voltage range [V]	90 V AC to 290 V AC; 47 Hz to 63 Hz
Maximum input current [A]	15.5 A
Rated output voltage [V]	53.5 V DC
Rated output current [A]	42 A (220 V AC input)/21 A (110 V AC input)
Rated output power [W]	2200 W (220 V AC input)/1100 W (110 V AC input)
Power dissipation Mode	Heat dissipation with fan
Hot swapping	Supported

W0PSA2200 FAQ

Q1: Which devices is this power module compatible with? Does it support hot-swapping?

A1: Compatible with Huawei S-series switches, enterprise servers, storage devices, etc., and compatible with standard power supply slots; supports hot-swapping, allowing for online replacement or expansion without interrupting device operation.

Q2: What scenarios is the 2200W power suitable for? What are its advantages compared to ordinary power supplies?

A2: Suitable for high-load scenarios such as enterprise core server rooms and small to medium-sized data centers; its advantages include sufficient power, wide voltage compatibility, support for redundant power supply, and reliability far exceeding that of ordinary power supplies.

Q3: What is the input voltage range? What is the conversion efficiency?

A3: Supports AC 100-240V input voltage, adapting to complex power supply environments; conversion efficiency ≥92%, highly efficient and energy-saving, reducing data center energy costs.

Q4: How do I determine if I need to upgrade this power module? Is installation complicated?

A4: Upgrading is recommended when devices indicate insufficient power, power is insufficient after adding new devices, or when improved power supply reliability is required; installation requires no special tools, simply insert it directly into the standard power supply slot.
