Name: Huawei PDC-2400WA Power Module
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF815
Price: 40.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF815

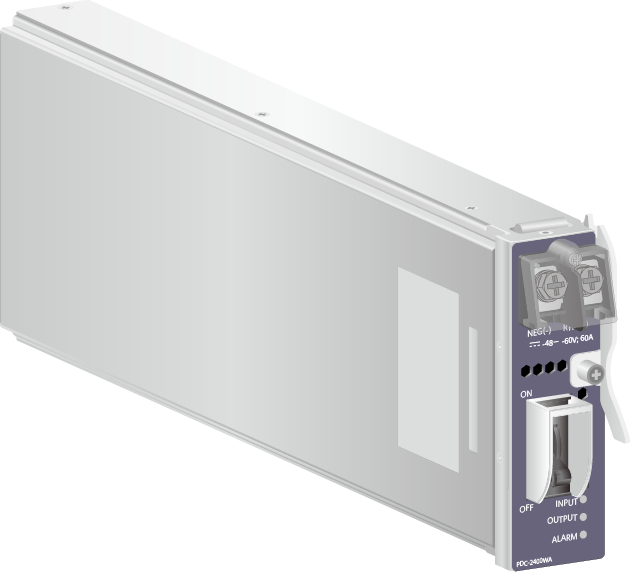

Huawei S9300 Series PDC-2400WA 2400 W DC Power Module

Brand

Huawei

Part Number

02311FBU

Packing Box Specifications

13x4x40cm

Gross Weight

3kg

Condition

Original New

Delivery Time

In Stock

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

PDC-2400WA Introduction

Huawei S9300 Series PDC-2400WA 2400 W DC Power Module.

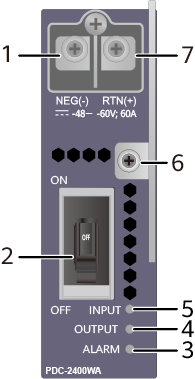

Panel of the PDC-2400WA

1. NEG terminal	2. Power switch NOTE: When the power switch is turned ON, the power module supplies power to the chassis. When the power switch is turned OFF, the power module does not supply power to the chassis.	3. ALARM indicator
4. OUTPUT indicator	5. INPUT indicator	6. Ejector lever NOTE: Raise the ejector lever to release the power module from the slot, and lower the ejector lever to lock the power module in the slot.
7. RTN terminal	-	-

Connections between the DC power input cables and the terminals on a 2400 W DC power module

Input Terminal Identifier	Input Cable	Cable Color	Terminal Type
RTN NOTE: RTN stands for return.	Positive cable	Black	OT bare crimp terminal
NEG	Negative cable	Blue	OT bare crimp terminal

Indicators on the PDC-2400WA

Silkscreen	Name	Color	Status	Description
INPUT	INPUT indicator	-	Steady off	The power module receives no power input or its power cables are reversely connected.
INPUT	INPUT indicator	Green	Steady on	The input power is normal.
OUTPUT	OUTPUT indicator	-	Steady off	The power module provides no output power.
OUTPUT	OUTPUT indicator	Green	Steady on	The output power of the power module is in the normal range.
ALARM	ALARM indicator	-	Steady off	The protection circuit is working properly.
ALARM	ALARM indicator	Red	Steady on	The protection circuit has failed.

Functions and Features

A 2400 W DC power module provides a maximum of 2400 W power for the chassis and has the following functions:

Short circuit protection
Alarms about various power supply events, for example, no external power input, input undervoltage, and power switch off.
The power module is hot swappable.

Technical Specifications

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.)
Weight without packaging [kg(lb)]	< 2.5 kg
Number of inputs	1
Rated input voltage [V]	-48 V DC to -60 V DC
Input voltage range [V]	-38.4 V DC to -72 V DC
Maximum input current [A]	60 A
Rated output voltage [V]	53.5 V DC
Rated output current [A]	60 A
Rated output power [W]	2400 W
Hot swapping	Supported

PDC-2400WA FAQ

Q1: Which devices is this power module compatible with? Does it support hot-swapping?

A1: Compatible with Huawei S/E series high-end switches, enterprise-level high-performance servers, storage devices, etc., and compatible with standard power supply slots; supports hot-swapping, allowing online replacement or expansion without interrupting device operation.

Q2: What scenarios is the 2400W power suitable for? What are its advantages compared to ordinary power supplies?

A2: Suitable for enterprise core server rooms, small and medium-sized data centers, and other scenarios with centralized deployment of high-load equipment; its advantages include sufficient power, wide voltage compatibility, support for multi-mode redundant power supply, and reliability and adaptability far exceeding ordinary power supplies.

Q3: What is the input voltage range? What is the conversion efficiency?

A3: Supports AC 100-240V input voltage, adapting to complex power supply environments; conversion efficiency ≥93%, highly efficient and energy-saving, reducing data center energy costs.

Q4: How do I determine if I need to upgrade this power module? Is installation complicated?

A4: When the device indicates insufficient power supply, insufficient power after adding high-load devices, or when it is necessary to improve power supply reliability, it is recommended to upgrade; no professional tools are required for installation, just insert it directly into the standard power supply slot.
