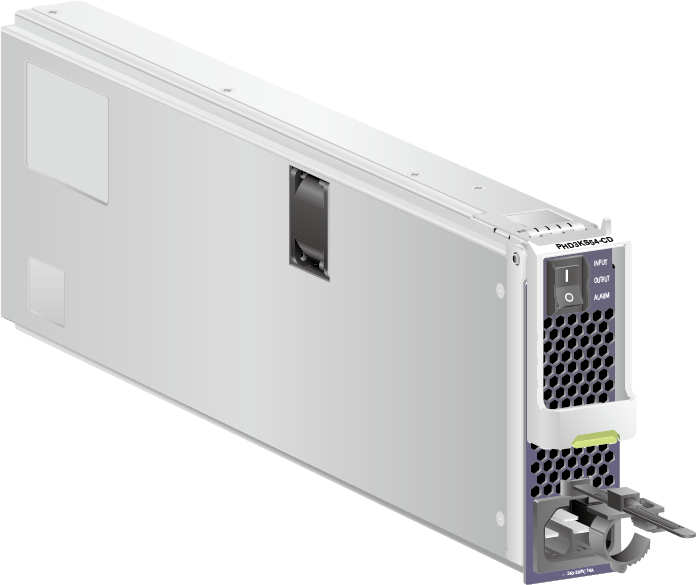

Huawei S9300 Series PHD3KS54-CD 3000 W HVDC Power Module (Gray).
|

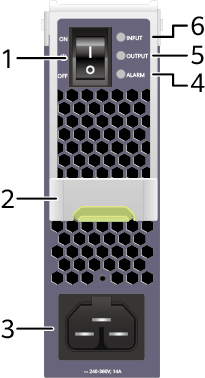

1. Power switch NOTE:
|
2. Ejector lever NOTE:
Raise the ejector lever to release the power module from the slot, and lower the ejector lever to lock the power module in the slot. |
3. Power socket |
|
4. ALARM indicator |
5. OUTPUT indicator |
6. INPUT indicator |
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| INPUT | INPUT indicator | - | Steady off | The power module receives no input power. |
| Green | Steady on | The input power of the power module is in the normal range. | ||
| Green | Blinking | The power module is in an input undervoltage or input overvoltage condition. | ||
| OUTPUT | OUTPUT indicator | - | Steady off | The power module provides no output power. |
| Green | Steady on | The output power of the power module is in the normal range. | ||
| ALARM | ALARM indicator | - | Steady off | The power module is working normally. |
| Red | Steady on | The power module is experiencing overheating, external short circuit, output overvoltage, output overcurrent, or a fan failure. | ||
| Red | Blinking | Communication between the power module and CMU has been interrupted. |
|
Function |
Description |
|
|---|---|---|
|
Input protection |
Input overvoltage protection |
In this protection state, the power module is turned off and stops supplying power. When the system recovers from input overvoltage, the power module can automatically start supplying power again. |
|
Input undervoltage protection |
In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again. |
|
|
Input polarity reversal protection |
The input does not distinguish the positive and negative wires. The input is normal. The reverse connection is normal, and no alarm is generated. |
|
|
Output protection |
Output overvoltage protection |
In this protection state:
|
|
Output overcurrent protection |
In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again. |
|
|
Output short-circuit protection |
In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again. |
|
|
Overtemperature protection |
When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
|
|
Hot swapping |
The power module is hot swappable. |
|
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 130 mm x 41 mm x 417.4 mm (5.1 in. x 1.6 in. x 16.4 in.) |
| Weight without packaging [kg(lb)] | < 3 kg |
| Number of inputs | 1 |
| Rated input voltage [V] | 240 V DC/380 V DC |
| Input voltage range [V] | 190 V DC to 400 V DC |
| Maximum input current [A] | 14 A |
| Rated output voltage [V] | 53.5 V DC |
| Rated output current [A] | 56.1 A |
| Rated output power [W] | 3000 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
