Name: Huawei S16700-8 Switch
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0956
Availability: InStock
Rating: 5 (1 reviews)

No.MF0956

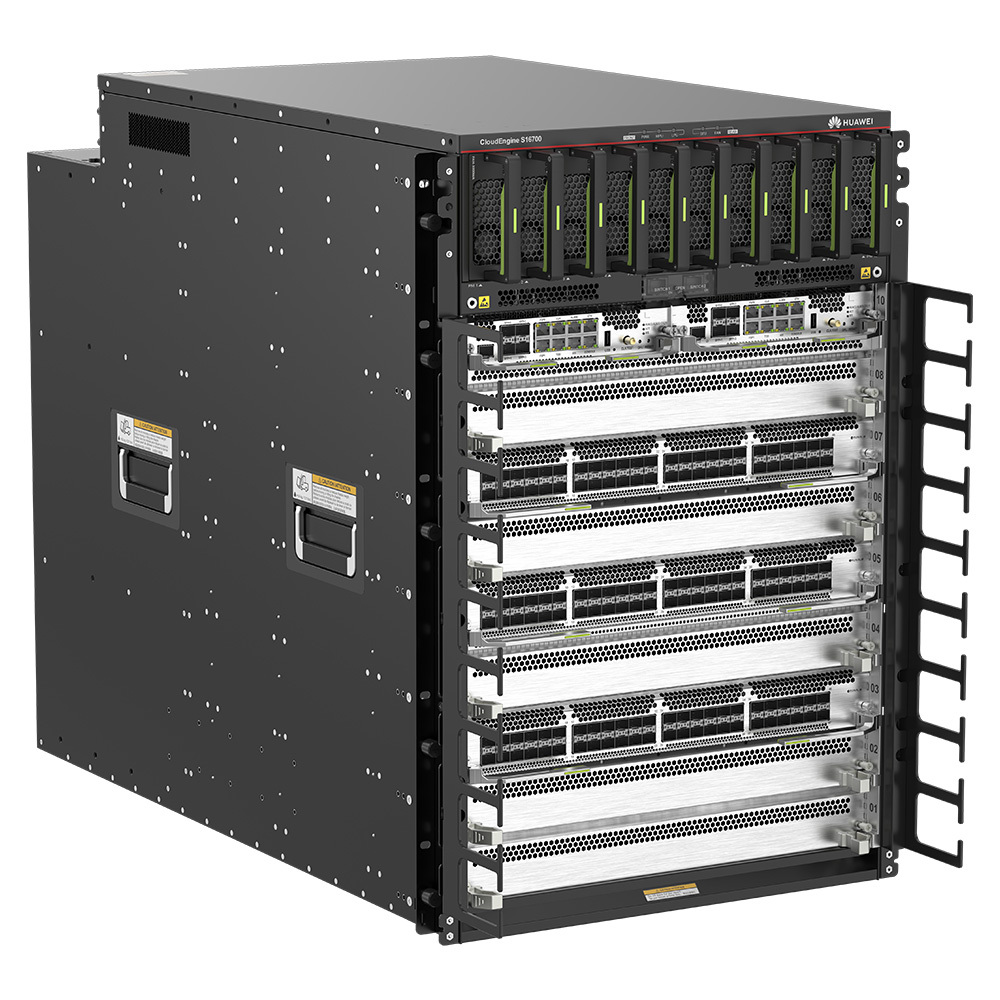

Huawei S16700-8 switch AC/HVDC Assembly Chassis

Brand

Huawei

Part Number

02355HUN-001

Packing Box Specifications

99*77*115cm

Gross Weight

180kg

Condition

Original New

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Power:

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

S16700-8 Overview

Series switches CloudEngine S16700 is an advanced core device with exceptional performance designed for efficient 10-Gigabit enterprise networks. This series features ultra-high throughput at the level of 14,4 Tbit/with in every slot, unrivaled switching hardware and wide access to terminals. One of the key features CloudEngine S16700 is pioneering the use of channel grouping technology between chassis (M-LAG) in corporate networks, providing a level of reliability at an amazing level 99,9999%.

In addition, this series has other attractive features such as virtual advanced local area networks (VXLAN), providing flexibility and scalability, free mobility for uninterrupted connectivity, quality of service management (QoS) to optimize data transfer, the algorithm for storing packets for the Internet ( iPCA), providing efficient use of network resources. Users can enjoy the ability to deploy a service in one click and quickly localize failures at the level of minutes.

With these advanced features, CloudEngine S16700 becomes the ideal choice for global customers preparing for a new era of corporate networks with astonishing throughput at the level 400 Gbit/with. This device goes beyond a simple switch to provide comprehensive solutions for today's networking requirements.

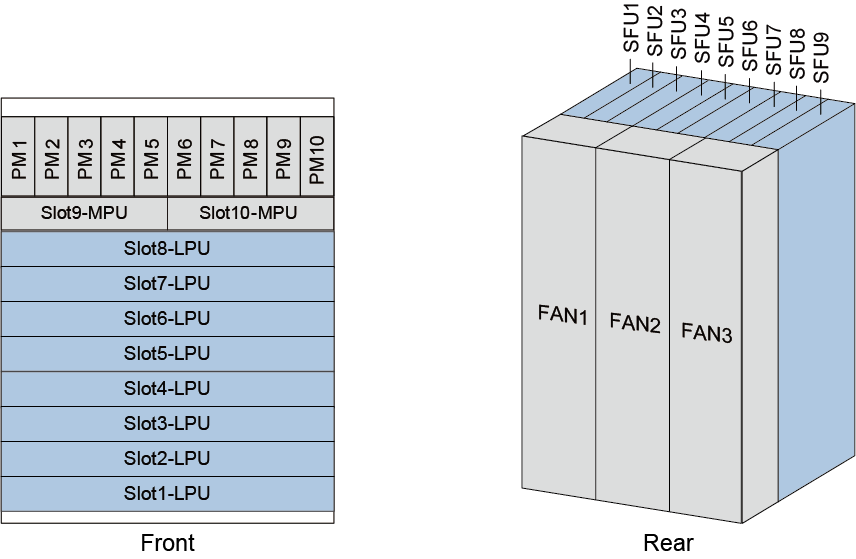

Slots on the S16700-8

Slot Type	Slot ID	Slot Direction	Remarks
LPU slot	Slots 1 to 8	The top of the board faces upwards	Different types of LPUs can be installed in the same chassis.
MPU slot	Slots 9 and 10	The top of the board faces upwards	Two MPUs work in active/standby mode for 1:1 hot standby. By default, the MPU with a smaller slot ID is the active MPU, and the MPU with a larger slot ID is the standby MPU.
SFU slot	Slots 1 to 9 Note: For the slots in which SFUs can be installed, see the "IDs of Available Slots" column in "Version Mapping" under "Cards > SFU".	The right side of the board faces upwards	SFUs work in load balancing and redundancy mode. SFUs in the same chassis must be the same model. That is, SFUs of different models cannot be installed in the same chassis.
PM slot	Slots 1 to 10	The indicator light end upwards	PMs are plug-and-play. PM5 to PM10 in the chassis with the part number 02355HUN-001 are reserved.
Fan module slot	Slots 1 to 3	The indicator light end upwards	At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.

Technical specifications of the S16700-8

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	703 mm x 442 mm x 874 mm (27.68 in. x 17.4 in. x 34.41 in.), dimensions of the chassis body 703 mm x 483 mm x 985 mm (27.68 in. x 19.02 in. x 38.78 in.), including mounting brackets and cable management frames
Dimensions with packaging (H x W x D) [mm(in.)]	990 mm x 770 mm x 1150 mm (38.98 in. x 30.31 in. x 45.28 in.)
Chassis height [U]	15.8 U
Cabinet installation standards	A610 A612
Chassis material	Metal
Weight without packaging [kg(lb)]	EX1BS16708SA0 (02355HUN): 129.8 kg (286.16 lb) EX1BS16708SA0 (02355HUN-001): 129.8 kg (286.16 lb) EX1BS16708SD0 (02355HUP): 135.8 kg (299.38 lb)
Weight without packaging (full configuration) [kg(lb)]	EX1BS16708SA0 (02355HUN): 253.1 kg (557.98 lb) EX1BS16708SA0 (02355HUN-001): 253.1 kg (557.98 lb) EX1BS16708SD0 (02355HUP): 255.1 kg (562.39 lb)
Weight with packaging [kg(lb)]	EX1BS16708SA0 (02355HUN): 177 kg (390.21 lb) EX1BS16708SA0 (02355HUN-001): 177 kg (390.21 lb) EX1BS16708SD0 (02355HUP): 183 kg (403.44 lb)
Maximum power consumption [W]	8260 W
Maximum heat dissipation [BTU/hour]	28183 BTU/hour
MTBF [years]	34.55 years
Availability	0.9999971582
Number of MPU slots	2
Number of SFU slots	9
Number of service board slots	8
Number of power slots	10
Number of fans modules	3
LPU slot direction	Horizontal
Redundant MPUs	1:1
Redundant Switch fabrics	N+M
Redundant power supply	Dual-input power supply system: N+1 backup is recommended. Single-input power supply system: N+1 backup Dual-input power supply is recommended to ensure reliability.
Redundant fans	Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800 m to 5000 m (5905.44 ft. to 16404.00 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 5000 m (16404 ft.)
Storage altitude [m(ft.)]	≤ 5000 m (16404 ft.)
Rated input voltage [V]	EX1BS16708SA0 (02355HUN): AC input: 220 V AC; 50 Hz/60 Hz High-voltage DC input: 240 V DC/380 V DC EX1BS16708SA0 (02355HUN-001): AC input: 220 V AC; 50 Hz/60 Hz High-voltage DC input: 240 V DC/380 V DC EX1BS16708SD0 (02355HUP): –48 V DC/–60 V DC
Input voltage range [V]	EX1BS16708SA0 (02355HUN): AC input: 176 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 188 V DC to 288 V DC/260 V DC to 400 V DC EX1BS16708SA0 (02355HUN-001): AC input: 176 V AC to 290 V AC; 45 Hz to 65 Hz High-voltage DC input: 188 V DC to 288 V DC/260 V DC to 400 V DC EX1BS16708SD0 (02355HUP): –40 V DC to –72 V DC
Heat dissipation mode	Drawing air for heat dissipation
Airflow direction	Front-to-rear airflow
PoE	Not supported
Maximum power output capability [W]	EX1BS16708SA0 (02355HUN): 9+1 backup: 3000 W x 9 = 27000 W 10+0 backup: 3000 W x 10 = 30000 W EX1BS16708SA0 (02355HUN-001): 3+1 backup: 9000 W (3000 W x 3) 4+0 backup: 12000 W (3000 W x 4) EX1BS16708SD0 (02355HUP): 9+1 backup: 2200 W x 9 = 19800 W 10+0 backup: 2200 W x 10 = 22000 W
Certification	EMC certification Safety certification Manufacturing certification
