Huawei S9300 Series Switch S9303E 2* Main Control Units (MCUs), 3* Line Processing Units (LPUs), and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode

Brand

Huawei

Part Number

02113477

Packing Box Specifications

18x44x52cm

Gross Weight

32kg

Condition

Original New

Delivery Time

In Stock

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

S9303E Introduction

Huawei S9300 Series Switch S9303E 2* Main Control Units (MCUs), 3* Line Processing Units (LPUs), and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode.

The S9303E chassis is 4 U high (1 U = 44.45 mm). When the chassis has no cable management frame installed, the dimensions (H x W x D) are 175 mm x 442 mm x 517.4 mm. When the chassis has cable management frames installed, the dimensions (H x W x D) are 175 mm x 442 mm x 585 mm.

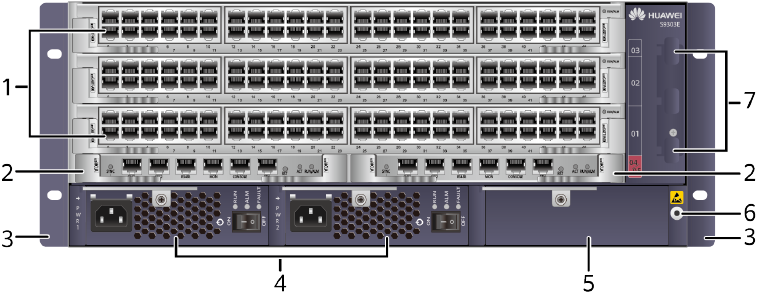

Apperance of the S9303E

1. Three of the following service cards can be installed:

100M Interface Card
1000M Interface Card
GE/10GE Interface Card
10GE Interface Card
40GE Interface Card
40GE/100GE Interface Card
100GE Interface Card
NOTE:

The cards supported by a switch depend on the software version. For details, see Info-Finder.

2. Two MPUs

3. A pair of mounting brackets

NOTE:

The mounting brackets are used to secure the chassis in the cabinet.

4. Two power modules

5. Reserved slot

NOTE:

Install a filler panel in the reserved slot.

6. Front ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

7. Cable management frames

NOTE:

Cable management frames are used to route cables.

S9303E slot configuration

Slot Type	Slot ID	Module Supported	Remarks
MCU slot	SLOT04 and SLOT05	MPUs	The MCUs work in active/standby mode.
LPU slot	SLOT01 to SLOT03	100M Interface Card 1000M Interface Card GE/10GE Interface Card 10GE Interface Card 40GE Interface Card 40GE/100GE Interface Card 100GE Interface Card	NOTE: The cards supported by a switch depend on the software version. For details, see Info-Finder.
Power slot	PWR1 and PWR2	power modules	-
Fan module slot	FAN1	Fan Module	-

Technical specifications of the S9303E

Item	Description
LPU slots	3
MCU slots	2
Fan slots	1
Power slots	2
Maximum port density	V200R001C00: 144xFE, 144xGE, 120x10GE V200R002C00 and V200R003C00: 144xFE, 144xGE, 120x10GE, 6x40GE V200R005C00, V200R006C00 and V200R007C00: 144xFE, 144xGE, 144x10GE, 6x40GE V200R008C00 to V200R009C00: 144xFE, 144xGE, 144x10GE, 6x40GE, 6x100GE V200R010C00 to V200R013C00: 144xFE, 144xGE, 144x10GE, 24x40GE, 12x100GE
Installation	In an N66E or N68E cabinet
CSS	Not supported
Maximum power consumption (fully configured) NOTE: The heat dissipation value of a chassis equals the current power consumption of the chassis.	1185 W
Power specifications	DC input voltage Rated voltage: -48 V DC/-60 V DC Maximum voltage range: -38.4 V DC to -72 V DC AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) HVDC input voltage (3000 W AC) Rated voltage: 240 V DC Maximum voltage range: 190 V DC to 290 V DC HVDC input voltage (3000 W HVDC) Rated voltage: 240 V DC/ 380 V DC Maximum voltage range: 190 V DC to 400 V DC
Dimensions (H x W x D, without rack-mounting brackets)	With cable management frames (4 U high): 175 mm x 442 mm x 585 mm (6.9 in. x 17.4 in. x 23.0 in.) Without cable management frames (4 U high): 175 mm x 442 mm x 517.4 mm (6.9 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured)	11 kg/32.6 kg (24.3 lb/71.9 lb)
Reliability and availability	Mean time between failures (MTBF): 33.8 years Mean time to repair (MTTR): 2 hours Availability: 0.9999964 NOTE: The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.
Environment specifications	Operating temperature and altitude: -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) Relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage altitude: < 5000 m (16404 ft.)
Noise at normal temperature (acoustic power)	≤ 72 dB(A)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02113477

S9303E FAQ

Q1: What are the core performance characteristics of this switch? Does it support redundant design?

A1: Switching capacity ≥ 2.5Tbps, 3+ flexible slots, supports 10 Gigabit/Gigabit service boards; features dual power supply redundancy, supports hot-swapping, and seamless failover.

Q2: What are its advantages compared to medium and large-sized core switches? Which users is it suitable for?

A2: Its advantages include compact size, controllable cost, simple deployment and maintenance, and low power consumption; suitable for small and medium-sized enterprises with 1000-3000 terminals, or regional branches of large enterprises.

Q3: What service functions does it support? Is it compatible with other components in the S9300 series?

A3: Supports IPv4/IPv6 dual stack, QoS, security protection, and basic virtualization; compatible with S9300 series service boards, power supplies, and fans; upgrades require no additional component purchases.

Q4: How do I determine if I need to deploy an S9303E? Is the installation complex?

A4: Deployment is recommended when an enterprise has more than 1,000 terminals, 5+ branch offices, or when existing switches experience performance bottlenecks; the device is compact, easy to install, supports online expansion, and requires no professional maintenance team.
