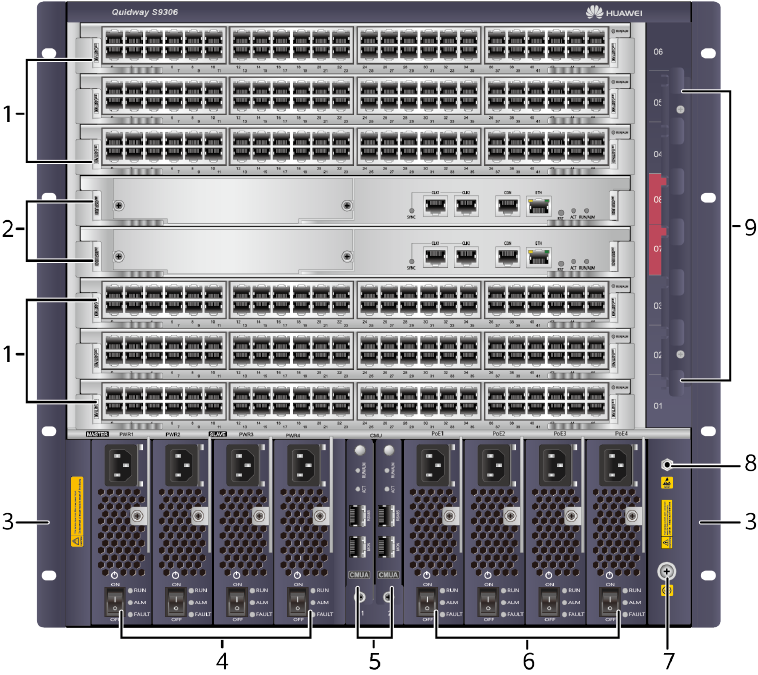

Huawei S9306 Switch

1. Six of the following service cards can be installed:

• Value-Added Service Unit
• 100M Interface Card
• 1000M Interface Card
• GE/10GE Interface Card
• 10GE Interface Card
• 40GE Interface Card
• 40GE/100GE Interface Card
• 100GE Interface Card
  NOTE:

  The cards supported by a switch depend on the software version. For details, see Info-finder.

2. Two MPUs

3. A pair of mounting brackets

4. Four power modules

5. Two LE0DCMUA0000-Centralized Monitoring Unit

6. Four PoE power modules

• 2200 W AC Power Module
• 800 W AC Power Module
• 2200 W DC Power Module (Supported in V200R006C00 and later versions)
• 3000 W AC Power Module (Supported in V200R012C00 and later versions )
• 3000 W high-voltage DC Power Module (Supported in V200R012C00 and later versions)

7. Ground screw

8. Front ESD jack

9. Cable management frames

MPU slot

SLOT7 and SLOT8

MPUs

The SRUs work in active/standby mode.

LPU slot

SLOT1 to SLOT6

• Value-Added Service Unit
• 100M Interface Card
• 1000M Interface Card
• GE/10GE Interface Card
• 10GE Interface Card
• 40GE Interface Card
• 40GE/100GE Interface Card
• 100GE Interface Card

CMU slot

CMU1 and CMU2

LE0DCMUA0000-Centralized Monitoring Unit

The CMUs work in active/standby mode.

System power supply slot

PWR1 to PWR4

power modules

-

PoE power supply slot

PoE1 to PoE4

• 2200 W AC Power Module
• 800 W AC Power Module
• 2200 W DC Power Module (Supported in V200R006C00 and later versions)
• 3000 W AC Power Module (Supported in V200R012C00 and later versions )
• 3000 W high-voltage DC Power Module (Supported in V200R012C00 and later versions)

-

Fan module slot

FAN1, FAN2

Fan Module

-

LPU slots

6

MPU slots

2

Fan slots

2

System power supply slots

4

PoE power supply slots

4

Maximum port density

• V100R006C00 and V200R001C00: 288xFE, 288xGE, 240x10GE
• V200R002C00 to V200R007C00: 288xFE, 288xGE, 240x10GE, 12x40GE
• V200R008C00 to V200R009C00: 288xFE, 288xGE, 240x10GE, 12x40GE, 12x100GE
• V200R010C00 to V200R019C00: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE
• V200R019C00 to V200R020C10: 288xFE, 288xGE, 288x10GE, 48x40GE, 36x100GE
• V200R021C00 and later versions: 288xFE, 288xGE, 288x10GE, 72x40GE, 36x100GE

Installation

In an N66E or N68E cabinet, one or two chassis in a cabinet

CSS

CSS card or service port clustering

PoE

• Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). V200R012C00 and later versions support 3000 W AC power supply and 3000 W high-voltage DC power supply
• PoE power module backup: no backup, 3+1 backup, or 2+2 backup
• Maximum output power: 9000 W

Maximum power consumption (fully configured, no PoE power supply)

2200 W

Power specifications

• DC input voltage

  Rated voltage: -48 V DC/-60 V DC

  Maximum voltage range:

  • 1600 W/2400 W DC power module: -38.4 V DC to -72 V DC
  • 2200 W DC power module: -40 V DC to -72 V DC
• AC input voltage

  Rated voltage: 110 V AC/220 V AC, 50/60 Hz

  Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.)

• HVDC input voltage (3000 W AC)

  Rated voltage: 240 V DC

  Maximum voltage range: 190 V DC to 290 V DC

• HVDC input voltage (3000 W HVDC)

  Rated voltage: 240 V DC/ 380 V DC

  Maximum voltage range: 190 V DC to 400 V DC

Dimensions (H x W x D, without rack-mounting brackets)

• With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.)
• Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.)

Weight (empty/fully configured)

15 kg/61.8 kg (33.1 lb/136.2 lb)

Reliability and availability

• MTBF: 24.2 years
• MTTR: 2 hours
• Availability: 0.9999959

Environment specifications

• Operating temperature and altitude:

  -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)

  1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).

  4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)

• Relative humidity: 5% RH to 95% RH (noncondensing)
• Storage temperature: -40°C to +70°C (-40°F to +158°F)
• Storage altitude: < 5000 m (16404 ft.)

Noise at normal temperature (acoustic power)

≤ 72 dB(A)

Certification

• EMC certification
• Safety certification
• Manufacturing certification
