Huawei S9306E Switch

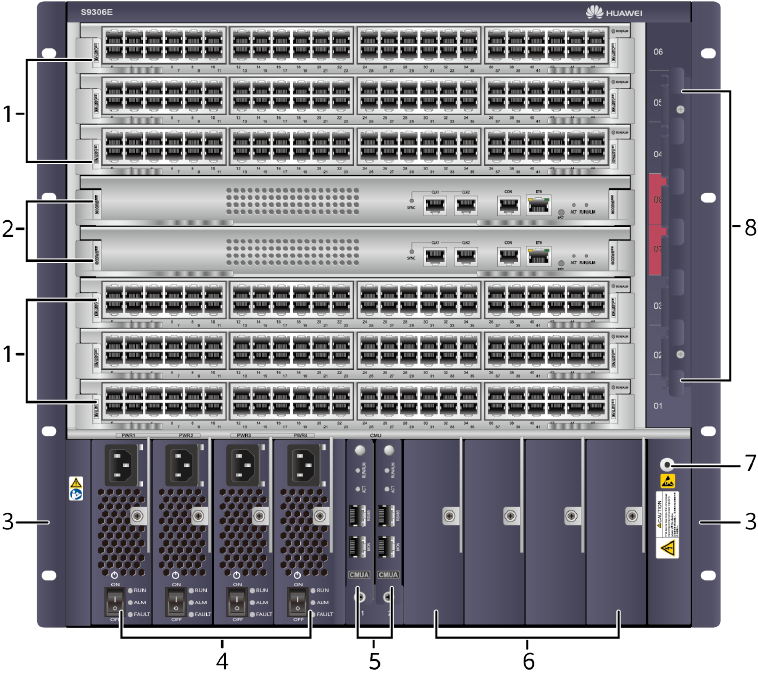

1. Six of the following service cards can be installed:

• 100M Interface Card
• 1000M Interface Card
• GE/10GE Interface Card
• 10GE Interface Card
• 40GE Interface Card
• 40GE/100GE Interface Card
• 100GE Interface Card
  NOTE:

  The cards supported by a switch depend on the software version. For details, see Info-Finder.

2. Two MPUs

3. A pair of mounting brackets

4. Four power modules

5. Two LE0DCMUA0000-Centralized Monitoring Unit

6. Reserved slot

7. Front ESD jack

8. Cable management frames

-

MPU slot

SLOT07 and SLOT08

MPUs

The SRUs work in active/standby mode.

LPU slot

SLOT01 to SLOT06

• 100M Interface Card
• 1000M Interface Card
• GE/10GE Interface Card
• 10GE Interface Card
• 40GE Interface Card
• 40GE/100GE Interface Card
• 100GE Interface Card

Power slot

PWR1 to PWR4

power modules

-

CMU slot

CMU1 and CMU2

LE0DCMUA0000

The CMUs work in active/standby mode.

Fan module slot

FAN1, FAN2

Fan Module

-

LPU slots

6

MCU slots

2

Fan slots

2

Power slots

4

Maximum port density

• V200R001C00: 288xFE, 288xGE, 240x10GE
• V200R002C00 and V200R003C00: 288xFE, 288xGE, 240x10GE, 12x40GE
• V200R005C00, V200R006C00 and V200R007C00: 288xFE, 288xGE, 288x10GE, 12x40GE
• V200R008C00 to V200R009C00: 288xFE, 288xGE, 288x10GE, 12x40GE, 12x100GE
• V200R010C00 to V200R013C00: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE

Installation

In an N66E or N68E cabinet, one or two chassis in a cabinet

CSS

Service port clustering

Maximum power consumption (fully configured)

2640 W

Power specifications

• DC input voltage

  Rated voltage: -48 V DC/-60 V DC

  Maximum voltage range: -38.4 V DC to -72 V DC

• AC input voltage

  Rated voltage: 110 V AC/220 V AC, 50/60 Hz

  Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.)

• HVDC input voltage (3000 W AC)

  Rated voltage: 240 V DC

  Maximum voltage range: 190 V DC to 290 V DC

• HVDC input voltage (3000 W HVDC)

  Rated voltage: 240 V DC/ 380 V DC

  Maximum voltage range: 190 V DC to 400 V DC

Dimensions (H x W x D, without rack-mounting brackets)

• With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.)
• Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.)

Weight (empty/fully configured)

29 kg/75.8 kg (63.9 lb/167.1 lb)

Reliability and availability

• Mean time between failures (MTBF): 24.2 years
• Mean time to repair (MTTR): 2 hours
• Availability: 0.9999959

Environment specifications

• Operating temperature and altitude:

  -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)

  1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).

  4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)

• Relative humidity: 5% RH to 95% RH (noncondensing)
• Storage temperature: -40°C to +70°C (-40°F to +158°F)
• Storage altitude: < 5000 m (16404 ft.)

Noise at normal temperature (acoustic power)

≤ 72 dB(A)

Certification

• EMC certification
• Safety certification
• Manufacturing certification

Part number

02113478
