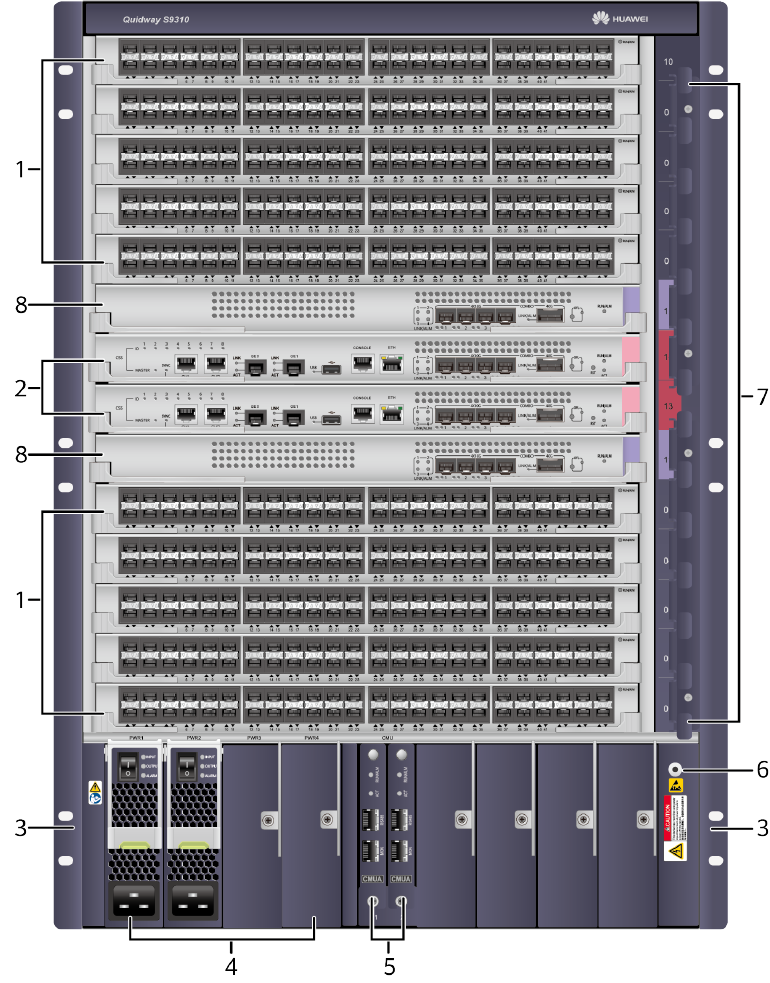

Huawei S9310 Switch

1. Ten LPUs, including:

• 100M Interface Card
• 1000M Interface Card
• GE/10GE Interface Card
• 10GE Interface Card
• 40GE Interface Card
• 40GE/100GE Interface Card
• 100GE Interface Card
  NOTE:

  The cards supported by a switch depend on the software version. For details, see Info-finder.

2. Two SRUs

3. A pair of mounting brackets

4. Four power modules

5. Two CMUs

6. Front ESD jack

7. Cable management frames

8. Two LE1D2SFUK000-S9310 Switch Fabric Unit Ks

-

MPU slots

Slot 13, slot 14

SRUs

Two MPUs in the slots work in hot standby mode.

SFU slots

Slot 11, slot 12

LE1D2SFUK000-S9310 Switch Fabric Unit K

-

LPU slots

Slots 1 to 10

• 100M Interface Card
• 1000M Interface Card
• GE/10GE Interface Card
• 10GE Interface Card
• 40GE Interface Card
• 40GE/100GE Interface Card
• 100GE Interface Card

CMU slots

CMU1, CMU2

CMU

Two CMUs in the slots work in hot standby mode.

System power supply slots

PWR1 to PWR4

power modules

Fan module slot

FAN1 to FAN4

Fan Module

-

Number of LPU slots

10

Number of MPU slots

2

Number of SFU slots

2

Number of fan slots

4

Number of power supply slots

4

Maximum port density

• V200R010C00 and V200R011C10: 480xFE, 480xGE, 480x10GE, 80x40GE, 40x100GE
• V200R012C00 and later versions: 480xFE, 480xGE, 480x10GE, 160x40GE, 80x100GE

Installation

In an N66E or N68E cabinet, one cabinet for one chassis

CSS

Supports CSS card clustering (CSS cards integrated on main control unit and SFU, with fixed CSS ports on panels) and service port clustering

Maximum power consumption (fully configured)

4644 W

Power specifications

• DC input voltage

  Rated voltage: -48 V DC to -60 V DC

  Maximum voltage range:

  • 2400 W DC power module: -38.4 V DC to -72 V DC
  • 2200 W DC power module: -40 V DC to -72 V DC
• AC input voltage

  Rated voltage: 110 V AC/220 V AC, 50/60 Hz

  Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage ranges from 90 V AC to 175 V AC.)

• HVDC input voltage (3000 W AC)

  Rated voltage: 240 V DC

  Maximum voltage range: 190 V DC to 290 V DC

• HVDC input voltage (3000 W HVDC)

  Rated voltage: 240 V DC/ 380 V DC

  Maximum voltage range: 190 V DC to 400 V DC

Dimensions (H x W x D, without rack-mounting brackets)

• With cable management frames (15 U high): 663.9 mm x 442 mm x 585 mm (26.1 in. x 17.4 in. x 23.0 in.)
• Without cable management frames (15 U high): 663.9 mm x 442 mm x 517.4 mm (26.1 in. x 17.4 in. x 20.37 in.)

Weight (empty/fully configured)

28.6 kg/98.4 kg (63.05 lb/216.93 lb)

Reliability and availability

• Mean Time Between Failures (MTBF): 40.04 years
• Mean time to repair (MTTR): 2 hours
• Availability: 0.9999984

Environment specifications

• Operating temperature and altitude:

  -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)

  1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).

  4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)

• Relative humidity: 5% RH to 95% RH (noncondensing)
• Storage temperature: -40°C to +70°C (-40°F to +158°F)
• Storage altitude: < 5000 m (16404 ft.)

Noise at normal temperature (acoustic power)

≤ 75.7 dB(A)

Certification

• EMC certification
• Safety certification
• Manufacturing certification

Part number

02114861
