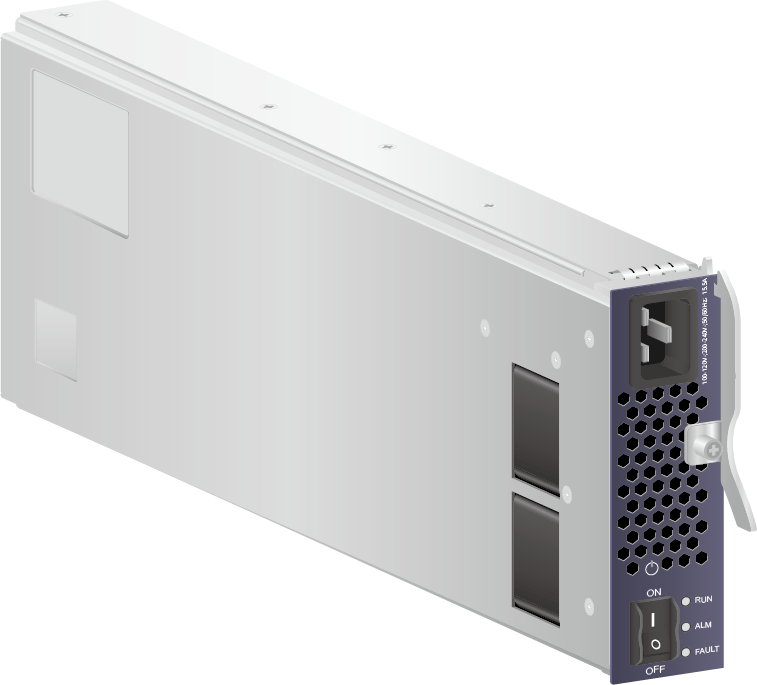

Huawei S9300 Series W0PSA2200 2200 W AC Power Module.
|

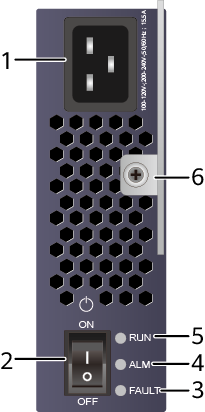

1. Power socket |
2. Power switch NOTE:
|
3. FAULT indicator |
|
4. ALM indicator |
5. RUN indicator |
6. Ejector lever NOTE:
Raise the ejector lever to release the power module from the slot, and lower the ejector lever to lock the power module in the slot. |
|
Silkscreen |
Name |
Color |
Status |
Description |
|---|---|---|---|---|
| FAULT | FAULT indicator | Red | Steady on | The power module has a fault that cannot be rectified. |
| ALM | ALM indicator | Yellow | Steady on | A power output shutdown alarm, overtemperature alarm, output overcurrent alarm, input overvoltage alarm, or input undervoltage alarm has been generated. |
| Yellow | Blinking | Communication with the monitoring device (MCU or CMU) has been interrupted. | ||
| RUN | RUN indicator | Green | Steady on | The power input is normal. |
|
Function |
Description |
|
|---|---|---|
|
Input protection |
Input undervoltage protection |
In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again. |
|
Input overcurrent protection |
In this protection state, the power module is turned off and stops supplying power. The power module cannot automatically start supplying power again and needs to be replaced. |
|
|
Output protection |
Output overvoltage protection |
In this protection state:
|
|
Output overcurrent protection |
In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again. |
|
|
Output short-circuit protection |
In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again. |
|
|
Overtemperature protection |
When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
|
|
Hot swapping |
The power module is hot swappable. |
|
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.) |
| Weight without packaging [kg(lb)] | < 2.5 kg |
| Number of inputs | 1 |
| Rated input voltage [V] | 220 V AC/110 V AC; 50/60 Hz |
| Input voltage range [V] | 90 V AC to 290 V AC; 47 Hz to 63 Hz |
| Maximum input current [A] | 15.5 A |
| Rated output voltage [V] | 53.5 V DC |
| Rated output current [A] | 42 A (220 V AC input)/21 A (110 V AC input) |
| Rated output power [W] | 2200 W (220 V AC input)/1100 W (110 V AC input) |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
