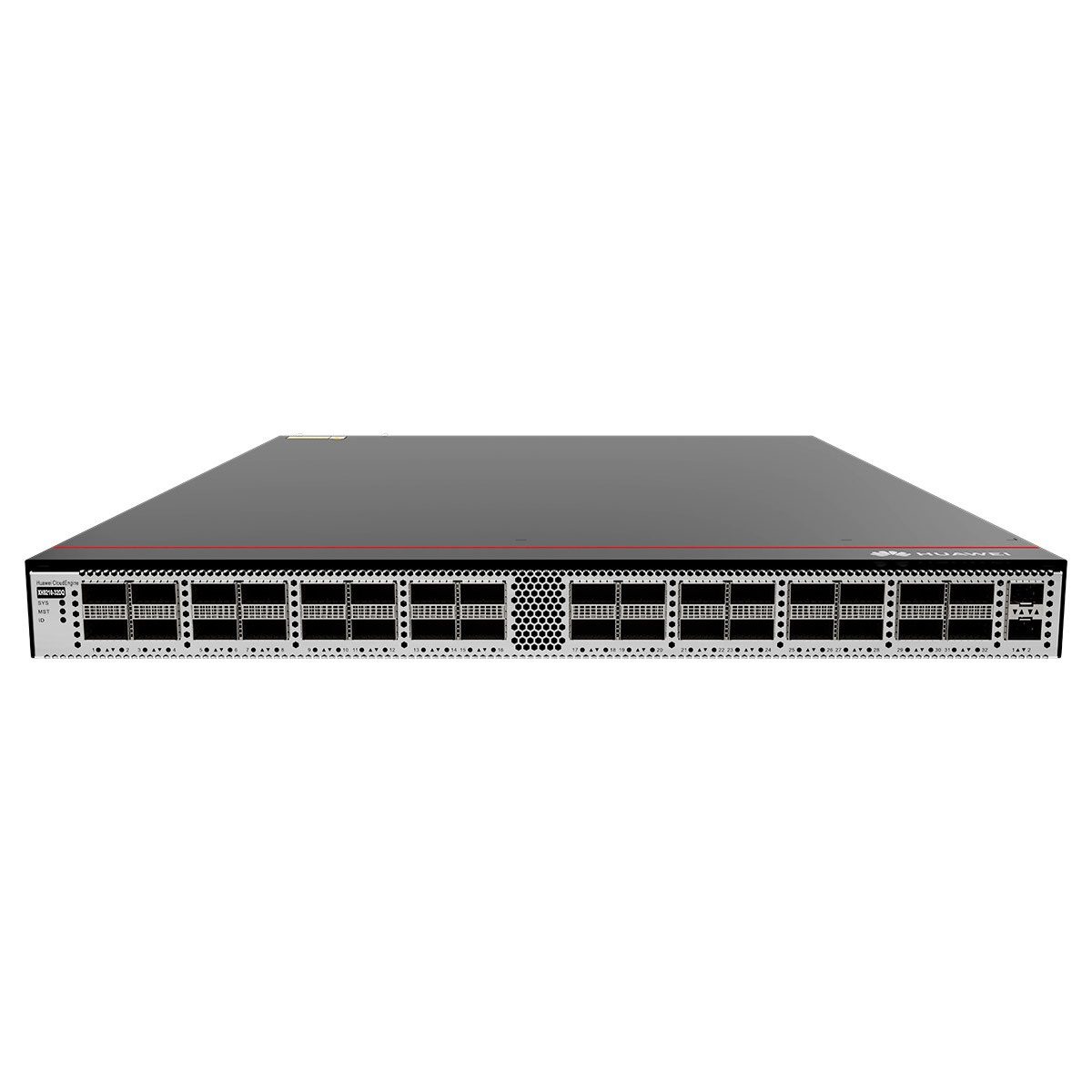

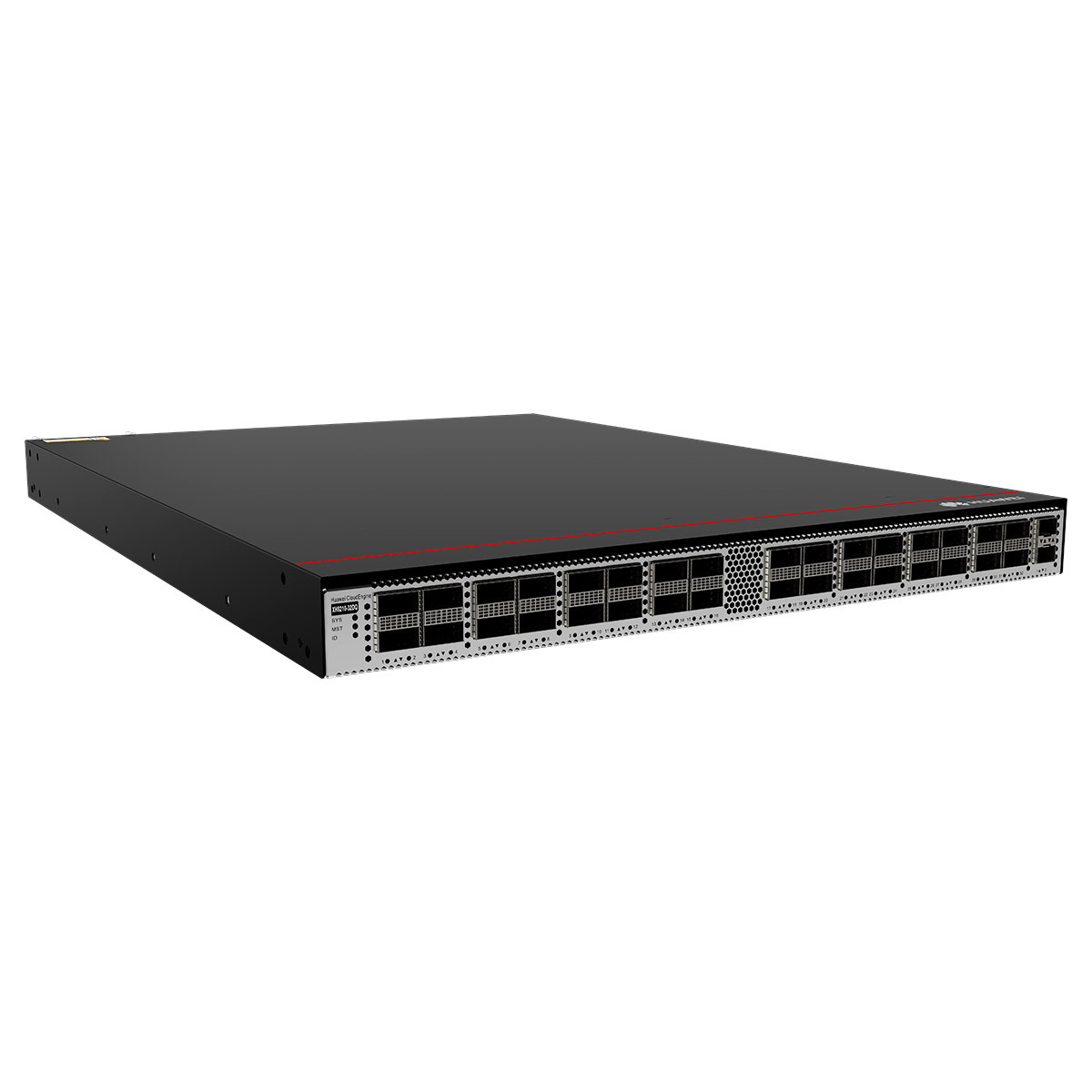

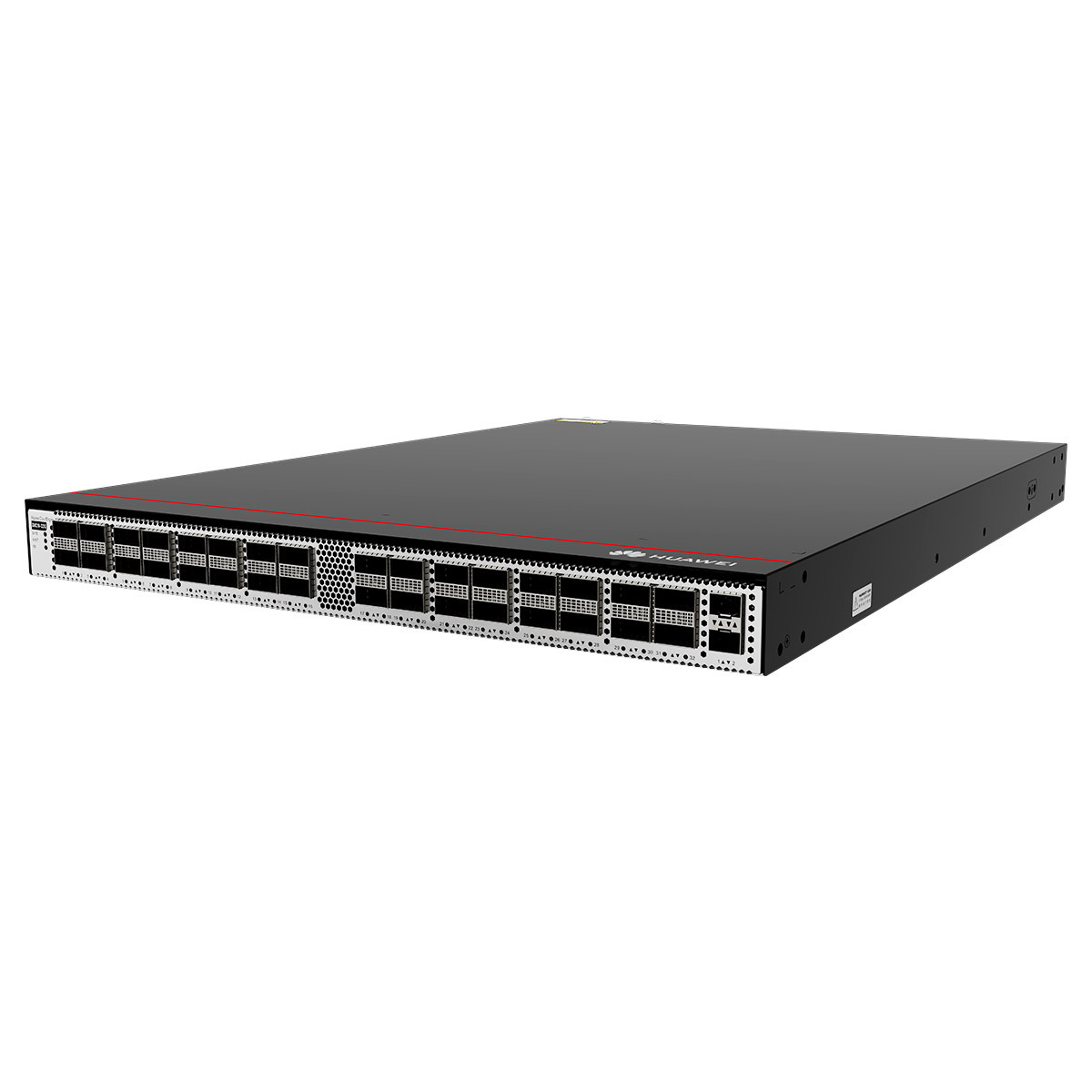

Huawei XH8210-32DQ Switch

No.MF1071
Huawei XH8210-32DQ switch supports 24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake
Brand
Huawei
Part Number
02355YSR
Packing Box Specifications
26*59*79cm
Gross Weight
18kg
Condition
Original New
Lead Time
1-3 working days
Warranty
12 months
Shipping Method
DHL, UPS, FedEx, Sea/Air/Railway Freight
Payment Method
PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay
Power:
Get Price/Help
Bulk Quote View Quote List
  • Huawei XH8210-32DQ Switch
  • Huawei XH8210-32DQ Switch
  • Huawei XH8210-32DQ Switch
  • Huawei XH8210-32DQ Switch
  • Huawei XH8210-32DQ Switch
  • Huawei XH8210-32DQ Switch

  • Description

  • Huawei Switch Module

XH8210-32DQ overview

Huawei XH8210-32DQ with 24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake, is one of the Huawei XH8000 series switches.

Huawei XH8000 series switches are next-generation access switches that provide high performance and high port density for AI-powered data centers. They have an advanced hardware architecture and offer high-density 200GE and 400GE ports. They also support extensive data center service features and flexible airflow directions. Huawei XH8000 series switches are next-generation access switches that provide high performance and high port density for AI-powered data centers. They have an advanced hardware architecture and offer high-density 200GE and 400GE ports.

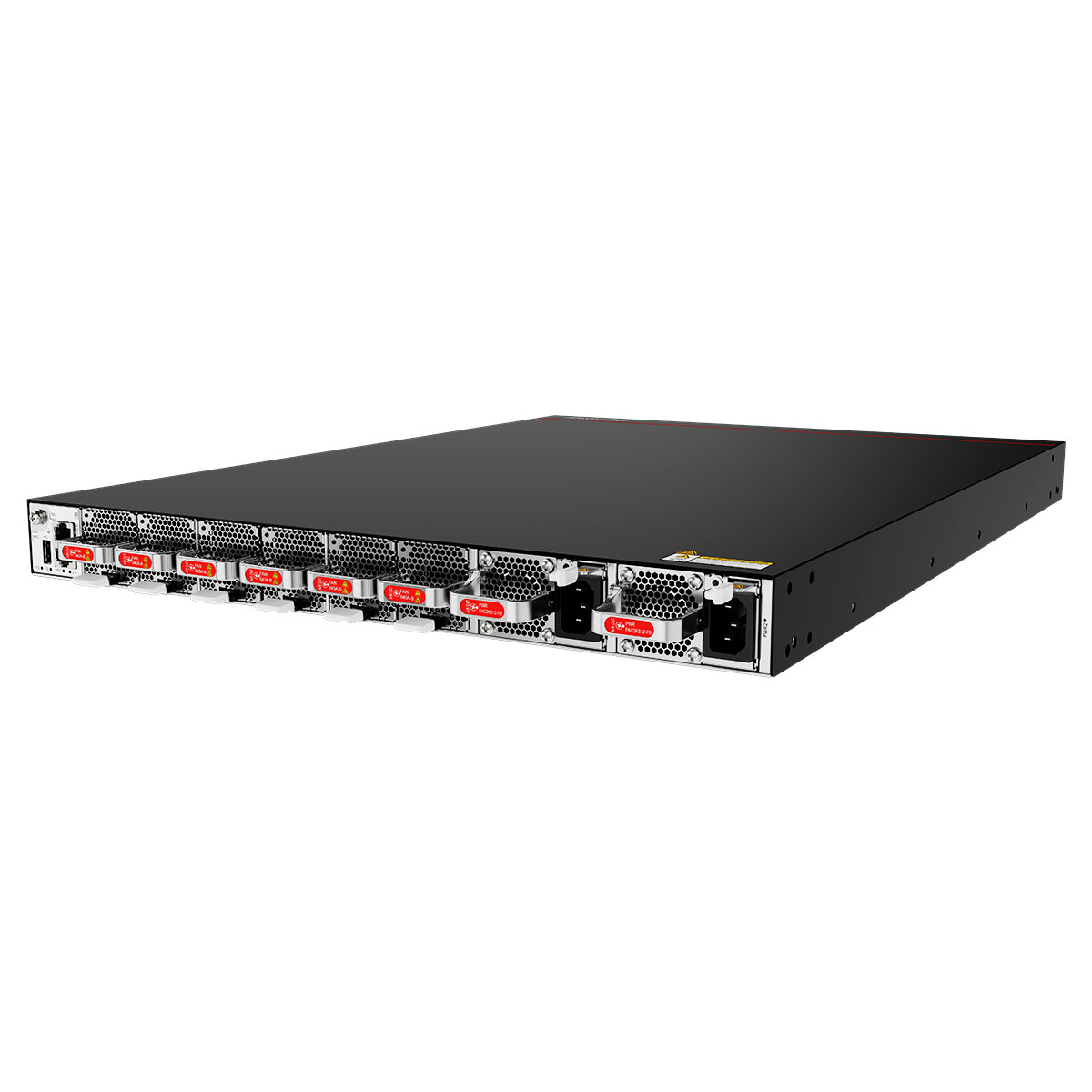

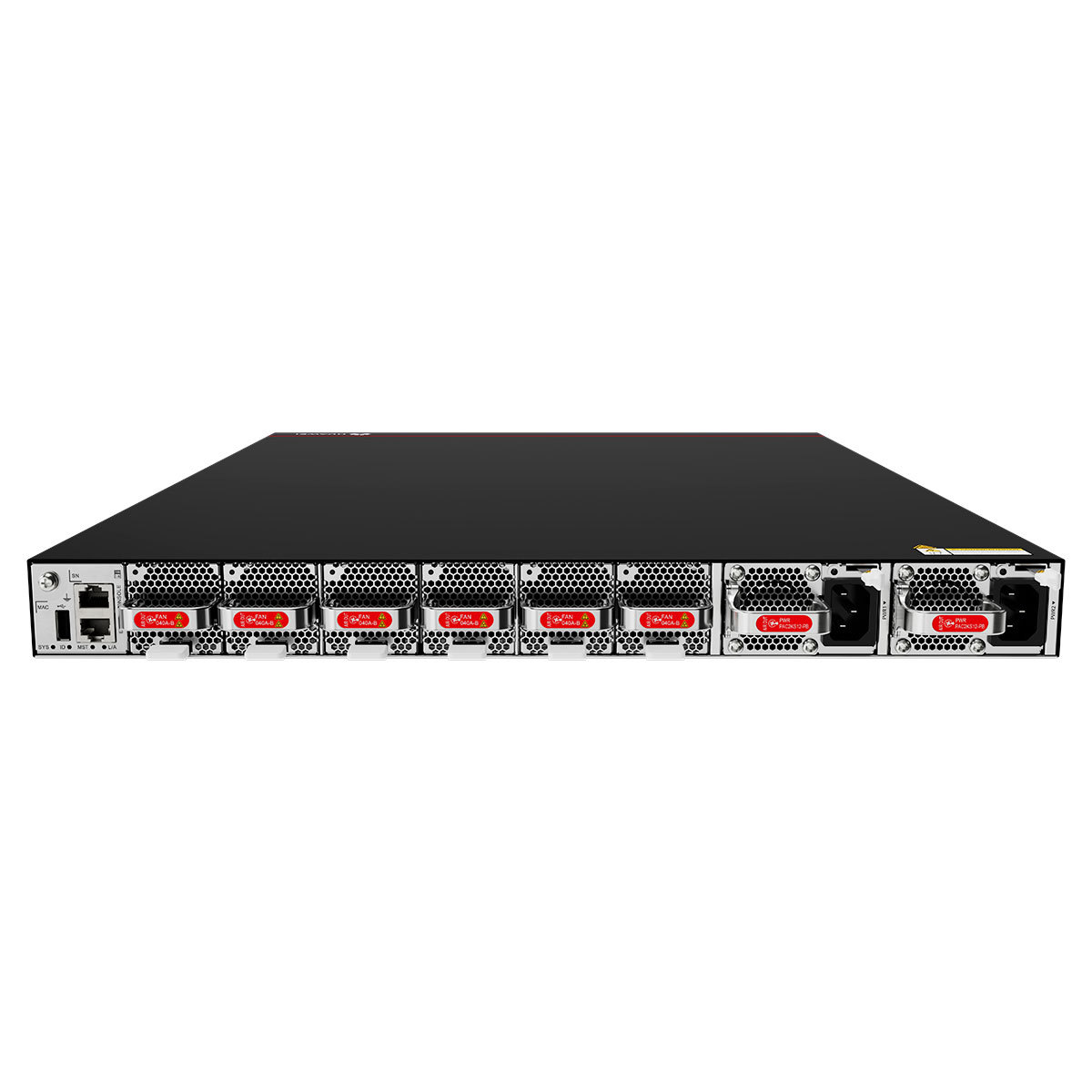

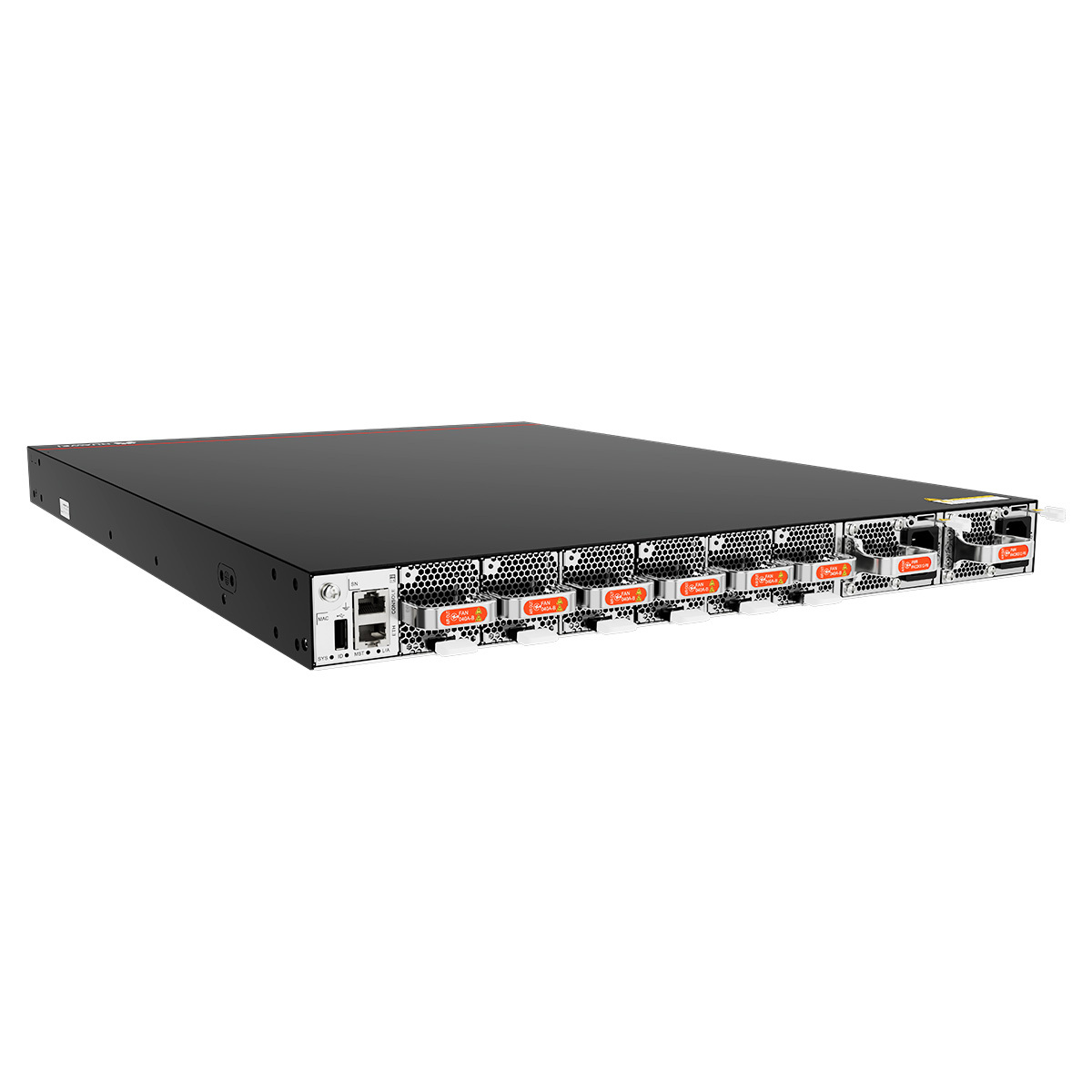

XH8210-32DQ appearance and structure

XH8210 32DQ

1. Ground screw

2. Equipment serial number (ESN) and MAC address

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

3. Console port

4. ETH management port (RJ45)

5. USB port

6. Six Fan slots

Applicable fan modules:

  • FAN-040A-B
  • FAN-040C-B

7. Two Power supply slots

Applicable power modules:

  • PAC2KS12-PB
  • PDC2K2S12-PB
  • PHD2KS12-PB

8. Thirty-two 400GE QSFP-DD Ethernet optical ports

9. Two 10GE SFP+ Ethernet optical ports

10. Three port-side mounting holes for mounting brackets

11. Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

12. Four power-supply-side mounting holes for mounting brackets

–

–

–

XH8210-32DQ Datasheet

Item XH8210-32DQ
Chassis height [U] 1 U
Installation Type Cabinet installation
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU 16-core, 2 GHz
Memory DRAM: 16 GB
NOR Flash 64 MB x 2
SSD Flash 4GB SSD
USB

It can be used for log backup and USB-based deployment.

This function is reserved.
Power supply mode
  • AC
  • DC
  • HVDC
Console port RJ45
Downlink Service interface 32 x 400GE QSFP-DD + 2 x 10GE SFP+
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Typical power consumption [W]

528 W (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules)

689 W (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]
  • 1802 BTU/hour (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules)
  • 2351 BTU/hour (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules)
Static power consumption [W] 453 W
Static heat dissipation [BTU/hour] 1546 BTU/hour
Maximum power consumption [W]

943 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules)

1340 W (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules)
Maximum heat dissipation [BTU/hour]
  • 3218 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules)
  • 4572 BTU/hour (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules)
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 2000 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
  • 2200 W DC power module: –48 V DC to –60 V DC; +48 V DC
  • 2000 W high-voltage DC power module: 336 V DC
Input voltage range [V]
  • 2000 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
  • 2200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
  • 2000 W high-voltage DC power module: 260 V DC to 400 V DC
Maximum input current [A]
  • 2000 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC)
  • 2200 W DC power module: 63 A (–48 V DC to –60 V DC); 63 A (+48 V DC)
  • 2000 W high-voltage DC power module: 10 A (336 V DC)
Rated output power [W]
  • 2000 W AC&240 V DC power module: 2000 W (220 V AC to 240 V AC&240 V DC), 1800 W (200 V AC to 220 V AC), 900 W (100 V AC to 130 V AC)
  • 2200 W DC power module: 2200 W
  • 2000 W high-voltage DC power module: 2000 W
Certification
  • Compliance with safety standards
  • Compliance with EMC standards
  • Compliance with environment and environmental protection standards
Power supply surge protection [kV]

AC: 6 kV in common mode and 6 kV in differential mode

DC: 4 kV in common mode and 2 kV in differential mode

HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 6
Redundant fans The device supports 5+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Port-side air intake
Availability 0.9999934176
MTBF [year] 26.01 years
MTTR [hour] 1.5 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)] Back-to-front airflow: 63.5 dB(A) on average (maximum: 70.7 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)] Back-to-front airflow: 83.5 dB(A) on average (maximum: 90.5 dB(A))
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]

0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)

NOTE:

When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 260 mm x 590 mm x 790 mm (10.24 in. x 23.23 in. x 31.10 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 600 mm (1.72 in. x 17.40 in. x 23.62 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 633.4 mm (1.72 in. x 17.40 in. x 24.94 in.)
Weight without packaging [kg (lb)] 9.94 kg (21.91 lb), excluding optical modules, power modules, and fan modules
Weight without packaging (full configuration) [kg (lb)] 12.78 kg (28.17 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)] 15.16 kg (33.42 lb)
Weight with packaging (full configuration) [kg (lb)] 18 kg (39.68 lb)

XH8210-32DQ FAQ

Q1: Which optical modules and expansion methods does the XH8210-32DQ support? How compatible is it?

A1: It supports the full range of 400G QSFP-DD LR4/DR4/FR4 optical modules (short-haul 100m - long-haul 40km), without additional expansion modules. All 32 ports are line-speed 400G, compatible with Huawei and industry standard optical modules, with 100% compatibility.

Q2: Can the 1U chassis meet the heat dissipation requirements of high-density deployment? How is its power consumption?

A2: It adopts optimized heat dissipation design and low-power chips. The typical power consumption of a single device is ≤300W. It supports fanless mode, and the 1U chassis can operate stably in high-density rack environments without additional cooling equipment.

Q3: What are its core advantages compared to traditional leaf node switches?

A3: Its core advantages are "ultra-dense + low latency + compact". It boasts an industry-leading 32-port 400G density, 0.5-microsecond low latency to adapt to sensitive services, and a 1U design to improve rack utilization. Overall deployment and operation costs are reduced by more than 30%.
Optical Modules Supported by Huawei S Series Switches

Module Name Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310 2 km
eSFP-FE-LX-SM1310 15 km
S-SFP-FE-LH40-SM1310 40 km
S-SFP-FE-LH80-SM1550 80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module) 15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module) 15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1): 0.275 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
  • Multimode fiber (OM2): 0.55 km
  • Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310  10 km
S-SFP-GE-LH40-SM1310 40 km
S-SFP-GE-LH40-SM1550 40 km
S-SFP-GE-LH80-SM1550  80 km
eSFP-GE-ZX100-SM1550 100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module) 10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)  40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)  40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module) 80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)  80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module) 10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1 10 km
CSFP-GE-FE-BIDI2  20 km
CSFP-GE-FE-BIDI4 40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471 80 km
CWDM-SFPGE-1491 80 km
CWDM-SFPGE-1511 80 km
CWDM-SFPGE-1531 80 km
CWDM-SFPGE-1551 80 km
CWDM-SFPGE-1571 80 km
CWDM-SFPGE-1591 80 km
CWDM-SFPGE-1611 80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271 80 km
CWDM-SFPGE-1291 80 km
CWDM-SFPGE-1311 80 km
CWDM-SFPGE-1331 80 km
CWDM-SFPGE-1351 80 km
CWDM-SFPGE-1371 80 km
CWDM-SFPGE-1391 80 km
CWDM-SFPGE-1411 80 km
CWDM-SFPGE-1431 80 km
CWDM-SFPGE-1451 80 km
CWDM-SFPGE-1471 80 km
CWDM-SFPGE-1491 80 km
CWDM-SFPGE-1511 80 km
CWDM-SFPGE-1531 80 km
CWDM-SFPGE-1551 80 km
CWDM-SFPGE-1571 80 km
CWDM-SFPGE-1591 80 km
CWDM-SFPGE-1611 80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61 120 km
10GE SFP+ Optical Modules
SFP-10G-USR 0.1 km
OSXD22N00
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.1 km
  • Multimode fiber (with modal bandwidth of 500 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
SFP-10G-iLR 1.4 km
OSX010000 10 km
OSX040N01 40 km
SFP-10G-ER-1310 40 km
SFP-10G-ZR 80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module) 40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module) 40 km
10GE XFP Optical Modules
XFP-SX-MM850
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310 10 km
XFP-STM64-LH40-SM1550  40 km
XFP-STM64-SM1550-80km 80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471 70 km
SFP-10G-ZCW1491 70 km
SFP-10G-ZCW1511 70 km
SFP-10G-ZCW1531 70 km
SFP-10G-ZCW1551 70 km
SFP-10G-ZCW1571 70 km
SFP-10G-ZCW1591 70 km
SFP-10G-ZCW1611 70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471 70 km
CWDM-XFP10G-1491 70 km
CWDM-XFP10G-1511 70 km
CWDM-XFP10G-1531 70 km
CWDM-XFP10G-1551 70 km
CWDM-XFP10G-1571 70 km
CWDM-XFP10G-1591 70 km
CWDM-XFP10G-1611 70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT 60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47  80 km
DWDM-XFP10G-1534-25  80 km
DWDM-XFP10G-1535-04  80 km
DWDM-XFP10G-1552-52  80 km
DWDM-XFP10G-1553-33  80 km
DWDM-XFP10G-1554-13  80 km
DWDM-XFP10G-1530-33  80 km
DWDM-XFP10G-1549-32  80 km
DWDM-XFP10G-1531-12  80 km
DWDM-XFP10G-1531-90  80 km
DWDM-XFP10G-1550-12  80 km
DWDM-XFP10G-1550-92  80 km
DWDM-XFP10G-1532-68  80 km
DWDM-XFP10G-1551-72  80 km
DWDM-XFP10G-1529-55  80 km
DWDM-XFP10G-1548-51  80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
  • Multimode fiber (OM1): 0.033 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
  • Multimode fiber (OM2): 0.082 km
  • Multimode fiber (OM3): 0.3 km
  • Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4 1.4 km
QSFP-40G-eSM4 10 km
QSFP-40G-LX4

Single-mode fiber: 2 km

Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4 10 km
QSFP-40G-ER4 40 km
QSFP-40G-SR-BD
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM
  • Multimode fiber (OM3): 100 m
  • Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM
  • Multimode fiber (OM3): 100 m
  • Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
CFP-40G-LR4 10 km
CFP-40G-ER4 40 km
CFP-40G-ZR4 80 km
100GE CFP Optical Modules
CFP-100G-SR10
  • Multimode fiber (OM2): 0.03 km
  • Multimode fiber (OM3): 0.1 km
  • Multimode fiber (OM4): 0.15 km
CFP-100G-LR4 10 km
CFP-100G-ER4 40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4 10 km
QSFP28-100G-10KM 10 km
QSFP28-100G-PSM4 500 m
QSFP28-100G-SR4

  • Multimode fiber (OM3): 70 m

  • Multimode fiber (OM4): 100 m
QSFP-100G-eSR4
  • Multimode fiber (OM3): 200 m
  • Multimode fiber (OM4): 300 m
QSFP-100G-CLR4  2 km
QSFP-100G-CWDM4  2 km
QSFP-100G-ER4-Lite Single-mode fiber (G.652):
  • Disables the RS-FEC function: 30 km
  • Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2  20 km
Industrial Optical Modules
OGSM01880
  • Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
  • Multimode fiber (OM1): 0.275 km
  • Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
  • Multimode fiber (OM2): 0.55 km
OGSC10DD0 10 km
OGSC40DD0 40 km
SFP+10GE-LH10-SM1310  10 km
SFP-10G-SR 0.3 km
SFP-10G-iLR  1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module) 10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module) 10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module) 10 km

Download

MF-Telecom
About Us
Professional Certificates
Buy in Bulk
Contact Us
Cases
Blog
Featured Product
Access Network List
CATV Solution List
Switch List
Optical Module List
Service
Buyer Guide
Payments
Delivery & Shipping
Warranty & Return
Privacy Policy
Terms & Conditions
CONTACT
No.29 Second Road, Wanggang Industrial Zone, Guangzhou, China
Sales@mf-telecom.com
+86 13416664642
Leave a message
Your Name
Company Name
Contact Info(Email/WhatsApp)
Message
We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.
