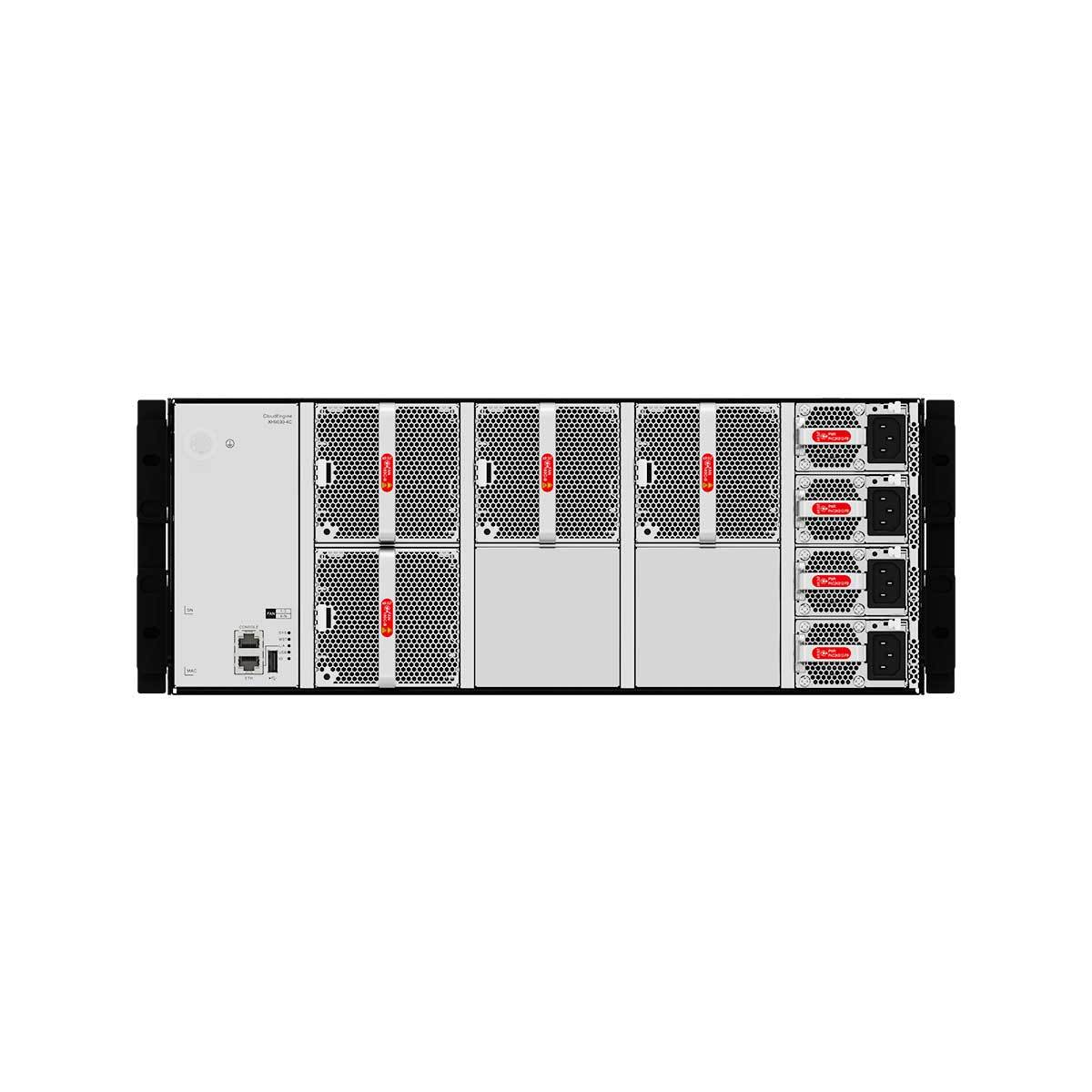

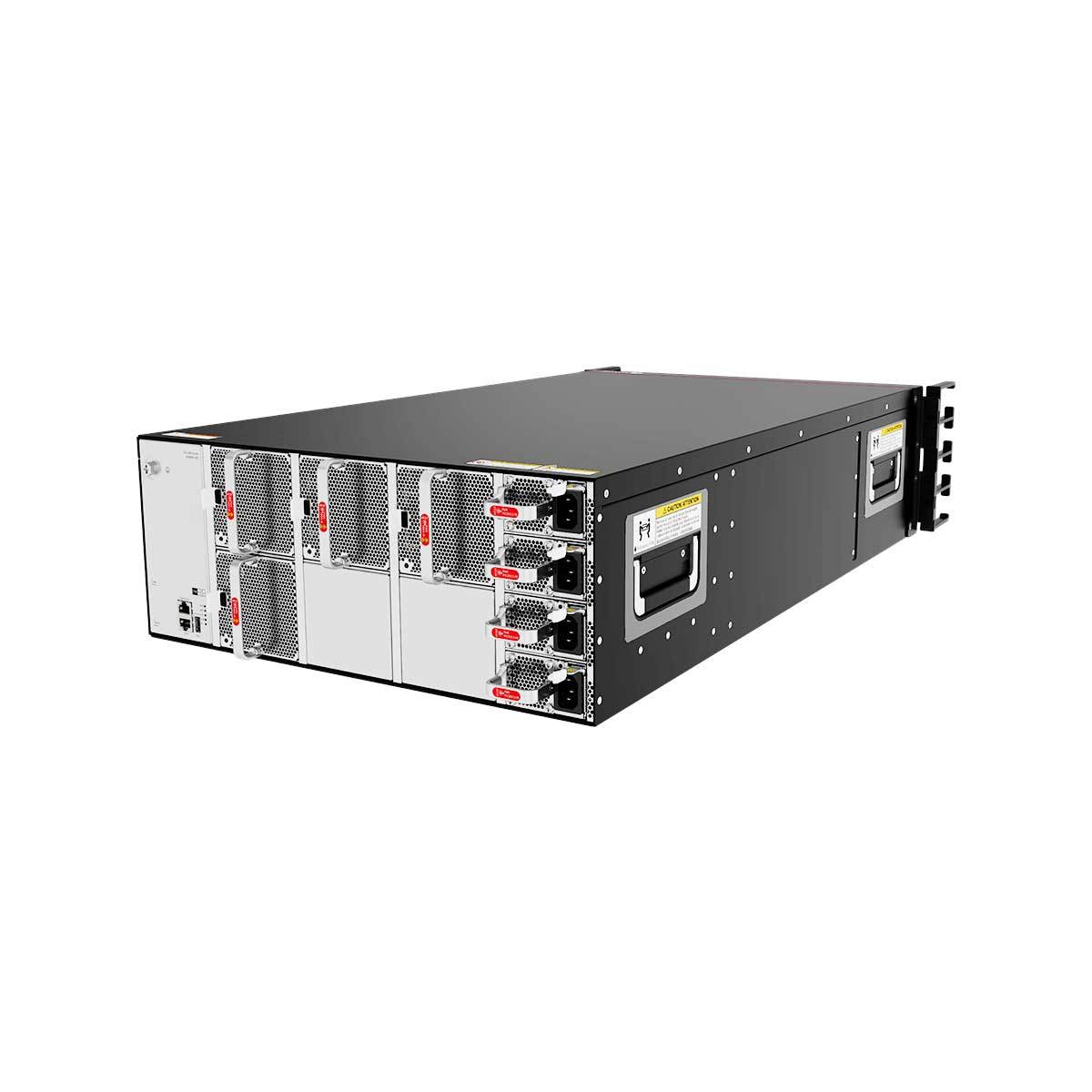

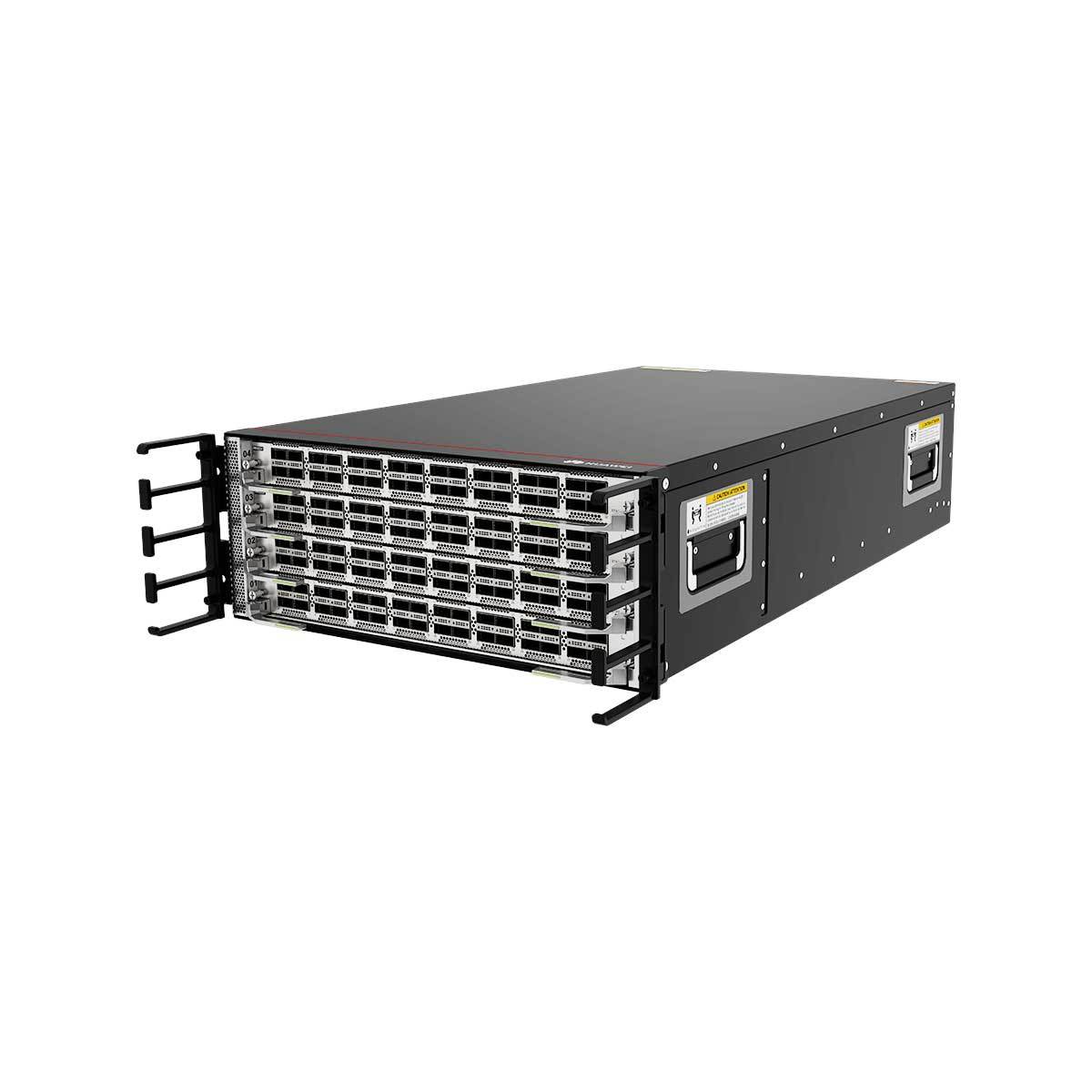

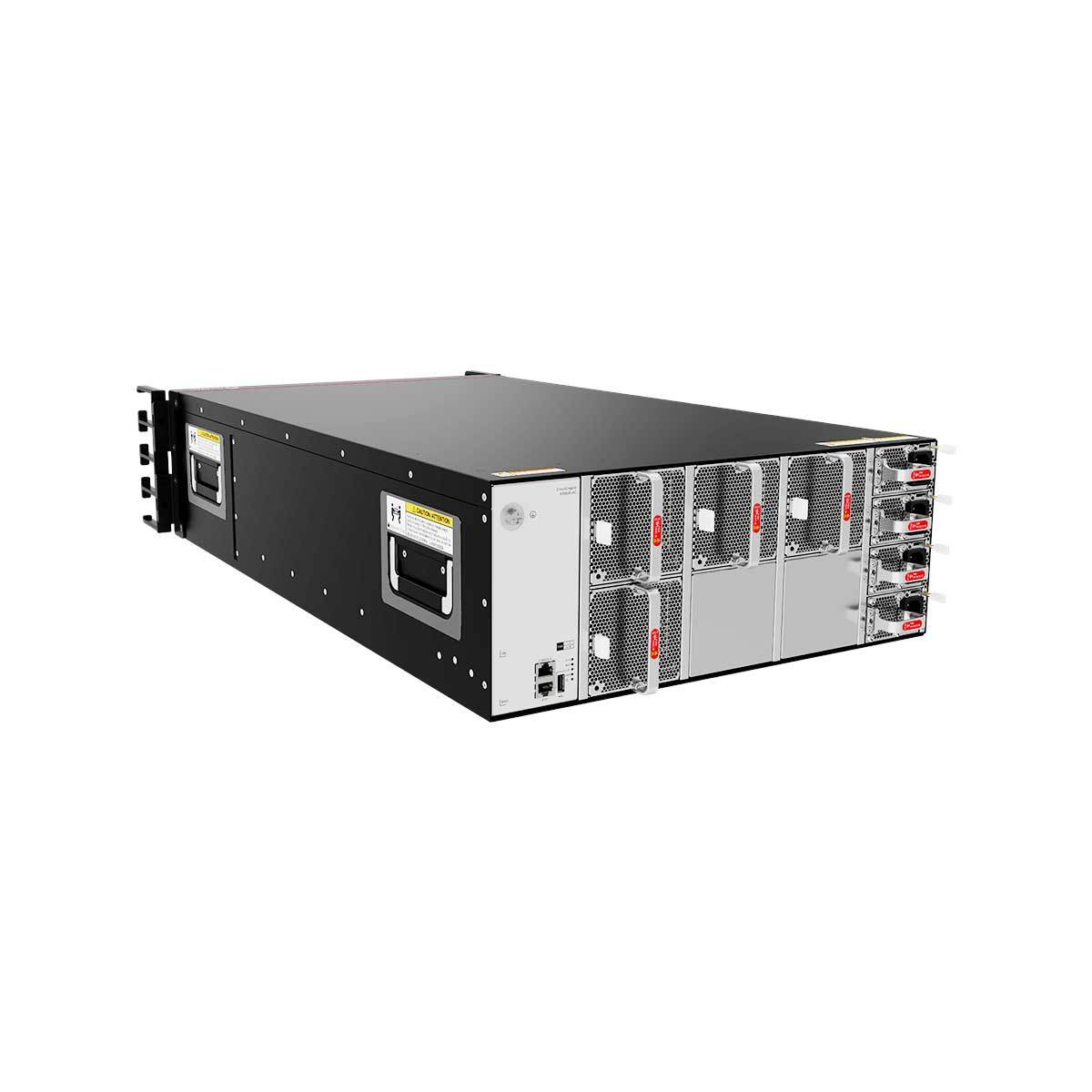

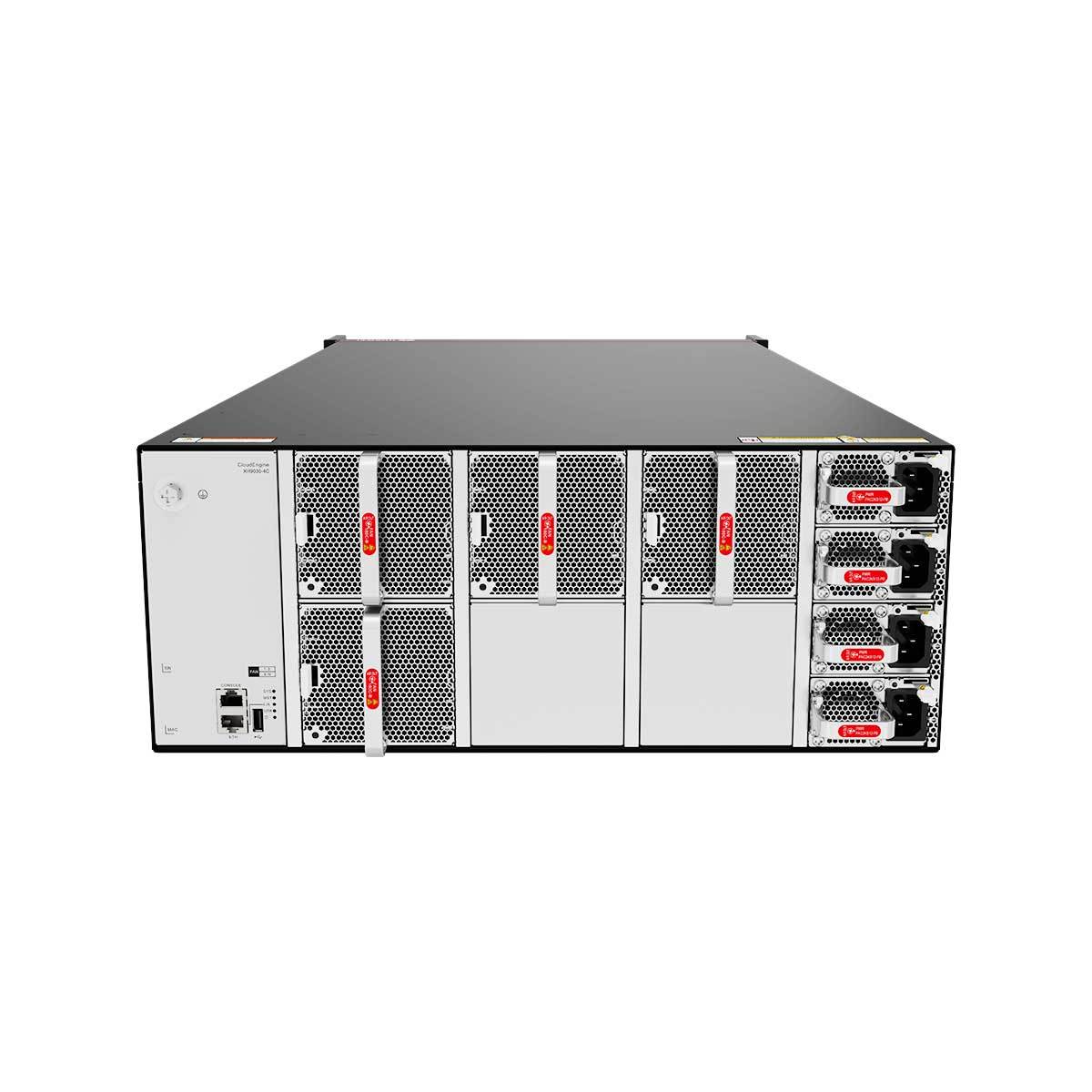

Huawei XH9030-4C Switch

• AC pluggable
• DC pluggable
• HVDC pluggable

The device does not have fixed ports and provides four card slots. Currently, the device supports the following cards:

XH90-D32CQ-F: 32 x 100GE QSFP28

1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s.

2. Only the top-row ports can be split. Every four ports form a group. When a 40GE/100GE port is split into 4 x 10GE or 4 x 25GE ports, the other top-row port is also split, and the bottom-row ports in the same group become unavailable. For example, ports 1, 2, 3, and 4 form a group. When port 1 is split, port 3 is also split, and ports 2 and 4 are unavailable. Only ports with optical modules can be split, and ports with copper cables cannot be split.

3. Support for optical modules: 40GE-SR4/LR4/eSR4/ER4/BIDI/eSDLC/SDLC/LX4/eSR4 and AOC, as well as 100G-SR4/PSM4/CWDM4/LR4/SWDM4/4WDM/BIDI/LX4/DR1/FR1/LR1/ER4 optical modules are supported. When the ambient temperature ranges from 0°C to 35°C (32°F to 95°F), 100G-ZR4 is supported, but the device noise will exceed the threshold.

4. Support for copper cables: 40GE/100GE 1/3/5 m passive copper cables are supported. Copper cable auto-negotiation and splitting are not supported. Copper cables can only be used on M-LAG peer-link ports.

Configured with four CE98-D32CQ-F cards: 1854 W (100% traffic load, 128-port 100G-SR4 optical modules, normal temperature, fully configured with AC power modules)

Configured with four CE98-D32CQ-F cards: 2597 W (100% traffic load, 128-port 100G-LR4 optical modules, high temperature, fully configured with AC power modules)

Configured with four CE98-D32CQ-F cards: 6326 BTU/hour (100% traffic load, 128-port 100G-SR4 optical modules, normal temperature, fully configured with AC power modules)

Configured with four CE98-D32CQ-F cards: 8861 BTU/hour (100% traffic load, 128-port 100G-LR4 optical modules, high temperature, fully configured with AC power modules)

• 2000 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
• 2200 W DC power module: –48 V DC to –60 V DC; +48 V DC
• 2000 W high-voltage DC power module: 336 V DC

• 2000 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
• 2200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
• 2000 W high-voltage DC power module: 260 V DC to 400 V DC

• 2000 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC)
• 2200 W DC power module: 63 A (–48 V DC to –60 V DC); 63 A (+48 V DC)
• 2000 W high-voltage DC power module: 10 A (336 V DC)

• 2000 W AC&240 V DC power module: 2000 W (220 V AC to 240 V AC&240 V DC), 1800 W (200 V AC to 220 V AC), 900 W (100 V AC to 130 V AC)
• 2200 W DC power module: 2200 W
• 2000 W high-voltage DC power module: 2000 W

• Compliance with safety standards
• Compliance with EMC standards
• Compliance with environment and environmental protection standards

AC: 6 kV in common mode and 6 kV in differential mode

DC: 4 kV in common mode and 2 kV in differential mode

HVDC: 4 kV in common mode and 2 kV in differential mode

0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)

• Basic dimensions (the depth excludes the parts protruding from the body): 175 mm x 442 mm x 765 mm (6.89 in. x 17.40 in. x 30.12 in.)
• Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 175 mm x 442 mm x 817.5 mm (6.89 in. x 17.40 in. x 32.19 in.)

34.4 kg (75.84 lb) (with four power modules and four fan modules)

45 kg (99.21 lb) (with four power modules, four fan modules, and four 32-port 100GE cards)

59.4 kg (130.95 lb) (with four power modules and four fan modules)

70 kg (154.32 lb) (with four power modules, four fan modules, and four 32-port 100GE cards)
