Huawei CE6881-48S6CQ-K Switch

Huawei LE0D0VAMPA00 Interface Card

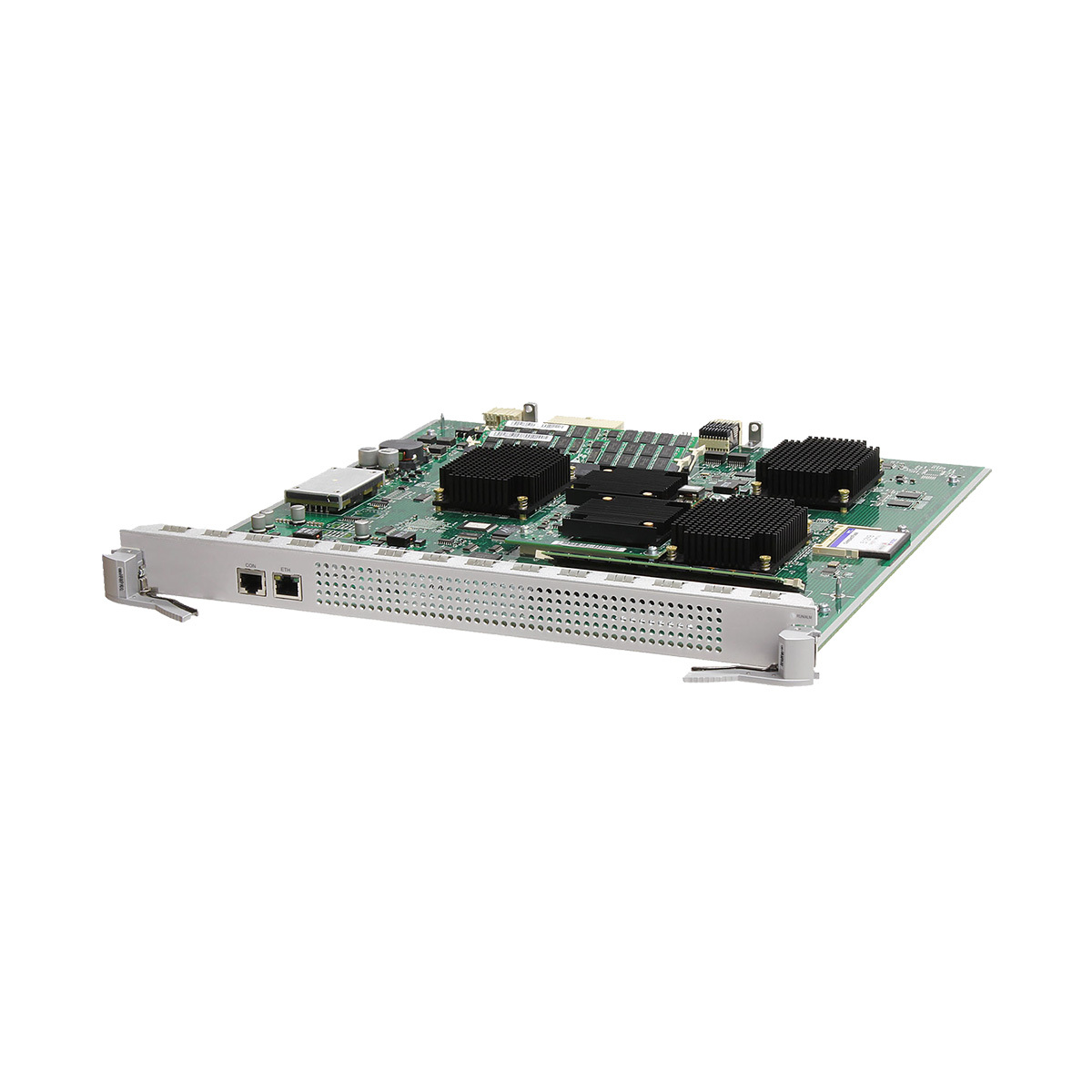

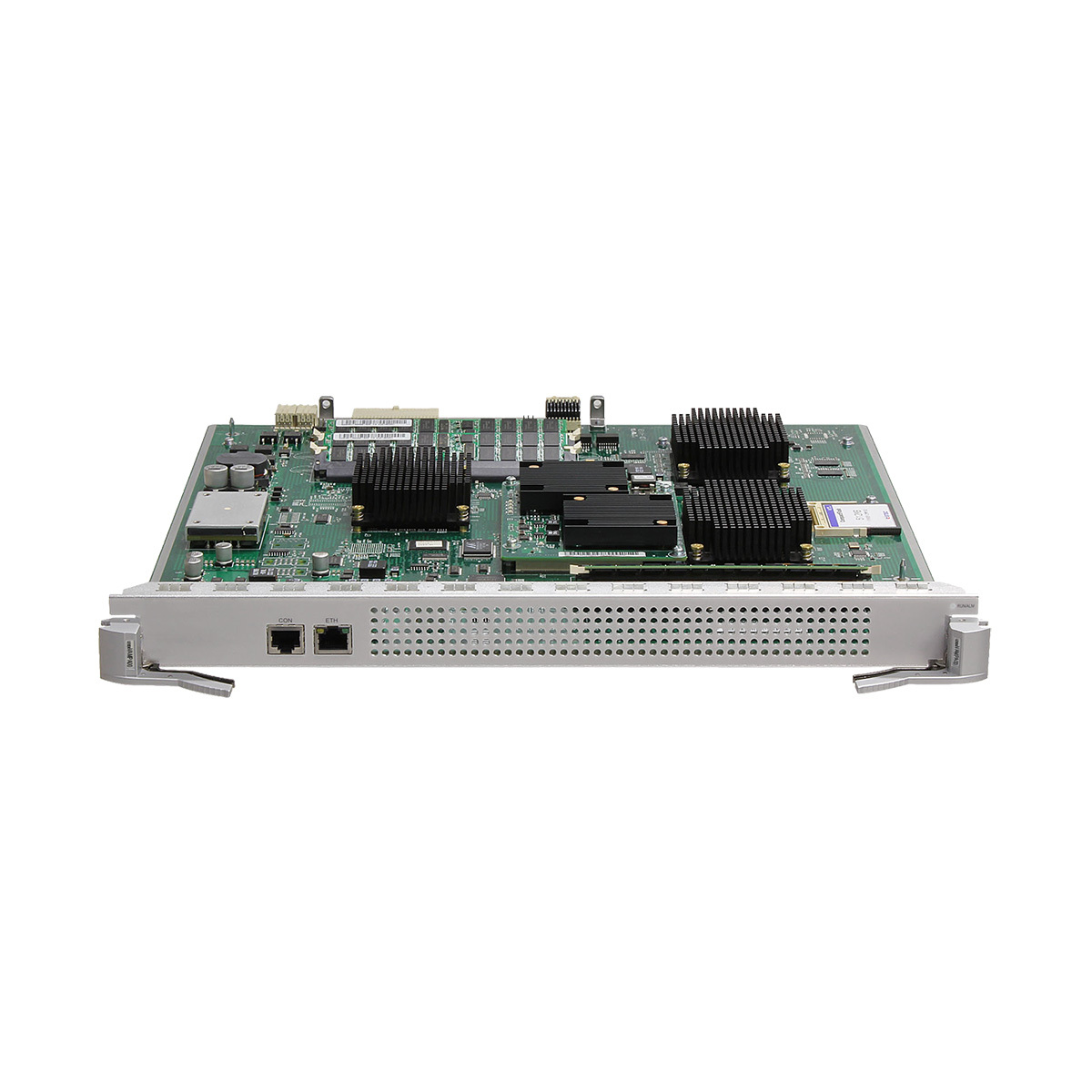

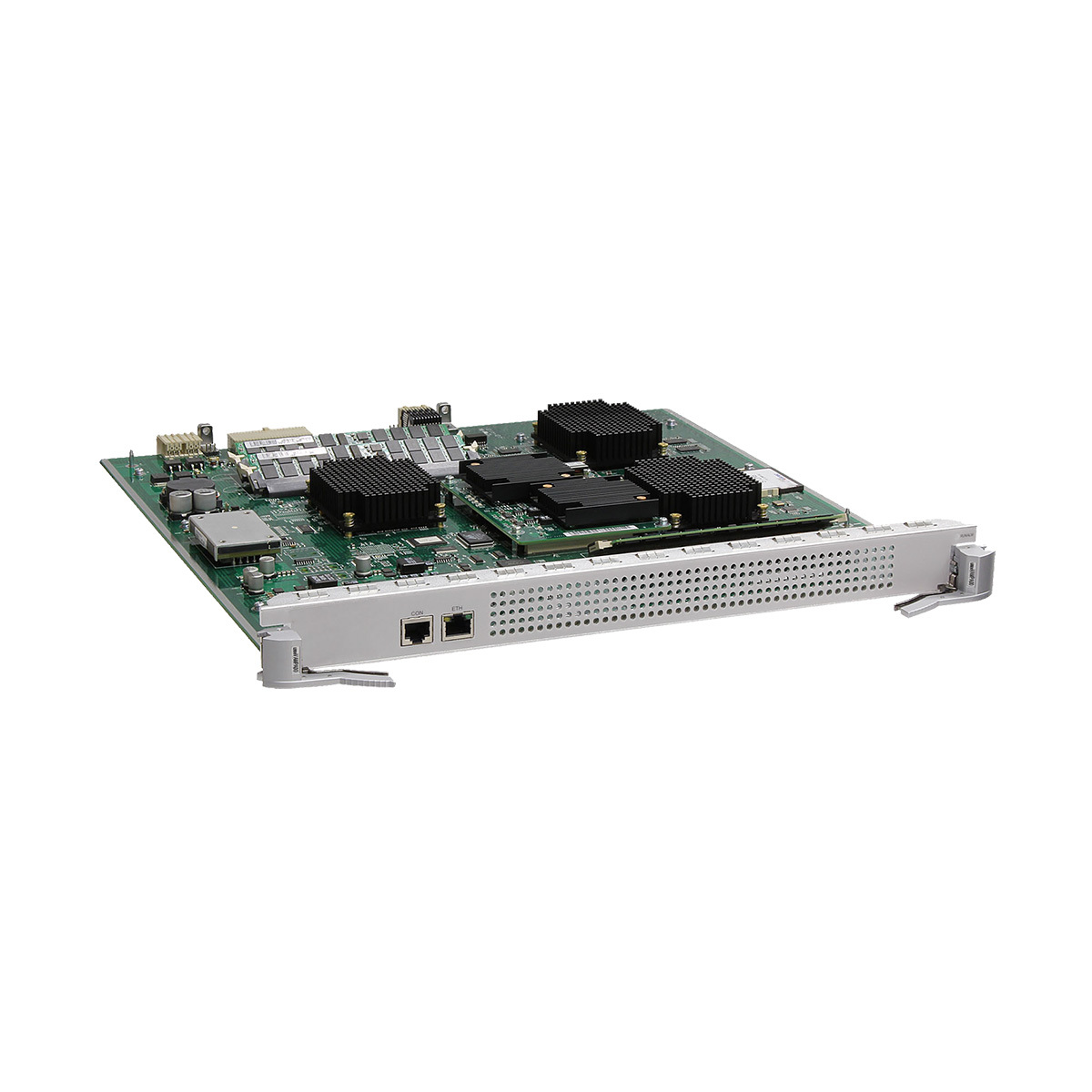

Name: Huawei LE0D0VAMPA00 Interface Card
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0436
Price: 50.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0436

Huawei LE0D0VAMPA00 Value-Added Service Unit

Brand

Huawei

Part Number

03030NWB

Packing Box Specifications

35*39*42cm

Gross Weight

3kg

Condition

Original New

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

LE0D0VAMPA00 Introduction

The LE0D0VAMPA00 is a Service Process Unit (SPU) for the S7700. It provides value-added services such as load balancing, firewall, network address translation (NAT), IP Security (IPSec), and NetStream. Currently, the LE0D0VAMPA00 is the only SPU available.

An LE0D0VAMPA00 card can be installed in:

Slots 01 to 03 in an S7703 or S7703 PoE chassis.
Slots 01 to 06 in an S7706 or S7706 PoE chassis.
Slots 01 to 12 in an S7712 chassis.

LE0D0VAMPA00 Functions

The LE0D0VAMPA00 provides value-added services such as load balancing, NAT, firewall, IPSec, and NetStream. When the LE0D0VAMPA00 is installed on a switch, packets related to a value-added service are directed to the LE0D0VAMPA00 for processing.
The LE0D0VAMPA00 is hot swappable.

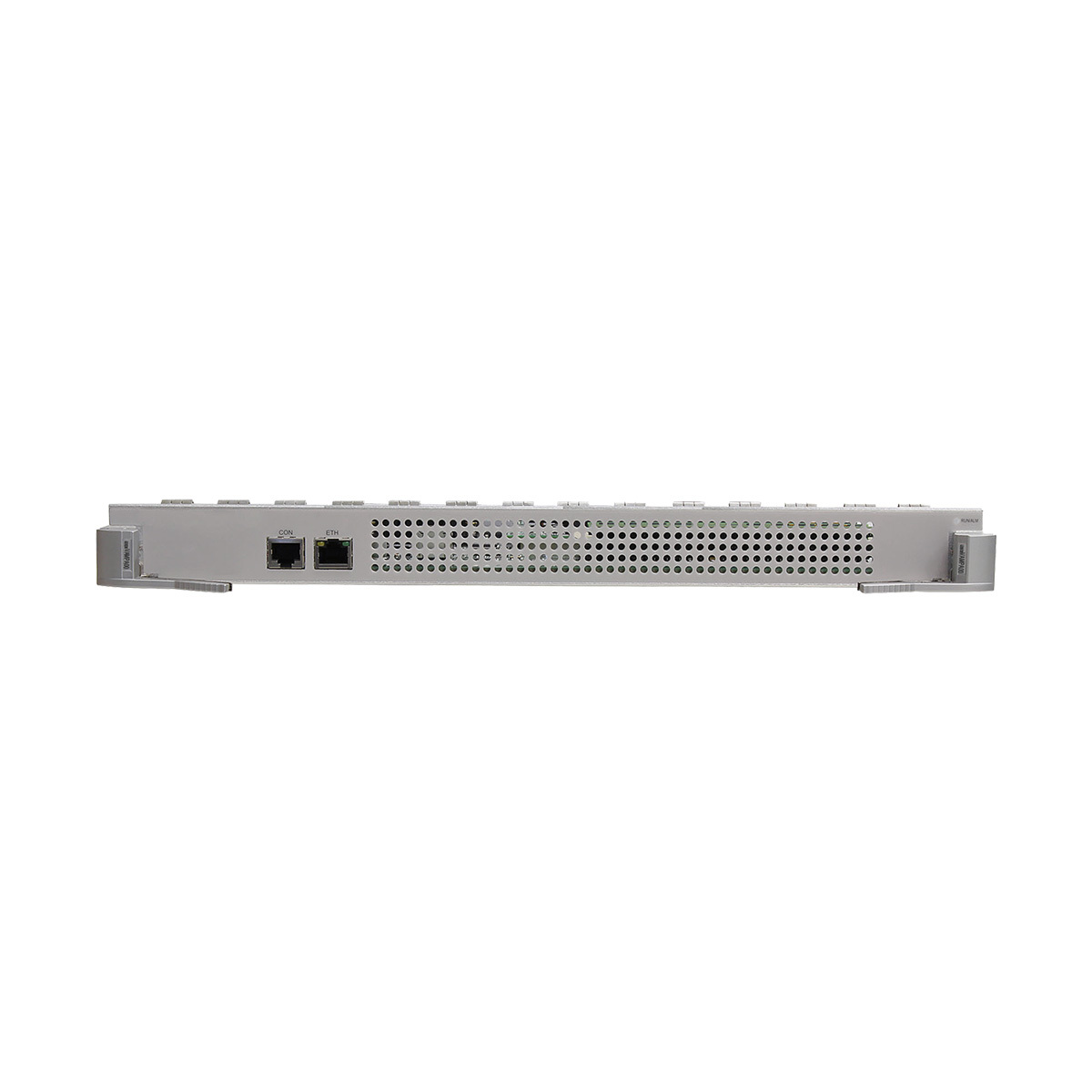

Ports on the LE0D0VAMPA00

1	One console management port (serial port). You can connect the serial port on your PC to the CON port of an SPU and log in to the SPU to configure it.
2	One ETH management port (FE electrical port). You can connect your PC to the ETH port and log in to the SPU using Telnet to configure it.

ETH management port

Attribute	Description
Connector type	RJ45
Standards compliance	IEEE802.3
Working mode	10/100 Mbit/s auto-sensing Full-duplex
Maximum transmission distance	100 m

Console management port

Attribute	Description
Connector type	RJ45
Working mode	Duplex Universal Asynchronous Receiver/Transmitter (UART)
Standards compliance	RS232
Baud rate	9600 bit/s to 115200 bit/s Default value: 9600 bit/s

Specifications of the LE0D0VAMPA00

Item	Description
Physical specifications	Dimensions (H x W x D): 35.1 mm x 394.7 mm x 426.8 mm (1.38 in. x 15.54 in. x 16.80 in.) Weight: 2.60 kg (5.73 lb) Maximum power consumption: 120 W

LE0D0VAMPA00 FAQ

Q1: Is this optical module compatible with the Huawei S6730-S24X6Q switch? Is an additional interface adapter required?

A1: Fully compatible! No additional adapter is needed. Simply insert it into the SFP+ slot of the switch. It automatically negotiates 10G speeds and is plug-and-play.

Q2: Is the 10km transmission distance affected by the fiber type? Can ordinary single-mode fiber (G.652) be supported?

A2: Yes! Compatible with G.652/G.653/G.655 standard single-mode fiber. Ordinary single-mode fiber can achieve stable 10km transmission; no special fiber is required.

Q3: What are the core differences between this and Huawei's 10G short-distance optical modules (such as SFP-10G-SR)? How to choose?

A3: The core difference lies in the transmission distance: LE0D0VAMPA00 (10km single-mode) is suitable for long-distance interconnection; SFP-10G-SR (300m multimode) is suitable for short-distance transmission within data centers. For distances greater than 300m, select long-range single-mode; for distances less than 300m, select short-range multi-mode.

Optical Modules Supported by Huawei S Series Switches

Module Name	Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310	2 km
eSFP-FE-LX-SM1310	15 km
S-SFP-FE-LH40-SM1310	40 km
S-SFP-FE-LH80-SM1550	80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module)	15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310	10 km
S-SFP-GE-LH40-SM1310	40 km
S-SFP-GE-LH40-SM1550	40 km
S-SFP-GE-LH80-SM1550	80 km
eSFP-GE-ZX100-SM1550	100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module)	10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)	40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)	40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module)	10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1	10 km
CSFP-GE-FE-BIDI2	20 km
CSFP-GE-FE-BIDI4	40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271	80 km
CWDM-SFPGE-1291	80 km
CWDM-SFPGE-1311	80 km
CWDM-SFPGE-1331	80 km
CWDM-SFPGE-1351	80 km
CWDM-SFPGE-1371	80 km
CWDM-SFPGE-1391	80 km
CWDM-SFPGE-1411	80 km
CWDM-SFPGE-1431	80 km
CWDM-SFPGE-1451	80 km
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61	120 km
10GE SFP+ Optical Modules
SFP-10G-USR	0.1 km
OSXD22N00	Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.1 km Multimode fiber (with modal bandwidth of 500 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
SFP-10G-iLR	1.4 km
OSX010000	10 km
OSX040N01	40 km
SFP-10G-ER-1310	40 km
SFP-10G-ZR	80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module)	40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module)	40 km
10GE XFP Optical Modules
XFP-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310	10 km
XFP-STM64-LH40-SM1550	40 km
XFP-STM64-SM1550-80km	80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471	70 km
SFP-10G-ZCW1491	70 km
SFP-10G-ZCW1511	70 km
SFP-10G-ZCW1531	70 km
SFP-10G-ZCW1551	70 km
SFP-10G-ZCW1571	70 km
SFP-10G-ZCW1591	70 km
SFP-10G-ZCW1611	70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471	70 km
CWDM-XFP10G-1491	70 km
CWDM-XFP10G-1511	70 km
CWDM-XFP10G-1531	70 km
CWDM-XFP10G-1551	70 km
CWDM-XFP10G-1571	70 km
CWDM-XFP10G-1591	70 km
CWDM-XFP10G-1611	70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT	60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47	80 km
DWDM-XFP10G-1534-25	80 km
DWDM-XFP10G-1535-04	80 km
DWDM-XFP10G-1552-52	80 km
DWDM-XFP10G-1553-33	80 km
DWDM-XFP10G-1554-13	80 km
DWDM-XFP10G-1530-33	80 km
DWDM-XFP10G-1549-32	80 km
DWDM-XFP10G-1531-12	80 km
DWDM-XFP10G-1531-90	80 km
DWDM-XFP10G-1550-12	80 km
DWDM-XFP10G-1550-92	80 km
DWDM-XFP10G-1532-68	80 km
DWDM-XFP10G-1551-72	80 km
DWDM-XFP10G-1529-55	80 km
DWDM-XFP10G-1548-51	80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4	1.4 km
QSFP-40G-eSM4	10 km
QSFP-40G-LX4	Single-mode fiber: 2 km Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4	10 km
QSFP-40G-ER4	40 km
QSFP-40G-SR-BD	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-40G-LR4	10 km
CFP-40G-ER4	40 km
CFP-40G-ZR4	80 km
100GE CFP Optical Modules
CFP-100G-SR10	Multimode fiber (OM2): 0.03 km Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-100G-LR4	10 km
CFP-100G-ER4	40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4	10 km
QSFP28-100G-10KM	10 km
QSFP28-100G-PSM4	500 m
QSFP28-100G-SR4	Multimode fiber (OM3): 70 m Multimode fiber (OM4): 100 m
QSFP-100G-eSR4	Multimode fiber (OM3): 200 m Multimode fiber (OM4): 300 m
QSFP-100G-CLR4	2 km
QSFP-100G-CWDM4	2 km
QSFP-100G-ER4-Lite	Single-mode fiber (G.652): Disables the RS-FEC function: 30 km Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2	20 km
Industrial Optical Modules
OGSM01880	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km
OGSC10DD0	10 km
OGSC40DD0	40 km
SFP+10GE-LH10-SM1310	10 km
SFP-10G-SR	0.3 km
SFP-10G-iLR	1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module)	10 km
