The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

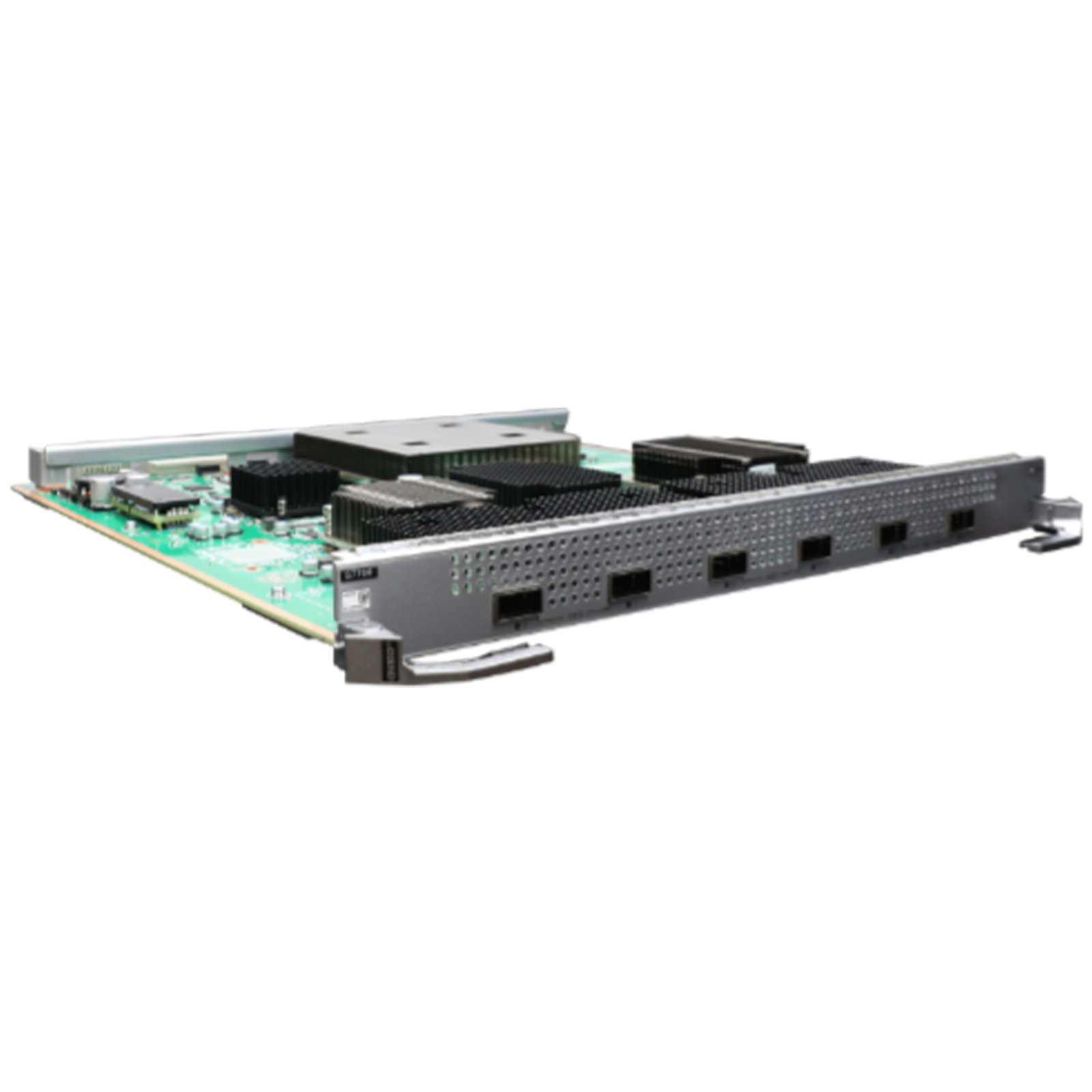

Functions and features of the LSS7C02BX6E0
Functions and Features
Description
Basic function
Provides two 100GE optical ports and four 40GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported
Port on the LSS7C02BX6E0
Port
Connector Type
Description
Available Components
100GE optical port
QSFP28
100GE optical ports to transmit and receive service traffic at 40 Gbit/s or 100 Gbit/s
40GE QSFP+ optical modules
100GE QSFP28 optical modules
QSFP+ AOC cables (QSFP+ to QSFP+ or QSFP+ to 4*SFP+)
QSFP28 AOC cables (QSFP28 to QSFP28)
QSFP28 high-speed cables (QSFP28 to QSFP28, 1 m, 3 m, can only be used as a CSS cable)
40GE optical port
QSFP+
40GE optical ports to transmit and receive service traffic at 40 Gbit/s
40GE QSFP+ optical modules
QSFP+ AOC cables (QSFP+ to QSFP+ or QSFP+ to 4*SFP+)
Technical specifications of the LSS7C02BX6E0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]
3.55 kg (7.83 lb)
Typical power consumption [W]
155 W
Typical heat dissipation [BTU/hour]
528.88 BTU/hour
Maximum power consumption [W]
175 W
Maximum heat dissipation [BTU/hour]
597.12 BTU/hour
Memory
1 GB
LSS7C02BX6E0 FAQ
Q1: Is this circuit board compatible with Huawei S9708 switches? What are the transmission speed and stability when using Cat.6a copper cable?
A1: Fully compatible! Supports the entire S9700 series of switches. Cat.6a copper cable can achieve stable transmission at 100m, with a single-port rate of up to 10Gbps. The transmission process is resistant to electromagnetic interference, with no packet loss or latency fluctuations, meeting the requirements of high-end networks.
Q2: Will the two 10G Ethernet ports be limited by the backplane bandwidth of the high-end switch when operating at full load simultaneously?
A2: No limitation! The circuit board is designed specifically for high-end switches, with ample backplane bandwidth. It supports simultaneous 10GE full-load transmission on two ports, with a total bandwidth of up to 20Gbps, fully matching the performance of high-end switches without bottlenecks.
Q3: What are the core differences between this circuit board and Huawei's high-end 10G fiber optic circuit boards (such as LSS7C06HX6S0)? How to choose?
A3: The core difference lies in the transmission medium and scenario: The LSS7C02BX6E0 (electronic port + copper cable, ≤100m) is suitable for short-distance interconnection and stacking scenarios in high-end data centers; the optical port version (optical module + fiber, 300m-10km) is suitable for long-distance interconnection. For high-end short-distance connections, choose the electrical port version; for long-distance connections, choose the optical port version.
