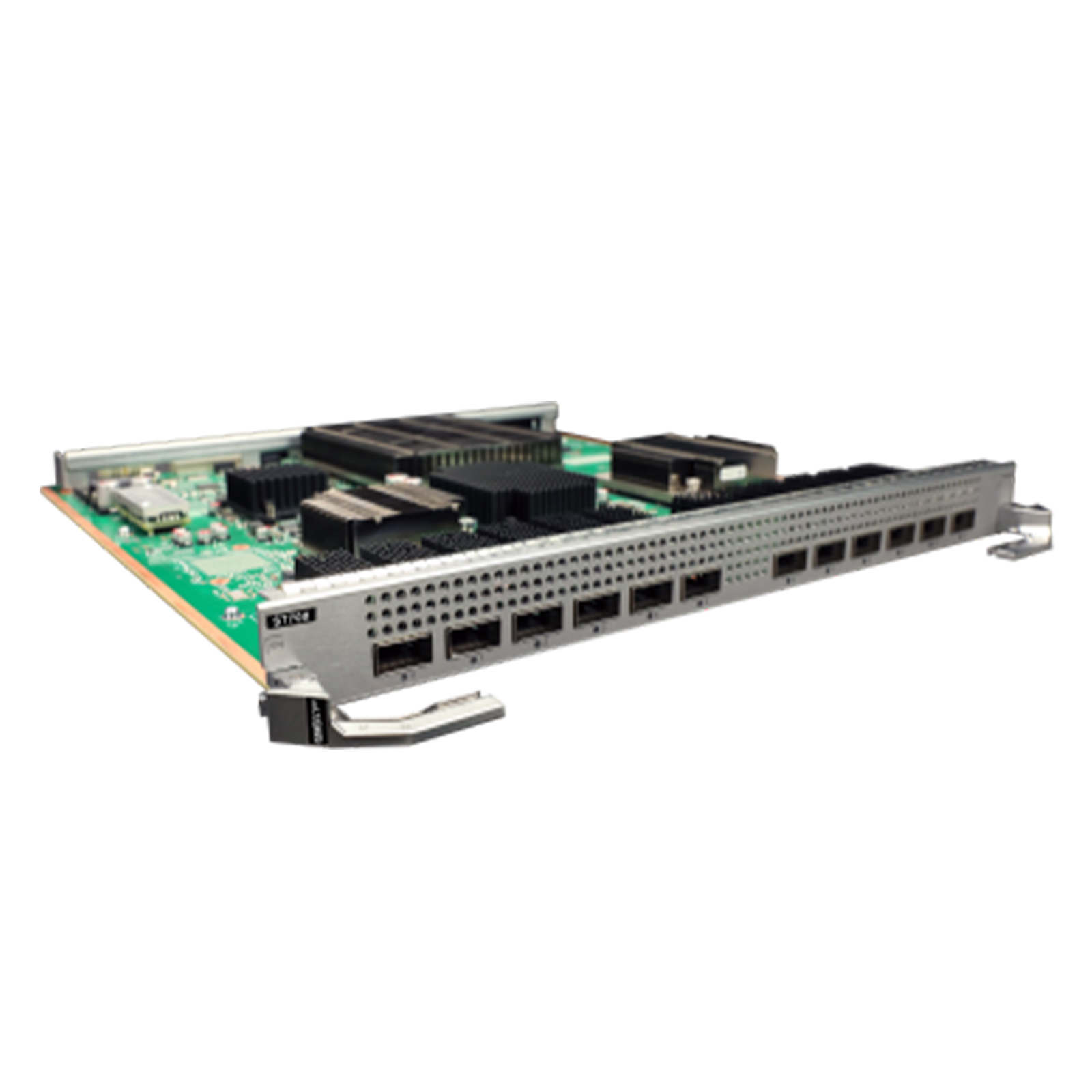

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.
Functions and features of the LSS7L12QX6E0
Functions and Features
Description
Basic function
Provides twelve 40GE optical ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
Supported
Ports on the LSS7L12QX6E0
Port
Connector Type
Description
Available Components
40GE optical port
QSFP+
40GE optical ports to transmit and receive service traffic at 40 Gbit/s
40GE QSFP+ optical modules
QSFP+ AOC cables (QSFP+ to QSFP+ or QSFP+ to 4*SFP+)
QSFP+ high-speed cables (QSFP+ to QSFP+; 1 m, 3 m, or 5 m; can only be used as a CSS cable)
Technical specifications of the LSS7L12QX6E0
Item
Specification
Dimensions without packaging (H x W x D) [mm(in.)]
35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)]
3.55 kg (7.83 lb)
Weight with packaging [kg(lb)]
5.55 kg (12.24 lb)
Typical power consumption [W]
174 W
Typical heat dissipation [BTU/hour]
593.71 BTU/hour
Maximum power consumption [W]
193 W
Maximum heat dissipation [BTU/hour]
658.54 BTU/hour
Memory
1 GB
LSS7L12QX6E0 FAQ
Q1: Is this circuit board compatible with Huawei S9708 switches? Will there be a bandwidth bottleneck when all 12 ports are running at full load simultaneously?
A1: Fully compatible! Supports the entire S9700 series of switches, with a backplane bandwidth ≥120Gbps. All 12 ports can operate at full load (10GE) simultaneously (total bandwidth 120Gbps) without bottlenecks, fully meeting high-density access requirements.
Q2: How stable is the transmission distance within 55m when using Cat.5e copper cable to connect to monitoring equipment?
A2: Extremely stable! Cat.5e copper cable can stably transmit at 10GE rates within 55m, with electromagnetic interference resistance meeting EMC Class A standards. There is no packet loss or latency fluctuation, making it suitable for various devices such as monitoring equipment and terminals.
Q3: What are the key differences between this circuit board and Huawei's 6-port high-end 10 Gigabit Ethernet circuit board (LSS7C06HX6E0)? How to choose?
A3: The core difference lies in port density and slot utilization: The LSS7L12QX6E0 (12 ports, high density) is suitable for high-end scenarios with concentrated equipment and limited slots; the 6-port model is suitable for medium to low density needs. Choose the 12-port high-density model if the number of equipment is greater than 8, otherwise choose the 6-port model.
