The S7700 series switches (S7700 for short) are high-end smart routing switches designed for nextgenerationenterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive H-QoS policies, controllable multicast, load balancing, and security, in addition to high-performanceLayer 2 to Layer 4 switching services.

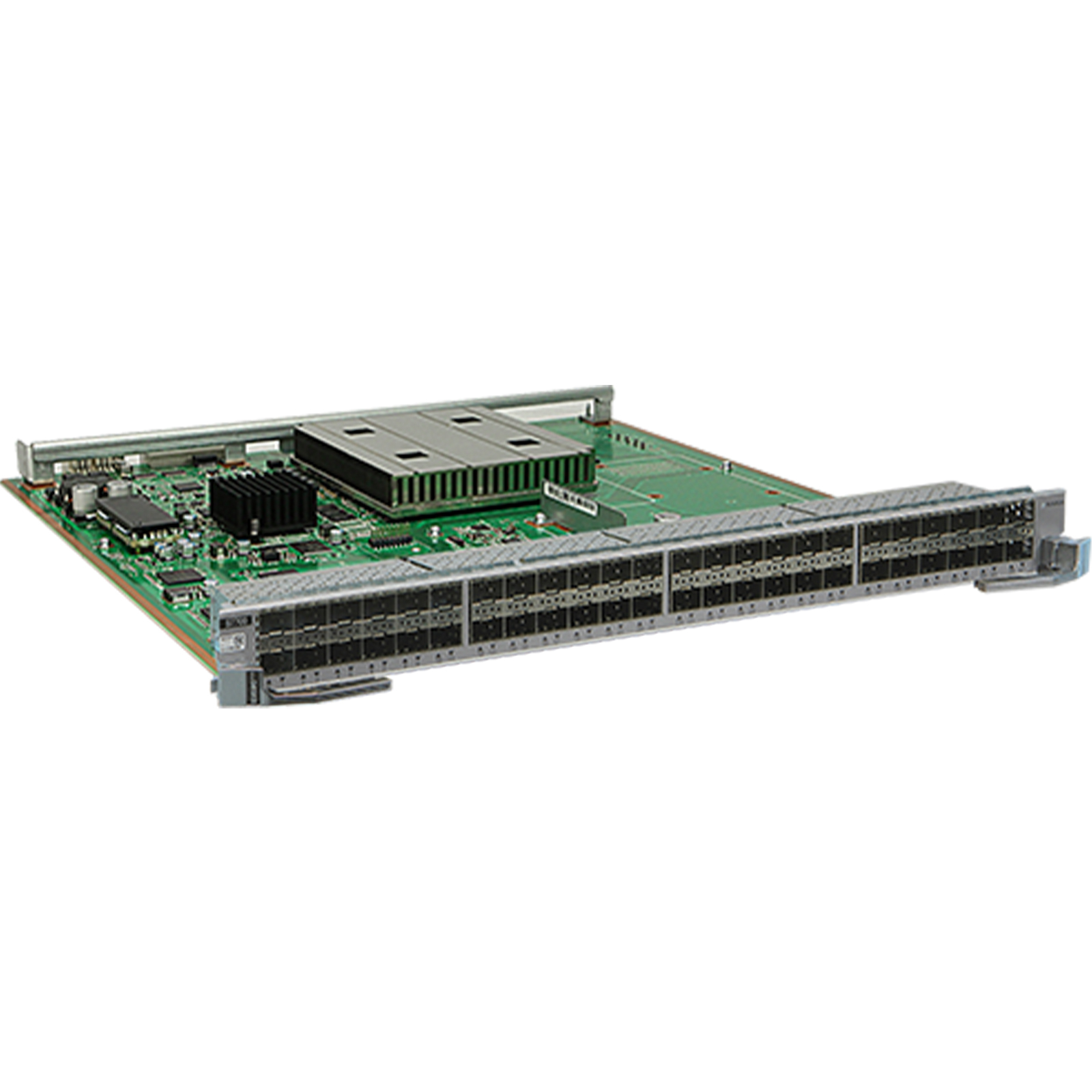

Functions of the LSS7X48SX6E0
The LSS7X48SX6E0 provides the following functions:
Communicates with the MPU and works under the control of the MPU.
Searches for routes and destination addresses of data packets for forwarding.
Forwards data packets.
Function
Description
Basic functions
Provides forty-eight 1000M/10G BASE-X ports for data transmission and switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The LSS7X48SX6E0 is hot swappable.
Ports on the LSS7X48SX6E0
Optical port attributes (GE optical module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP optical module used. For the SFP optical modules supported by the LSS7X48SX6E0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.
Standards compliance
IEEE802.3z
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the LSS7X48SX6E0 and their attributes, see 10GE SFP+ Optical Modules (OSXD22N00 not supported), 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
NOTE:
The S7703, S7706 and S7712 do not support SFP-10G-ZR, 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules.
Standards compliance
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol
IP
Optical port attributes (copper module)
Attribute
Description
Connector type
SFP+
Optical port attributes
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (100 Mbit/s and 1000 Mbit/s rates).
Applicable cable
SFP copper module and Ethernet cable
Specifications of the LSS7X48SX6E0
Item
Description
Physical specifications
Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Weight: 3.2 kg (7.05 lb)
Maximum power consumption: 192 W
LSS7X48SX6E0 FAQ
Q1: Is this circuit board compatible with the Huawei S9712 switch? Will there be a bandwidth bottleneck when all 48 ports are running at full load simultaneously?
A1: Fully compatible! Supports the entire S9700 series of high-end switches, with a backplane bandwidth ≥480Gbps. There is no bottleneck when all 48 ports are simultaneously operating at full load (480Gbps total bandwidth), fully meeting high-density access requirements.
Q2: How stable is the transmission over a 55m distance when using Cat.5e copper cable to connect terminal devices? Is it interference resistant?
A2: Extremely stable! Cat.5e copper cable can stably transmit at 10GE rates within 55m, with electromagnetic interference resistance meeting EMC Class A standards. There is no packet loss or latency fluctuation, making it suitable for servers, terminals, monitoring equipment, and various other devices.
Q3: What are the core differences between this circuit board and the Huawei 48-port 10 Gigabit optical port high-end circuit board (LSS7X48SX6S0)? How to choose?
A3: The core difference lies in the transmission medium and scenario: The LSS7X48SX6E0 (electronic port + copper cable, ≤100m) is suitable for short-distance, high-density scenarios within a data center using multiplexed copper cables; the optical port version (fiber optic, 300m-40km) is suitable for long-distance interconnection. For short-distance interconnection within a data center, choose the electrical port version; for cross-data center/long-distance interconnection, choose the optical port version.
