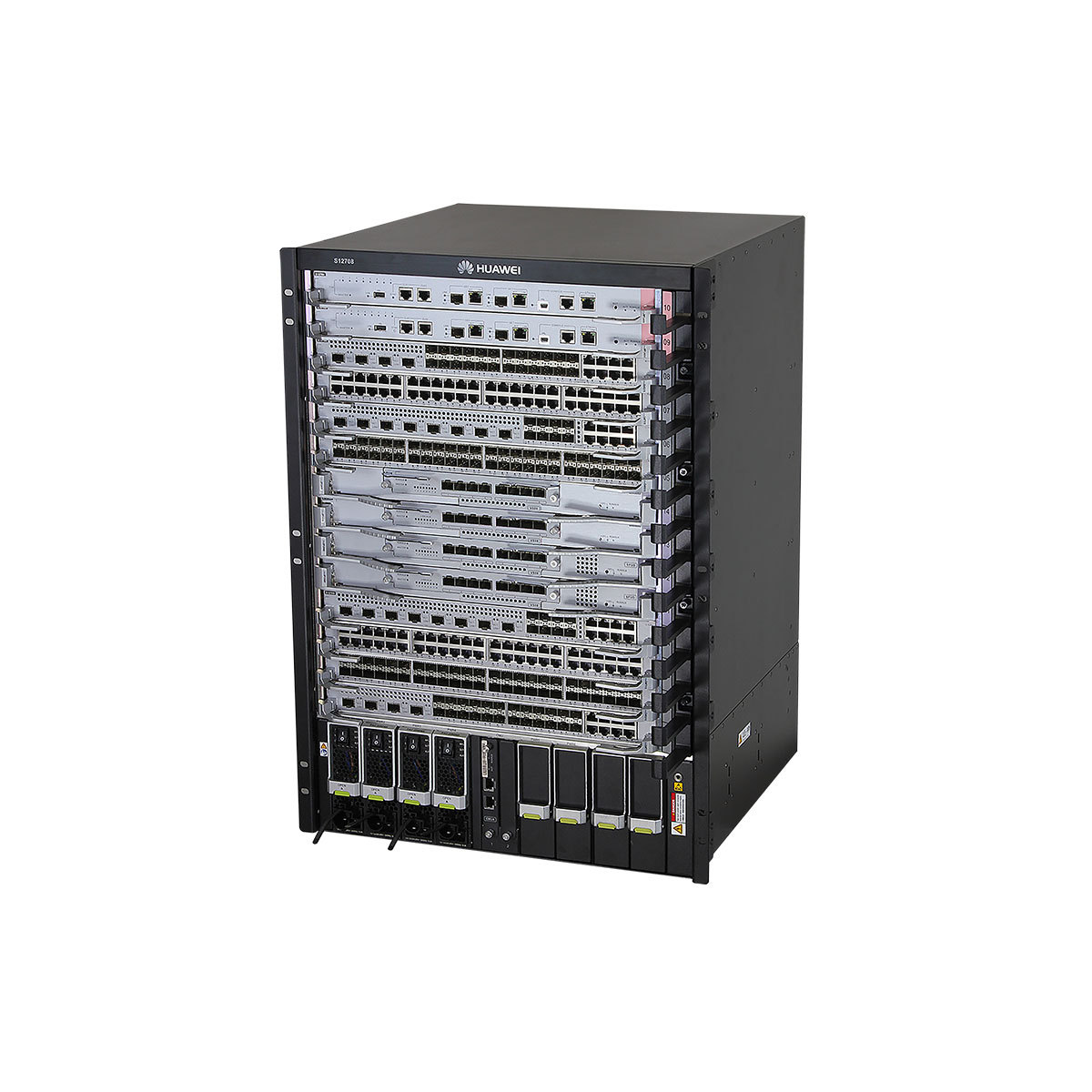

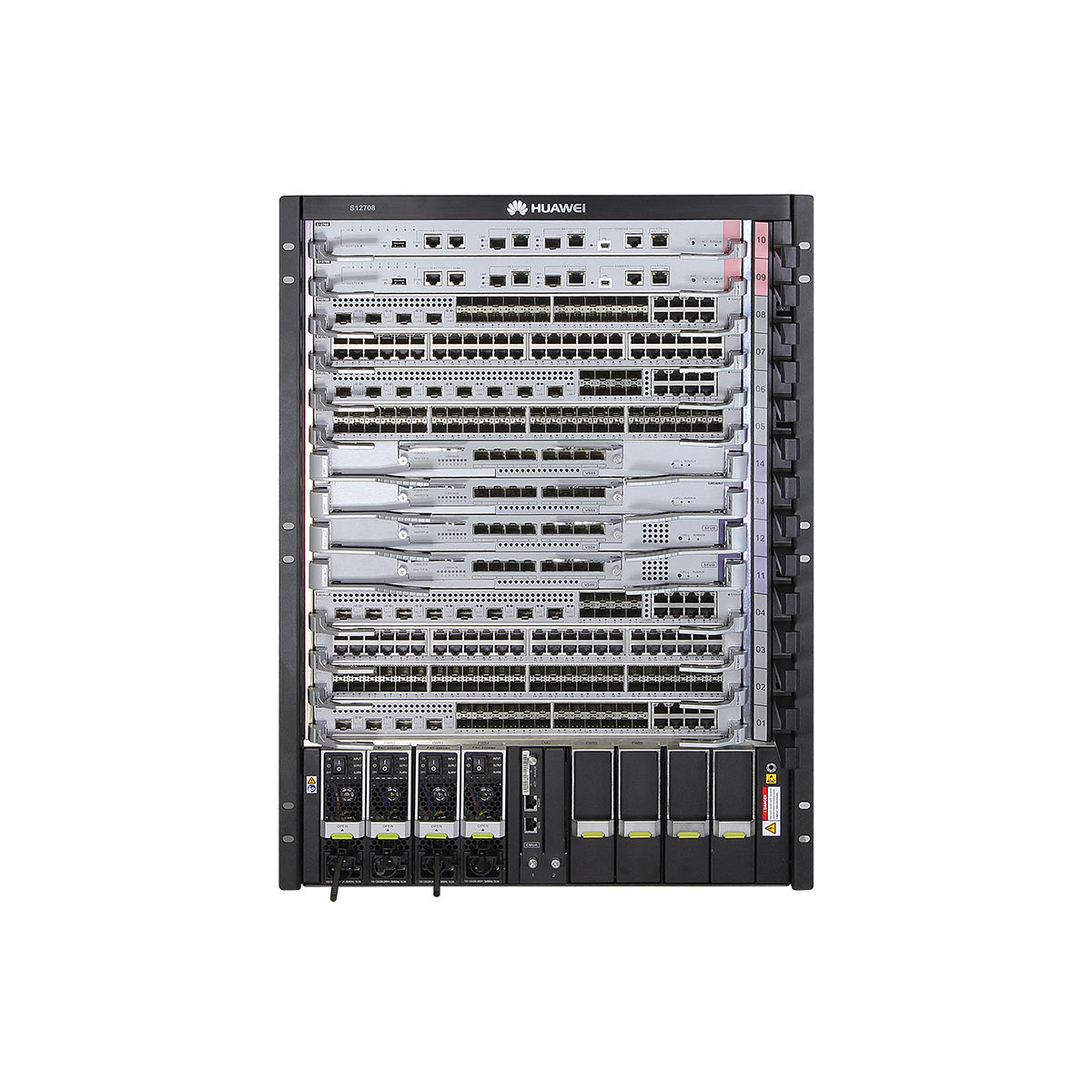

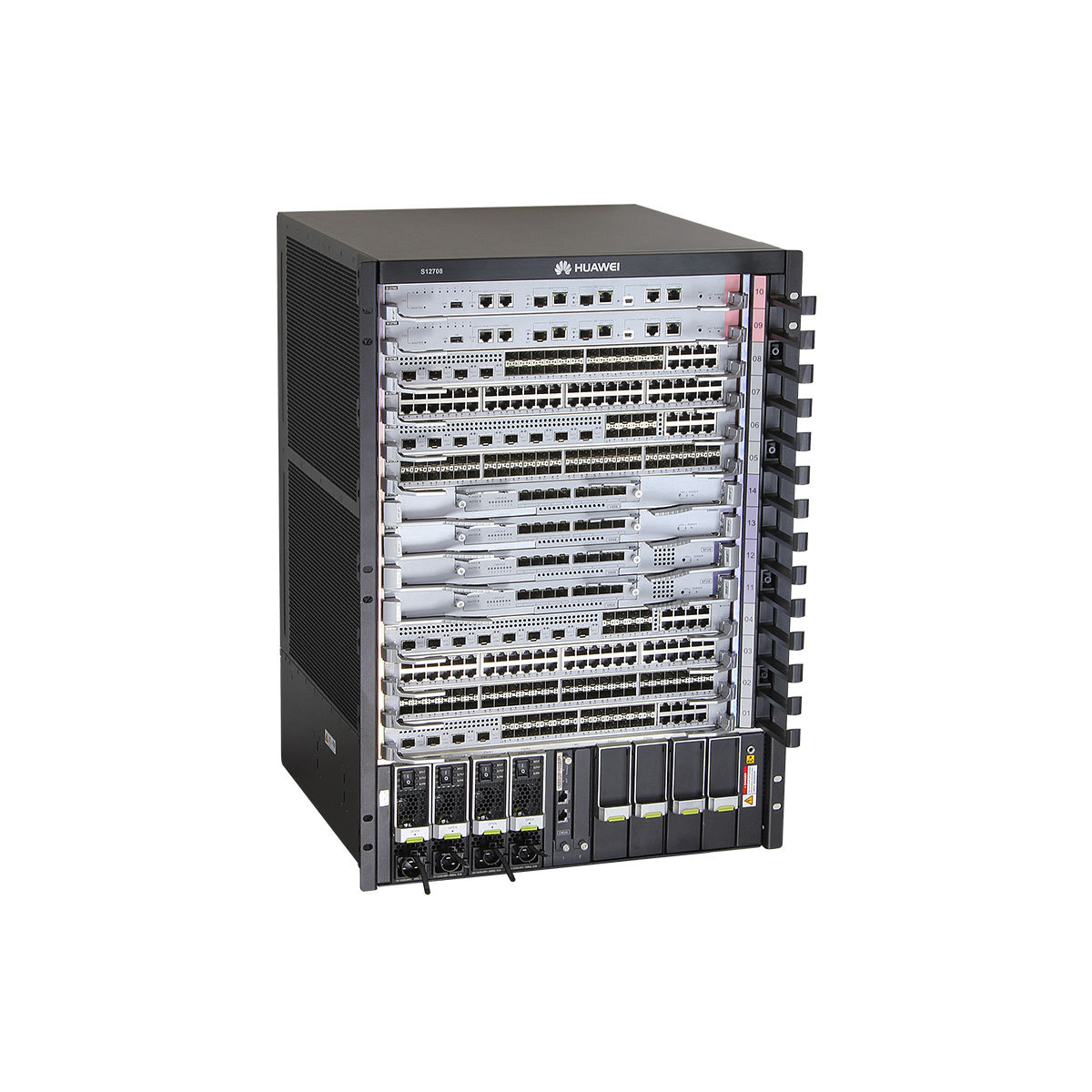

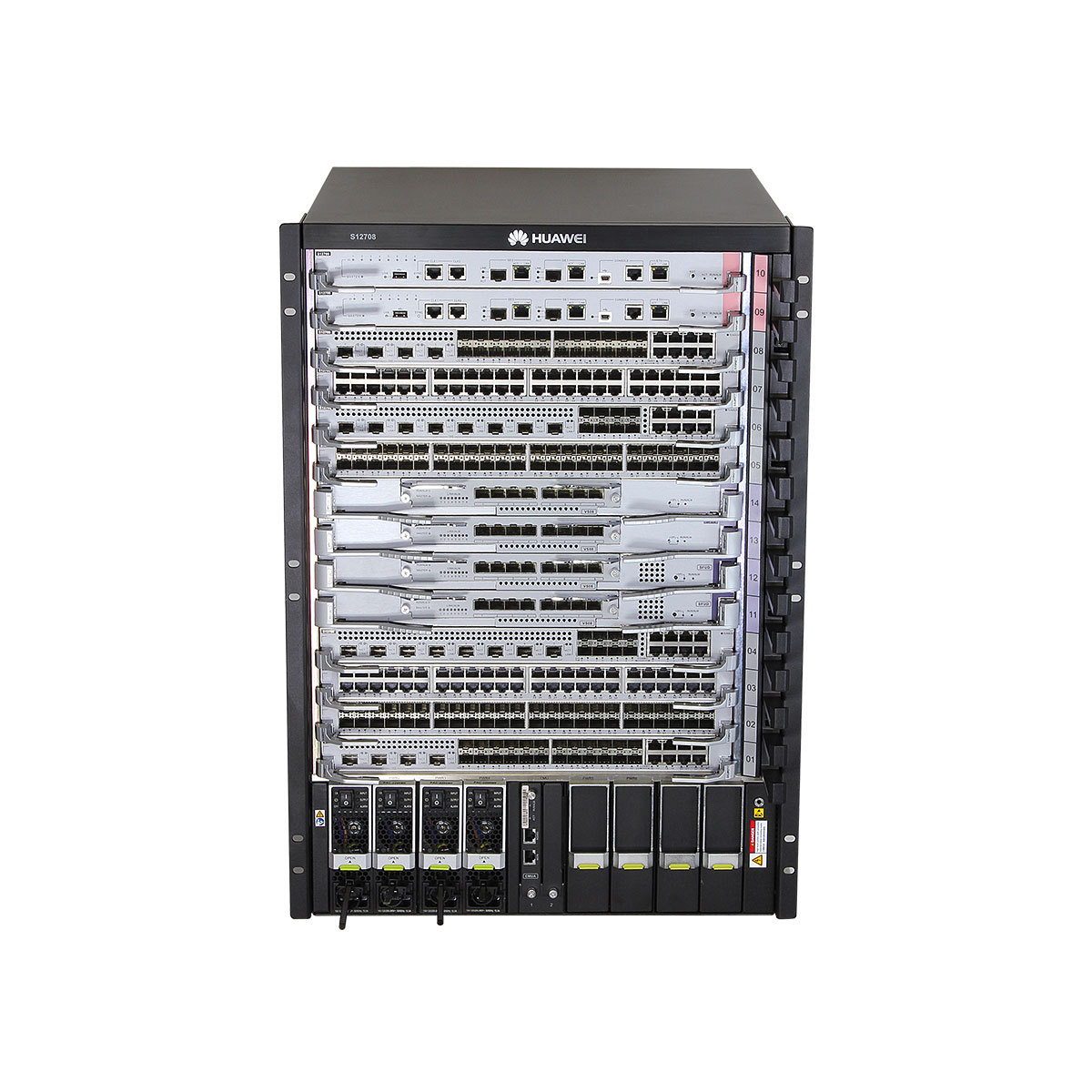

Huawei S12708 Switch

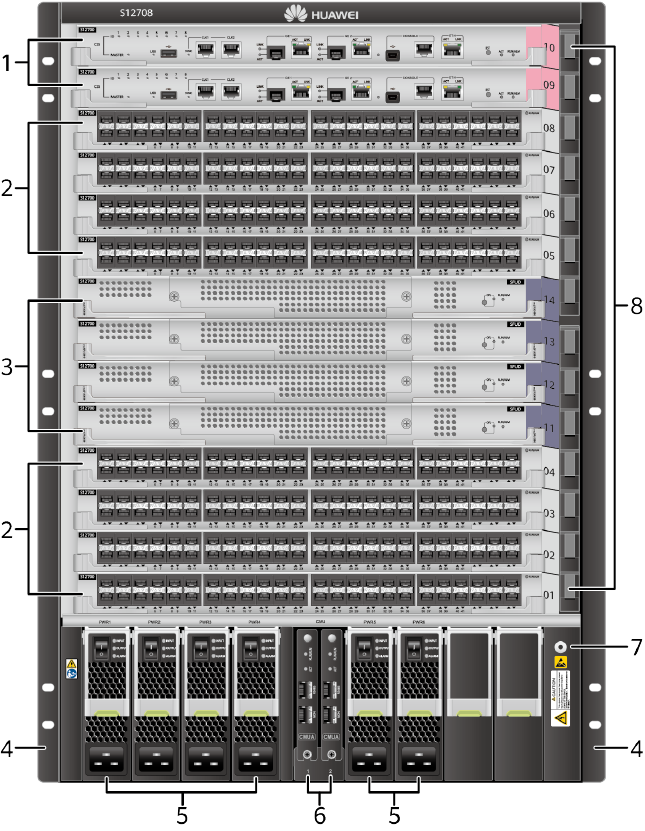

1. Two MPUs

2. Eight of the following service cards can be installed:

• Open Service Platform Unit
• 1000M Interface Card
• GE/10GE Interface Card
• 10GE Interface Card
• 40GE Interface Card
• 40GE/100GE Interface Card
• 100GE Interface Card
  NOTE:

  The cards supported by a switch depend on the software version. For details, see Info-finder.

3. Four SFUs

4. A pair of mounting brackets

5. Six power modules

6. Two CMUs

7. Front ESD jack

8. Cable management frames

MPU slots

SLOT09, SLOT10

MPU

MPUs in the two slots work in active/standby mode.

SFU slots

SLOT11 to SLOT14

SFU

One to four SFUs can be installed.

LPU slots

SLOT01 to SLOT08

• Open Service Platform Unit
• 1000M Interface Card
• GE/10GE Interface Card
• 10GE Interface Card
• 40GE Interface Card
• 40GE/100GE Interface Card
• 100GE Interface Card

CMU slots

CMU1, CMU2

CMU

Two CMUs in the slots work in hot standby mode.

Power module slots

PWR1 to PWR6

power modules

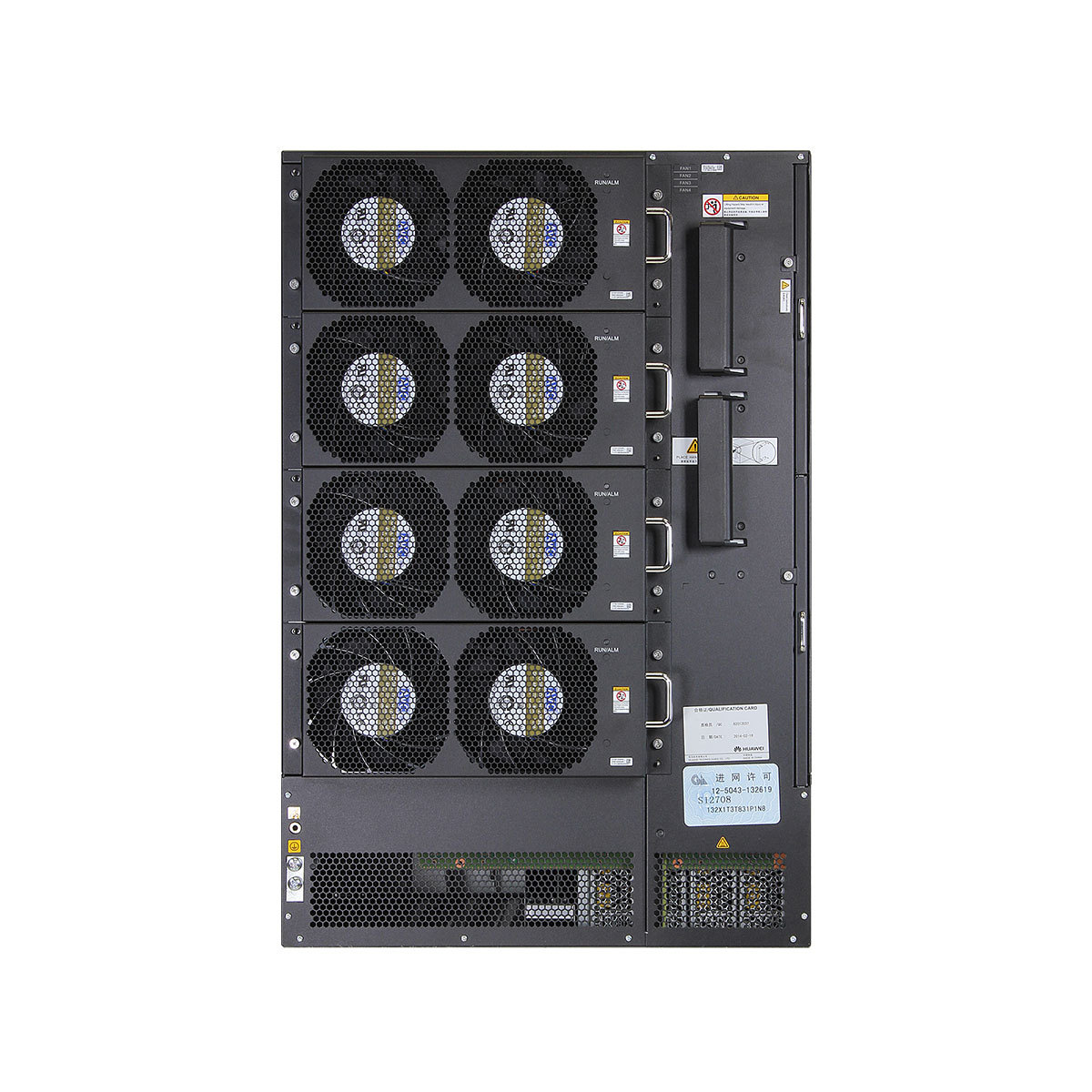

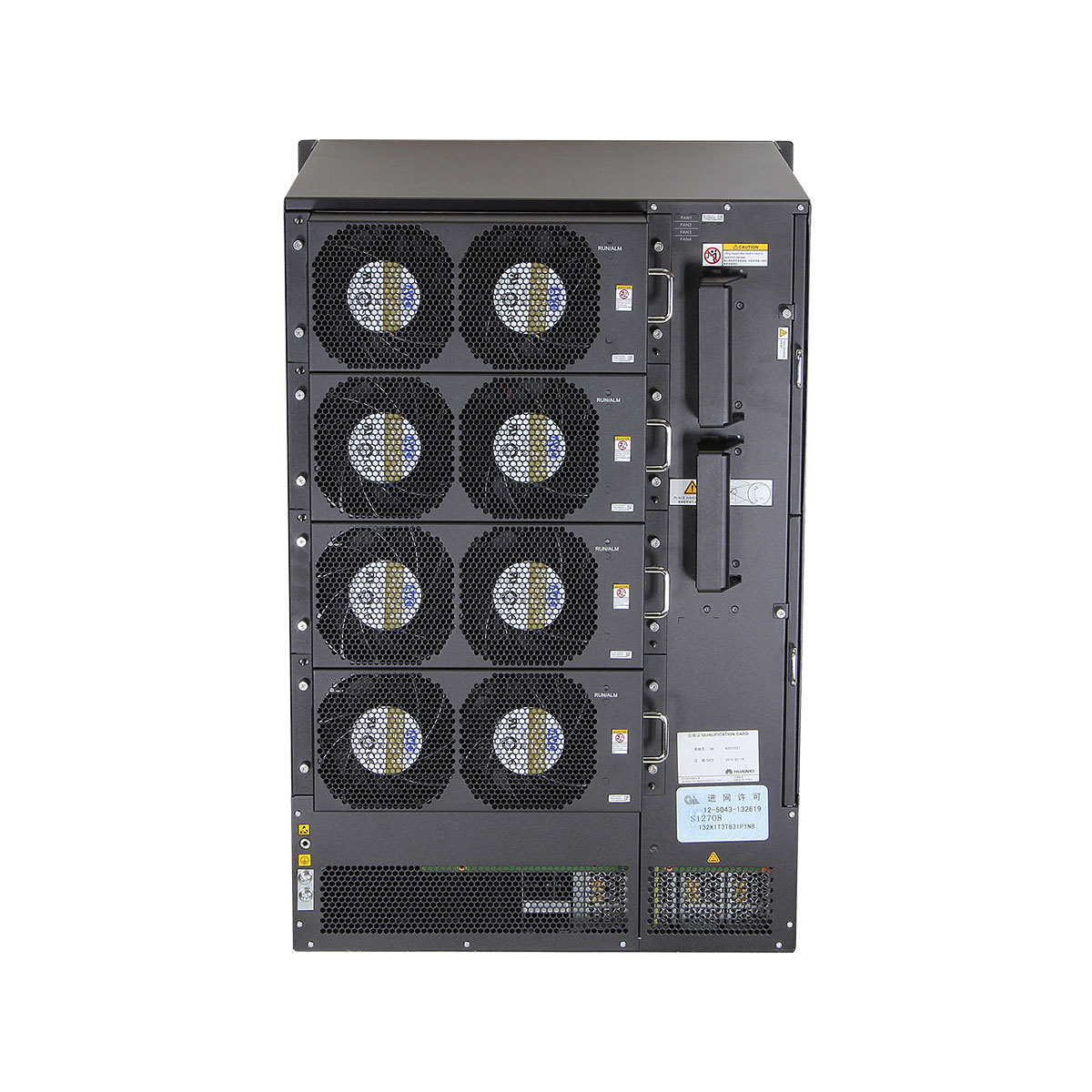

Fan module slot

FAN1 to FAN4

Fan Module

-

Number of LPU slots

8

Number of MPU slots

2

Number of SFU slots

4

Number of fan slots

4

Number of power module slots

6

Number of CMU slots

2

Port density per chassis

• V200R005C00 to V200R007C20: 384xFE, 384xGE, 384x10GE, 64x40GE
• V200R008C00 to V200R009C00: 384xFE, 384xGE, 384x10GE, 64x40GE, 16x100GE
• V200R010C00 to V200R011C10: 384xFE, 384xGE, 384x10GE, 64x40GE, 32x100GE
• V200R012C00 and later versions: 384xFE, 384xGE, 384x10GE, 128x40GE, 64x100GE

Installation

The switch can be installed in an N66E or N68E cabinet, one cabinet for one chassis.

Cluster switch system (CSS)

CSS2, switch fabric hardware clustering

Maximum power consumption (fully configured)

5234 W

Power specifications

• DC input voltage

  Rated voltage: -48 V DC to -60 V DC

  Maximum voltage range: -40 V DC to -72 V DC

• AC input voltage

  Rated voltage: 110 V AC/220 V AC, 50/60 Hz

  Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage ranges from 90 V AC to 175 V AC.)

• HVDC input voltage (3000 W AC)

  Rated voltage: 240 V DC

  Maximum voltage range: 190 V DC to 290 V DC

Dimensions (H x W x D, without rack-mounting brackets)

• With cable management frames (15 U high): 663.9 mm x 442 mm x 585 mm (26.1 in. x 17.4 in. x 23.0 in.)
• Without cable management frames (15 U high): 663.9 mm x 442 mm x 517.4 mm (26.1 in. x 17.4 in. x 20.37 in.)

Weight (empty/fully configured)

42 kg/120 kg (92.6 lb/264.6 lb)

Reliability and availability

• Mean Time Between Failures (MTBF): 40.04 years
• Availability: 0.9999984

Environment specifications

• Operating temperature and altitude:

  -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)

  1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).

  4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)

• Relative humidity: 5% RH to 95% RH (noncondensing)
• Storage temperature: -40°C to +70°C (-40°F to +158°F)
• Storage altitude: < 5000 m (16404 ft.)

Noise under normal temperature (sound power)

≤ 72 dB(A)

Certification

• EMC certification
• Safety certification
• Manufacturing certification

Part number

02114178
