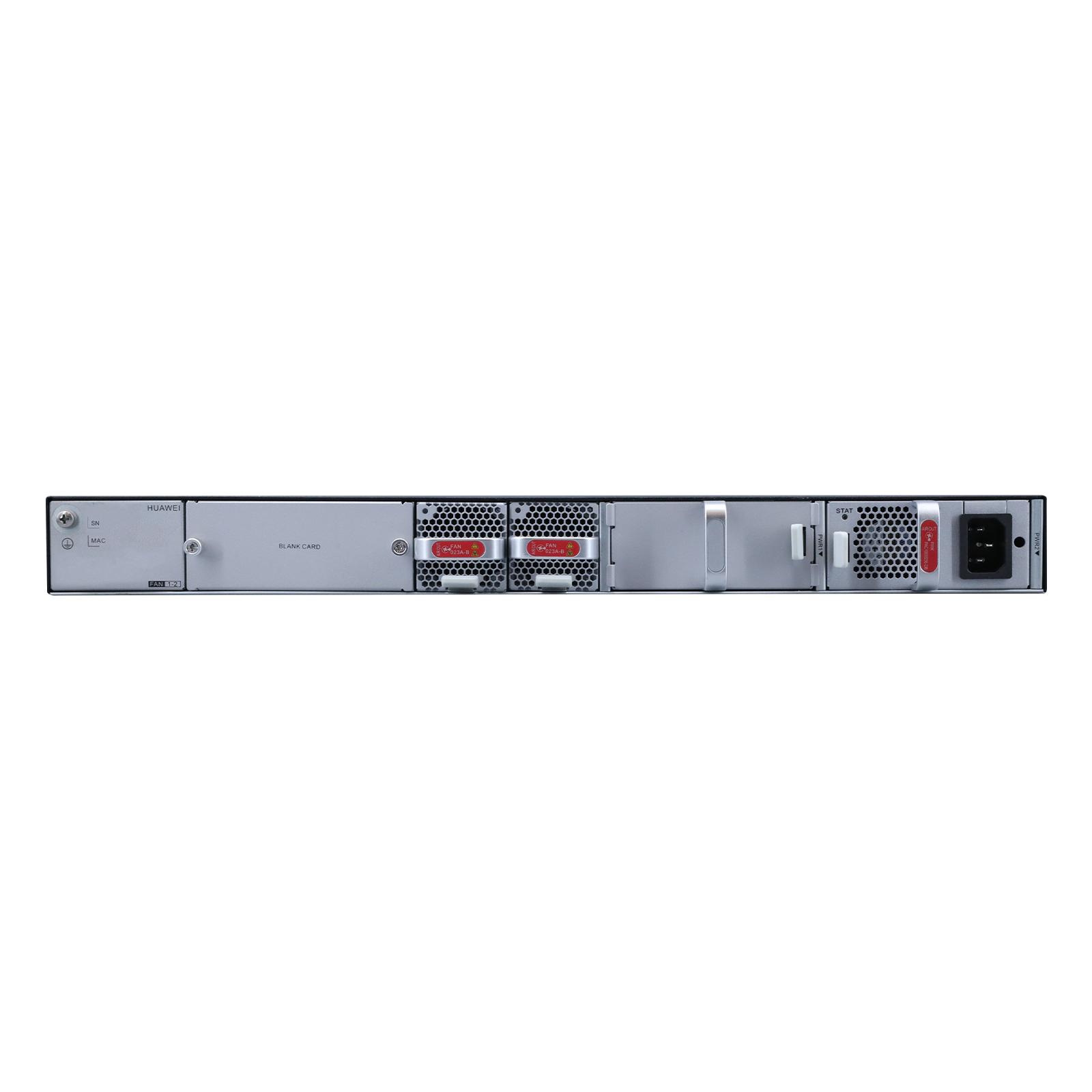

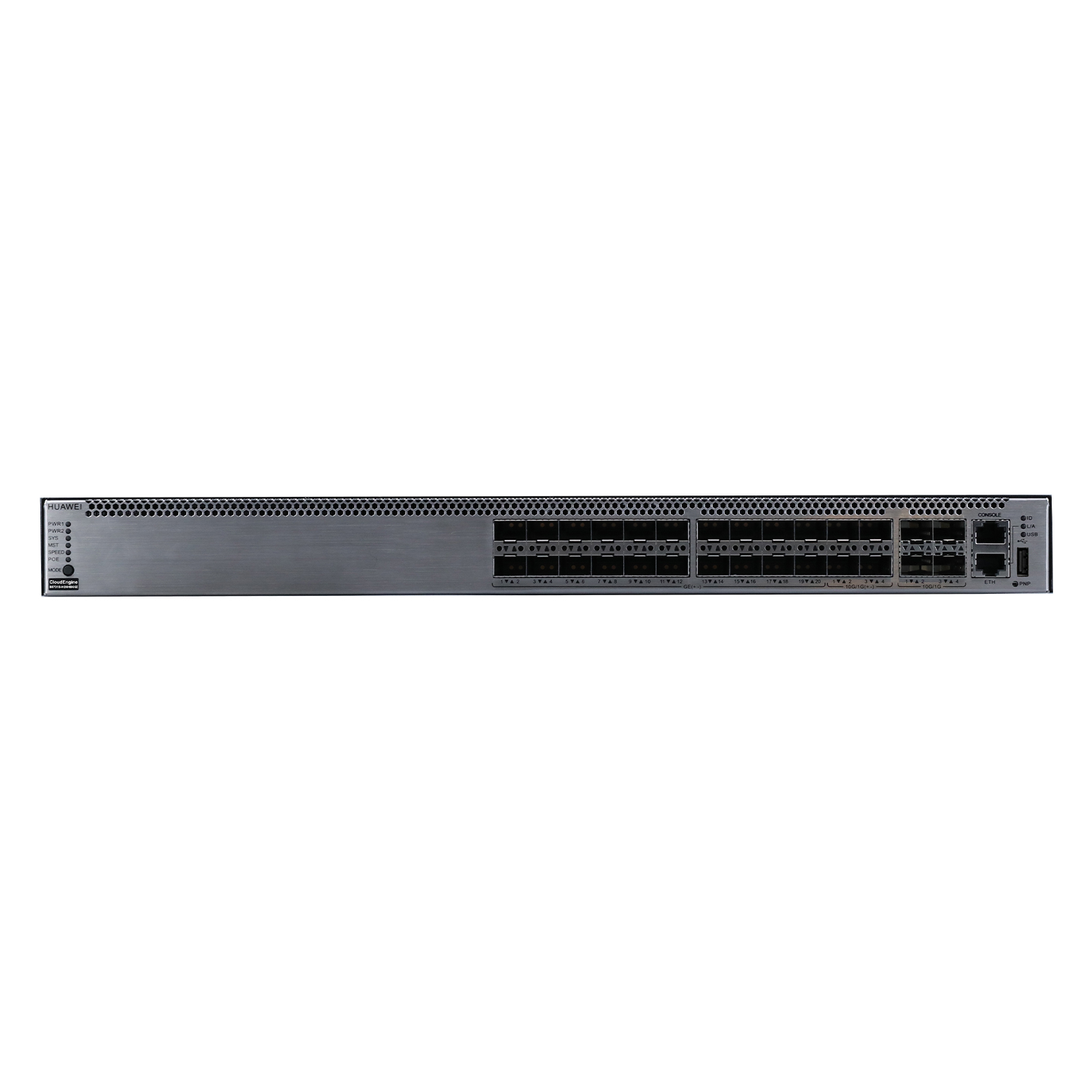

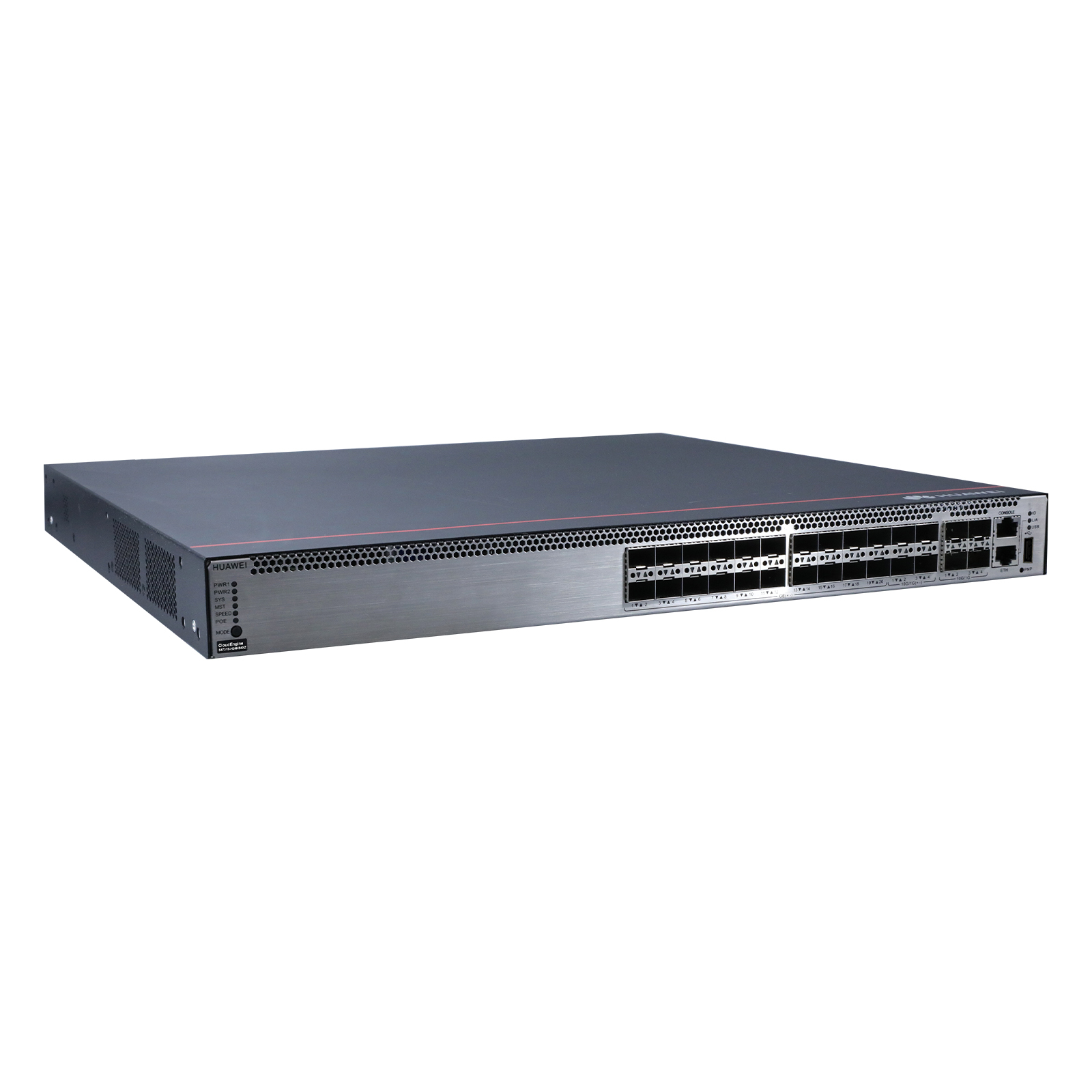

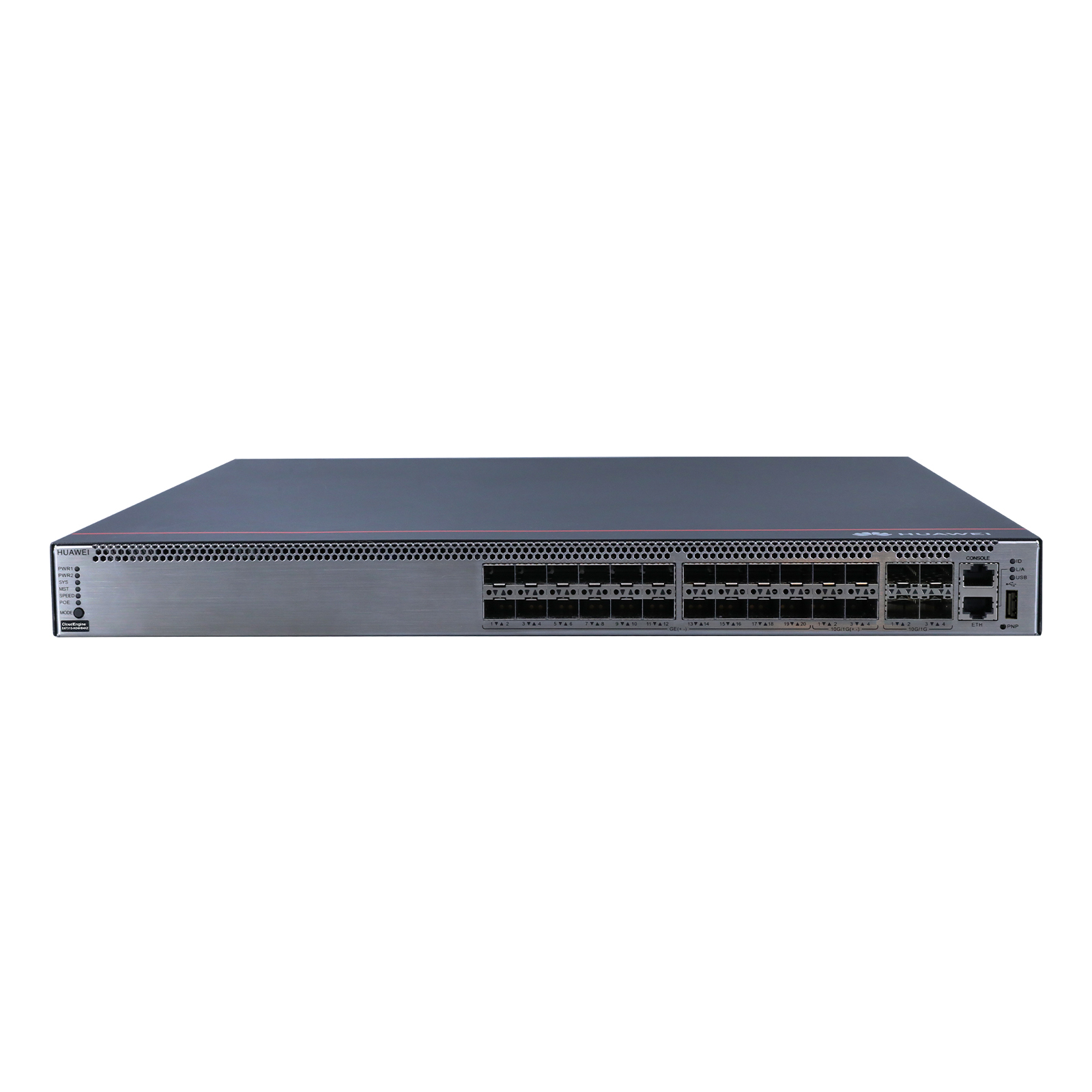

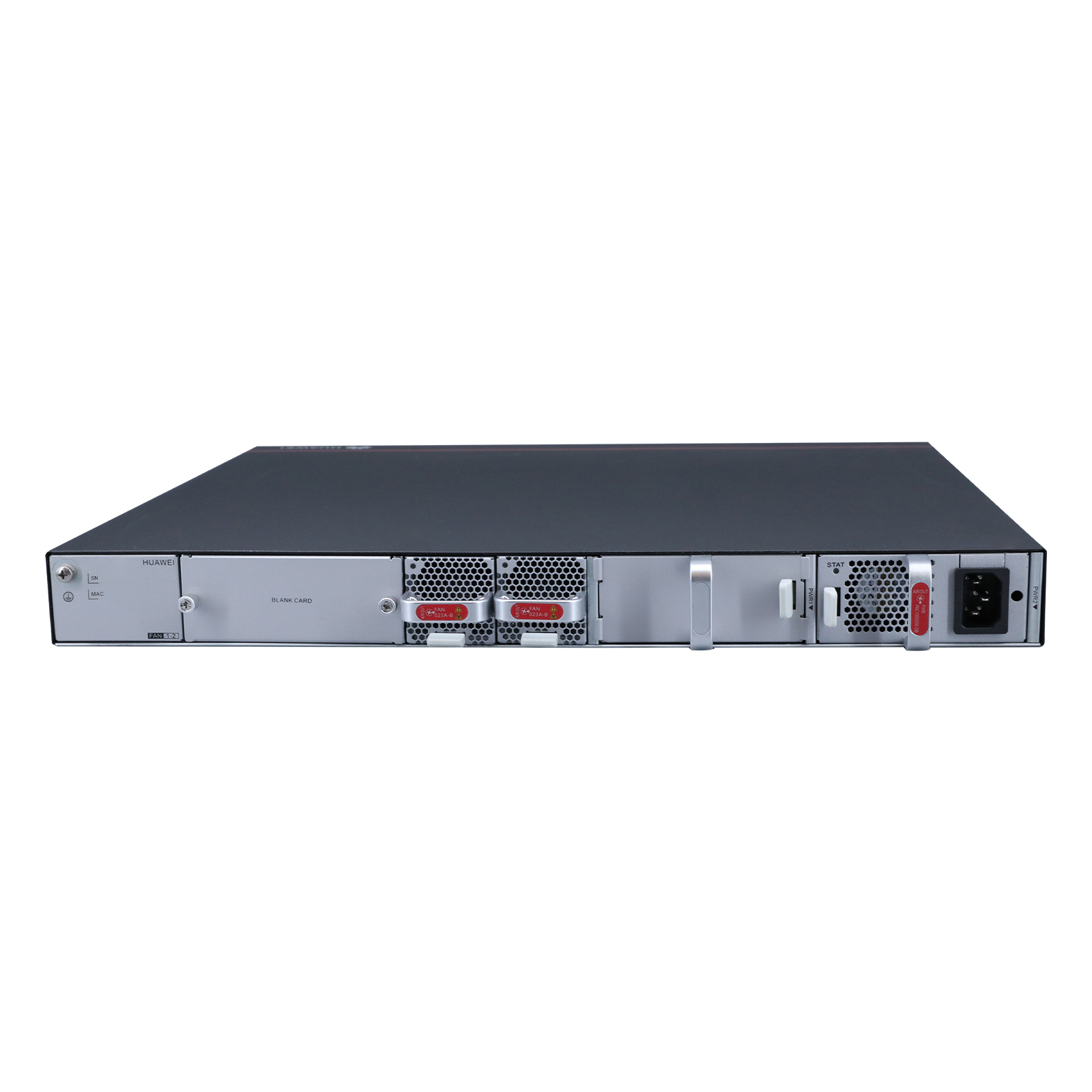

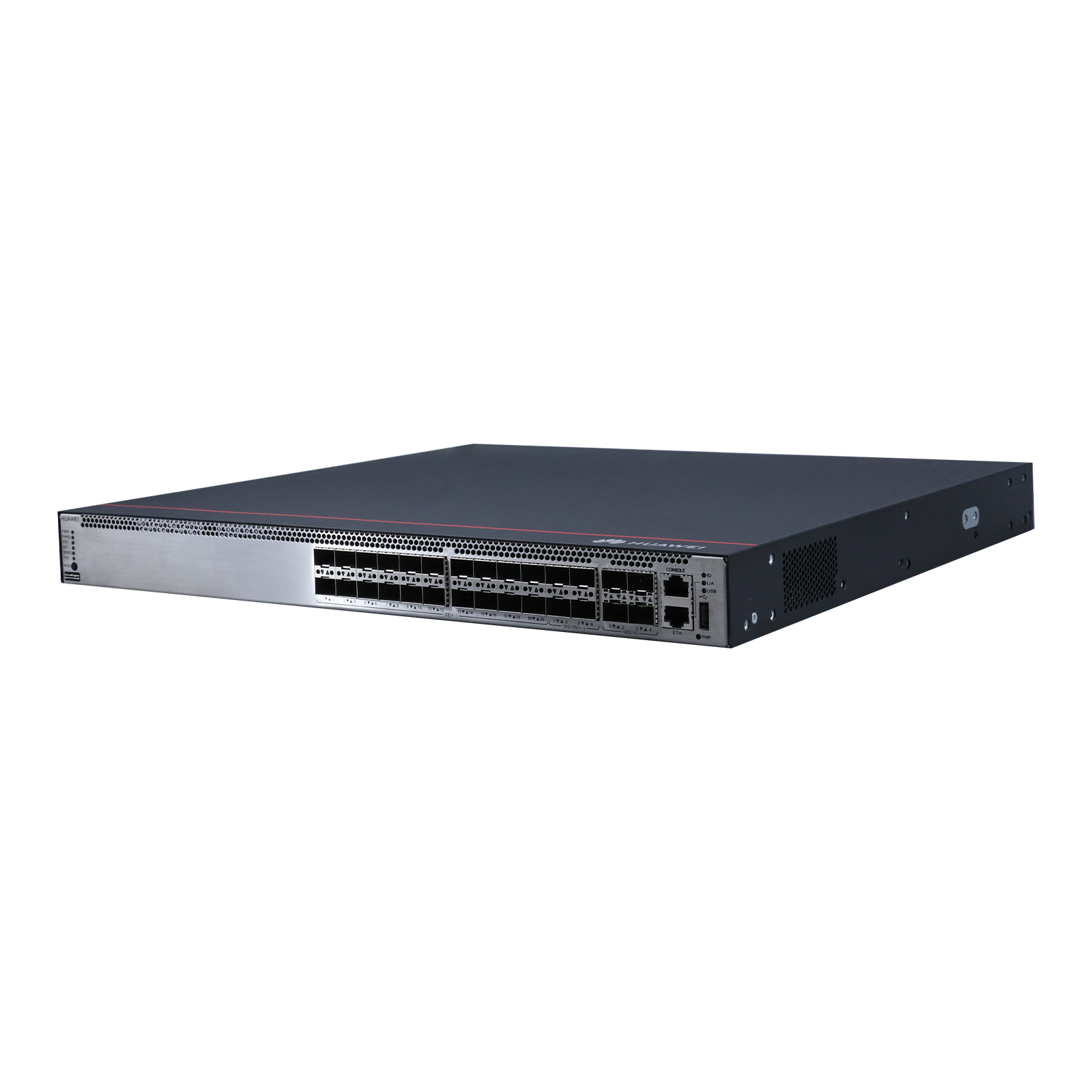

Huawei CE6881-48S6CQ-K Switch

Huawei S5731S-H24HB4XZ-A 20-port Switch

Name: Huawei S5731S-H24HB4XZ-A 20-port Switch
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0234
Price: 290.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0234

Huawei CloudEngine S5731S-H24HB4XZ-A switch, fixed 20*Hybrid GE SFP ports, 4*Hybrid 10GE SFP+ ports, 4*10GE SFP+ ports, 1*expansion slot, PoE++, 2 pluggable power slots flexible configuration with AC/DC power module

Brand

Huawei

Part Number

02354QXE

Packing Box Specifications

44*44*45mcm

Gross Weight

10kg

Condition

Original New

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

S5731S-H24HB4XZ-A Introduction

Fixed ports: fixed 20*Hybrid GE SFP ports, 4*Hybrid 10GE SFP+ ports, 4*10GE SFP+ ports, 1*expansion slot, PoE++
2 pluggable power slots, 1+1 power backup

S5700-S Series Switches Overview

The S series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and their hardware system consists of the chassis, power module, fan module, extended cards, and Switch Control Unit (SCU).

The Huawei S5731S-H24HB4XZ-A is a high-end, high-performance, balanced PoE 10 Gigabit switch in the Huawei S5731S series. Its core advantage is "high-density PoE + high-bandwidth balanced networking for small and medium-sized scenarios"—24 Gigabit PoE ports adapt to 2000-4000 terminals, with a maximum power supply of 60W per port (supporting all 802.3af/at/bt standards), and a total power budget of ≥510W; 4 25G optical ports support ultra-high-speed uplink, with a total switching capacity of ≥880Gbps and a forwarding performance of 420Mpps; equipped with a high-end forwarding chip and large-capacity cache, it supports enterprise-level functions such as link aggregation, VRRP redundancy, and intelligent PoE management. It has a built-in 9KV surge protection + hardware redundancy design, with an annual failure rate of <0.02%, making it the first choice for small and medium-sized enterprises that pursue quality and cost-effectiveness.

S5731S-H24HB4XZ-A FAQ

Q1: What are the key differences between this and the 48-port S5731S-H48HB4XZ-A in the same series?

A1: The former is a 24-port balanced model, with port density suitable for small to medium-sized scenarios, offering better cost-effectiveness; the latter is a 48-port high-density model, suitable for medium to large-scale high-density PoE scenarios. Both have the same core performance, PoE power, and 25G uplink capability.

Q2: Will there be insufficient power supply when connecting high-power PoE devices to all 24 ports simultaneously?

A2: No. With a total power budget ≥510W, and intelligent power allocation technology, it can simultaneously drive 24 20W devices, 17 30W devices, or 8 60W devices, meeting the needs of most small to medium-sized high-power PoE applications.

Q3: Is it necessary for small and medium-sized enterprises to choose a high-end PoE switch?

A3: High-power PoE can be adapted to future upgrades of high-power devices, 25G uplink avoids frequent bandwidth expansion, high-end hardware has a lower failure rate, and long-term operation and maintenance costs are better, making it suitable for core business scenarios with high stability requirements.

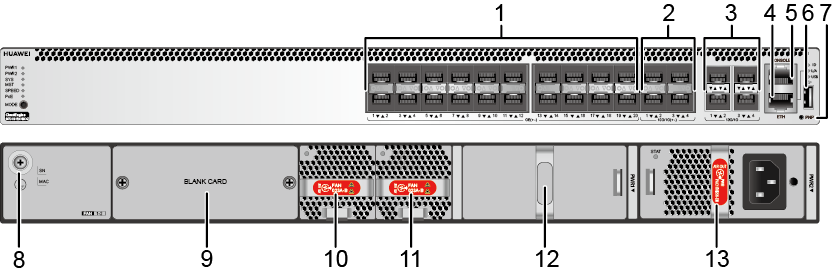

S5731S-H24HB4XZ-A Appearance

1	Twenty 100/1000BASE-X hybrid optical-electrical ports (supporting PoE++) NOTE: In V200R023C00 and later versions, 100/1000BASE-X hybrid optical-electrical ports can be configured to work at 2.5 Gbit/s using the port mode 2.5ge command.	2	Four 10GE SFP+ hybrid optical-electrical ports (supporting PoE++) NOTE: In V200R023C00 and later versions, 10GE SFP+ hybrid optical-electrical ports can be configured to work at 2.5 Gbit/s using the port mode 2.5ge command.
3	Four 10GE SFP+ optical ports	4	One ETH management port
5	One console port	6	One USB port
7	One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.	8	Ground screw NOTE: It is used with a ground cable. Two OT grounding holes are provided on the side of the switch. If two OT terminals are required for grounding, you can purchase the two OT terminals separately.
9	Rear card slot NOTE: Applicable card: ES5D21X08T00 ES5D21Q02Q00 S7X08000 (02312URW) S7X08000 (02312URW-002) (applicable in V200R021C10SPC600 and later versions) S7Q02001 (02313UBW) S7Q02001 (02313UBW-002) (applicable in V200R021C10SPC600 and later versions) If the rate of a port is set to 2.5 Gbit/s, the rear card cannot be used.	10	Fan module slot 1 NOTE: Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust))
11	Fan module slot 2 NOTE: Applicable fan module: FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust))	12	Power module slot 1 NOTE: Applicable power modules: PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module) PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module) PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module) PDC1000S56-CB (1000 W PoE DC Power Module) PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust))
13	Power module slot 2 NOTE: Applicable power modules: PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module) PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module) PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module) PDC1000S56-CB (1000 W PoE DC Power Module) PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust))	-	-、

S5731S-H24HB4XZ-A Port Description

Port	Connector Type	Description	Available Components
100/1000BASE-X hybrid optical-electrical port	SFP	A 100/1000BASE-X hybrid optical-electrical port can send and receive data at 100 Mbit/s or 1000 Mbit/s. It can provide PoE power through hybrid cable. In V200R023C00 and later versions, 100/1000BASE-X hybrid optical-electrical ports can be configured to work at 2.5 Gbit/s using the port mode 2.5ge command.	FE SFP/eSFP optical modules GE eSFP optical modules GE-CWDM eSFP optical modules GE-DWDM eSFP optical modules GE SFP copper module GE SFP Hybrid Modules 2.5GE eSFP Optical Modules (supported in V200R023C00 and later versions) 2.5GE eSFP Hybrid Modules (supported in V200R023C00 and later versions) Hybrid cable 2.0
10GE SFP+ hybrid optical-electrical port	SFP+	A 10GE SFP+ hybrid optical-electrical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s, 2.5 Gbit/s, or 10 Gbit/s. It can provide PoE power through hybrid cable. In V200R023C00 and later versions, 10GE SFP+ hybrid optical-electrical ports can be configured to work at 2.5 Gbit/s using the port mode 2.5ge command.	GE eSFP optical modules GE-CWDM eSFP optical modules GE-DWDM eSFP optical modules GE SFP copper module 10GE SFP+ optical modules (OSXD22N00 not supported) 10GE-CWDM SFP+ optical modules 10GE-DWDM SFP+ optical modules 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables GE SFP Hybrid Modules 10GE SFP+ Hybrid Modules 2.5GE eSFP Optical Modules (supported in V200R023C00 and later versions) 2.5GE eSFP Hybrid Modules (supported in V200R023C00 and later versions) Hybrid cable 2.0
10GE SFP+ optical port	SFP+	A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s.	GE eSFP optical modules GE-CWDM eSFP optical modules GE-DWDM eSFP optical modules GE SFP copper module 10GE SFP+ optical modules (OSXD22N00 not supported) 10GE-CWDM SFP+ optical modules 10GE-DWDM SFP+ optical modules 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack cables (only for zero-configuration stacking)
Console port	RJ45	The console port is connected to a console for on-site configuration.	Console cable
ETH management port	RJ45	You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port.	Ethernet cable
USB port	USB 2.0 Ty、pe A	The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0. USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.	USB flash drive

Technical specifications of the S5731S-H24HB4XZ-A

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.64 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	6.6 kg (14.55 lb)
Weight with packaging [kg(lb)]	8.4 kg (18.52 lb)
Typical power consumption [W]	87 W
Typical heat dissipation [BTU/hour]	296.85 BTU/hour
Maximum power consumption [W]	Without PoE: 127 W (without cards) Full PoE load: 1927 W (PoE: 1768 W, without cards)
Maximum heat dissipation [BTU/hour]	Without PoE: 433.34 (without cards) Full PoE load: 6575.12 (without cards)
Static power consumption [W]	66 W
MTBF [years]	53.82 years
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Dual-AC 600 W, 70% load: 57.77 dBA Dual-AC 1000 W, 70% load: 63.78 dBA Dual-DC 1000 W, 70% load: 62.38 dBA Dual-AC 600 W, 100% load: 63.78 dBA Dual-AC 1000 W, 100% load: 68.07 dBA Dual-DC 1000 W, 100% load: 66.26 dBA
Number of card slots	1
Number of power slots	2
Number of fans modules	2
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature exceeds 45°C (113°F) for a maximum of 96 consecutive hours in a year. The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45–65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Not supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	-
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left, front, and right and air exhaust from rear
PoE	Supported
Certification	EMC certification (The EMC radiated emission complies with standards requirements, although it may vary according to installation of optical modules or copper modules.) Safety certification Manufacturing certification

Optical Modules Supported by Huawei S Series Switches

Module Name	Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310	2 km
eSFP-FE-LX-SM1310	15 km
S-SFP-FE-LH40-SM1310	40 km
S-SFP-FE-LH80-SM1550	80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module)	15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310	10 km
S-SFP-GE-LH40-SM1310	40 km
S-SFP-GE-LH40-SM1550	40 km
S-SFP-GE-LH80-SM1550	80 km
eSFP-GE-ZX100-SM1550	100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module)	10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)	40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)	40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module)	10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1	10 km
CSFP-GE-FE-BIDI2	20 km
CSFP-GE-FE-BIDI4	40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271	80 km
CWDM-SFPGE-1291	80 km
CWDM-SFPGE-1311	80 km
CWDM-SFPGE-1331	80 km
CWDM-SFPGE-1351	80 km
CWDM-SFPGE-1371	80 km
CWDM-SFPGE-1391	80 km
CWDM-SFPGE-1411	80 km
CWDM-SFPGE-1431	80 km
CWDM-SFPGE-1451	80 km
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61	120 km
10GE SFP+ Optical Modules
SFP-10G-USR	0.1 km
OSXD22N00	Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.1 km Multimode fiber (with modal bandwidth of 500 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
SFP-10G-iLR	1.4 km
OSX010000	10 km
OSX040N01	40 km
SFP-10G-ER-1310	40 km
SFP-10G-ZR	80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module)	40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module)	40 km
10GE XFP Optical Modules
XFP-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310	10 km
XFP-STM64-LH40-SM1550	40 km
XFP-STM64-SM1550-80km	80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471	70 km
SFP-10G-ZCW1491	70 km
SFP-10G-ZCW1511	70 km
SFP-10G-ZCW1531	70 km
SFP-10G-ZCW1551	70 km
SFP-10G-ZCW1571	70 km
SFP-10G-ZCW1591	70 km
SFP-10G-ZCW1611	70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471	70 km
CWDM-XFP10G-1491	70 km
CWDM-XFP10G-1511	70 km
CWDM-XFP10G-1531	70 km
CWDM-XFP10G-1551	70 km
CWDM-XFP10G-1571	70 km
CWDM-XFP10G-1591	70 km
CWDM-XFP10G-1611	70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT	60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47	80 km
DWDM-XFP10G-1534-25	80 km
DWDM-XFP10G-1535-04	80 km
DWDM-XFP10G-1552-52	80 km
DWDM-XFP10G-1553-33	80 km
DWDM-XFP10G-1554-13	80 km
DWDM-XFP10G-1530-33	80 km
DWDM-XFP10G-1549-32	80 km
DWDM-XFP10G-1531-12	80 km
DWDM-XFP10G-1531-90	80 km
DWDM-XFP10G-1550-12	80 km
DWDM-XFP10G-1550-92	80 km
DWDM-XFP10G-1532-68	80 km
DWDM-XFP10G-1551-72	80 km
DWDM-XFP10G-1529-55	80 km
DWDM-XFP10G-1548-51	80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4	1.4 km
QSFP-40G-eSM4	10 km
QSFP-40G-LX4	Single-mode fiber: 2 km Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4	10 km
QSFP-40G-ER4	40 km
QSFP-40G-SR-BD	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-40G-LR4	10 km
CFP-40G-ER4	40 km
CFP-40G-ZR4	80 km
100GE CFP Optical Modules
CFP-100G-SR10	Multimode fiber (OM2): 0.03 km Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-100G-LR4	10 km
CFP-100G-ER4	40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4	10 km
QSFP28-100G-10KM	10 km
QSFP28-100G-PSM4	500 m
QSFP28-100G-SR4	Multimode fiber (OM3): 70 m Multimode fiber (OM4): 100 m
QSFP-100G-eSR4	Multimode fiber (OM3): 200 m Multimode fiber (OM4): 300 m
QSFP-100G-CLR4	2 km
QSFP-100G-CWDM4	2 km
QSFP-100G-ER4-Lite	Single-mode fiber (G.652): Disables the RS-FEC function: 30 km Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2	20 km
Industrial Optical Modules
OGSM01880	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km
OGSC10DD0	10 km
OGSC40DD0	40 km
SFP+10GE-LH10-SM1310	10 km
SFP-10G-SR	0.3 km
SFP-10G-iLR	1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module)	10 km
