Huawei CE6881-48S6CQ-K Switch

Huawei S5732-H48XUM2CC Switch

Name: Huawei S5732-H48XUM2CC Switch
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0240
Price: 1550.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0240

Huawei CloudEngine S5732-H48XUM2CC switch, fixed 24* PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports (multi-GE ports), 24*10GE SFP+ ports, 4*1GE/10GE/25GE SFP28 optical ports, 2*40GE/100GE QSFP28 optical ports, 2 pluggable power slots flexible configuration with AC/DC power module

Brand

Huawei

Part Number

02353MLH

Packing Box Specifications

44*44*45mcm

Gross Weight

10kg

Condition

Original New

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

S5732-H48XUM2CC Introduction

Fixed ports: fixed 24* PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports (multi-GE ports), 24*10GE SFP+ ports, 4*1GE/10GE/25GE SFP28 optical ports, 2*40GE/100GE QSFP28 optical ports
2 pluggable power slots, 1+1 power backup

S5700-S Series Switches Overview

The S series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and their hardware system consists of the chassis, power module, fan module, extended cards, and Switch Control Unit (SCU).

The Huawei S5732-H48XUM2CC is a high-performance 10 Gigabit aggregation switch in the Huawei S5732 series. Its core advantage is "high-bandwidth and efficient networking for medium and large-scale scenarios"—48 Gigabit Ethernet ports adapt to 4000-8000 terminals, 4 25G optical ports support ultra-high-speed uplink, with a total switching capacity of ≥748Gbps and a forwarding performance of 360Mpps. It is equipped with an enhanced forwarding chip and a large-capacity cache, supports enterprise-level functions such as link aggregation, VRRP redundancy, and fine-grained QoS, and has a built-in 9KV surge protection design with an annual failure rate of <0.03%. It is the first choice for medium and large-scale enterprises' core layer and campus aggregation layer to "balance bandwidth, stability and scalability".

S5732-H48XUM2CC FAQ

Q1: What are the key differences between this model and the basic S5735-L48T4X-A in the same series?

A1: The former is a high-performance model, supporting 25G uplink (2.5 times the bandwidth of 10G), with significantly improved forwarding performance and buffer capacity, suitable for medium to large core layers; the latter is the basic model, with 10G uplink, focusing on cost-effectiveness for small to medium-sized scenarios.

Q2: Will there be lag when 48 ports are connected to high-concurrency devices simultaneously?

A2: No, with a total switching capacity ≥748Gbps and forwarding performance reaching 360Mpps, combined with a large-capacity buffer and enhanced forwarding chip, it can easily handle 8000 concurrent terminal transmissions without lag or packet loss.

Q3: The 25G optical module is more expensive; is it worth choosing?

A3: For medium and large enterprises/high-density scenarios, 25G uplink can reduce the number of cascaded devices and lower long-term operation and maintenance costs; it also supports compatibility with 10G devices, allowing for gradual upgrades based on business growth, making the investment more forward-looking.

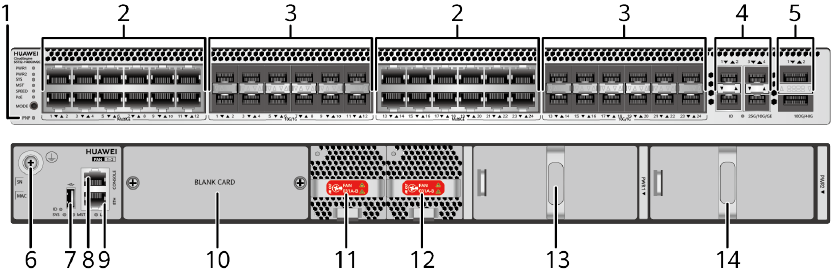

S5732-H48XUM2CC Appearance

1	One PNP button NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.	2	Twenty-four PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports (multi-GE ports) NOTE: The S5732-H48XUM2CC is a hybrid optical-electrical switch. You can use one multi-GE port and one 10GE SFP+ optical port together by connecting them through a hybrid cable. This cable is composed of copper cores terminated on RJ45 connectors and optical fibers terminated on LC connectors. The typical application scenario is as follows: The copper cores connect a multi-GE port of a switch to a PoE_IN port of an AP to allow the switch to supply power to the AP while no data is transmitted over this cable. The optical fibers connect a SFP+ optical port on the switch to a SFP+ optical port of the AP to transmit data.
3	Twenty-four 10GE SFP+ ports Applicable modules and cables: GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module 10GE SFP+ optical module (OSXD22N00 not supported) 10GE-CWDM optical module 10GE-DWDM optical module 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack cables (supported by the last 16 SFP+ ports and used only for zero-configuration stacking) First-generation Hybrid Cable NOTE: It is recommended that optical fibers in the first-generation hybrid cables be fusion spliced onsite. If you assemble optical fibers in hybrid cables in mechanical splicing mode, only SFP-10G-iLR-S optical modules are supported.	4	Four 1GE/10GE/25GE SFP28 optical ports Applicable modules and cables: GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (100M/1000M auto-sensing) 10GE SFP+ optical module (OSXD22N00 not supported) 10GE-CWDM optical module 10GE-DWDM optical module PEN remote optical modules (V200R024C00 and later versions) 25GE SFP28 Optical Module 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 1 m, 3 m, and 5 m SFP28 high-speed copper cables 3 m, 5 m, 7 m, and 10 m SFP28 AOC cables
5	Two 40GE/100GE QSFP28 optical ports Applicable modules and cables: QSFP+ optical module QSFP28 optical module 1 m, 3 m, and 5 m QSFP+ high-speed copper cables 10 m QSFP+ AOC cable 1 m, 3 m, and 5 m QSFP28 high-speed copper cables 10 m QSFP28 AOC cable 2 m QSFP28 dedicated stack cable (supported in V200R020C10 and later versions) NOTE: You can run the set device port-config-mode enable command to change the working mode of SFP28 and QSFP28 optical ports. By default, the working mode of SFP28 and QSFP28 optical ports is "4 x 25GE + 2 x 40GE". If any QSFP28 optical port is configured to work at 100 Gbit/s or split into four 25GE ports, the four SFP28 optical ports become unavailable.	6	Ground screw NOTE: It is used with a ground cable.
7	One USB port	8	One console port
9	One ETH management port	10	Rear card slot NOTE: Applicable card: S7X08000 S7Y08000 S7Q02001 (02313UBW) (applicable in V200R022C00 and later versions) S7Q02001 (02313UBW-002) (applicable in V200R022C00 and later versions) S7C02000 (applicable in V200R022C00 and later versions)
11	Fan module slot 1 NOTE: Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))	12	Fan module slot 2 NOTE: Applicable fan module: FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust))
13	Power module slot 1 NOTE: Applicable power module: PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module) PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module) PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module) (applicable in V200R020C10 and later versions) PDC1000S56-CB (1000 W PoE DC Power Module) (applicable in V200R021C00 and later versions) PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust)) (applicable in V200R021C10 and later versions)	14	Power module slot 2 NOTE: Applicable power module: PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module) PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module) PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module) (applicable in V200R020C10 and later versions) PDC1000S56-CB (1000 W PoE DC Power Module) (applicable in V200R021C00 and later versions) PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust)) (applicable in V200R021C10 and later versions)

S5732-H48XUM2CC Port Description

100M/1000M/2.5GE/5GE/10GE BASE-T port (multi-GE port)

Attribute	Description
Connector type	RJ45
Standards compliance	IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3an
Working Mode	100/1000/2500/5000/10000 Mbit/s auto-sensing

Cable Type (6-a-1 Bundle)	Multi-GE Port (Different Rates)
Cable Type (6-a-1 Bundle)	100M/1000M	2.5GE	5GE	10GE
Category 5e unshielded twisted pair (Cat5e UTP)	100 m	100 m	55 m 100 m (6-a-1 bundle only for the first 30 m) Not recommended due to high risk	Not supported
Category 5e shielded twisted pair (Cat5e STP)	100 m	100 m	100 m	Not supported
Category 6 unshielded twisted pair (Cat6 UTP)	100 m	100 m	100 m Not recommended due to high risk	Not supported
Category 6 shielded twisted pair (Cat6 STP)	100 m	100 m	100 m	Not supported
Category 6A unshielded twisted pair (Cat6A U/UTP)	100 m	100 m	100 m Not recommended due to high risk	Not supported
Category 6A foiled/unshielded twisted pair (Cat6A F/UTP)	100 m	100 m	100 m	100 m
Category 6A shielded twisted pair (Cat6A STP)	100 m	100 m	100 m	100 m
Category 7 twisted pair (Cat7)	100 m	100 m	100 m	100 m

Power Supply Medium (Cable Diameter)	Power Received by an AP	AP-Side Voltage	Maximum Power Supply Distance
Category 5e Ethernet cable (AWG23)	53 W (class 6)	47.2 V	100 m
Category 5e Ethernet cable (AWG23)	51 W (class 6)	45.0 V	150 m
Category 6 or 6A Ethernet cable (AWG24)	55 W (class 6)	47.2 V	100 m
Category 6 or 6A Ethernet cable (AWG24)	52 W (class 6)	45.0 V	150 m
Hybrid cable (1.5 mm2)	57 W (class 6)	52.2 V	100 m
	55 W (class 6)	50.8 V	150 m
	54 W (class 6)	50.0 V	180 m
	54 W (class 6)	49.4 V	200 m
	52 W (class 6)	48.0 V	250 m
	51 W (class 6)	46.5 V	300 m

10GE SFP+ optical port

Attribute	Description
Connector type	LC/PC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ae
Working mode	GE/10GE auto-sensing

1GE/10GE/25GE SFP28 optical port

Attribute	Description
Connector Type	LC/PC
Optical port attributes	Depending on the optical module or cable in use
Standards compliance	IEEE802.3z, IEEE802.3ae, and IEEE802.3by
Working mode	When a 25GE optical module or cable is connected to a port, the port can automatically adjust its rate to 25 Gbit/s. When a 10GE optical module or cable is connected to a port, the port can automatically adjust its rate to 10 Gbit/s. Before installing a GE optical module or copper module on a port, run the port mode ge command to configure the port to work at 1 Gbit/s.

40GE/100GE QSFP28 optical port

Attribute	Description
Connector type	MPO/LC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ba

Technical specifications of the S5732-H48XUM2CC

Item	Description
Memory (RAM)	4 GB
Flash	2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	32.38 years
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (including package)	8.2 kg (18.08 lb)
Stack ports	Any Ethernet electrical ports (10GE), optical ports on the front panel (10GE/25GE/40GE/100GE), or optical ports on the card (10GE/25GE/40GE/100GE)
RTC	Supported
RPS	Not supported
PoE	Supported
Rated voltage range	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	Not providing the PoE function: 338 W (without card) 100% PoE loads: 1980 W (PoE: 1440 W, without card)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	231 W (without card)
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 63.1 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02353MLH 02353MLH-001 02353MLH-002

Optical Modules Supported by Huawei S Series Switches

Module Name	Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310	2 km
eSFP-FE-LX-SM1310	15 km
S-SFP-FE-LH40-SM1310	40 km
S-SFP-FE-LH80-SM1550	80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module)	15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310	10 km
S-SFP-GE-LH40-SM1310	40 km
S-SFP-GE-LH40-SM1550	40 km
S-SFP-GE-LH80-SM1550	80 km
eSFP-GE-ZX100-SM1550	100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module)	10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)	40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)	40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module)	10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1	10 km
CSFP-GE-FE-BIDI2	20 km
CSFP-GE-FE-BIDI4	40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271	80 km
CWDM-SFPGE-1291	80 km
CWDM-SFPGE-1311	80 km
CWDM-SFPGE-1331	80 km
CWDM-SFPGE-1351	80 km
CWDM-SFPGE-1371	80 km
CWDM-SFPGE-1391	80 km
CWDM-SFPGE-1411	80 km
CWDM-SFPGE-1431	80 km
CWDM-SFPGE-1451	80 km
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61	120 km
10GE SFP+ Optical Modules
SFP-10G-USR	0.1 km
OSXD22N00	Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.1 km Multimode fiber (with modal bandwidth of 500 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
SFP-10G-iLR	1.4 km
OSX010000	10 km
OSX040N01	40 km
SFP-10G-ER-1310	40 km
SFP-10G-ZR	80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module)	40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module)	40 km
10GE XFP Optical Modules
XFP-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310	10 km
XFP-STM64-LH40-SM1550	40 km
XFP-STM64-SM1550-80km	80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471	70 km
SFP-10G-ZCW1491	70 km
SFP-10G-ZCW1511	70 km
SFP-10G-ZCW1531	70 km
SFP-10G-ZCW1551	70 km
SFP-10G-ZCW1571	70 km
SFP-10G-ZCW1591	70 km
SFP-10G-ZCW1611	70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471	70 km
CWDM-XFP10G-1491	70 km
CWDM-XFP10G-1511	70 km
CWDM-XFP10G-1531	70 km
CWDM-XFP10G-1551	70 km
CWDM-XFP10G-1571	70 km
CWDM-XFP10G-1591	70 km
CWDM-XFP10G-1611	70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT	60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47	80 km
DWDM-XFP10G-1534-25	80 km
DWDM-XFP10G-1535-04	80 km
DWDM-XFP10G-1552-52	80 km
DWDM-XFP10G-1553-33	80 km
DWDM-XFP10G-1554-13	80 km
DWDM-XFP10G-1530-33	80 km
DWDM-XFP10G-1549-32	80 km
DWDM-XFP10G-1531-12	80 km
DWDM-XFP10G-1531-90	80 km
DWDM-XFP10G-1550-12	80 km
DWDM-XFP10G-1550-92	80 km
DWDM-XFP10G-1532-68	80 km
DWDM-XFP10G-1551-72	80 km
DWDM-XFP10G-1529-55	80 km
DWDM-XFP10G-1548-51	80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4	1.4 km
QSFP-40G-eSM4	10 km
QSFP-40G-LX4	Single-mode fiber: 2 km Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4	10 km
QSFP-40G-ER4	40 km
QSFP-40G-SR-BD	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-40G-LR4	10 km
CFP-40G-ER4	40 km
CFP-40G-ZR4	80 km
100GE CFP Optical Modules
CFP-100G-SR10	Multimode fiber (OM2): 0.03 km Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-100G-LR4	10 km
CFP-100G-ER4	40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4	10 km
QSFP28-100G-10KM	10 km
QSFP28-100G-PSM4	500 m
QSFP28-100G-SR4	Multimode fiber (OM3): 70 m Multimode fiber (OM4): 100 m
QSFP-100G-eSR4	Multimode fiber (OM3): 200 m Multimode fiber (OM4): 300 m
QSFP-100G-CLR4	2 km
QSFP-100G-CWDM4	2 km
QSFP-100G-ER4-Lite	Single-mode fiber (G.652): Disables the RS-FEC function: 30 km Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2	20 km
Industrial Optical Modules
OGSM01880	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km
OGSC10DD0	10 km
OGSC40DD0	40 km
SFP+10GE-LH10-SM1310	10 km
SFP-10G-SR	0.3 km
SFP-10G-iLR	1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module)	10 km
