Huawei CE6881-48S6CQ-K Switch

Huawei S6720-30C-EI-24S-DC 24-port Switch

Name: Huawei S6720-30C-EI-24S-DC 24-port Switch
Brand: Guangzhou Mifan Electronic Technology Co., Ltd
SKU: MF0202
Price: 2150.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MF0202

Huawei S6720-30C-EI-24S-DC 24-port SwitchHuawei CloudEngine S6720-30C-EI-24S-DC switch, fixed 24*10GE SFP+ ports, 2*40GE QSFP+ ports, 2 pluggable power slots flexible configuration with AC/DC power module

Brand

Huawei

Part Number

02350NHU

Packing Box Specifications

45*44*45cm

Gross Weight

10kg

Condition

Original New

Lead Time

1-3 working days

Warranty

12 months

Shipping Method

DHL, UPS, FedEx, Sea/Air/Railway Freight

Payment Method

PayPal, Bank Transfer(T/T), LC, Western Union, UnionPay, Alipay

Power:

AC power module

DC power module

Get Price/Help

Bulk Quote View Quote List

Description
Huawei Switch Module

S6720-30C-EI-24S-DC Introduction

Fixed ports: 24*10GE SFP+ ports, 2*40GE QSFP+ ports
2 pluggable power slots, 1+1 power backup

S6730-S Series Switches Overview

The S series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and their hardware system consists of the chassis, power module, fan module, extended cards, and Switch Control Unit (SCU).

The S series fixed Ethernet switches are available in a variety of models for you to choose based on your network requirements.

S6700 Series Switches Characteristics
The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports. It can function as a core switch on a campus network to provide 40 Gbit/s even 100 Gbit/s traffic aggregation.

The Huawei S6720-30C-EI-24S-DC is a mid-range DC-powered enterprise-grade all-optical 10 Gigabit switch in the Huawei S6720 series. Its core advantage is its all-optical core/aggregation networking for medium-sized DC-powered scenarios—24 10G pure optical ports + 6 40G uplink optical ports, adaptable to 5000-8000 terminals; DC input voltage supports a wide range of -48V to -60V, suitable for IDC/industrial centralized power supply systems; total switching capacity ≥960Gbps, forwarding performance up to 720Mpps, equipped with simplified enterprise-grade routing, VRRP high availability, fine-grained QoS and other core functions; built-in 12KV surge protection + power redundancy design, annual failure rate <0.015%, making it a mid-range preferred choice for medium-sized campus core layers, small and medium-sized IDCs, and industrial aggregation layers, balancing performance, stability and cost-effectiveness.

S6720-30C-EI-24S-DC FAQ

Q1: What are the core differences between this and the high-end S6720-54C-EI-48S-DC?

A1: The former is a mid-range 24-port model, with port count suitable for medium-sized scenarios, featuring simplified enterprise-level functions and a more cost-effective price; the latter is a high-end 48-port high-density model, offering full functionality and high-density access, suitable for large-scale scenarios. Both have consistent DC power supply stability and core performance.

Q2: Is the bandwidth sufficient for simultaneous high-load operation of 24 ports (10G) + 6 ports (40G)?

A2: Yes, it is sufficient. The total switching capacity is ≥960Gbps, and the forwarding performance reaches 720Mpps, easily handling concurrent transmission from 8000 terminals. The 40G uplink provides 240G total bandwidth with no risk of lag or packet loss.

Q3: Is it necessary to choose a mid-range DC enterprise-level switch for medium-sized scenarios?

A3: DC power supply is suitable for centralized power supply needs in professional scenarios, enterprise-level functions meet complex networking requirements, 24 ports avoid resource waste, and the price is 30%-40% lower than high-end models, making it a balanced choice of "performance + cost".

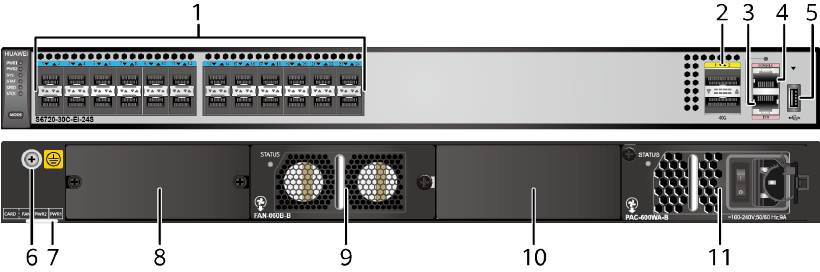

S6720-30C-EI-24S-DC Appearance

1	Twenty-four 10GE SFP+ ports Applicable modules and cables: GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (100M/1000M auto-sensing supported in V200R009 and later versions) 10GE SFP+ optical module (OSXD22N00 not supported) 10GE-CWDM optical module 10GE-DWDM optical module (applicable in V200R009C00 and later versions) 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack copper cables (the last 16 ports are supported, used for zero-configuration stacking, supported in V200R011C10 and later versions)	2	Two 40GE QSFP+ ports Applicable modules and cables: QSFP+ optical module 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables 1 m, 3 m, and 5 m QSFP+ to 4SFP+ high-speed copper cables 10 m QSFP+ to QSFP+ AOC cable (applicable in V200R009C00 and later versions) 10 m QSFP+ to 4SFP+ AOC cable (applicable in V200R009C00 and later versions) NOTE: A 40GE QSFP+ optical port can be split into four 10GE ports.
3	One ETH management port	4	One console port
5	One USB port	6	Ground screw NOTE: It is used with a ground cable.
7	ESN label NOTE: You can draw it out to view the ESN and MAC address of the switch.	8	Rear card slot NOTE: Card supported: ES5D21Q04Q01 ES5D21X08S00 (applicable in V200R012C00 and later versions) ES5D21X04S01 (applicable in V200R019C00 and later versions)
9	Fan slot NOTE: Applicable fan module: FAN-060B-B (Fan Box (B, Fan Panel Side Exhaust))	10	Power module slot 2 NOTE: Applicable power modules: PDC-350WA-B (350 W DC Power Module) PAC-600WA-B (600 W AC Power Module) PAC-600WD-B (600 W AC Power Module) (applicable in V200R020C10 and later versions)
11	Power module slot 1 NOTE: Applicable power modules: PDC-350WA-B (350 W DC Power Module) PAC-600WA-B (600 W AC Power Module) PAC-600WD-B (600 W AC Power Module) (applicable in V200R020C10 and later versions)	-	-

S6720-30C-EI-24S-DCPort Description

10GE SFP+ port

Attribute	Description
Connector type	LC/PC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ae
Working mode	GE/10GE auto-sensing

40GE QSFP+ port

Attribute	Description
Connector type	MPO/LC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ba

Technical specifications of the S6720-30C-EI-24S-DC

Item	Description
Memory (RAM)	2 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	80.60 years (without card)
Availability	> 0.99999
Service port surge protection	NA
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)
Weight (with packaging)	9.8 kg (21.61 lb)
Stack ports	Any 10GE SFP+ ports (a maximum of 16 physical ports) Any 40GE QSFP+ ports (a maximum of 6 physical ports)
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	212.5 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	141 W (without card)
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 72.1 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02350NHU

Optical Modules Supported by Huawei S Series Switches

Module Name	Maximum Transmission Distance
FE SFP/eSFP Optical Modules
SFP-FE-SX-MM1310	2 km
eSFP-FE-LX-SM1310	15 km
S-SFP-FE-LH40-SM1310	40 km
S-SFP-FE-LH80-SM1550	80 km
SFP-FE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	15 km
SFP-FE-LX-SM1550-BIDI (Single-Fiber-Bidirectional Module)	15 km
GE eSFP Optical Modules
eSFP-GE-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km Multimode fiber (OM3): 1 km
SFP-GE-LX-SM1310	10 km
S-SFP-GE-LH40-SM1310	40 km
S-SFP-GE-LH40-SM1550	40 km
S-SFP-GE-LH80-SM1550	80 km
eSFP-GE-ZX100-SM1550	100 km
SFP-GE-LX-SM1310-BIDI (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-LX-SM1490-BIDI (Single-Fiber-Bidirectional Module)	10 km
LE2MGSC40DE0 (Single-Fiber-Bidirectional Module)	40 km
LE2MGSC40ED0 (Single-Fiber-Bidirectional Module)	40 km
SFP-GE-ZBXD1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-ZBXU1 (Single-Fiber-Bidirectional Module)	80 km
SFP-GE-BXU1-SC (Single-Fiber-Bidirectional Module)	10 km
GE CSFP Optical Modules
CSFP-GE-FE-BXD1	10 km
CSFP-GE-FE-BIDI2	20 km
CSFP-GE-FE-BIDI4	40 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-CWDM eSFP Optical Modules
CWDM-SFPGE-1271	80 km
CWDM-SFPGE-1291	80 km
CWDM-SFPGE-1311	80 km
CWDM-SFPGE-1331	80 km
CWDM-SFPGE-1351	80 km
CWDM-SFPGE-1371	80 km
CWDM-SFPGE-1391	80 km
CWDM-SFPGE-1411	80 km
CWDM-SFPGE-1431	80 km
CWDM-SFPGE-1451	80 km
CWDM-SFPGE-1471	80 km
CWDM-SFPGE-1491	80 km
CWDM-SFPGE-1511	80 km
CWDM-SFPGE-1531	80 km
CWDM-SFPGE-1551	80 km
CWDM-SFPGE-1571	80 km
CWDM-SFPGE-1591	80 km
CWDM-SFPGE-1611	80 km
GE-DWDM eSFP Optical Modules
DWDM-SFPGE-1560-61	120 km
10GE SFP+ Optical Modules
SFP-10G-USR	0.1 km
OSXD22N00	Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.1 km Multimode fiber (with modal bandwidth of 500 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1, OM2, OM3): 0.22 km
OMXD30000	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
SFP-10G-iLR	1.4 km
OSX010000	10 km
OSX040N01	40 km
SFP-10G-ER-1310	40 km
SFP-10G-ZR	80 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-ER-SM1330-BIDI (Single-Fiber-Bidirectional Module)	40 km
SFP-10G-ER-SM1270-BIDI (Single-Fiber-Bidirectional Module)	40 km
10GE XFP Optical Modules
XFP-SX-MM850	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
XFP-STM64-LX-SM1310	10 km
XFP-STM64-LH40-SM1550	40 km
XFP-STM64-SM1550-80km	80 km
10GE-CWDM SFP+ Optical Modules
SFP-10G-ZCW1471	70 km
SFP-10G-ZCW1491	70 km
SFP-10G-ZCW1511	70 km
SFP-10G-ZCW1531	70 km
SFP-10G-ZCW1551	70 km
SFP-10G-ZCW1571	70 km
SFP-10G-ZCW1591	70 km
SFP-10G-ZCW1611	70 km
10GE-CWDM XFP Optical Modules
CWDM-XFP10G-1471	70 km
CWDM-XFP10G-1491	70 km
CWDM-XFP10G-1511	70 km
CWDM-XFP10G-1531	70 km
CWDM-XFP10G-1551	70 km
CWDM-XFP10G-1571	70 km
CWDM-XFP10G-1591	70 km
CWDM-XFP10G-1611	70 km
10GE-DWDM SFP+ Optical Modules
SFP-10G-ZDWT	60 km
10GE-DWDM XFP Optical Modules
DWDM-XFP10G-1533-47	80 km
DWDM-XFP10G-1534-25	80 km
DWDM-XFP10G-1535-04	80 km
DWDM-XFP10G-1552-52	80 km
DWDM-XFP10G-1553-33	80 km
DWDM-XFP10G-1554-13	80 km
DWDM-XFP10G-1530-33	80 km
DWDM-XFP10G-1549-32	80 km
DWDM-XFP10G-1531-12	80 km
DWDM-XFP10G-1531-90	80 km
DWDM-XFP10G-1550-12	80 km
DWDM-XFP10G-1550-92	80 km
DWDM-XFP10G-1532-68	80 km
DWDM-XFP10G-1551-72	80 km
DWDM-XFP10G-1529-55	80 km
DWDM-XFP10G-1548-51	80 km
40GE QSFP+ Optical Modules
QSFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-iSR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-eSR4	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.026 km Multimode fiber (OM1): 0.033 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.066 km Multimode fiber (OM2): 0.082 km Multimode fiber (OM3): 0.3 km Multimode fiber (OM4): 0.4 km
QSFP-40G-iSM4	1.4 km
QSFP-40G-eSM4	10 km
QSFP-40G-LX4	Single-mode fiber: 2 km Multimode fiber (OM3): 0.15 km
QSFP-40G-LR4	10 km
QSFP-40G-ER4	40 km
QSFP-40G-SR-BD	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
QSFP-40G-SDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 150 m
QSFP-40G-eSDLC-PAM	Multimode fiber (OM3): 100 m Multimode fiber (OM4): 300 m
40GE CFP Optical Modules
CFP-40G-SR4	Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-40G-LR4	10 km
CFP-40G-ER4	40 km
CFP-40G-ZR4	80 km
100GE CFP Optical Modules
CFP-100G-SR10	Multimode fiber (OM2): 0.03 km Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.15 km
CFP-100G-LR4	10 km
CFP-100G-ER4	40 km
100GE QSFP28 Optical Modules
QSFP28-100G-LR4	10 km
QSFP28-100G-10KM	10 km
QSFP28-100G-PSM4	500 m
QSFP28-100G-SR4	Multimode fiber (OM3): 70 m Multimode fiber (OM4): 100 m
QSFP-100G-eSR4	Multimode fiber (OM3): 200 m Multimode fiber (OM4): 300 m
QSFP-100G-CLR4	2 km
QSFP-100G-CWDM4	2 km
QSFP-100G-ER4-Lite	Single-mode fiber (G.652): Disables the RS-FEC function: 30 km Enables the RS-FEC function: 40 km
GPON Optical Modules
H87MMA5671A2	20 km
Industrial Optical Modules
OGSM01880	Multimode fiber (with modal bandwidth of 160 MHzkm and diameter of 62.5 μm): 0.22 km Multimode fiber (OM1): 0.275 km Multimode fiber (with modal bandwidth of 400 MHzkm and diameter of 50 μm): 0.5 km Multimode fiber (OM2): 0.55 km
OGSC10DD0	10 km
OGSC40DD0	40 km
SFP+10GE-LH10-SM1310	10 km
SFP-10G-SR	0.3 km
SFP-10G-iLR	1.4 km
SFP-10G-BXU1 (Single-Fiber-Bidirectional Module)	10 km
SFP-10G-BXD1 (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-D1-I (Single-Fiber-Bidirectional Module)	10 km
SFP-GE-BX-U1-I (Single-Fiber-Bidirectional Module)	10 km
